9K9L | pdb_00009k9l

Cryo-EM structure of the human CENP-A-H4 octasome.


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.66 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Cryo-EM Analysis of a Unique Subnucleosome Containing Centromere-Specific Histone Variant CENP-A.

Kawasaki, O.Takizawa, Y.Kiyokawa, I.Kurumizaka, H.Nozawa, K.

(2025) Genes Cells 30: e70016-e70016

  • DOI: https://doi.org/10.1111/gtc.70016
  • Primary Citation of Related Structures:
    9K9L

  • PubMed Abstract:

    In eukaryotes, genomic DNA is stored in the nucleus as nucleosomes, in which a DNA segment is wrapped around a protein octamer consisting of two each of the four histones, H2A, H2B, H3, and H4. The core histones can be replaced by histone variants or altered with covalent modifications, contributing to the regulation of chromosome structure and nuclear activities. The formation of an octameric histone core in nucleosomes is widely accepted. Recently, the H3-H4 octasome, a novel nucleosome-like structure with a histone octamer consisting solely of H3 and H4, has been reported. CENP-A is the centromere-specific histone H3 variant and determines the position of kinetochore assembly during mitosis. CENP-A is a distant H3 variant sharing approximately 50% amino acid sequence with H3. In this study, we found that CENP-A and H4 also formed an octamer without H2A and H2B in vitro. We determined the structure of the CENP-A-H4 octasome at 3.66 Å resolution. In the CENP-A-H4 octasome, an approximately 120-base pair DNA segment was wrapped around the CENP-A-H4 octameric core and displayed the four CENP-A RG-loops, which are the direct binding sites for another centromeric protein, CENP-N.


  • Organizational Affiliation
    • School of Life Science and Technology, Institute of Science Tokyo, Yokohama, Kanagawa, Japan.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

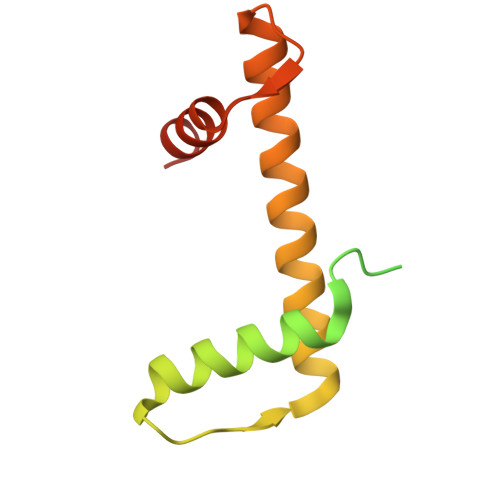

Histone H3-like centromeric protein A
A, C, E, G
143Homo sapiensMutation(s): 0
Gene Names: CENPA
UniProt & NIH Common Fund Data Resources
Find proteins for P49450 (Homo sapiens)
Explore P49450
Go to UniProtKB:  P49450
PHAROS:  P49450
GTEx:  ENSG00000115163
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP49450
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

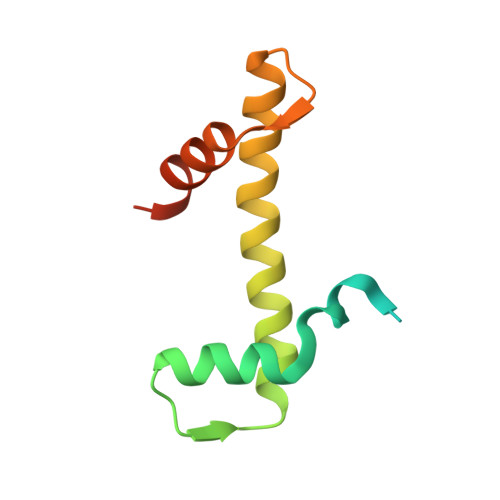

Histone H4
B, D, F, H
106Homo sapiensMutation(s): 0
Gene Names: H4C1
UniProt & NIH Common Fund Data Resources
Find proteins for P62805 (Homo sapiens)
Explore P62805
Go to UniProtKB:  P62805
PHAROS:  P62805
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62805
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains LengthOrganismImage
Widom601 DNA FW (145-MER)145synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains LengthOrganismImage
Widom601 DNA RV (145-MER)145synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.66 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Japan Science and TechnologyJapanJPMJER1901
Japan Science and TechnologyJapanJPMJFR224Z
Japan Society for the Promotion of Science (JSPS)Japan23H02519
Japan Society for the Promotion of Science (JSPS)JapanJP22K06098
Japan Agency for Medical Research and Development (AMED)JapanJP24ama121009
Japan Agency for Medical Research and Development (AMED)JapanJP24ama121003

Revision History  (Full details and data files)

  • Version 1.0: 2025-04-30
    Type: Initial release
  • Version 1.1: 2025-06-25
    Changes: Data collection
