9JGK | pdb_00009jgk

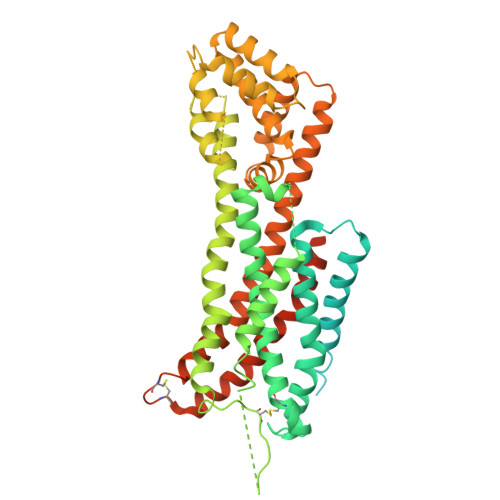

cryo-EM structure of 5-Hydroxytryptamine 2B Receptor in complex with balovaptan

PDB DOI: https://doi.org/10.2210/pdb9JGK/pdb
EM Map EMD-61466: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Escherichia coli, Homo sapiens, synthetic construct
Expression System: Spodoptera frugiperda
Mutation(s): Yes

Deposited: 2024-09-07 Released: 2025-07-16
Deposition Author(s): Gao, K., Zhang, X., Liu, X.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.60 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9JGK

This is version 1.1 of the entry. See complete history.

Literature

cryo-EM structure of 5-Hydroxytryptamine 2B Receptor in complex with balovaptan

Kaixuan, G., Xin, Z., Xiangyu, L.

To be published.

Macromolecule Content

Total Structure Weight: 63.81 kDa
Atom Count: 2,606
Modeled Residue Count: 374
Deposited Residue Count: 568
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Soluble cytochrome b562,5-hydroxytryptamine receptor 2B,Soluble cytochrome b562,5-hydroxytryptamine receptor 2B,de novo design fusion protein	A	568	Escherichia coli, Homo sapiens, synthetic construct	Mutation(s): 1 Gene Names: cybC, HTR2B
UniProt & NIH Common Fund Data Resources
Find proteins for P41595 (Homo sapiens) Explore P41595 Go to UniProtKB: P41595
PHAROS: P41595 GTEx: ENSG00000135914
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P41595
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1EB7 (Subject of Investigation/LOI) Query on A1EB7 Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	Balovaptan C₂₂ H₂₄ Cl N₅ O GMPZPHGHNDMRKL-RZDIXWSQSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.60 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-07-16

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	81974236

Revision History (Full details and data files)

Version 1.0: 2025-07-16
Type: Initial release
Version 1.1: 2025-11-26
Changes: Data collection, Derived calculations, Structure summary
