9IYN | pdb_00009iyn

ChCODH2 A559H_V610H mutant

PDB DOI: https://doi.org/10.2210/pdb9IYN/pdb

Classification: OXIDOREDUCTASE
Organism(s): Carboxydothermus hydrogenoformans Z-2901
Expression System: Escherichia coli
Mutation(s): Yes

Deposited: 2024-07-31 Released: 2025-08-06
Deposition Author(s): Kong, S.Y., Yoon, H.J., Kim, S.M., Lee, H.H.
Funding Organization(s): Other government

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.83 Å
R-Value Free:
0.220 (Depositor), 0.208 (DCC)
R-Value Work:
0.168 (Depositor)
R-Value Observed:
0.170 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9IYN

This is version 1.0 of the entry. See complete history.

Literature

Air-viable, rapid CO dehydrogenase with a selectively sealed tunnel

Kong, S.Y., Yoon, H.J., Kim, S.M., Lee, H.H.

To be published.

Macromolecule Content

Total Structure Weight: 70.29 kDa
Atom Count: 5,025
Modeled Residue Count: 633
Deposited Residue Count: 656
Unique protein chains: 1

Macromolecules

Find similar proteins by:

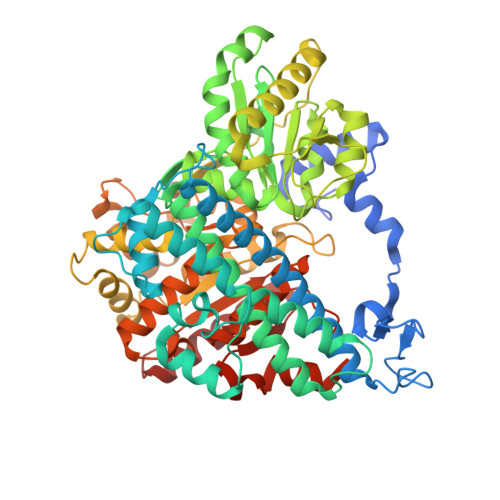

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Carbon monoxide dehydrogenase 2	A	656	Carboxydothermus hydrogenoformans Z-2901	Mutation(s): 2 Gene Names: cooS2, cooSII, CHY_0085 EC: 1.2.7.4
UniProt
Find proteins for Q9F8A8 (Carboxydothermus hydrogenoformans (strain ATCC BAA-161 / DSM 6008 / Z-2901)) Explore Q9F8A8 Go to UniProtKB: Q9F8A8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9F8A8
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
XCC Query on XCC Download:Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	FE(4)-NI(1)-S(4) CLUSTER Fe₄ Ni S₄ QGLWBXDZIHZONR-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]
SF4 Query on SF4 Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	IRON/SULFUR CLUSTER Fe₄ S₄ LJBDFODJNLIPKO-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
FES Query on FES Download:Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	FE2/S2 (INORGANIC) CLUSTER Fe₂ S₂ NIXDOXVAJZFRNF-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]
FE Query on FE Download:Ideal Coordinates CCD File SDF format, chain E [auth A] MOL2 format, chain E [auth A] mmCIF format, chain E [auth A]	E [auth A]	FE (III) ION Fe VTLYFUHAOXGGBS-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Interactions & Density Focus chain E [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.83 Å
R-Value Free: 0.220 (Depositor), 0.208 (DCC)
R-Value Work: 0.168 (Depositor)
R-Value Observed: 0.170 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 111.867	α = 90
b = 75.311	β = 111.22
c = 70.948	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
HKL-2000	data scaling
PDB_EXTRACT	data extraction
HKL-2000	data reduction
REFMAC	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-08-06

Deposition Author(s):

Funding Organization	Location	Grant Number
Other government		--

Revision History (Full details and data files)

Version 1.0: 2025-08-06
Type: Initial release
