9ISP | pdb_00009isp

DUF2436 domain which is frequently found in virulence proteins from Porphyromonas gingivalis


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.21 Å
  • R-Value Free:
    0.259 (Depositor), 0.259 (DCC)
  • R-Value Work:
    0.238 (Depositor), 0.238 (DCC)
  • R-Value Observed:
    0.239 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

First crystal structure of the DUF2436 domain of virulence proteins from Porphyromonas gingivalis.

Kim, B.Hwang, J.Im, S.Do, H.Shim, Y.S.Lee, J.H.

(2024) Acta Crystallogr F Struct Biol Commun 80: 252-262

  • DOI: https://doi.org/10.1107/S2053230X24008185
  • Primary Citation of Related Structures:
    9ISP

  • PubMed Abstract:

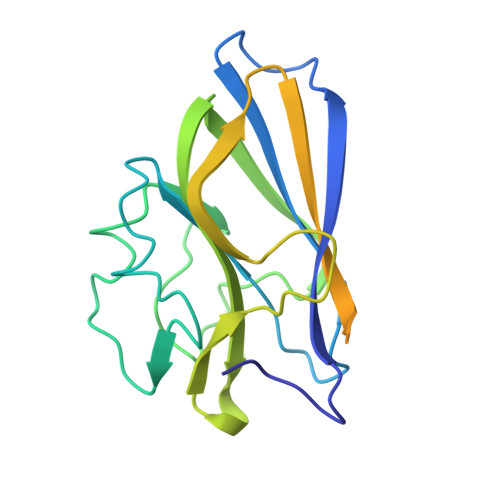

    Porphyromonas gingivalis is a major pathogenic oral bacterium that is responsible for periodontal disease. It is linked to chronic periodontitis, gingivitis and aggressive periodontitis. P. gingivalis exerts its pathogenic effects through mechanisms such as immune evasion and tissue destruction, primarily by secreting various factors, including cysteine proteases such as gingipain K (Kgp), gingipain R (RgpA and RgpB) and PrtH (UniProtKB ID P46071). Virulence proteins comprise multiple domains, including the pro-peptide region, catalytic domain, K domain, R domain and DUF2436 domain. While there is a growing database of knowledge on virulence proteins and domains, there was no prior evidence or information regarding the structure and biological function of the well conserved DUF2436 domain. In this study, the DUF2436 domain of PrtH from P. gingivalis (PgDUF2436) was determined at 2.21 Å resolution, revealing a noncanonical β-jelly-roll sandwich topology with two antiparallel β-sheets and one short α-helix. Although the structure of PgDUF2436 was determined by the molecular-replacement method using an AlphaFold model structure as a template, there were significant differences in the positions of β1 between the AlphaFold model and the experimentally determined PgDUF2436 structure. The Basic Local Alignment Search Tool sequence-similarity search program showed no sequentially similar proteins in the Protein Data Bank. However, DaliLite search results using structure-based alignment revealed that the PgDUF2436 structure has structural similarity Z-scores of 5.9-5.4 with the C-terminal domain of AlgF, the D4 domain of cytolysin, IglE and the extracellular domain structure of PepT2. This study has elucidated the structure of the DUF2436 domain for the first time and a comparative analysis with similar structures has been performed.


  • Organizational Affiliation
    • Division of Life Sciences, Korea Polar Research Institute, Incheon 21990, Republic of Korea.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Protease PrtH220Porphyromonas gingivalis W83Mutation(s): 0
Gene Names: prtH
EC: 3.4.22
UniProt
Find proteins for P46071 (Porphyromonas gingivalis (strain ATCC BAA-308 / W83))
Explore P46071
Go to UniProtKB:  P46071
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP46071
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.21 Å
  • R-Value Free:  0.259 (Depositor), 0.259 (DCC)
  • R-Value Work:  0.238 (Depositor), 0.238 (DCC)
  • R-Value Observed: 0.239 (Depositor)
Space Group: P 32 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 101.275α = 90
b = 101.275β = 90
c = 70.168γ = 120
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XDSdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Research Foundation (NRF, Korea)Korea, Republic Of--

Revision History  (Full details and data files)

  • Version 1.0: 2024-10-09
    Type: Initial release
  • Version 1.1: 2024-10-16
    Changes: Database references
