9IPL | pdb_00009ipl

A tetrapyrrole binding domain variant of CoaR in closed conformation at 2.28 angstrom resolution

• PDB DOI: https://doi.org/10.2210/pdb9IPL/pdb

• Classification: METAL BINDING PROTEIN
• Organism(s): Synechocystis sp. PCC 6803 substr. Kazusa
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2024-07-10 Released: 2025-07-16
• Deposition Author(s): Liu, X.C.
• Funding Organization(s): National Science Foundation (NSF, China)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.28 Å
• R-Value Free:
  0.230 (Depositor), 0.232 (DCC)
• R-Value Work:
  0.209 (Depositor), 0.215 (DCC)
• R-Value Observed:
  0.210 (Depositor)

Starting Model: in silico

Literature

A tetrapyrrole binding domain variant of CoaR in closed conformation at 2.28 angstrom resolution

Liu, X.C.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Biological Assembly 2

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 2 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 47.45 kDa
• Atom Count: 3,091
• Modeled Residue Count: 396
• Deposited Residue Count: 436
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

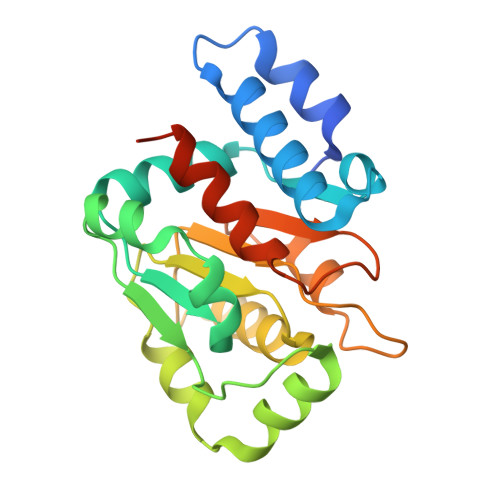

Mercuric resistance operon regulatory protein precorrin isomerase	A, B	218	Synechocystis sp. PCC 6803 substr. Kazusa	Mutation(s): 0  Gene Names: merR
UniProt
Find proteins for Q55938 (Synechocystis sp. (strain ATCC 27184 / PCC 6803 / Kazusa)) Explore Q55938  Go to UniProtKB:  Q55938

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
SO4	C [auth A], D [auth A], E [auth A], F [auth A], G [auth B], H [auth B], I [auth B], J [auth B]	SULFATE ION O4 S QAOWNCQODCNURD-UHFFFAOYSA-L

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.28 Å
• R-Value Free:  0.230 (Depositor), 0.232 (DCC)
• R-Value Work:  0.209 (Depositor), 0.215 (DCC)
• R-Value Observed: 0.210 (Depositor)

Space Group: P 6₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 96.043	α = 90
b = 96.043	β = 90
c = 148.664	γ = 120

Software Package:

Software Name	Purpose
REFMAC	refinement
xia2	data reduction
DIALS	data scaling
PHASER	phasing

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2025-07-16
Deposition Author(s): Liu, X.C.

---

Funding Organization	Location	Grant Number
National Science Foundation (NSF, China)	China	--

Revision History

• Version 1.0: 2025-07-16
  Type: Initial release
