9IIU | pdb_00009iiu

Cryo-EM structure of an TEF30-associated intermediate PSII core complex from Chlamydomonas reinhardtii


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.98 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Roles of multiple TEF30-associated intermediate complexes in the repair and reassembly of photosystem II in Chlamydomonas reinhardtii.

Wang, Y.Wang, C.Li, A.Liu, Z.

(2025) Nat Plants 11: 1455-1469

  • DOI: https://doi.org/10.1038/s41477-025-02036-3
  • Primary Citation of Related Structures:
    9IIU, 9IMN, 9IOX, 9IS4

  • PubMed Abstract:

    During oxygenic photosynthesis, photosystem II (PSII) uses light energy for oxidizing water and reducing plastoquinone. It is susceptible to photodamage, and the damaged PSII is repaired through a sophisticated biological process assisted by numerous auxiliary proteins. Here we report the cryogenic electron microscopy structures of four PSII-repair complexes from Chlamydomonas reinhardtii associated with the Thylakoid Enriched Fraction 30 (TEF30, an orthologue of plant MET1) protein-namely, a TEF30-PSII core monomer (TEF30-C), two types of TEF30-PSII core dimers (types I and II, TEF30 2 -C 2 -I and TEF30 2 -C 2 -II) and a TEF30-C 2 S-type PSII-LHCII supercomplex (TEF30-C 2 S; S, strongly associated light-harvesting complex II trimer). TEF30 mediates the assembly of CP43 with the RC47 module by clamping on the stromal surfaces and prevents the premature association of peripheral antennae with PSII-C. In the transition from TEF30 2 -C 2 -I to TEF30 2 -C 2 -II, TEF30-C 2 S and mature C 2 S 2 , one PSII core slides along the dimerization interface against the adjacent one by 22-35 Å, generating a zigzagged surface for accommodating the peripheral antennae. These results suggest that the PSII repair process undergoes multiple TEF30-mediated intermediate states to form intact PSII-LHCII supercomplexes.


  • Organizational Affiliation
    • Key Laboratory of Biomacromolecules (CAS), National Laboratory of Biomacromolecules, CAS Centre for Excellence in Biomacromolecules, Institute of Biophysics, Chinese Academy of Sciences, Beijing, China.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

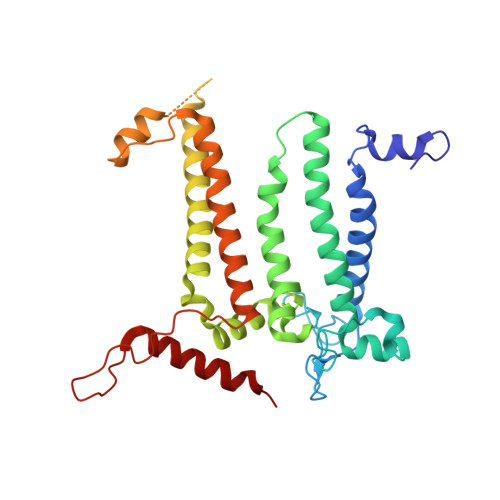

Photosystem II protein D1326Chlamydomonas reinhardtiiMutation(s): 0
EC: 1.10.3.9
UniProt
Find proteins for P07753 (Chlamydomonas reinhardtii)
Explore P07753
Go to UniProtKB:  P07753
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP07753
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Photosystem II CP47 reaction center protein480Chlamydomonas reinhardtiiMutation(s): 0
UniProt
Find proteins for P37255 (Chlamydomonas reinhardtii)
Explore P37255
Go to UniProtKB:  P37255
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP37255
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Photosystem II CP43 reaction center protein450Chlamydomonas reinhardtiiMutation(s): 0
UniProt
Find proteins for P10898 (Chlamydomonas reinhardtii)
Explore P10898
Go to UniProtKB:  P10898
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP10898
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

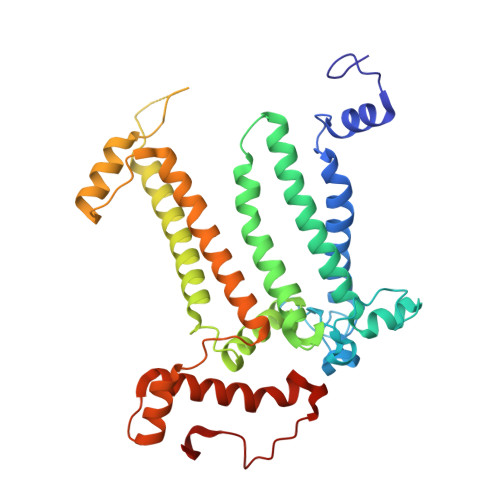

Photosystem II D2 protein349Chlamydomonas reinhardtiiMutation(s): 0
EC: 1.10.3.9
UniProt
Find proteins for P06007 (Chlamydomonas reinhardtii)
Explore P06007
Go to UniProtKB:  P06007
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP06007
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

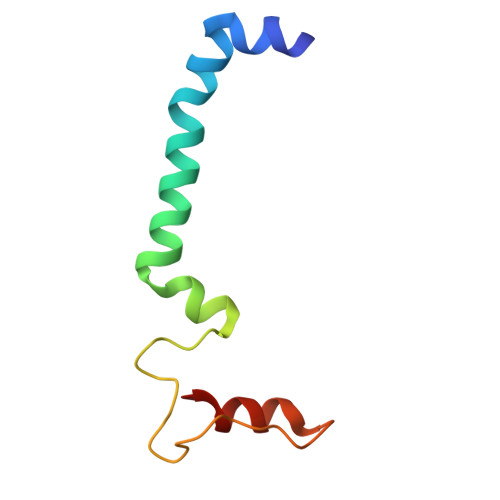

Cytochrome b559 subunit alpha75Chlamydomonas reinhardtiiMutation(s): 0
UniProt
Find proteins for P48268 (Chlamydomonas reinhardtii)
Explore P48268
Go to UniProtKB:  P48268
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP48268
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage

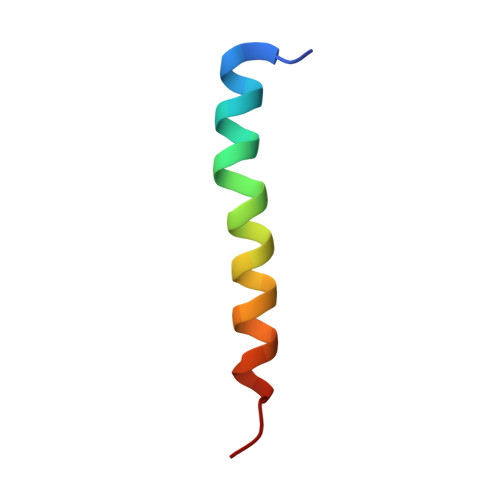

Cytochrome b559 subunit beta31Chlamydomonas reinhardtiiMutation(s): 0
UniProt
Find proteins for Q08363 (Chlamydomonas reinhardtii)
Explore Q08363
Go to UniProtKB:  Q08363
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ08363
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
PDZ domain-containing protein258Chlamydomonas reinhardtiiMutation(s): 0
UniProt
Find proteins for A0A2K3E6S5 (Chlamydomonas reinhardtii)
Explore A0A2K3E6S5
Go to UniProtKB:  A0A2K3E6S5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A2K3E6S5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
Photosystem II reaction center protein H70Chlamydomonas reinhardtiiMutation(s): 0
UniProt
Find proteins for P22666 (Chlamydomonas reinhardtii)
Explore P22666
Go to UniProtKB:  P22666
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP22666
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage

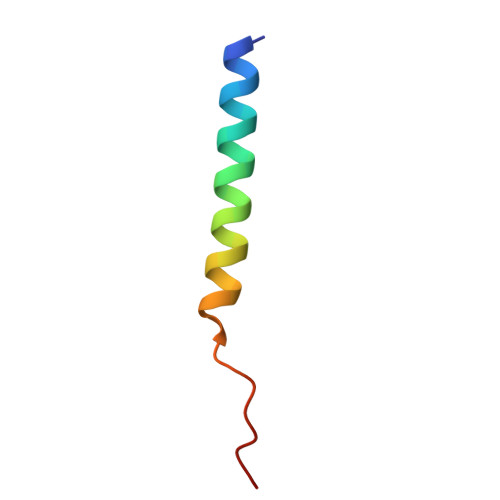

Photosystem II reaction center protein I34Chlamydomonas reinhardtiiMutation(s): 0
UniProt
Find proteins for P59763 (Chlamydomonas reinhardtii)
Explore P59763
Go to UniProtKB:  P59763
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP59763
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage
Photosystem II reaction center protein J32Chlamydomonas reinhardtiiMutation(s): 0
UniProt
Find proteins for O19930 (Chlamydomonas reinhardtii)
Explore O19930
Go to UniProtKB:  O19930
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO19930
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage
Photosystem II reaction center protein K37Chlamydomonas reinhardtiiMutation(s): 0
UniProt
Find proteins for P18263 (Chlamydomonas reinhardtii)
Explore P18263
Go to UniProtKB:  P18263
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP18263
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage

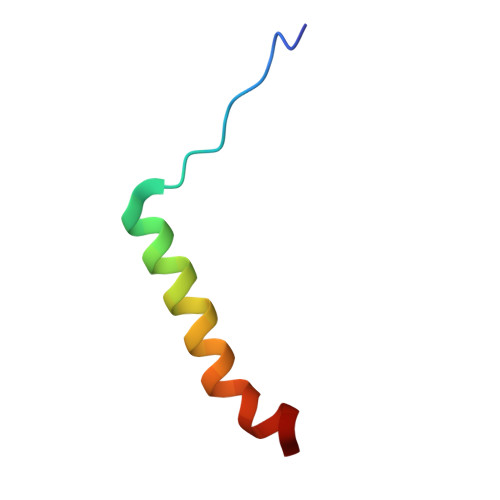

Photosystem II reaction center protein L35Chlamydomonas reinhardtiiMutation(s): 0
UniProt
Find proteins for P32974 (Chlamydomonas reinhardtii)
Explore P32974
Go to UniProtKB:  P32974
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP32974
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains Sequence LengthOrganismDetailsImage

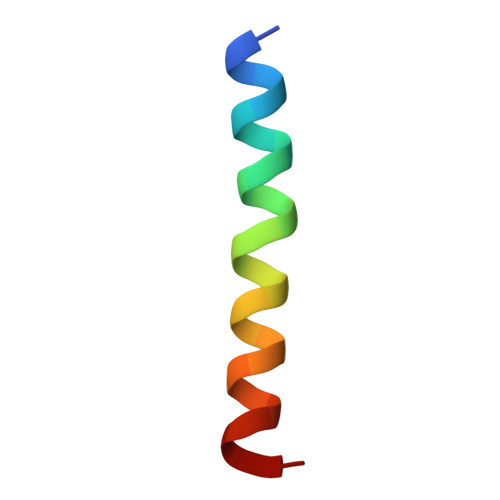

Photosystem II reaction center protein M27Chlamydomonas reinhardtiiMutation(s): 0
UniProt
Find proteins for P92277 (Chlamydomonas reinhardtii)
Explore P92277
Go to UniProtKB:  P92277
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP92277
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 14
MoleculeChains Sequence LengthOrganismDetailsImage
Photosystem II reaction center protein TN [auth T]24Chlamydomonas reinhardtiiMutation(s): 0
UniProt
Find proteins for P37256 (Chlamydomonas reinhardtii)
Explore P37256
Go to UniProtKB:  P37256
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP37256
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 15
MoleculeChains Sequence LengthOrganismDetailsImage
Photosystem II reaction center protein Psb30O [auth V]32Chlamydomonas reinhardtiiMutation(s): 0
UniProt
Find proteins for P50370 (Chlamydomonas reinhardtii)
Explore P50370
Go to UniProtKB:  P50370
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP50370
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 16
MoleculeChains Sequence LengthOrganismDetailsImage
Chloroplast photosystem II subunit XP [auth X]32Chlamydomonas reinhardtiiMutation(s): 0
UniProt
Find proteins for A8I846 (Chlamydomonas reinhardtii)
Explore A8I846
Go to UniProtKB:  A8I846
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA8I846
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 17
MoleculeChains Sequence LengthOrganismDetailsImage
Photosystem II reaction center protein ZQ [auth Z]61Chlamydomonas reinhardtiiMutation(s): 0
UniProt
Find proteins for P92276 (Chlamydomonas reinhardtii)
Explore P92276
Go to UniProtKB:  P92276
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP92276
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 12 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
DGD (Subject of Investigation/LOI)
Query on DGD

Download Ideal Coordinates CCD File
DC [auth J],
MB [auth C],
NB [auth C]
DIGALACTOSYL DIACYL GLYCEROL (DGDG)
C51 H96 O15
LDQFLSUQYHBXSX-HXXRYREZSA-N
CLA (Subject of Investigation/LOI)
Query on CLA

Download Ideal Coordinates CCD File
AA [auth B]
AB [auth C]
BA [auth B]
BB [auth C]
CA [auth B]
AA [auth B],
AB [auth C],
BA [auth B],
BB [auth C],
CA [auth B],
CB [auth C],
DA [auth B],
DB [auth C],
EA [auth B],
EB [auth C],
FA [auth B],
FB [auth C],
GA [auth B],
GB [auth C],
HA [auth B],
HB [auth C],
IA [auth B],
IB [auth C],
JA [auth B],
KA [auth B],
LA [auth B],
MA [auth B],
NA [auth B],
OA [auth B],
PA [auth B],
QB [auth D],
S [auth A],
T [auth A],
TB [auth D],
UB [auth D],
V [auth A],
WA [auth C],
XA [auth C],
YA [auth C],
ZA [auth C]
CHLOROPHYLL A
C55 H72 Mg N4 O5
ATNHDLDRLWWWCB-AENOIHSZSA-M
PHO (Subject of Investigation/LOI)
Query on PHO

Download Ideal Coordinates CCD File
RB [auth D],
U [auth A]
PHEOPHYTIN A
C55 H74 N4 O5
CQIKWXUXPNUNDV-RCBXBCQGSA-N
SQD (Subject of Investigation/LOI)
Query on SQD

Download Ideal Coordinates CCD File
X [auth A]1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL
C41 H78 O12 S
RVUUQPKXGDTQPG-JUDHQOGESA-N
LMG (Subject of Investigation/LOI)
Query on LMG

Download Ideal Coordinates CCD File
OB [auth C],
TA [auth B],
VA [auth B],
Y [auth A],
YB [auth D]
1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE
C45 H86 O10
DCLTVZLYPPIIID-CVELTQQQSA-N
PL9 (Subject of Investigation/LOI)
Query on PL9

Download Ideal Coordinates CCD File
WB [auth D]2,3-DIMETHYL-5-(3,7,11,15,19,23,27,31,35-NONAMETHYL-2,6,10,14,18,22,26,30,34-HEXATRIACONTANONAENYL-2,5-CYCLOHEXADIENE-1,4-DIONE-2,3-DIMETHYL-5-SOLANESYL-1,4-BENZOQUINONE
C53 H80 O2
FKUYMLZIRPABFK-UHFFFAOYSA-N
LHG (Subject of Investigation/LOI)
Query on LHG

Download Ideal Coordinates CCD File
AC [auth D]
FC [auth L]
UA [auth B]
XB [auth D]
Z [auth A]
AC [auth D],
FC [auth L],
UA [auth B],
XB [auth D],
Z [auth A],
ZB [auth D]
1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE
C38 H75 O10 P
BIABMEZBCHDPBV-MPQUPPDSSA-N
HEM (Subject of Investigation/LOI)
Query on HEM

Download Ideal Coordinates CCD File
BC [auth F]PROTOPORPHYRIN IX CONTAINING FE
C34 H32 Fe N4 O4
KABFMIBPWCXCRK-RGGAHWMASA-L
BCR (Subject of Investigation/LOI)
Query on BCR

Download Ideal Coordinates CCD File
CC [auth H]
EC [auth K]
JB [auth C]
KB [auth C]
LB [auth C]
CC [auth H],
EC [auth K],
JB [auth C],
KB [auth C],
LB [auth C],
QA [auth B],
RA [auth B],
SA [auth B],
VB [auth D],
W [auth A]
BETA-CAROTENE
C40 H56
OENHQHLEOONYIE-JLTXGRSLSA-N
LMU (Subject of Investigation/LOI)
Query on LMU

Download Ideal Coordinates CCD File
PB [auth C]DODECYL-ALPHA-D-MALTOSIDE
C24 H46 O11
NLEBIOOXCVAHBD-YHBSTRCHSA-N
BCT (Subject of Investigation/LOI)
Query on BCT

Download Ideal Coordinates CCD File
SB [auth D]BICARBONATE ION
C H O3
BVKZGUZCCUSVTD-UHFFFAOYSA-M
FE2 (Subject of Investigation/LOI)
Query on FE2

Download Ideal Coordinates CCD File
R [auth A]FE (II) ION
Fe
CWYNVVGOOAEACU-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.98 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Chinese Academy of SciencesChina--

Revision History  (Full details and data files)

  • Version 1.0: 2025-05-14
    Type: Initial release
  • Version 1.1: 2025-07-23
    Changes: Data collection, Database references
  • Version 1.2: 2025-07-30
    Changes: Data collection, Database references
