9HVN | pdb_00009hvn

Atomic resolution crystal structure of the hexameric antimicrobial peptide Magainin-2


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.05 Å
  • R-Value Free:
    0.177 (Depositor), 0.189 (DCC)
  • R-Value Work:
    0.167 (Depositor), 0.177 (DCC)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structure of a barrel-stave pore formed by magainin-2 reveals anion selectivity and zipper-mediated assembly.

Sancho-Vaello, E.Kucukyildiz, H.Gil-Carton, D.Biarnes, X.Zeth, K.

(2025) Sci Rep 15: 39830-39830

  • DOI: https://doi.org/10.1038/s41598-025-23539-1
  • Primary Citation of Related Structures:
    9HVN

  • PubMed Abstract:

    Antimicrobial peptides (AMPs) are ubiquitous weapons of all higher organisms to suppress antimicrobial growth. Despite intensive research, the killing mechanism of these peptides after interaction with the bacterial cell wall and cytoplasm is not well understood. To investigate this mechanism at a molecular level, we chose a well-studied AMP, Magainin-2 (Mag-2), for biophysical and structural studies. Circular dichroism experiments showed that the folding propensity of Mag-2 is strongly altered towards fully folded molecules in the presence of detergent. To study the pore-forming properties of Mag-2 in membranes, we crystallized the wild-type peptide in the presence of the membrane-mimicking dodecylphosphocholine detergent and obtained crystals diffracting to atomic resolution. Mag-2 structure shows an antiparallel arrangement of monomers, which is stabilised by a phenylalanine zipper motif spanning the hydrophobic interaction surface of this dimer. Trimerization of dimers leads to the formation of a hexameric peptide channel complex with a positively charged pore and a hydrophobic membrane-exposed belt. Using molecular dynamics simulations, a spontaneous flow of ions through this channel was observed, demonstrating anion-selectivity induced by the electrostatic potential characteristics of Mag-2. This first atomic-resolution structure of wild-type Mag-2 showing oligomerization will allow the rational design of improved Mag-2 peptide channels.


  • Organizational Affiliation
    • Department of Biochemistry and Molecular Biology, Universitat Autònoma de Barcelona, Building C, Office C2/427, Campus UAB, Cerdanyola del Vallès, 08193, Bellaterra, Spain. enea.sancho@uab.cat.

Macromolecules

Find similar proteins by:  Sequence   |   3D Structure

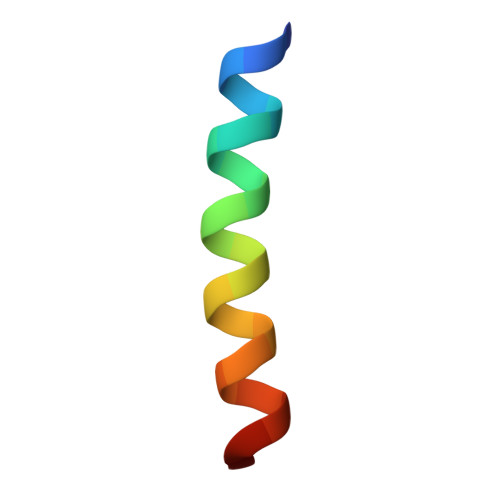

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Magainins23Xenopus laevisMutation(s): 0
UniProt
Find proteins for P11006 (Xenopus laevis)
Explore P11006
Go to UniProtKB:  P11006
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP11006
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.05 Å
  • R-Value Free:  0.177 (Depositor), 0.189 (DCC)
  • R-Value Work:  0.167 (Depositor), 0.177 (DCC)
Space Group: P 63 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 34.359α = 90
b = 34.359β = 90
c = 55.795γ = 120
Software Package:
Software NamePurpose
REFMACrefinement
XDSdata reduction
XSCALEdata scaling
BUCCANEERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2025-02-05
    Type: Initial release
  • Version 1.1: 2025-12-17
    Changes: Database references, Derived calculations
