9HQ5 | pdb_00009hq5

Crystal structure of Tetraspanin CD63mutant Large Extracellular Loop (LEL) in complex with sybody SB3

PDB DOI: https://doi.org/10.2210/pdb9HQ5/pdb

Classification: CELL ADHESION
Organism(s): Homo sapiens, synthetic construct
Expression System: Drosophila melanogaster, Bacteria
Mutation(s): Yes

Deposited: 2024-12-16 Released: 2025-11-19
Deposition Author(s): Nagarathinam, K., Krey, T.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.60 Å
R-Value Free:
0.292 (Depositor), 0.290 (DCC)
R-Value Work:
0.245 (Depositor), 0.243 (DCC)
R-Value Observed:
0.247 (Depositor)

Starting Models: in silico, experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9HQ5

This is version 1.0 of the entry. See complete history.

Literature

Evolutionary relationship of Tetraspanins

Nagarathinam, K., Karakulova, D., Thiyagaraj, D., Krey, T.

To be published.

Macromolecule Content

Total Structure Weight: 28.42 kDa
Atom Count: 1,606
Modeled Residue Count: 214
Deposited Residue Count: 252
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

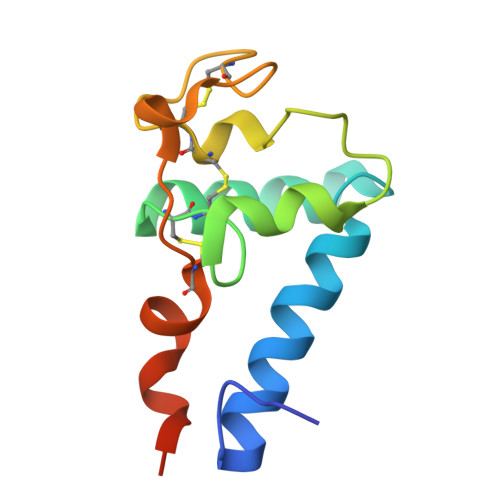

CD63 antigen	A	108	Homo sapiens	Mutation(s): 3 Gene Names: CD63, MLA1, TSPAN30
UniProt & NIH Common Fund Data Resources
Find proteins for P08962 (Homo sapiens) Explore P08962 Go to UniProtKB: P08962
PHAROS: P08962 GTEx: ENSG00000135404
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P08962
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Sybody SB3	B	144	synthetic construct	Mutation(s): 0

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
SO4 Query on SO4 Download:Ideal Coordinates CCD File SDF format, chain E [auth B] SDF format, chain D [auth A] SDF format, chain C [auth A] MOL2 format, chain E [auth B] MOL2 format, chain D [auth A] MOL2 format, chain C [auth A] mmCIF format, chain E [auth B] mmCIF format, chain D [auth A] mmCIF format, chain C [auth A]	C [auth A], D [auth A], E [auth B]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.60 Å
R-Value Free: 0.292 (Depositor), 0.290 (DCC)
R-Value Work: 0.245 (Depositor), 0.243 (DCC)
R-Value Observed: 0.247 (Depositor)

Space Group: P 4₃ 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 65.23	α = 90
b = 65.23	β = 90
c = 138.64	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
MxCuBE	data collection
XDS	data reduction
XSCALE	data scaling
PHASER	phasing
Coot	model building

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-11-19

Deposition Author(s):

Nagarathinam, K.

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2025-11-19
Type: Initial release
