9HPB | pdb_00009hpb

Mouse phosphomannomutase 2 in apo state from crystals with PEG 8000

PDB DOI: https://doi.org/10.2210/pdb9HPB/pdb

Classification: ISOMERASE
Organism(s): Mus musculus
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-12-12 Released: 2025-12-24
Deposition Author(s): Ramon-Maiques, S., Del Cano-Ochoa, F., Company, R.
Funding Organization(s): Ministerio de Ciencia e Innovacion (MCIN)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.43 Å
R-Value Free:
0.271 (Depositor), 0.263 (DCC)
R-Value Work:
0.234 (Depositor)
R-Value Observed:
0.236 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9HPB

This is version 1.0 of the entry. See complete history.

Literature

High conformational flexibility of phosphomannomutase 2: Implications for functioning mechanisms, stability and pharmacological chaperone design

Del Cano-Ochoa, F., Vilar, M., Vilas, A., Company, R., Perez, B., Ramon-Maiques, S.

To be published.

Macromolecule Content

Total Structure Weight: 167.59 kDa
Atom Count: 11,765
Modeled Residue Count: 1,450
Deposited Residue Count: 1,464
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

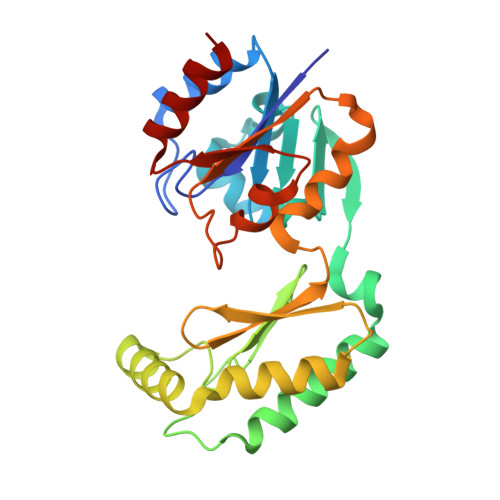

Phosphomannomutase 2	A B C [auth D] D [auth F] E [auth C] A, B, C [auth D], D [auth F], E [auth C], F [auth E]	244	Mus musculus	Mutation(s): 0 Gene Names: Pmm2 EC: 5.4.2.8
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Z2M7 (Mus musculus) Explore Q9Z2M7 Go to UniProtKB: Q9Z2M7
IMPC: MGI:1859214
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9Z2M7
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
CL (Subject of Investigation/LOI) Query on CL Download:Ideal Coordinates CCD File SDF format, chain I [auth A] SDF format, chain O [auth D] SDF format, chain T [auth C] SDF format, chain Y [auth E] MOL2 format, chain I [auth A] MOL2 format, chain O [auth D] MOL2 format, chain T [auth C] MOL2 format, chain Y [auth E] mmCIF format, chain I [auth A] mmCIF format, chain O [auth D] mmCIF format, chain T [auth C] mmCIF format, chain Y [auth E]	I [auth A], O [auth D], T [auth C], Y [auth E]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain I [auth A] Focus chain O [auth D] Focus chain T [auth C] Focus chain Y [auth E] Interactions & Density Focus chain I [auth A] Focus chain O [auth D] Focus chain T [auth C] Focus chain Y [auth E]
MG (Subject of Investigation/LOI) Query on MG Download:Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain K [auth B] SDF format, chain L [auth B] SDF format, chain M [auth D] SDF format, chain N [auth D] SDF format, chain Q [auth F] SDF format, chain R [auth F] SDF format, chain S [auth C] SDF format, chain W [auth E] SDF format, chain X [auth E] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain K [auth B] MOL2 format, chain L [auth B] MOL2 format, chain M [auth D] MOL2 format, chain N [auth D] MOL2 format, chain Q [auth F] MOL2 format, chain R [auth F] MOL2 format, chain S [auth C] MOL2 format, chain W [auth E] MOL2 format, chain X [auth E] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain K [auth B] mmCIF format, chain L [auth B] mmCIF format, chain M [auth D] mmCIF format, chain N [auth D] mmCIF format, chain Q [auth F] mmCIF format, chain R [auth F] mmCIF format, chain S [auth C] mmCIF format, chain W [auth E] mmCIF format, chain X [auth E]	G [auth A] H [auth A] K [auth B] L [auth B] M [auth D] G [auth A], H [auth A], K [auth B], L [auth B], M [auth D], N [auth D], Q [auth F], R [auth F], S [auth C], W [auth E], X [auth E]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Focus chain H [auth A] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth D] Focus chain N [auth D] Focus chain Q [auth F] Focus chain R [auth F] Focus chain S [auth C] Focus chain W [auth E] Focus chain X [auth E] Interactions & Density Focus chain G [auth A] Focus chain H [auth A] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth D] Focus chain N [auth D] Focus chain Q [auth F] Focus chain R [auth F] Focus chain S [auth C] Focus chain W [auth E] Focus chain X [auth E]
NA Query on NA Download:Ideal Coordinates CCD File SDF format, chain J [auth A] SDF format, chain P [auth D] SDF format, chain U [auth C] SDF format, chain V [auth C] MOL2 format, chain J [auth A] MOL2 format, chain P [auth D] MOL2 format, chain U [auth C] MOL2 format, chain V [auth C] mmCIF format, chain J [auth A] mmCIF format, chain P [auth D] mmCIF format, chain U [auth C] mmCIF format, chain V [auth C]	J [auth A], P [auth D], U [auth C], V [auth C]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain J [auth A] Focus chain P [auth D] Focus chain U [auth C] Focus chain V [auth C] Interactions & Density Focus chain J [auth A] Focus chain P [auth D] Focus chain U [auth C] Focus chain V [auth C]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.43 Å
R-Value Free: 0.271 (Depositor), 0.263 (DCC)
R-Value Work: 0.234 (Depositor)
R-Value Observed: 0.236 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 80.657	α = 90
b = 98.611	β = 90
c = 212.849	γ = 90

Software Package:

Software Name	Purpose
autoPROC	data processing
XDS	data reduction
Aimless	data scaling
PHASER	phasing
PHENIX	refinement

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-12-24

Deposition Author(s):

Ramon-Maiques, S.

Del Cano-Ochoa, F.

Funding Organization	Location	Grant Number
Ministerio de Ciencia e Innovacion (MCIN)	Spain	RTI2018-098084-B-100
Ministerio de Ciencia e Innovacion (MCIN)	Spain	PID2021-128468NB-100

Revision History (Full details and data files)

Version 1.0: 2025-12-24
Type: Initial release
