9HMR | pdb_00009hmr

KRAS-G12V-D92C covalently bound to BI-1830


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.50 Å
  • R-Value Free:
    0.239 (Depositor), 0.241 (DCC)
  • R-Value Work:
    0.205 (Depositor), 0.209 (DCC)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9HMR

Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history

Literature

Systematic cysteine scanning identifies a druggable pocket in oncogenic KRAS.

van Tienen, L.M.Bayoumi, S.Muneeruddin, K.Leymarie, N.Popa, A.Shekhar, M.Mueller, M.Li, R.Zak, K.M.Chilukuri, H.Kornfilt, D.J.P.Atack, T.C.Kesar, D.Bian, Y.Shaw, K.L.Jandova, Z.Trollmann, P.Geist, L.Stolt-Bergner, P.Rumpel, K.Kessler, D.Sellers, W.R.

(2026) Cell Chem Biol 33: 241-255.e8

  • DOI: https://doi.org/10.1016/j.chembiol.2026.01.007
  • Primary Citation Related Structures:
    9HMR

  • PubMed Abstract:

    The discovery of druggable pockets within proteins that lack traditional active sites remains a significant challenge in the development of therapeutics. To address this, we developed Cysteine Mapping of Accessible Pockets (CysMAP), a method for identifying druggable pockets in proteins. CysMAP employs systematic pooled cysteine (Cys)-variant libraries screened against diverse covalent compound libraries by intact LC-MS. We applied CysMAP to 189 KRAS(G12D) variants, purifying KRAS Cys-variants and screening them against 47 covalent compounds, quantifying accessibility, and reactivity across KRAS(G12D). We discovered previously unidentified ligand-bound states of Cys-variants surrounding the KRAS switch-II pocket. Structural studies of the D92C variant in complex with the compound BI-1830 uncovered a distinct novel binding pocket, highlighting the inherent plasticity of the region between switch-II and α3, that can accommodate diverse chemical entities in various conformations. This method holds significant potential for advancing drug discovery efforts against elusive targets such as oncogenic RAS mutants.


  • Organizational Affiliation
    • The Broad Institute of MIT and Harvard, Cambridge, MA, USA; Department of Medical Oncology, Dana-Farber Cancer Institute, Boston, MA, USA; Harvard Medical School, Boston, MA, USA. Electronic address: thesellerslab@broadinstitute.org.

Macromolecule Content

  • Total Structure Weight: 80.84 kDa
  • Atom Count: 5,578
  • Modeled Residue Count: 618
  • Deposited Residue Count: 680
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

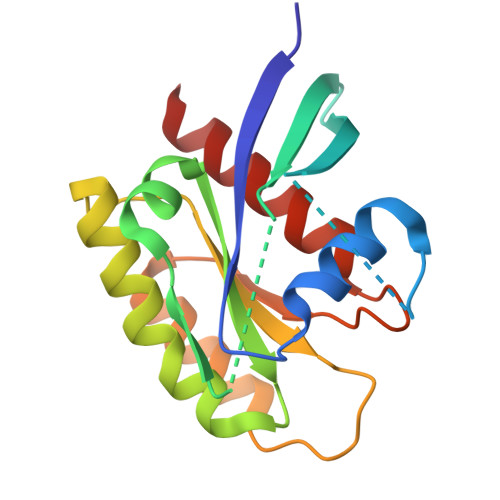

Isoform 2B of GTPase KRas
A, B, C, D
170Homo sapiensMutation(s): 5
Gene Names: KRASKRAS2RASK2
EC: 3.6.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for P01116 (Homo sapiens)
Explore P01116
Go to UniProtKB:  P01116
PHAROS:  P01116
GTEx:  ENSG00000133703
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP01116
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
GDP

Query on GDP



Download:Ideal Coordinates CCD File
E [auth A],
J [auth B],
K [auth C],
P [auth D]
GUANOSINE-5'-DIPHOSPHATE
C10 H15 N5 O11 P2
QGWNDRXFNXRZMB-UUOKFMHZSA-N
A1IWE
(Subject of Investigation/LOI)

Query on A1IWE



Download:Ideal Coordinates CCD File
G [auth A],
I [auth B],
L [auth C],
O [auth D]
1-[4-[2-[(4-bromanyl-2-methyl-phenyl)amino]ethanoyl]piperazin-1-yl]propan-1-one
C16 H22 Br N3 O2
PHVHIYQQMVEZAM-UHFFFAOYSA-N
EDO

Query on EDO



Download:Ideal Coordinates CCD File
F [auth A],
H [auth B],
M [auth C],
N [auth D]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.50 Å
  • R-Value Free:  0.239 (Depositor), 0.241 (DCC)
  • R-Value Work:  0.205 (Depositor), 0.209 (DCC)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 43.871α = 90
b = 116.558β = 108.636
c = 68.642γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
Aimlessdata scaling
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
European Molecular Biology Organization (EMBO)European Union--

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-24
    Type: Initial release
  • Version 1.1: 2026-03-04
    Changes: Database references
