9H1O | pdb_00009h1o

Cryo-EM structure of taxol-microtubules in complex with the C1 domain of GEFH1


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structural basis of microtubule-mediated signal transduction.

Choi, S.R.Blum, T.B.Giono, M.Roy, B.Vakonakis, I.Schmid, D.Oelgarth, N.Ranganathan, A.Gossert, A.D.Shivashankar, G.V.Zippelius, A.Steinmetz, M.O.

(2025) Cell

  • DOI: https://doi.org/10.1016/j.cell.2025.11.011
  • Primary Citation of Related Structures:
    9H1O, 9H75

  • PubMed Abstract:

    Microtubules have long been recognized as upstream mediators of intracellular signaling, but the mechanisms underlying this fundamental function remain elusive. Here, we identify the structural basis by which microtubules regulate the guanine nucleotide exchange factor H1 (GEFH1), a key activator of the Ras homolog family member A (RhoA) pathway. We show that specific features of the microtubule lattice bind the C1 domain of GEFH1, leading to the sequestration and inactivation of this signaling protein. Targeted mutations in C1 residues disrupt this interaction, triggering GEFH1 release and activation of RhoA-dependent immune responses. Building on this sequestration-and-release mechanism, we identify microtubule-binding C1 domains in additional signaling proteins, including other guanine nucleotide exchange factors (GEFs), kinases, a GTPase-activating protein (GAP), and a tumor suppressor, and show that microtubule-mediated regulation via C1 domains is conserved in the Ras association domain-containing protein 1A (RASSF1A). Our findings establish a structural framework for understanding how microtubules can function as spatiotemporal signal sensors, integrating and processing diverse signaling pathways to control important cellular processes.


  • Organizational Affiliation
    • PSI Center for Life Sciences, 5232 Villigen PSI, Switzerland. Electronic address: sung-ryul.choi@psi.ch.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

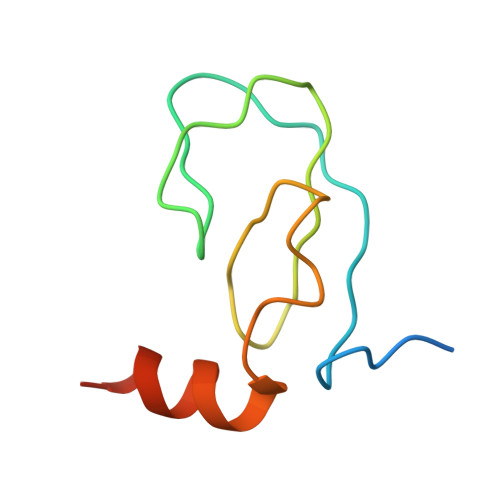

Rho guanine nucleotide exchange factor 2A [auth C]75Homo sapiensMutation(s): 0
Gene Names: ARHGEF2KIAA0651LFP40
UniProt & NIH Common Fund Data Resources
Find proteins for Q92974 (Homo sapiens)
Explore Q92974
Go to UniProtKB:  Q92974
PHAROS:  Q92974
GTEx:  ENSG00000116584
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ92974
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

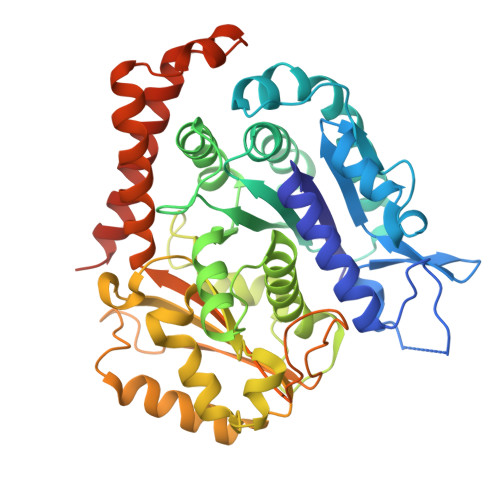

Tubulin alpha-1B chainB,
C [auth A]
451Bos taurusMutation(s): 0
EC: 3.6.5
UniProt
Find proteins for P81947 (Bos taurus)
Explore P81947
Go to UniProtKB:  P81947
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP81947
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

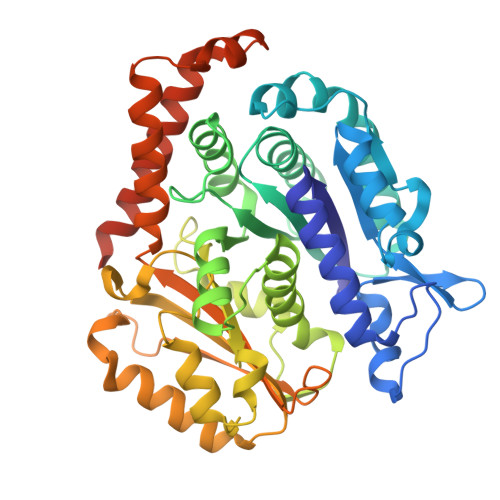

Tubulin beta-2B chain
D, E, F, G
445Bos taurusMutation(s): 0
UniProt
Find proteins for Q6B856 (Bos taurus)
Explore Q6B856
Go to UniProtKB:  Q6B856
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ6B856
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 5 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
TA1 (Subject of Investigation/LOI)
Query on TA1

Download Ideal Coordinates CCD File
O [auth D],
Q [auth E],
S [auth F],
U [auth G]
TAXOL
C47 H51 N O14
RCINICONZNJXQF-MZXODVADSA-N
GTP (Subject of Investigation/LOI)
Query on GTP

Download Ideal Coordinates CCD File
J [auth B],
L [auth A]
GUANOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O14 P3
XKMLYUALXHKNFT-UUOKFMHZSA-N
GDP (Subject of Investigation/LOI)
Query on GDP

Download Ideal Coordinates CCD File
N [auth D],
P [auth E],
R [auth F],
T [auth G]
GUANOSINE-5'-DIPHOSPHATE
C10 H15 N5 O11 P2
QGWNDRXFNXRZMB-UUOKFMHZSA-N
ZN (Subject of Investigation/LOI)
Query on ZN

Download Ideal Coordinates CCD File
H [auth C],
I [auth C]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
MG (Subject of Investigation/LOI)
Query on MG

Download Ideal Coordinates CCD File
K [auth B],
M [auth A]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONRELION
MODEL REFINEMENTPHENIX1.20.1_4487:

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Swiss National Science FoundationSwitzerland31003A_166608

Revision History  (Full details and data files)

  • Version 1.0: 2025-10-29
    Type: Initial release
  • Version 1.1: 2026-01-14
    Changes: Data collection, Database references
