9GZO | pdb_00009gzo

Cryo-EM structure of the human mitochondrial RNA polymerase transcription initiation complex (POLRMT/TFB2M/DNA/RNA) without TFAM; and with a slipped 3-mer RNA, pppGpGpA (slipped IC3-TFAM)


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.15 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Human mitochondrial RNA polymerase structures reveal transcription start site and slippage mechanism.

Shen, J.Goovaerts, Q.Ajjugal, Y.De Wijngaert, B.Das, K.Patel, S.S.

(2025) Mol Cell 85: 3137-3150.e7

  • DOI: https://doi.org/10.1016/j.molcel.2025.07.002
  • Primary Citation of Related Structures:
    9GZM, 9GZN, 9GZO, 9R95, 9R96

  • PubMed Abstract:

    Transcription of the human mitochondrial DNA is initiated by POLRMT and initiation factors mitochondrial transcription factor A (TFAM) and mitochondrial transcription factor B2 (TFB2M). We present cryo-electron microscopy (cryo-EM) structures of three transcription initiation intermediates (pre-catalytic IC3 [pre-IC3], slipped-IC3, and slipped pre-IC4) catalyzing RNA synthesis by normal and slippage pathways with fully resolved transcription bubbles and RNA transcripts starting from the +1 or -1 position. The structural and biochemical studies reveal mechanisms of promoter melting, start site selection, and slippage synthesis. Promoter melting begins at -4 with base-specific interactions of template -4 and -3 guanines with POLRMT and non-template -1 adenine with TFB2M. The NT-stabilizing loop (K 153 LDPRSGGVIKPP 165 ) and Y209 of TFB2M and W1026 of POLRMT interact with the non-template strand to guide initiation from the +1 start site. The -1 position is not an alternative start site but supports slippage initiation by base-pairing with a slipped or rebound 2-nt RNA. Cryo-EM resolved additional apo and dimeric complexes whose populations may regulate transcription initiation.


  • Organizational Affiliation
    • Department of Biochemistry and Molecular Biology, Robert Wood Johnson Medical School, Rutgers University, Piscataway, NJ 08854, USA; Graduate School of Biomedical Sciences at the Robert Wood Johnson Medical School of Rutgers University, Piscataway, NJ 08854, USA.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase, mitochondrial1,188Homo sapiensMutation(s): 0
Gene Names: POLRMT
EC: 2.7.7.6
UniProt & NIH Common Fund Data Resources
Find proteins for O00411 (Homo sapiens)
Explore O00411
Go to UniProtKB:  O00411
PHAROS:  O00411
GTEx:  ENSG00000099821
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO00411
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
Dimethyladenosine transferase 2, mitochondrialD [auth B]337Homo sapiensMutation(s): 0
Gene Names: TFB2MNS5ATP5
EC: 2.1.1
UniProt & NIH Common Fund Data Resources
Find proteins for Q9H5Q4 (Homo sapiens)
Explore Q9H5Q4
Go to UniProtKB:  Q9H5Q4
PHAROS:  Q9H5Q4
GTEx:  ENSG00000162851
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9H5Q4
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains LengthOrganismImage

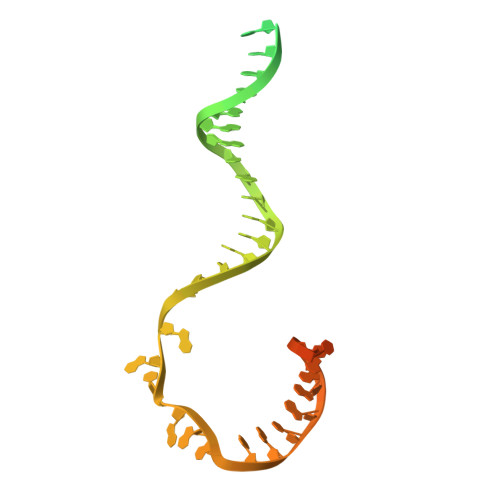

Non-template strand DNA (56-MER)B [auth N]63synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains LengthOrganismImage

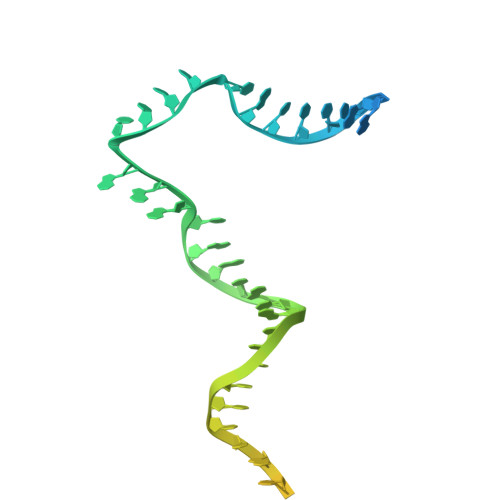

Template strand DNA (56-MER)C [auth T]62synthetic construct
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 5
MoleculeChains LengthOrganismImage
RNA (5'-D(*(GTP))-R(P*GP*A)-3')E [auth R]3synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.15 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONCoot
MODEL REFINEMENTPHENIX1.19.2_4158

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Research Foundation - Flanders (FWO)Belgium1162823N

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-30
    Type: Initial release
  • Version 1.1: 2025-08-06
    Changes: Data collection, Database references
  • Version 1.2: 2025-09-03
    Changes: Data collection, Database references
