9GVQ | pdb_00009gvq

MUC5AC mucin amino acids 28 to 1483


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.90 Å
  • Aggregation State: FILAMENT
  • Reconstruction Method: HELICAL

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

MUC5AC filaments illuminate the structural diversification of respiratory and intestinal mucins.

Haberman, M.Kamyshinsky, R.Reznik, N.Yeshaya, N.Khmelnitsky, L.Plender, E.G.Eichler, E.E.Fass, D.

(2025) Proc Natl Acad Sci U S A 122: e2419717122-e2419717122

  • DOI: https://doi.org/10.1073/pnas.2419717122
  • Primary Citation of Related Structures:
    9GVJ, 9GVQ

  • PubMed Abstract:

    Secreted mucins are multimegadalton glycoprotein polymers that share the function of protecting mucosal tissues but diversified for activities in different organs of the body. Structural studies of secreted mucins are complicated by the enormous sizes, flexibility, and complex supramolecular assembly modes of these glycoproteins. The two major respiratory mucins are MUC5AC and MUC5B. Here, we present structures of a large amino-terminal segment of MUC5AC in the form of helical filaments. These filaments differ from filamentous and tubular structures observed previously for the intestinal mucin MUC2 and the partial mucin homolog VWF. Nevertheless, the MUC5AC helical filaments support the proposed mechanism, based on MUC2 and VWF, for how noncovalent interactions between mucin monomers guide disulfide crosslinking to form polymers. The high-resolution MUC5AC structures show how local and limited changes in amino acid sequence can profoundly affect higher-order assembly while preserving the overall folds and polymerization activity of mucin glycoproteins. Differences in supramolecular assembly are likely to be functionally significant considering the divergence of mechanical properties and physiological requirements between respiratory and intestinal mucins. Determining the high-resolution structures of respiratory mucins provides a foundation for understanding the mechanisms by which they clean and protect the lungs. Moreover, the MUC5AC structure enables visualization of the sites of human amino acid sequence variation and disease-associated mutations.


  • Organizational Affiliation
    • Department of Chemical and Structural Biology, Weizmann Institute of Science, Rehovot 7610001, Israel.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

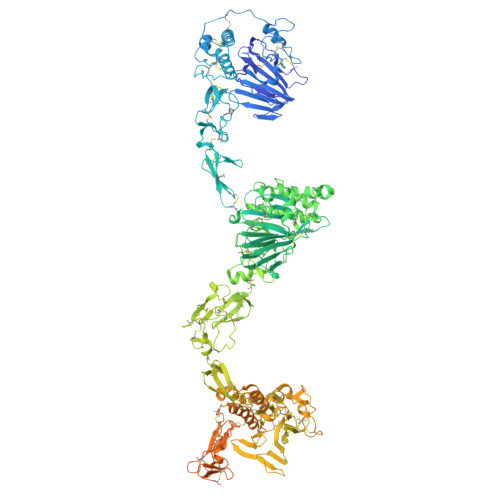

Mucin-5AC
A, B, C, D
1,456Homo sapiensMutation(s): 0
Gene Names: MUC5ACMUC5
UniProt & NIH Common Fund Data Resources
Find proteins for P98088 (Homo sapiens)
Explore P98088
Go to UniProtKB:  P98088
PHAROS:  P98088
GTEx:  ENSG00000215182
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP98088
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
CU (Subject of Investigation/LOI)
Query on CU

Download Ideal Coordinates CCD File
G [auth A],
K [auth B],
O [auth C],
S [auth D]
COPPER (II) ION
Cu
JPVYNHNXODAKFH-UHFFFAOYSA-N
CA
Query on CA

Download Ideal Coordinates CCD File
E [auth A]
F [auth A]
H [auth A]
I [auth B]
J [auth B]
E [auth A],
F [auth A],
H [auth A],
I [auth B],
J [auth B],
L [auth B],
M [auth C],
N [auth C],
P [auth C],
Q [auth D],
R [auth D],
T [auth D]
CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.90 Å
  • Aggregation State: FILAMENT
  • Reconstruction Method: HELICAL
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
European Research Council (ERC)European Union101097867
Israel Science FoundationIsrael2660/20

Revision History  (Full details and data files)

  • Version 1.0: 2024-12-04
    Type: Initial release
  • Version 1.1: 2025-03-19
    Changes: Data collection, Database references
