9GJV | pdb_00009gjv

Fab fragment of an antibody that recognises alpha-1 antitrypsin


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.20 Å
  • R-Value Free:
    0.262 (Depositor), 0.262 (DCC)
  • R-Value Work:
    0.244 (Depositor), 0.244 (DCC)
  • R-Value Observed:
    0.245 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

The mechanism of pathogenic alpha 1 -antitrypsin aggregation in the human liver.

Aldobiyan, I.Elliston, E.L.K.Heyer-Chauhan, N.Arold, S.T.Zhao, L.Huntington, B.Lowen, S.M.Orlova, E.V.Irving, J.A.Lomas, D.A.

(2025) Proc Natl Acad Sci U S A 122: e2507535122-e2507535122

  • DOI: https://doi.org/10.1073/pnas.2507535122
  • Primary Citation of Related Structures:
    9GJV, 9HUD

  • PubMed Abstract:

    Originating 2 to 3 millennia ago in a Scandinavian population, the SERPINA1 Z allele (Glu342Lys) is present in up to 2.5% of populations of Northern European descent and accounts for 95% of severe α 1 -antitrypsin deficiency. The α 1 -antitrypsin Z variant self-assembles into polymer chains that deposit within hepatocytes, predisposing to liver disease. Here, the 4.0Å subunit structure of polymers isolated directly from human liver tissue has been determined using cryoelectron microscopy. Challenges of flexibility, small subunit size, heterogeneous length, and preferred orientations were mitigated using antibody Fab domains and sample preparation strategies. This structure demonstrates that the formation of polymers in vivo involves self-incorporation of an exposed structural element (the reactive center loop) as an additional β-strand into the central β-sheet of α 1 -antitrypsin and displacement of a C-terminal region from one subunit with incorporation into the next. Unlike amyloid aggregation, this well-folded structure partially recapitulates a conformation adopted during normal function of the protein. These perturbations to the constituent α 1 -antitrypsin subunits of human tissue-derived polymers are consistent with a pronounced stability, their tendency toward long-chain forms, the ability of a subset to undergo canonical secretion, and the action of a class of small molecules that block polymerization in vivo.


  • Organizational Affiliation
    • UCL Respiratory, Division of Medicine and the Institute of Structural and Molecular Biology, University College London, London WC1E 6JF, United Kingdom.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
FAB 9C5 heavy chainA [auth H]218Mus musculusMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

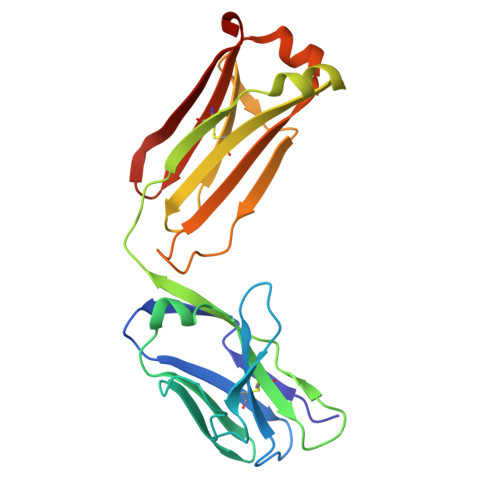

FAB 9C5 light chainB [auth L]214Mus musculusMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.20 Å
  • R-Value Free:  0.262 (Depositor), 0.262 (DCC)
  • R-Value Work:  0.244 (Depositor), 0.244 (DCC)
  • R-Value Observed: 0.245 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 41.766α = 90
b = 58.618β = 90
c = 158.839γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
Aimlessdata scaling
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Medical Research Council (MRC, United Kingdom)United KingdomMR/V034243/1
Other governmentUnited KingdomNIHR investigator award to DAL
Other privateUnited StatesAlpha-1 Foundation to JAI (1036784)

Revision History  (Full details and data files)

  • Version 1.0: 2025-09-03
    Type: Initial release
  • Version 1.1: 2025-11-26
    Changes: Database references
