9GCR | pdb_00009gcr

Human Butyrylcholinesterase in complex with N1,N1-dimethyl-N2-(6-(naphthalen-1-yl)-5-(pyridin-4-yl)pyridazin-3-yl)ethane-1,2-diamine

PDB DOI: https://doi.org/10.2210/pdb9GCR/pdb

Classification: HYDROLASE
Organism(s): Homo sapiens
Expression System: Cricetulus griseus
Mutation(s): Yes

Deposited: 2024-08-02 Released: 2025-08-13
Deposition Author(s): Brazzolotto, X., Meden, A., Knez, D., Gobec, S., Nachon, F.
Funding Organization(s): French Ministry of Armed Forces

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.84 Å
R-Value Free:
0.244 (Depositor), 0.244 (DCC)
R-Value Work:
0.171 (Depositor), 0.184 (DCC)
R-Value Observed:
0.175 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.1 of the entry. See complete history.

Literature

Dual Inhibitors

Knez, D., Malinak, D., Meden, A., Ferjančič Benetik, S., Pišlar, A., Kohoutova, Z., Vondrackova, I., Psotka, M., Lycka, A., Pulkrabkova, L., Soukup, O., Skarka, A., Andrys, R., Brazzolotto, X., Igert, A., Dias, J., Nachon, F., Detka, J., Targosiński, F., Hliabovich, D., Brunzelle, J.S., Shuvalova, L., Salat, K., Roy, S.M., Watterson, D.M., Musílek, K., Gobec, S.

(2026) J Med Chem

DOI: https://doi.org/10.1021/acs.jmedchem.6c01461

Macromolecule Content

Total Structure Weight: 63.69 kDa
Atom Count: 4,565
Modeled Residue Count: 526
Deposited Residue Count: 529
Unique protein chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

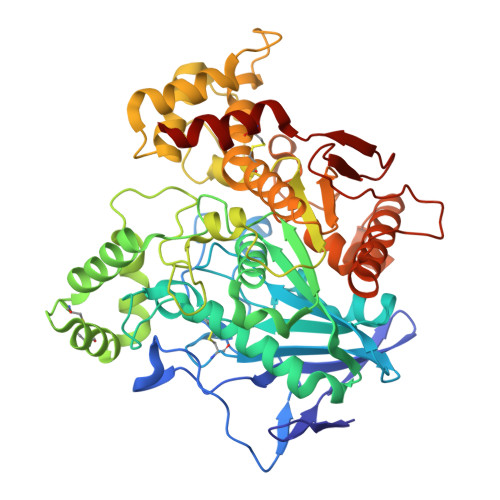

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Cholinesterase	A	529	Homo sapiens	Mutation(s): 4 Gene Names: BCHE, CHE1 EC: 3.1.1.8
UniProt & NIH Common Fund Data Resources
Find proteins for P06276 (Homo sapiens) Explore P06276 Go to UniProtKB: P06276
PHAROS: P06276 GTEx: ENSG00000114200
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P06276
Glycosylation
Glycosylation Sites: 6	Glycosylation Focus chain A	Go to GlyGen: P06276-1
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Help

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose	B, E	4		N-Glycosylation	Interactions Focus chain B Focus chain E Interactions & Density Focus chain B Focus chain E
Glycosylation Resources
GlyTouCan: G32152BH GlyCosmos: G32152BH GlyGen: G32152BH

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose	C	2		N-Glycosylation	Interactions Focus chain C Interactions & Density Focus chain C
Glycosylation Resources
GlyTouCan: G86851RC GlyCosmos: G86851RC GlyGen: G86851RC

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose	D	3		N-Glycosylation	Interactions Focus chain D Interactions & Density Focus chain D
Glycosylation Resources
GlyTouCan: G21290RB GlyCosmos: G21290RB GlyGen: G21290RB

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1IKD Query on A1IKD Download:Ideal Coordinates CCD File SDF format, chain J [auth A] MOL2 format, chain J [auth A] mmCIF format, chain J [auth A]	J [auth A]	N',N'-dimethyl-N-(6-naphthalen-1-yl-5-pyridin-4-yl-pyridazin-3-yl)ethane-1,2-diamine C₂₃ H₂₃ N₅ UMAGLYLWSTVWQA-UHFFFAOYSA-N		Interactions Focus chain J [auth A] Interactions & Density Focus chain J [auth A]
NAG Query on NAG Download:Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain F [auth A]	F [auth A], G [auth A]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain F [auth A] Focus chain G [auth A] Interactions & Density Focus chain F [auth A] Focus chain G [auth A]
SO4 Query on SO4 Download:Ideal Coordinates CCD File SDF format, chain P [auth A] SDF format, chain O [auth A] SDF format, chain N [auth A] SDF format, chain M [auth A] SDF format, chain L [auth A] SDF format, chain K [auth A] MOL2 format, chain P [auth A] MOL2 format, chain O [auth A] MOL2 format, chain N [auth A] MOL2 format, chain M [auth A] MOL2 format, chain L [auth A] MOL2 format, chain K [auth A] mmCIF format, chain P [auth A] mmCIF format, chain O [auth A] mmCIF format, chain N [auth A] mmCIF format, chain M [auth A] mmCIF format, chain L [auth A] mmCIF format, chain K [auth A]	K [auth A] L [auth A] M [auth A] N [auth A] O [auth A] K [auth A], L [auth A], M [auth A], N [auth A], O [auth A], P [auth A]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Interactions & Density Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A]
GOL Query on GOL Download:Ideal Coordinates CCD File SDF format, chain I [auth A] SDF format, chain H [auth A] MOL2 format, chain I [auth A] MOL2 format, chain H [auth A] mmCIF format, chain I [auth A] mmCIF format, chain H [auth A]	H [auth A], I [auth A]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain H [auth A] Focus chain I [auth A] Interactions & Density Focus chain H [auth A] Focus chain I [auth A]
