9G6Z | pdb_00009g6z

C. elegans TOFU-6 eTUDOR TOFU-1 peptide complex


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.22 Å
  • R-Value Free:
    0.230 (Depositor), 0.226 (DCC)
  • R-Value Work:
    0.176 (Depositor), 0.175 (DCC)
  • R-Value Observed:
    0.181 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

piRNA processing by a trimeric Schlafen-domain nuclease.

Podvalnaya, N.Bronkhorst, A.W.Lichtenberger, R.Hellmann, S.Nischwitz, E.Falk, T.Karaulanov, E.Butter, F.Falk, S.Ketting, R.F.

(2023) Nature 622: 402-409

  • DOI: https://doi.org/10.1038/s41586-023-06588-2
  • Primary Citation of Related Structures:
    9G6Z

  • PubMed Abstract:

    Transposable elements are genomic parasites that expand within and spread between genomes 1 . PIWI proteins control transposon activity, notably in the germline 2,3 . These proteins recognize their targets through small RNA co-factors named PIWI-interacting RNAs (piRNAs), making piRNA biogenesis a key specificity-determining step in this crucial genome immunity system. Although the processing of piRNA precursors is an essential step in this process, many of the molecular details remain unclear. Here, we identify an endoribonuclease, precursor of 21U RNA 5'-end cleavage holoenzyme (PUCH), that initiates piRNA processing in the nematode Caenorhabditis elegans. Genetic and biochemical studies show that PUCH, a trimer of Schlafen-like-domain proteins (SLFL proteins), executes 5'-end piRNA precursor cleavage. PUCH-mediated processing strictly requires a 7-methyl-G cap (m 7 G-cap) and a uracil at position three. We also demonstrate how PUCH interacts with PETISCO, a complex that binds to piRNA precursors 4 , and that this interaction enhances piRNA production in vivo. The identification of PUCH concludes the search for the 5'-end piRNA biogenesis factor in C. elegans and uncovers a type of RNA endonuclease formed by three SLFL proteins. Mammalian Schlafen (SLFN) genes have been associated with immunity 5 , exposing a molecular link between immune responses in mammals and deeply conserved RNA-based mechanisms that control transposable elements.


  • Organizational Affiliation
    • Biology of Non-coding RNA group, Institute of Molecular Biology, Mainz, Germany.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

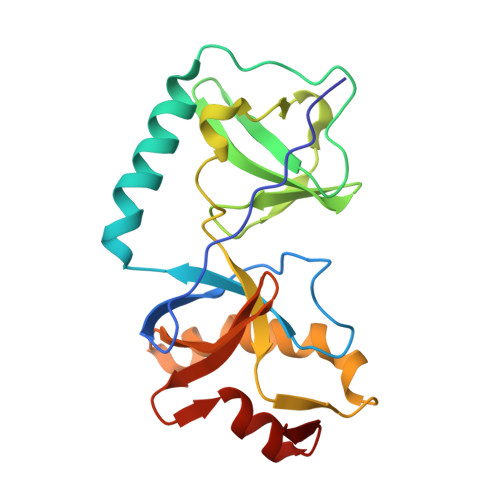

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Embryonic developmental protein tofu-6201Caenorhabditis elegansMutation(s): 0
Gene Names: tofu-6mel-47EEED8.1
UniProt
Find proteins for Q09293 (Caenorhabditis elegans)
Explore Q09293
Go to UniProtKB:  Q09293
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ09293
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

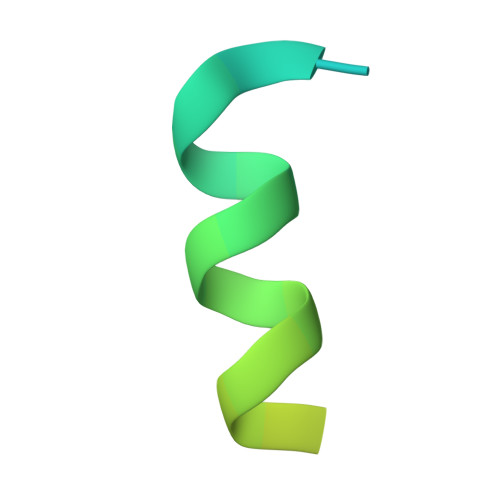

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Protein tofu-137Caenorhabditis elegansMutation(s): 0
Gene Names: tofu-1C27H6.3
UniProt
Find proteins for O17608 (Caenorhabditis elegans)
Explore O17608
Go to UniProtKB:  O17608
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO17608
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.22 Å
  • R-Value Free:  0.230 (Depositor), 0.226 (DCC)
  • R-Value Work:  0.176 (Depositor), 0.175 (DCC)
  • R-Value Observed: 0.181 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 59.15α = 90
b = 69.202β = 91.473
c = 60.946γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
autoPROCdata scaling
PHENIXphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Austrian Science FundAustria10.55776 / I6110
Austrian Science FundAustria10.55776 / DOC177

Revision History  (Full details and data files)

  • Version 1.0: 2024-12-04
    Type: Initial release
