9G04 | pdb_00009g04

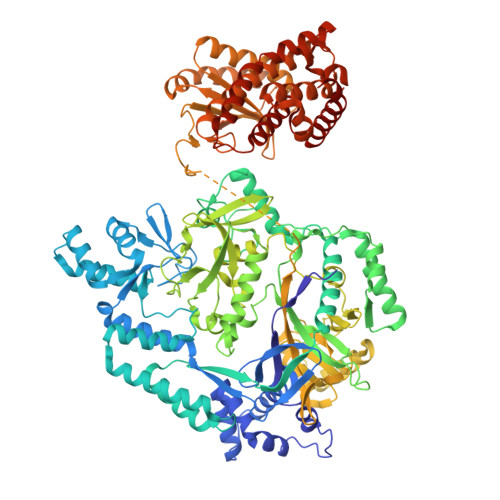

Structure of MadB, a class I dehydrates from Clostridium maddingley in the apo state


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.70 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9G04

This is version 1.0 of the entry. See complete history

Literature

Structural insights into the substrate binding mechanism of the class I dehydratase MadB.

Knospe, C.V.Ortiz, J.Reiners, J.Kedrov, A.Gertzen, C.G.W.Smits, S.H.J.Schmitt, L.

(2025) Commun Biol 8: 1032-1032

  • DOI: https://doi.org/10.1038/s42003-025-08454-5
  • Primary Citation Related Structures:
    9G04, 9G05

  • PubMed Abstract:

    In the battle against antimicrobial resistance, lantibiotics have emerged as promising new sources for antimicrobial drugs. Their exceptional stability is due to characteristic modifications termed (methyl-)lanthionine rings. Genome mining efforts have identified hundreds of lantibiotics by detecting gene operons, so-called biosynthetic gene clusters (BGC), which encode cysteine-rich peptides (30-50 amino acids in size) and enzymes responsible for dehydration and cyclization, catalyzing the post-translational ring formation. One such identified, class I lantibiotic is maddinglicin from Clostridium maddingley. Here, we present single particle cryo-EM structures of the dehydratase MadB in both, its apo-state and in complex with a leader peptide of maddinglicin, revealing a distinct conformational change upon substrate binding. Small-angle X-ray scattering studies elucidate the substrate binding site for the C-terminal part of maddinglicin. Furthermore, a substrate specificity analysis was performed highlighting a critical stretch of amino acids within the maddinglicin leader sequence that is crucial for binding. Here, we provide molecular insights into the conformational changes, principles of substrate recognition and ligand:protein stoichiometry of a class I lantibiotic dehydratase.


  • Organizational Affiliation
    • Institute of Biochemistry, Heinrich Heine University Düsseldorf, Düsseldorf, Germany.

Macromolecule Content

  • Total Structure Weight: 246.18 kDa
  • Atom Count: 16,899
  • Modeled Residue Count: 2,023
  • Deposited Residue Count: 2,076
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Thiopeptide-type bacteriocin biosynthesis domain containing protein
A, B
1,038Clostridium sp. Maddingley MBC34-26Mutation(s): 0
Gene Names: A370_05566

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.70 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
German Research Foundation (DFG)GermanySchm1279/13-1
German Research Foundation (DFG)Germany417919780

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-16
    Type: Initial release
