9FTZ | pdb_00009ftz

CIII2/CIV respiratory supercomplex from Mycobacterium smegmatis with lansoprazole sulfide


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Inhibition mechanism of potential antituberculosis compound lansoprazole sulfide.

Kovalova, T.Krol, S.Gamiz-Hernandez, A.P.Sjostrand, D.Kaila, V.R.I.Brzezinski, P.Hogbom, M.

(2024) Proc Natl Acad Sci U S A 121: e2412780121-e2412780121

  • DOI: https://doi.org/10.1073/pnas.2412780121
  • Primary Citation of Related Structures:
    9FTZ, 9FU0

  • PubMed Abstract:

    Tuberculosis is one of the most common causes of death worldwide, with a rapid emergence of multi-drug-resistant strains underscoring the need for new antituberculosis drugs. Recent studies indicate that lansoprazole-a known gastric proton pump inhibitor and its intracellular metabolite, lansoprazole sulfide (LPZS)-are potential antituberculosis compounds. Yet, their inhibitory mechanism and site of action still remain unknown. Here, we combine biochemical, computational, and structural approaches to probe the interaction of LPZS with the respiratory chain supercomplex III 2 IV 2 of Mycobacterium smegmatis , a close homolog of Mycobacterium tuberculosis supercomplex. We show that LPZS binds to the Q o cavity of the mycobacterial supercomplex, inhibiting the quinol substrate oxidation process and the activity of the enzyme. We solve high-resolution (2.6 Å) cryo-electron microscopy (cryo-EM) structures of the supercomplex with bound LPZS that together with microsecond molecular dynamics simulations, directed mutagenesis, and functional assays reveal key interactions that stabilize the inhibitor, but also how mutations can lead to the emergence of drug resistance. Our combined findings reveal an inhibitory mechanism of LPZS and provide a structural basis for drug development against tuberculosis.


  • Organizational Affiliation
    • Department of Biochemistry and Biophysics, The Arrhenius Laboratories for Natural Sciences, Stockholm University, 106 91 Stockholm, Sweden.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Cytochrome bc1 complex cytochrome c subunitA [auth O]278Mycolicibacterium smegmatisMutation(s): 0
Gene Names: MSMEG_4261
EC: 7.1.1.8
UniProt
Find proteins for I7FPH1 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore I7FPH1
Go to UniProtKB:  I7FPH1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupI7FPH1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

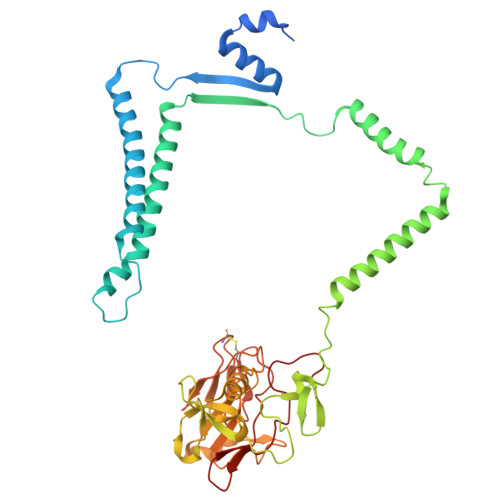

Cytochrome bc1 complex cytochrome c subunitB [auth M],
N [auth G]
408Mycolicibacterium smegmatisMutation(s): 0
Gene Names: MSMEG_4261
EC: 7.1.1.8
UniProt
Find proteins for I7GD61 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore I7GD61
Go to UniProtKB:  I7GD61
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupI7GD61
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Cytochrome bc1 complex cytochrome b subunitC [auth N],
M [auth H]
556Mycolicibacterium smegmatisMutation(s): 0
Gene Names: MSMEG_4263
EC: 7.1.1.8
UniProt
Find proteins for A0R052 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0R052
Go to UniProtKB:  A0R052
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0R052
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

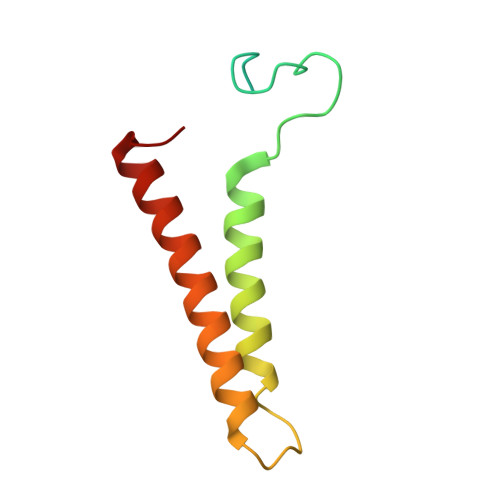

Transmembrane proteinD [auth P]100Mycolicibacterium smegmatisMutation(s): 0
Gene Names: MSMEG_2575
UniProt
Find proteins for A0QVH4 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0QVH4
Go to UniProtKB:  A0QVH4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0QVH4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

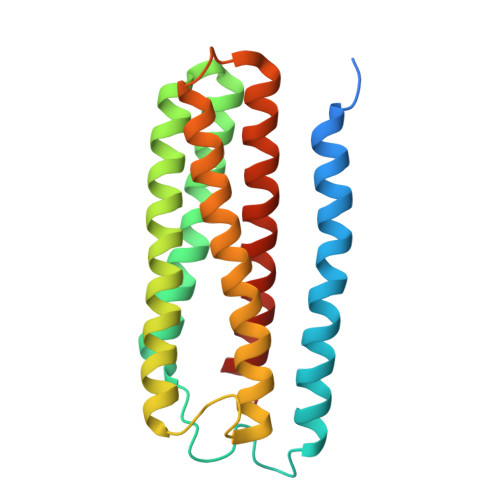

Probable cytochrome c oxidase subunit 3E [auth S]203Mycolicibacterium smegmatisMutation(s): 0
Gene Names: MSMEG_4260
EC: 7.1.1.9
UniProt
Find proteins for A0R049 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0R049
Go to UniProtKB:  A0R049
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0R049
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage

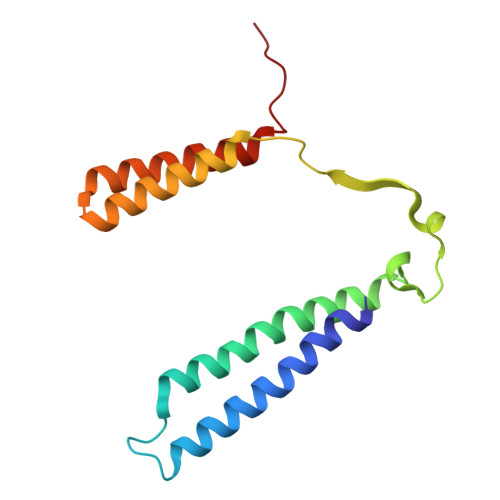

Cytochrome c oxidase polypeptide 4F [auth T]139Mycolicibacterium smegmatisMutation(s): 0
Gene Names: MSMEG_4267
EC: 7.1.1.9
UniProt
Find proteins for A0R056 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0R056
Go to UniProtKB:  A0R056
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0R056
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

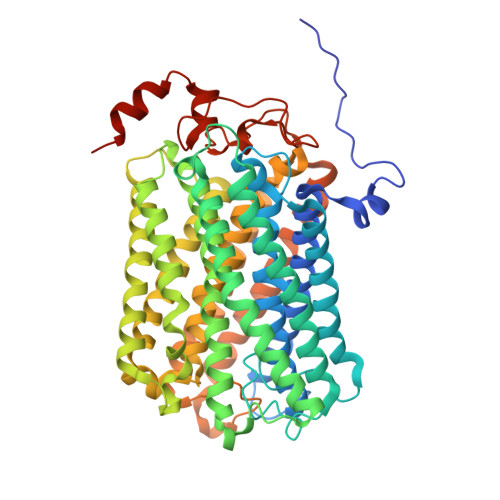

Cytochrome c oxidase subunit 1G [auth R]575Mycolicibacterium smegmatisMutation(s): 0
Gene Names: D806_022970
EC: 7.1.1.9
UniProt
Find proteins for A0R0M4 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0R0M4
Go to UniProtKB:  A0R0M4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0R0M4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
cytochrome-c oxidaseH [auth Q]341Mycolicibacterium smegmatisMutation(s): 0
Gene Names: MSMEG_4268
EC: 7.1.1.9
UniProt
Find proteins for A0R057 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0R057
Go to UniProtKB:  A0R057
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0R057
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage
Cytochrome c oxidase subunitI [auth U]79Mycolicibacterium smegmatisMutation(s): 0
Gene Names: MSMEG_4693
UniProt
Find proteins for A0R1B6 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0R1B6
Go to UniProtKB:  A0R1B6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0R1B6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage

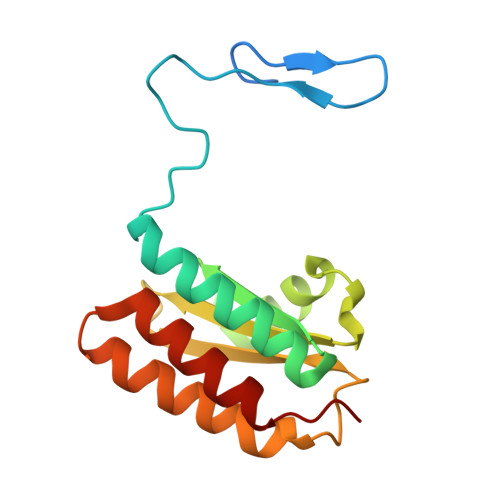

Uncharacterized protein MSMEG_4692/MSMEI_4575J [auth V]157Mycolicibacterium smegmatisMutation(s): 0
Gene Names: MSMEG_4692MSMEI_4575
UniProt
Find proteins for A0R1B5 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0R1B5
Go to UniProtKB:  A0R1B5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0R1B5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage

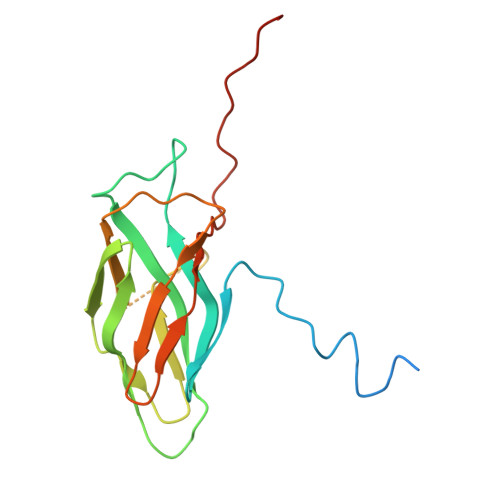

LpqE proteinK [auth W]186Mycolicibacterium smegmatisMutation(s): 0
Gene Names: MSMEG_6078
UniProt
Find proteins for A0R562 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0R562
Go to UniProtKB:  A0R562
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0R562
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage

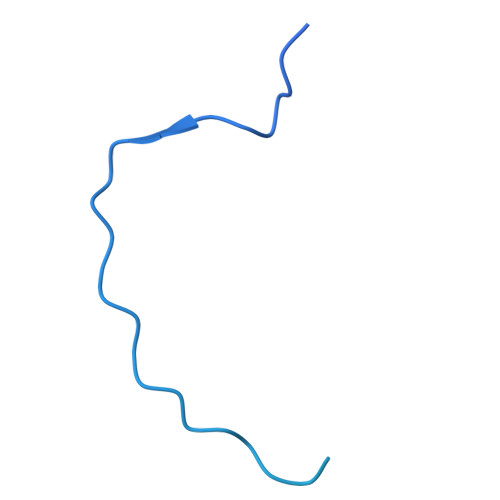

Superoxide dismutase [Cu-Zn]L [auth Y],
O [auth c]
236Mycolicibacterium smegmatisMutation(s): 0
Gene Names: sodCMSMEG_0835
EC: 1.15.1.1
UniProt
Find proteins for A0QQQ1 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0QQQ1
Go to UniProtKB:  A0QQQ1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0QQQ1
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 18 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
IZL
Query on IZL

Download Ideal Coordinates CCD File
LB [auth G],
X [auth M]
[(2~{R})-3-[[(1~{S},2~{R},3~{S},4~{S},5~{R},6~{R})-2-[(2~{R},3~{S},4~{S},5~{S},6~{R})-6-[[(2~{S},3~{S},4~{S},5~{S},6~{R})-6-[[(2~{S},3~{S},4~{S},5~{S},6~{R})-6-(hydroxymethyl)-3-[(2~{R},3~{S},4~{S},5~{S},6~{R})-6-(hydroxymethyl)-3,4,5-tris(oxidanyl)oxan-2-yl]oxy-4,5-bis(oxidanyl)oxan-2-yl]oxymethyl]-3,4,5-tris(oxidanyl)oxan-2-yl]oxymethyl]-3,4,5-tris(oxidanyl)oxan-2-yl]oxy-3,4,5-tris(oxidanyl)-6-[(2~{R},3~{S},4~{S},5~{S},6~{R})-3,4,5-tris(oxidanyl)-6-(undecanoyloxymethyl)oxan-2-yl]oxy-cyclohexyl]oxy-oxidanyl-phosphoryl]oxy-2-undecanoyloxy-propyl] (10~{R})-10-methyldodecanoate
C74 H133 O39 P
RFJQNGLGKTXNKA-YXJCWACHSA-N
CDL
Query on CDL

Download Ideal Coordinates CCD File
AA [auth N]
CB [auth H]
EA [auth N]
EB [auth H]
FA [auth P]
AA [auth N],
CB [auth H],
EA [auth N],
EB [auth H],
FA [auth P],
FB [auth H],
LA [auth R],
PA [auth R],
Z [auth N]
CARDIOLIPIN
C81 H156 O17 P2
XVTUQDWPJJBEHJ-KZCWQMDCSA-L
WUO
Query on WUO

Download Ideal Coordinates CCD File
GA [auth P],
Q [auth O]
acyl-phosphatidyl-myo-inositol dimannoside (AcPIM2)
C72 H135 O24 P
NUQCUWACYIKWMU-RXWIBPKHSA-N
9YF
Query on 9YF

Download Ideal Coordinates CCD File
KB [auth G],
V [auth M],
YA [auth W]
(2R)-2-(hexadecanoyloxy)-3-{[(S)-hydroxy{[(1R,2R,3R,4R,5R,6S)-2,3,4,5,6-pentahydroxycyclohexyl]oxy}phosphoryl]oxy}propyl (9S)-9-methyloctadecanoate
C44 H85 O13 P
GRDWPDVMAXODDM-LZYRCPELSA-N
HEA
Query on HEA

Download Ideal Coordinates CCD File
MA [auth R],
NA [auth R]
HEME-A
C49 H56 Fe N4 O6
ZGGYGTCPXNDTRV-PRYGPKJJSA-L
MQ9 (Subject of Investigation/LOI)
Query on MQ9

Download Ideal Coordinates CCD File
DA [auth N],
HB [auth H],
IB [auth H],
P [auth O],
T [auth O]
MENAQUINONE-9
C56 H80 O2
WCRXHNIUHQUASO-ABFXHILCSA-N
3PE
Query on 3PE

Download Ideal Coordinates CCD File
JA [auth S]1,2-Distearoyl-sn-glycerophosphoethanolamine
C41 H82 N O8 P
LVNGJLRDBYCPGB-LDLOPFEMSA-N
HEC
Query on HEC

Download Ideal Coordinates CCD File
R [auth O],
S [auth O]
HEME C
C34 H34 Fe N4 O4
HXQIYSLZKNYNMH-LJNAALQVSA-N
HEM
Query on HEM

Download Ideal Coordinates CCD File
CA [auth N],
DB [auth H],
GB [auth H],
Y [auth N]
PROTOPORPHYRIN IX CONTAINING FE
C34 H32 Fe N4 O4
KABFMIBPWCXCRK-RGGAHWMASA-L
9XX
Query on 9XX

Download Ideal Coordinates CCD File
BB [auth Y],
PB [auth c],
TA [auth R]
(2S)-1-(hexadecanoyloxy)propan-2-yl (10S)-10-methyloctadecanoate
C38 H74 O4
LWLNRPPCJIGPLI-ZPGRZCPFSA-N
7PH
Query on 7PH

Download Ideal Coordinates CCD File
HA [auth S],
MB [auth G],
NB [auth G],
W [auth M]
(1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate
C29 H57 O8 P
UYOIGTVMJVHOSC-HHHXNRCGSA-N
A1IGA (Subject of Investigation/LOI)
Query on A1IGA

Download Ideal Coordinates CCD File
BA [auth N]Lansoprazole sulfide
C16 H14 F3 N3 O S
CCHLMSUZHFPSFC-UHFFFAOYSA-N
PLM
Query on PLM

Download Ideal Coordinates CCD File
AB [auth Y],
OB [auth c],
ZA [auth W]
PALMITIC ACID
C16 H32 O2
IPCSVZSSVZVIGE-UHFFFAOYSA-N
TRD
Query on TRD

Download Ideal Coordinates CCD File
IA [auth S],
KA [auth T],
RA [auth R],
SA [auth R],
XA [auth Q]
TRIDECANE
C13 H28
IIYFAKIEWZDVMP-UHFFFAOYSA-N
FES
Query on FES

Download Ideal Coordinates CCD File
JB [auth G],
U [auth M]
FE2/S2 (INORGANIC) CLUSTER
Fe2 S2
NIXDOXVAJZFRNF-UHFFFAOYSA-N
CU
Query on CU

Download Ideal Coordinates CCD File
OA [auth R],
VA [auth Q],
WA [auth Q]
COPPER (II) ION
Cu
JPVYNHNXODAKFH-UHFFFAOYSA-N
CA
Query on CA

Download Ideal Coordinates CCD File
QA [auth R]CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
UA [auth R]MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Knut and Alice Wallenberg FoundationSwedenKAW 2019.0043

Revision History  (Full details and data files)

  • Version 1.0: 2024-11-20
    Type: Initial release
  • Version 1.1: 2024-11-27
    Changes: Data collection, Database references
