9FP3 | pdb_00009fp3

Ap4A bound in de novo transcription initiation T. thermophilus RNA polymerase complex with TC DNA template


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.42 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Molecular insight into 5' RNA capping with Np n Ns by bacterial RNA polymerase.

Serianni, V.M.Skerlova, J.Dubankova, A.K.Skriba, A.Svachova, H.Vuckova, T.Filimonenko, A.Fabry, M.Rezacova, P.Kouba, T.Cahova, H.

(2026) Nat Chem Biol

  • DOI: https://doi.org/10.1038/s41589-025-02134-5
  • Primary Citation of Related Structures:
    9FO6, 9FOG, 9FOK, 9FP3, 9FRJ, 9R75

  • PubMed Abstract:

    RNA capped with dinucleoside polyphosphates has been discovered in bacteria and eukaryotes only recently. The likely mechanism of this specific capping involves direct incorporation of dinucleoside polyphosphates by RNA polymerase as noncanonical initiating nucleotides. However, how these compounds bind into the active site of RNA polymerase during transcription initiation is unknown. Here, we explored transcription initiation in vitro, using a series of DNA templates in combination with dinucleoside polyphosphates and model RNA polymerase from Thermus thermophilus. We observed that the transcription start site can vary on the basis of the compatibility of the specific template and dinucleoside polyphosphate. Cryo-electron microscopy structures of transcription initiation complexes with dinucleoside polyphosphates revealed that both nucleobase moieties can pair with the DNA template. The first encoded nucleotide pairs in a canonical Watson-Crick manner, whereas the second nucleobase pairs noncanonically in a reverse Watson-Crick manner. Our work provides a structural explanation of how dinucleoside polyphosphates initiate RNA transcription.


  • Organizational Affiliation
    • Institute of Organic Chemistry and Biochemistry of the CAS, Flemingovo náměstí 2, Prague, Czechia.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

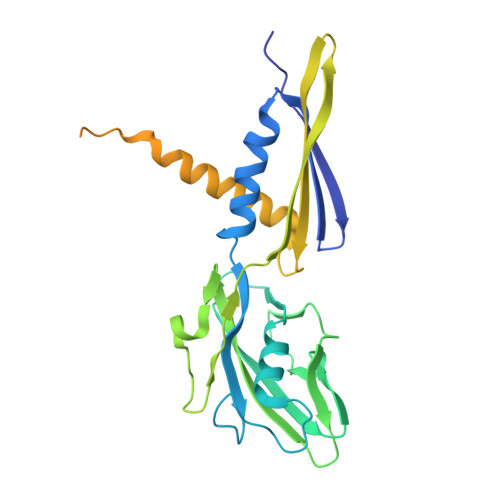

DNA-directed RNA polymerase subunit alpha
A, B
315Thermus thermophilus HB8Mutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for Q5SHR6 (Thermus thermophilus (strain ATCC 27634 / DSM 579 / HB8))
Explore Q5SHR6
Go to UniProtKB:  Q5SHR6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ5SHR6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

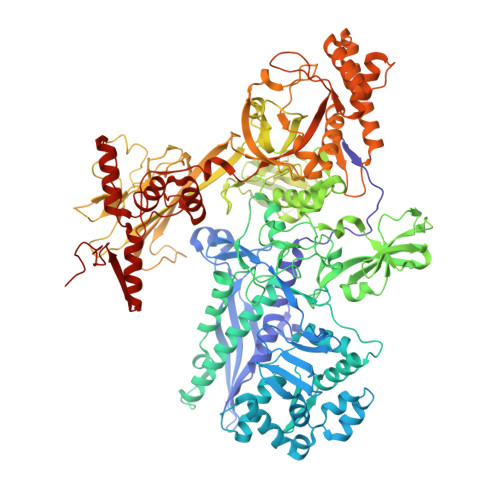

DNA-directed RNA polymerase subunit beta1,119Thermus thermophilus HB8Mutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for Q8RQE9 (Thermus thermophilus (strain ATCC 27634 / DSM 579 / HB8))
Explore Q8RQE9
Go to UniProtKB:  Q8RQE9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8RQE9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

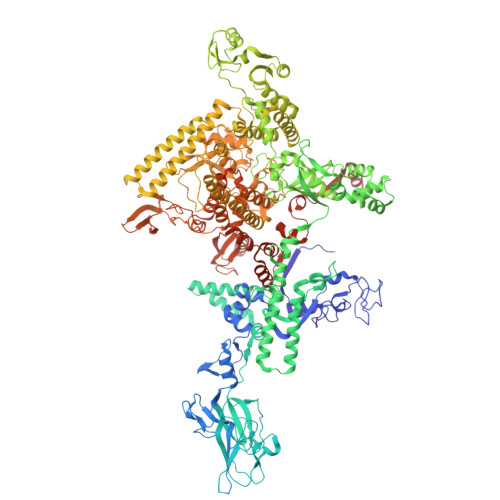

DNA-directed RNA polymerase subunit beta'1,524Thermus thermophilus HB8Mutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for Q8RQE8 (Thermus thermophilus (strain ATCC 27634 / DSM 579 / HB8))
Explore Q8RQE8
Go to UniProtKB:  Q8RQE8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8RQE8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

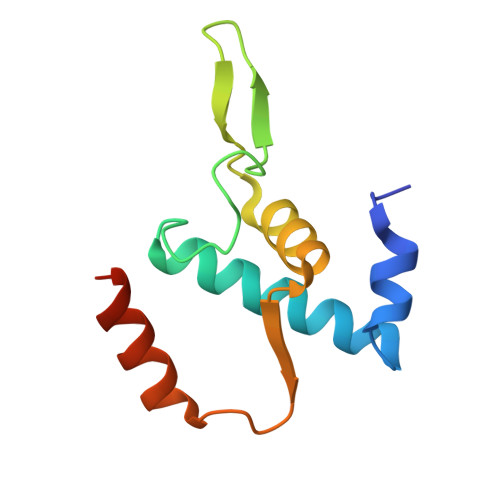

DNA-directed RNA polymerase subunit omega99Thermus thermophilus HB8Mutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for Q8RQE7 (Thermus thermophilus (strain ATCC 27634 / DSM 579 / HB8))
Explore Q8RQE7
Go to UniProtKB:  Q8RQE7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8RQE7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

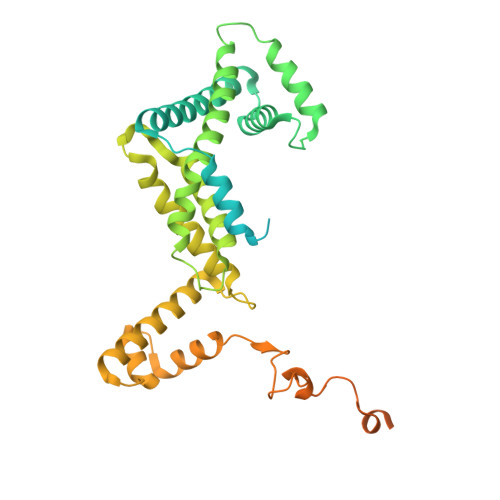

RNA polymerase sigma factor SigA449Thermus thermophilus HB8Mutation(s): 0
Gene Names: sigArpoDTT_C0164
UniProt
Find proteins for Q72L95 (Thermus thermophilus (strain ATCC BAA-163 / DSM 7039 / HB27))
Explore Q72L95
Go to UniProtKB:  Q72L95
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ72L95
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains LengthOrganismImage

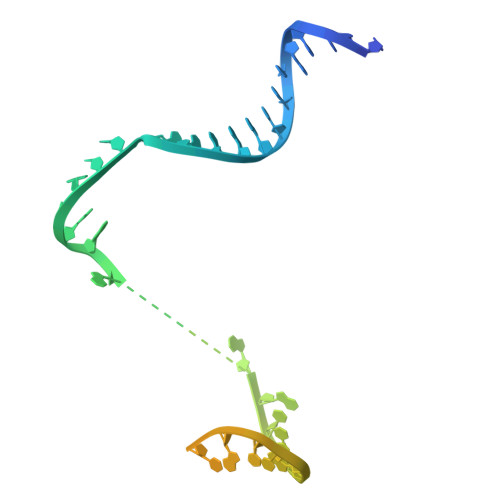

DNA (31-MER)53synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains LengthOrganismImage

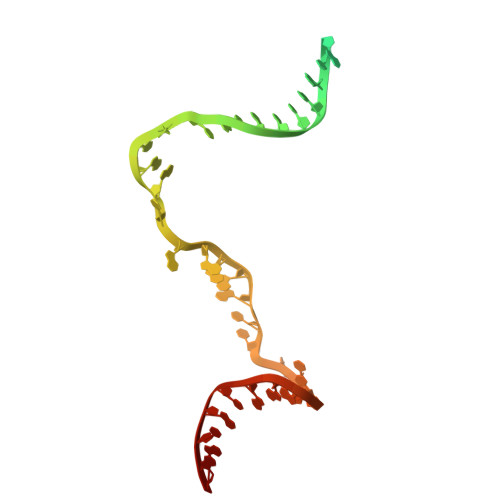

DNA (35-MER)53synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
B4P (Subject of Investigation/LOI)
Query on B4P

Download Ideal Coordinates CCD File
J [auth C]BIS(ADENOSINE)-5'-TETRAPHOSPHATE
C20 H28 N10 O19 P4
YOAHKNVSNCMZGQ-XPWFQUROSA-N
G2P (Subject of Investigation/LOI)
Query on G2P

Download Ideal Coordinates CCD File
P [auth G]PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER
C11 H18 N5 O13 P3
GXTIEXDFEKYVGY-KQYNXXCUSA-N
ZN
Query on ZN

Download Ideal Coordinates CCD File
K [auth D],
L [auth D]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
I [auth C],
M [auth D],
N [auth D],
O [auth D]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.42 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21_5207:
RECONSTRUCTIONRELION4.0.0.

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other governmentCzech RepublicCZ.02.01.01/00/22_008/0004575
Other government101041374

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-17
    Type: Initial release
  • Version 1.1: 2026-01-21
    Changes: Data collection, Database references, Structure summary
