9FI8 | pdb_00009fi8

SSU(head) structure derived from the SSU sample of the mitoribosome from T. gondii.


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: in silico
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Apicomplexan mitoribosome from highly fragmented rRNAs to a functional machine.

Wang, C.Kassem, S.Rocha, R.E.O.Sun, P.Nguyen, T.T.Kloehn, J.Liu, X.Brusini, L.Bonavoglia, A.Barua, S.Boissier, F.Lucia Del Cistia, M.Peng, H.Tang, X.Xie, F.Wang, Z.Vadas, O.Suo, X.Hashem, Y.Soldati-Favre, D.Jia, Y.

(2024) Nat Commun 15: 10689-10689

  • DOI: https://doi.org/10.1038/s41467-024-55033-z
  • Primary Citation of Related Structures:
    9FI8, 9FIA, 9G6K

  • PubMed Abstract:

    The phylum Apicomplexa comprises eukaryotic parasites that cause fatal diseases affecting millions of people and animals worldwide. Their mitochondrial genomes have been significantly reduced, leaving only three protein-coding genes and highly fragmented mitoribosomal rRNAs, raising challenging questions about mitoribosome composition, assembly and structure. Our study reveals how Toxoplasma gondii assembles over 40 mt-rRNA fragments using exclusively nuclear-encoded mitoribosomal proteins and three lineage-specific families of RNA-binding proteins. Among these are four proteins from the Apetala2/Ethylene Response Factor (AP2/ERF) family, originally known as transcription factors in plants and Apicomplexa, now repurposed as essential mitoribosome components. Cryo-EM analysis of the mitoribosome structure demonstrates how these AP2 proteins function as RNA binders to maintain mitoribosome integrity. The mitoribosome is also decorated with members of lineage-specific RNA-binding proteins belonging to RAP (RNA-binding domain abundant in Apicomplexa) proteins and HPR (heptatricopeptide repeat) families, highlighting the unique adaptations of these parasites. Solving the molecular puzzle of apicomplexan mitoribosome could inform the development of therapeutic strategies targeting organellar translation.


  • Organizational Affiliation
    • National Key Laboratory of Veterinary Public Health Security, Key Laboratory of Animal Epidemiology of the Ministry of Agriculture and Rural Affairs, National Animal Protozoa Laboratory & College of Veterinary Medicine, China Agricultural University, Beijing, 100193, China.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

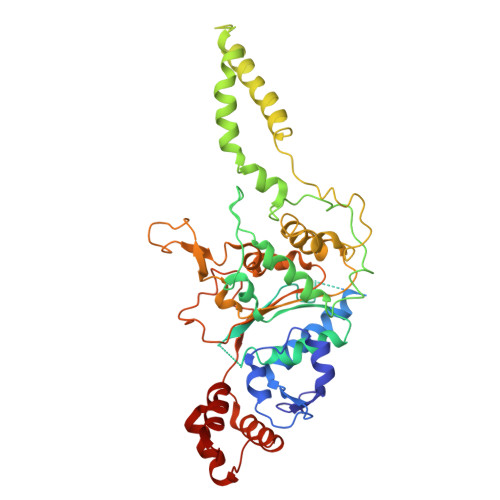

Small ribosomal subunit protein mS29,mS29(DAP3)A [auth HA]493Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for S8GCU6 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore S8GCU6
Go to UniProtKB:  S8GCU6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupS8GCU6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

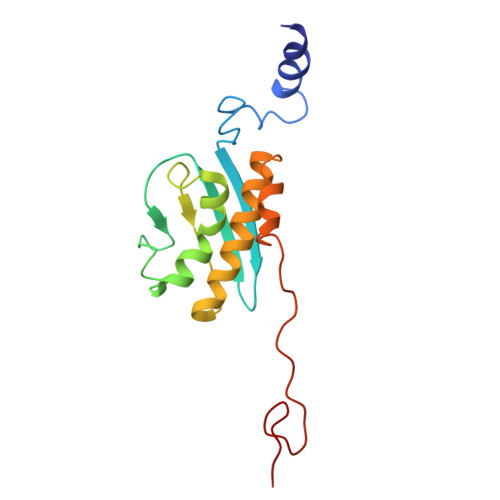

Ribosomal protein S9, putativeB [auth HB]156Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for S8F943 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore S8F943
Go to UniProtKB:  S8F943
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupS8F943
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

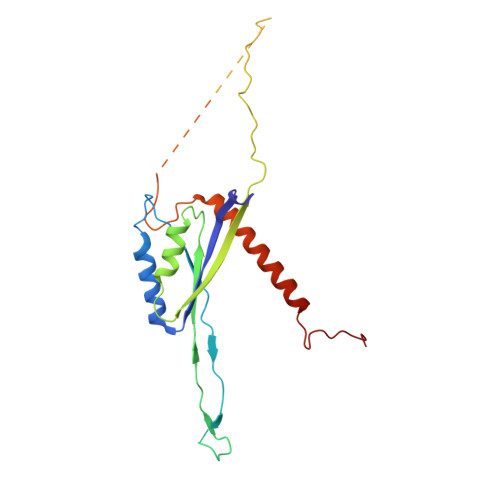

uS10mC [auth HC]238Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for S8F4G4 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore S8F4G4
Go to UniProtKB:  S8F4G4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupS8F4G4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
Ribosomal protein S14, putativeD [auth HD]102Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for A0A125YWE1 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore A0A125YWE1
Go to UniProtKB:  A0A125YWE1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A125YWE1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

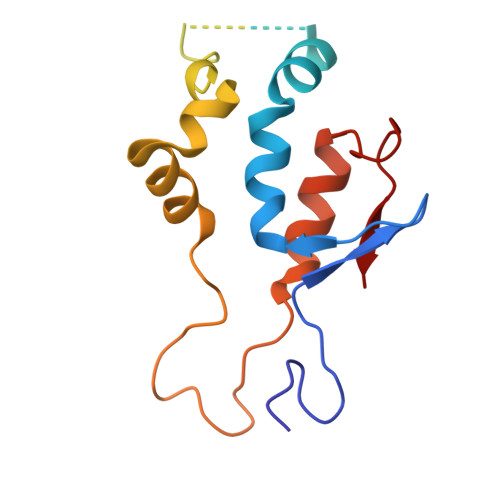

mS157E [auth HE]177Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for S8G684 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore S8G684
Go to UniProtKB:  S8G684
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupS8G684
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage

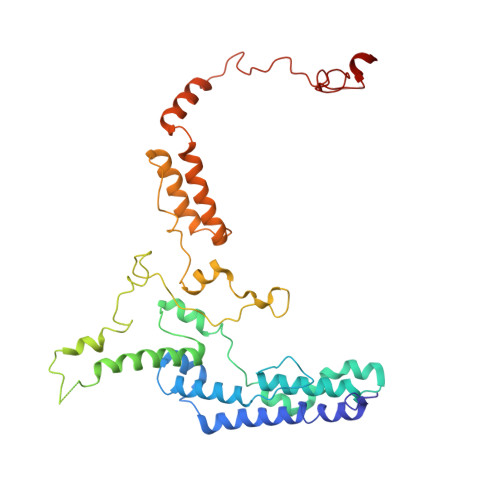

DNA double-strand break repair rad50 ATPaseF [auth HF]354Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for S8ETI9 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore S8ETI9
Go to UniProtKB:  S8ETI9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupS8ETI9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

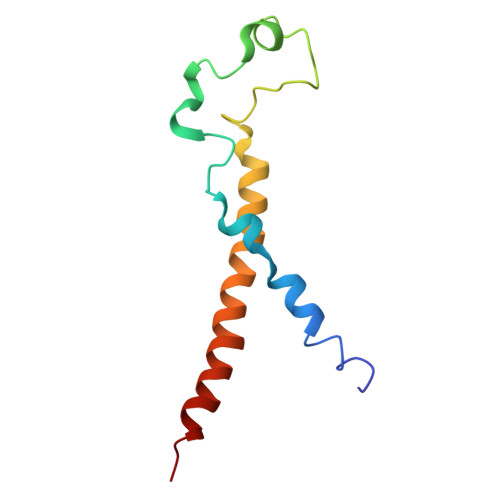

mS149G [auth HG]97Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for A0A125YMK3 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore A0A125YMK3
Go to UniProtKB:  A0A125YMK3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A125YMK3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage

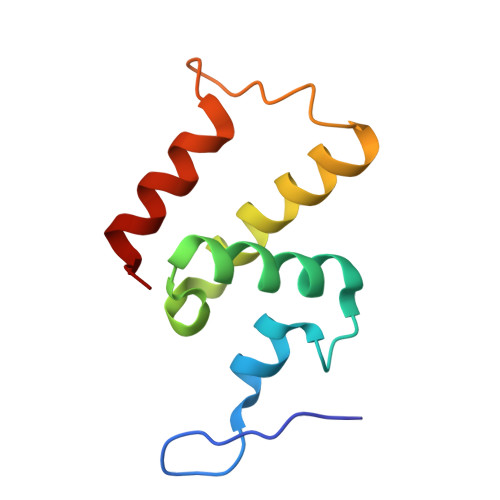

ms158H [auth HH]90Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for S8GU15 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore S8GU15
Go to UniProtKB:  S8GU15
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupS8GU15
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage

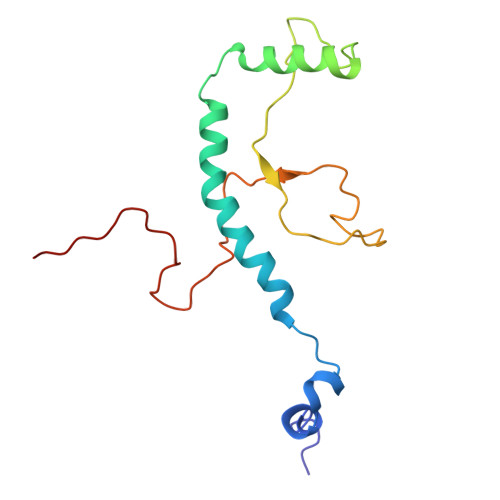

mS151I [auth HI]144Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for A0A125YQQ1 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore A0A125YQQ1
Go to UniProtKB:  A0A125YQQ1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A125YQQ1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage

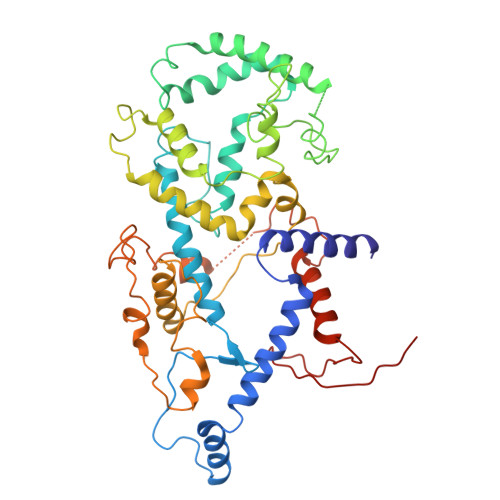

30S ribosomal protein S5, putativeJ [auth HJ]441Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for S8F5G8 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore S8F5G8
Go to UniProtKB:  S8F5G8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupS8F5G8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage

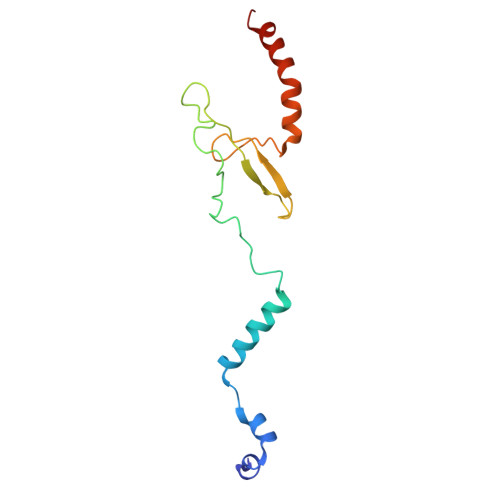

mS155K [auth HK]127Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for S8EW95 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore S8EW95
Go to UniProtKB:  S8EW95
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupS8EW95
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage
mS159L [auth HL]83Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for A0A125YYH5 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore A0A125YYH5
Go to UniProtKB:  A0A125YYH5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A125YYH5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains Sequence LengthOrganismDetailsImage

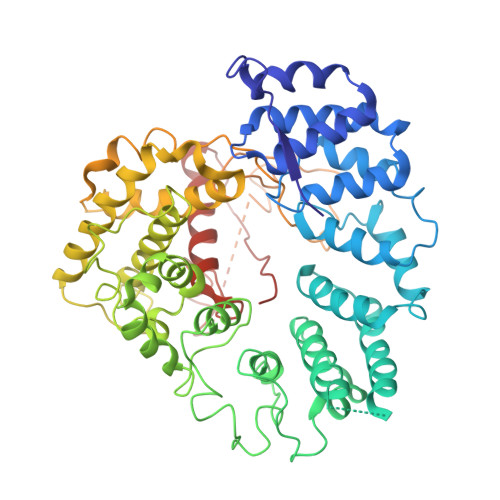

RAP domain-containing proteinM [auth HM]610Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for S8F0U0 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore S8F0U0
Go to UniProtKB:  S8F0U0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupS8F0U0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 14
MoleculeChains Sequence LengthOrganismDetailsImage
mS161N [auth HN]26Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for S8ERU3 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore S8ERU3
Go to UniProtKB:  S8ERU3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupS8ERU3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 15
MoleculeChains Sequence LengthOrganismDetailsImage

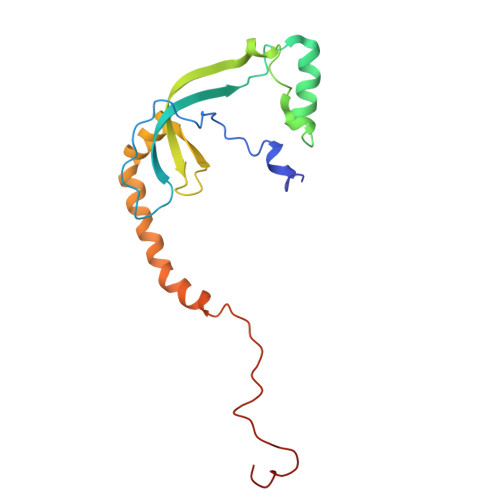

mS152O [auth HO]168Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for S8GML4 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore S8GML4
Go to UniProtKB:  S8GML4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupS8GML4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 16
MoleculeChains Sequence LengthOrganismDetailsImage

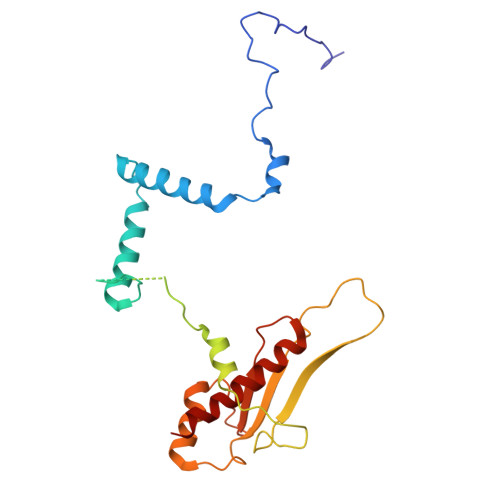

Small ribosomal subunit protein mS35 mitochondrial conserved domain-containing proteinP [auth HP]246Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for S8F5W4 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore S8F5W4
Go to UniProtKB:  S8F5W4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupS8F5W4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 17
MoleculeChains Sequence LengthOrganismDetailsImage

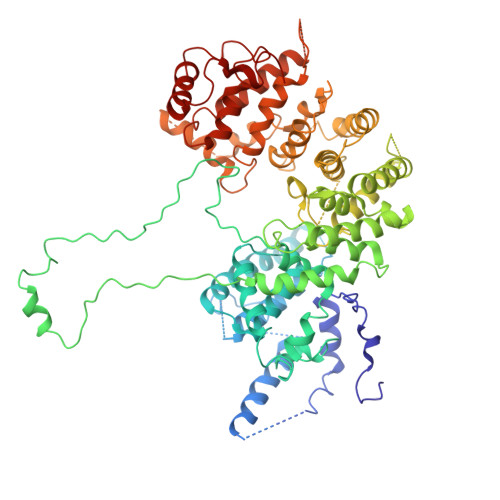

mS141Q [auth HQ]757Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for S8G3J1 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore S8G3J1
Go to UniProtKB:  S8G3J1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupS8G3J1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 18
MoleculeChains Sequence LengthOrganismDetailsImage

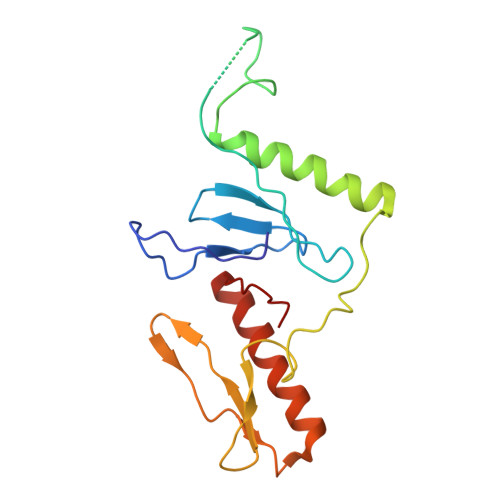

AP2 domain transcription factor AP2IX-6R [auth HR]170Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for S8G8E7 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore S8G8E7
Go to UniProtKB:  S8G8E7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupS8G8E7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 19
MoleculeChains Sequence LengthOrganismDetailsImage

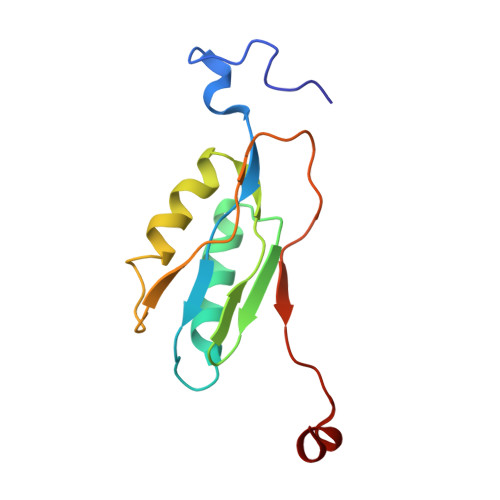

Acylphosphatase-like domain-containing proteinS [auth HS]121Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for A0A125YXT1 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore A0A125YXT1
Go to UniProtKB:  A0A125YXT1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A125YXT1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 20
MoleculeChains Sequence LengthOrganismDetailsImage

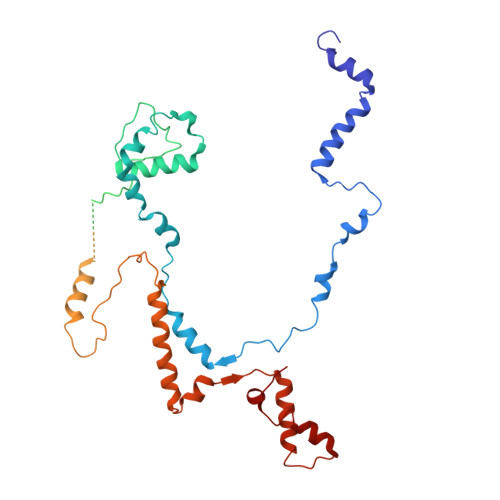

mS33/mS27T [auth HT]405Toxoplasma gondiiMutation(s): 0
UniProt
Find proteins for A0A125YG13 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore A0A125YG13
Go to UniProtKB:  A0A125YG13
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A125YG13
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 21
MoleculeChains LengthOrganismImage
SSUB-SSUU [auth bN]58Toxoplasma gondii
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 22
MoleculeChains LengthOrganismImage
SSUDV [auth hB]56Toxoplasma gondii
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 23
MoleculeChains LengthOrganismImage

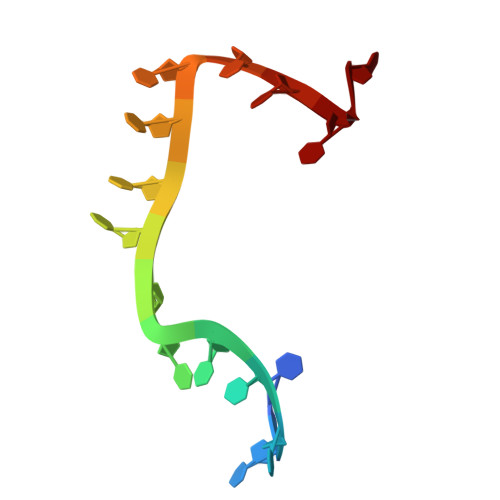

ulr22W [auth hD]15Toxoplasma gondii
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 24
MoleculeChains LengthOrganismImage

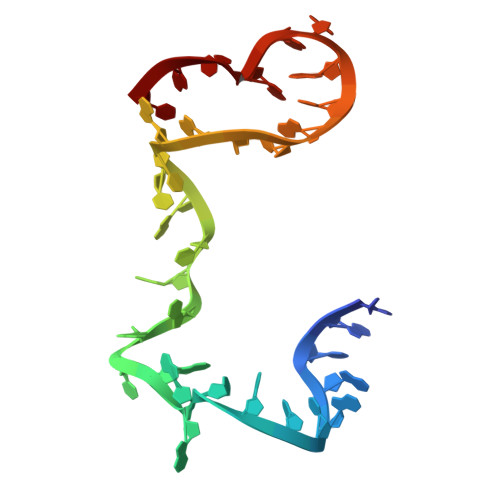

RNA9-SSUX [auth hG]68Toxoplasma gondii
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 25
MoleculeChains LengthOrganismImage
RNA5-SSUY [auth hL]33Toxoplasma gondii
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 26
MoleculeChains LengthOrganismImage

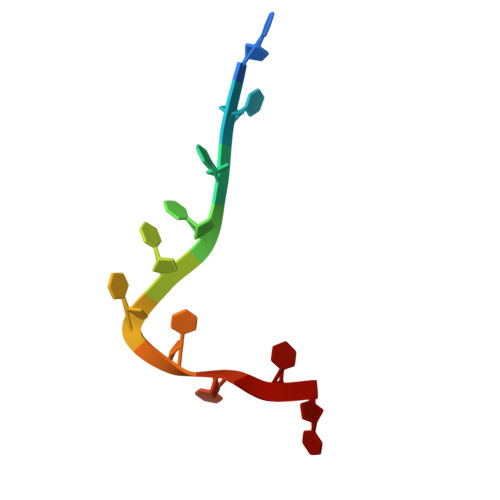

ulr23Z [auth hM]10Toxoplasma gondii
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 27
MoleculeChains LengthOrganismImage

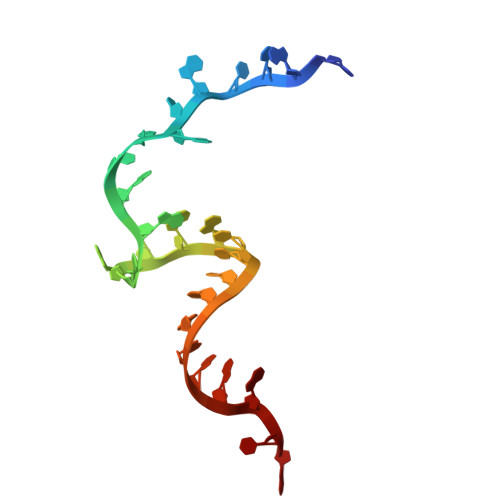

RNA19-SSUAA [auth hR]27Toxoplasma gondii
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 28
MoleculeChains LengthOrganismImage

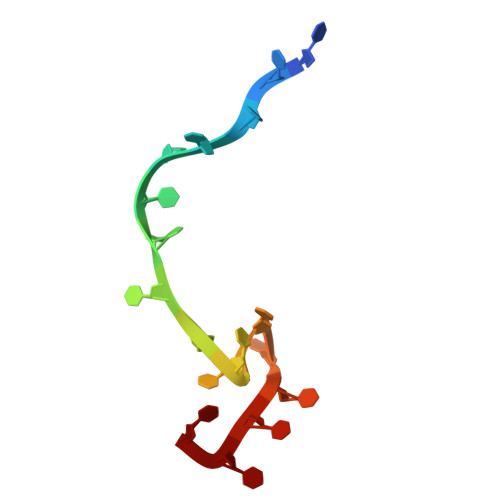

ulr24BA [auth hS]17Toxoplasma gondii
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.20.1-4487

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
European CommissionEuropean Union101088541

Revision History  (Full details and data files)

  • Version 1.0: 2024-12-11
    Type: Initial release
  • Version 1.1: 2025-01-01
    Changes: Data collection, Database references
