9EZE | pdb_00009eze

Structure of subdomain 3 of the Plasmodium vivx Duffy binding protein (PvDBP) bound to human antibody DB9

PDB DOI: https://doi.org/10.2210/pdb9EZE/pdb

Classification: CELL ADHESION
Organism(s): Plasmodium vivax Sal-1, Homo sapiens
Expression System: Escherichia coli, Homo sapiens
Mutation(s): No

Deposited: 2024-04-11 Released: 2025-10-29
Deposition Author(s): Barber, N.M., Higgins, M.K.
Funding Organization(s): Wellcome Trust

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.55 Å
R-Value Free:
0.223 (Depositor), 0.195 (DCC)
R-Value Work:
0.204 (Depositor), 0.199 (DCC)
R-Value Observed:
0.205 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Subdomain 3 of the Plasmodium vivax Duffy binding protein as a vaccine candidate

Barber, N.M., Higgins, M.K.

To be published.

Macromolecule Content

Total Structure Weight: 181.13 kDa
Atom Count: 9,514
Modeled Residue Count: 1,107
Deposited Residue Count: 1,622
Unique protein chains: 3

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

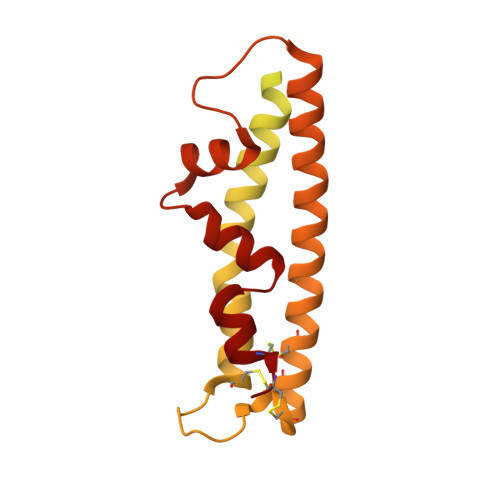

Duffy receptor	A, D	300	Plasmodium vivax Sal-1	Mutation(s): 0 Gene Names: PVDR
UniProt
Find proteins for P22290 (Plasmodium vivax (strain Salvador I)) Explore P22290 Go to UniProtKB: P22290
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P22290
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

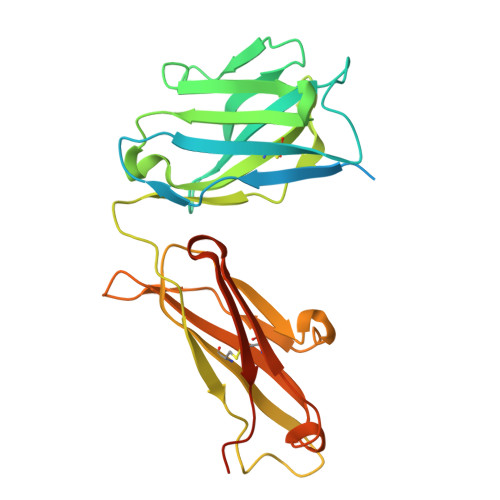

Antibody DB9 heavy chain	B, E	278	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

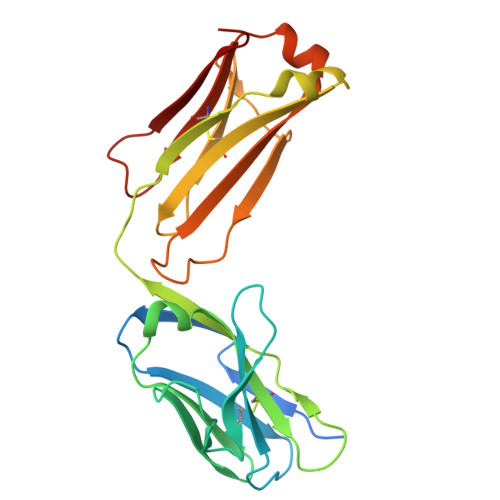

Antibody DB9 light chain	C, F	233	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.55 Å
R-Value Free: 0.223 (Depositor), 0.195 (DCC)
R-Value Work: 0.204 (Depositor), 0.199 (DCC)
R-Value Observed: 0.205 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 76.427	α = 90
b = 126.191	β = 90
c = 129.863	γ = 90

Software Package:

Software Name	Purpose
BUSTER	refinement
PDB_EXTRACT	data extraction
xia2	data reduction
xia2	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2025-10-29

Deposition Author(s):

Funding Organization	Location	Grant Number
Wellcome Trust	United Kingdom	--

Revision History (Full details and data files)

Version 1.0: 2025-10-29
Type: Initial release
