9EJP | pdb_00009ejp

Crystal structure of WDR91 in complex with XS838489

PDB DOI: https://doi.org/10.2210/pdb9EJP/pdb

Classification: TRANSPORT PROTEIN
Organism(s): Homo sapiens
Expression System: Spodoptera frugiperda
Mutation(s): No

Deposited: 2024-11-28 Released: 2025-02-26
Deposition Author(s): Zeng, H., Ahmad, H., Wang, X., Sun, J., Dong, A., Seitova, A., Arrowsmith, C.H., Edwards, A.M., Peng, H., Halabelian, L., Structural Genomics Consortium (SGC)
Funding Organization(s): Other private

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.22 Å
R-Value Free:
0.245 (Depositor), 0.247 (DCC)
R-Value Work:
0.203 (Depositor), 0.206 (DCC)
R-Value Observed:
0.205 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9EJP

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of WDR91 in complex with XS838489

Zeng, H., Ahmad, H., Wang, X., Sun, J., Dong, A., Seitova, A., Arrowsmith, C.H., Edwards, A.M., Peng, H., Halabelian, L., Structural Genomics Consortium (SGC)

To be published.

Macromolecule Content

Total Structure Weight: 41.45 kDa
Atom Count: 2,683
Modeled Residue Count: 337
Deposited Residue Count: 374
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

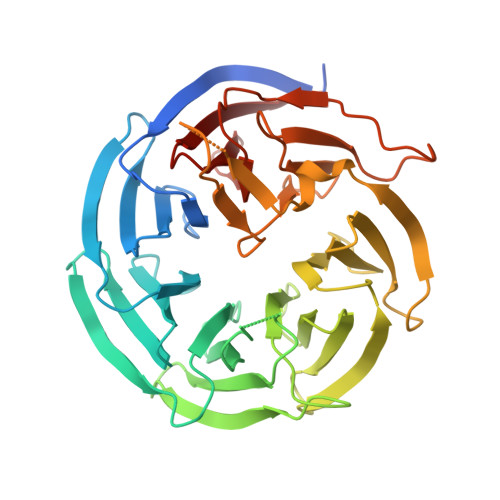

WD repeat-containing protein 91	A	374	Homo sapiens	Mutation(s): 0 Gene Names: WDR91, HSPC049
UniProt & NIH Common Fund Data Resources
Find proteins for A4D1P6 (Homo sapiens) Explore A4D1P6 Go to UniProtKB: A4D1P6
PHAROS: A4D1P6 GTEx: ENSG00000105875
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A4D1P6
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1BIW (Subject of Investigation/LOI) Query on A1BIW Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	N-[(5R)-1,1-dioxo-2,3,4,5-tetrahydro-1H-1lambda~6~-benzothiepin-5-yl]-2-hydroxyquinoxaline-6-carboxamide C₁₉ H₁₇ N₃ O₄ S DYZHGISSMYNBJE-CQSZACIVSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
UNX Query on UNX Download:Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	UNKNOWN ATOM OR ION X		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.22 Å
R-Value Free: 0.245 (Depositor), 0.247 (DCC)
R-Value Work: 0.203 (Depositor), 0.206 (DCC)
R-Value Observed: 0.205 (Depositor)

Space Group: C 2 2 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 77.613	α = 90
b = 132.547	β = 90
c = 119.797	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
HKL-3000	data scaling
PHASES	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-02-26

Deposition Author(s):

Arrowsmith, C.H.

Structural Genomics Consortium (SGC)

Funding Organization	Location	Grant Number
Other private		--

Revision History (Full details and data files)

Version 1.0: 2025-02-26
Type: Initial release
