9EH8 | pdb_00009eh8

Structure of the prefusion HKU5-19s Spike trimer (conformation 2)


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.00 Å
  • Resolution: 2.00 Å
  • Resolution: 2.00 Å
  • Resolution: 2.00 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Molecular basis of convergent evolution of ACE2 receptor utilization among HKU5 coronaviruses.

Park, Y.J.Liu, C.Lee, J.Brown, J.T.Ma, C.B.Liu, P.Gen, R.Xiong, Q.Zepeda, S.K.Stewart, C.Addetia, A.Craig, C.J.Tortorici, M.A.Alshukairi, A.N.Starr, T.N.Yan, H.Veesler, D.

(2025) Cell 188: 1711-1728.e21

  • DOI: https://doi.org/10.1016/j.cell.2024.12.032
  • Primary Citation of Related Structures:
    9D32, 9E0I, 9EA0, 9EH8

  • PubMed Abstract:

    DPP4 was considered a canonical receptor for merbecoviruses until the recent discovery of African bat-borne MERS-related coronaviruses using ACE2. The extent and diversity of ACE2 utilization among merbecoviruses and their receptor species tropism remain unknown. Here, we reveal that HKU5 enters host cells utilizing Pipistrellus abramus (P.abr) and several non-bat mammalian ACE2s through a binding mode distinct from that of any other known ACE2-using coronaviruses. We defined the molecular determinants of receptor species tropism and identified a single amino acid mutation enabling HKU5 to utilize human ACE2, providing proof of principle for machine-learning-assisted outbreak preparedness. We show that MERS-CoV and HKU5 have markedly distinct antigenicity and identified several HKU5 inhibitors, including two clinical compounds. Our findings profoundly alter our understanding of coronavirus evolution, as several merbecovirus clades independently evolved ACE2 utilization, and pave the way for developing countermeasures against viruses poised for human emergence.


  • Organizational Affiliation
    • Department of Biochemistry, University of Washington, Seattle, WA 98195, USA; Howard Hughes Medical Institute, University of Washington, Seattle, WA 98195, USA.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

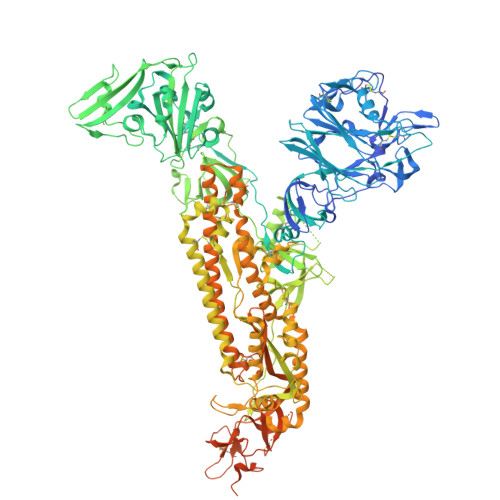

Spike glycoprotein
A, B, C
1,365Pipistrellus bat coronavirus HKU5Mutation(s): 0
UniProt
Find proteins for A3EXD0 (Bat coronavirus HKU5)
Explore A3EXD0
Go to UniProtKB:  A3EXD0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA3EXD0
Glycosylation
Glycosylation Sites: 18
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 2
MoleculeChains Length2D Diagram Glycosylation3D Interactions
alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-6)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseD,
DA [auth d],
Q
8N-Glycosylation
Glycosylation Resources
GlyTouCan:  G23239HX
GlyCosmos:  G23239HX
GlyGen:  G23239HX
Entity ID: 4
MoleculeChains Length2D Diagram Glycosylation3D Interactions
alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseG,
GA [auth g],
T
5N-Glycosylation
Glycosylation Resources
GlyTouCan:  G22768VO
GlyCosmos:  G22768VO
GlyGen:  G22768VO
Entity ID: 5
MoleculeChains Length2D Diagram Glycosylation3D Interactions
alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseH,
HA [auth h],
U
4N-Glycosylation
Glycosylation Resources
GlyTouCan:  G22573RC
GlyCosmos:  G22573RC
GlyGen:  G22573RC
Entity ID: 6
MoleculeChains Length2D Diagram Glycosylation3D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseCA [auth c],
P,
PA [auth p]
3N-Glycosylation
Glycosylation Resources
GlyTouCan:  G15407YE
GlyCosmos:  G15407YE
GlyGen:  G15407YE
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
FOL
Query on FOL

Download Ideal Coordinates CCD File
CB [auth B],
KB [auth C],
VA [auth A]
FOLIC ACID
C19 H19 N7 O6
OVBPIULPVIDEAO-LBPRGKRZSA-N
EIC
Query on EIC

Download Ideal Coordinates CCD File
DB [auth B],
EB [auth C],
WA [auth A]
LINOLEIC ACID
C18 H32 O2
OYHQOLUKZRVURQ-HZJYTTRNSA-N
NAG
Query on NAG

Download Ideal Coordinates CCD File
AB [auth B]
BB [auth B]
FB [auth C]
GB [auth C]
HB [auth C]
AB [auth B],
BB [auth B],
FB [auth C],
GB [auth C],
HB [auth C],
IB [auth C],
JB [auth C],
QA [auth A],
RA [auth A],
SA [auth A],
TA [auth A],
UA [auth A],
XA [auth B],
YA [auth B],
ZA [auth B]
2-acetamido-2-deoxy-beta-D-glucopyranose
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.00 Å
  • Resolution: 2.00 Å
  • Resolution: 2.00 Å
  • Resolution: 2.00 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.2_5419

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesAI158186

Revision History  (Full details and data files)

  • Version 1.0: 2025-02-26
    Type: Initial release
  • Version 1.1: 2025-04-02
    Changes: Data collection, Database references
