9E81 | pdb_00009e81

Cryo-EM structure of COP9 signalosome in complex with CSN5i-3


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.30 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Models: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

CSN5i-3 is an orthosteric molecular glue inhibitor of COP9 signalosome.

Shi, H.Wang, X.Yu, C.Mao, H.Jiao, F.Braitbard, M.Shor, B.Zhang, Z.Hinds, T.R.Cao, S.Fan, E.Schneidman-Duhovny, D.Huang, L.Zheng, N.

(2026) Nature

  • DOI: https://doi.org/10.1038/s41586-026-10129-y
  • Primary Citation of Related Structures:
    9E5Z, 9E77, 9E81, 9EFM, 9EFQ, 9EFV, 9EG1, 9EG8, 9EGL, 9PH4

  • PubMed Abstract:

    Orthosteric inhibitors block enzyme active sites and prevent substrates from binding 1 . Enhancing their specificity through substrate dependence seems inherently unlikely, as their mechanism hinges on direct competition rather than selective recognition. Here we show that a molecular glue mechanism unexpectedly imparts substrate-dependent potency to CSN5i-3, an orthosteric inhibitor of the COP9 signalosome (CSN). We first confirm that CSN5i-3 inhibits CSN, which catalyses NEDD8 (N8) deconjugation from the cullin-RING ubiquitin ligases, by occupying the active site of its catalytic subunit, CSN5, and directly competing with the iso-peptide bond substrate. Notably, the orthosteric inhibitor binds free CSN with only micromolar affinity, yet achieves nanomolar potency in blocking its deneddylase activity. Cryogenic electron microscopy structures of the enzyme-substrate-inhibitor complex reveal that active site-engaged CSN5i-3 occludes the substrate iso-peptide linkage while simultaneously extending an N8-binding exosite of CSN5, acting as a molecular glue to cement the N8-CSN5 interaction. The cooperativity of this trimolecular CSN5i-3-N8-CSN5 assembly, in turn, sequesters CSN5i-3 at its binding site, conferring high potency to the orthosteric inhibitor despite its low affinity for the free enzyme. Together, our findings highlight the modest affinity requirements of molecule glues for individual target proteins and establish orthosteric molecular glue inhibitors as a new class of substrate-dependent enzyme antagonists.


  • Organizational Affiliation
    • Department of Pharmacology, University of Washington, Seattle, WA, USA.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
COP9 signalosome complex subunit 1491Homo sapiensMutation(s): 0
Gene Names: GPS1COPS1CSN1
UniProt & NIH Common Fund Data Resources
Find proteins for Q13098 (Homo sapiens)
Explore Q13098
Go to UniProtKB:  Q13098
PHAROS:  Q13098
GTEx:  ENSG00000169727
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ13098
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

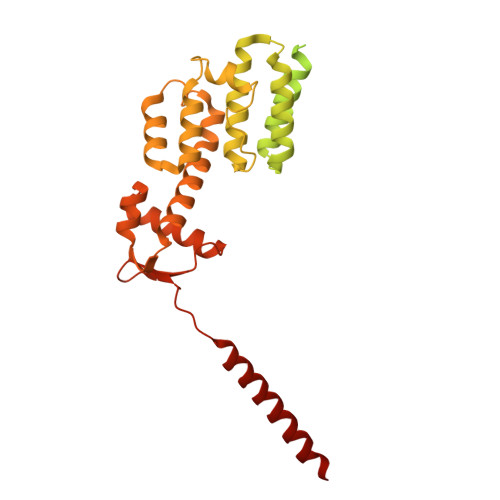

COP9 signalosome complex subunit 2443Homo sapiensMutation(s): 0
Gene Names: COPS2CSN2TRIP15
UniProt & NIH Common Fund Data Resources
Find proteins for P61201 (Homo sapiens)
Explore P61201
Go to UniProtKB:  P61201
PHAROS:  P61201
GTEx:  ENSG00000166200
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61201
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

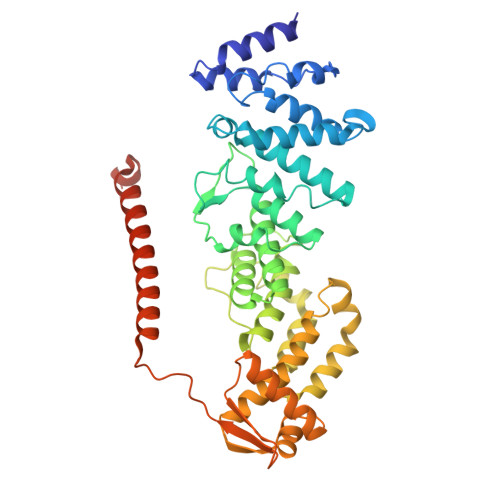

COP9 signalosome complex subunit 3423Homo sapiensMutation(s): 0
Gene Names: COPS3CSN3
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UNS2 (Homo sapiens)
Explore Q9UNS2
Go to UniProtKB:  Q9UNS2
PHAROS:  Q9UNS2
GTEx:  ENSG00000141030
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9UNS2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

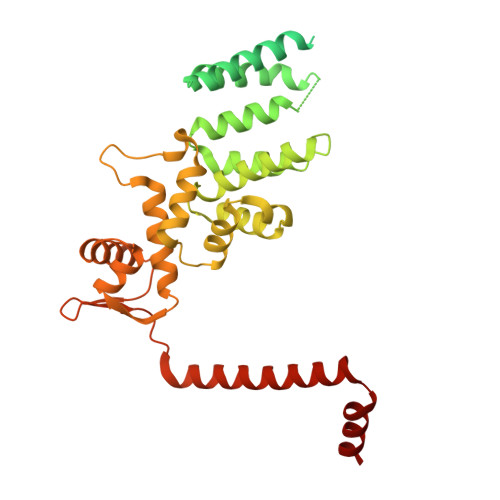

COP9 signalosome complex subunit 4406Homo sapiensMutation(s): 0
Gene Names: COPS4CSN4
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BT78 (Homo sapiens)
Explore Q9BT78
Go to UniProtKB:  Q9BT78
PHAROS:  Q9BT78
GTEx:  ENSG00000138663
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BT78
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

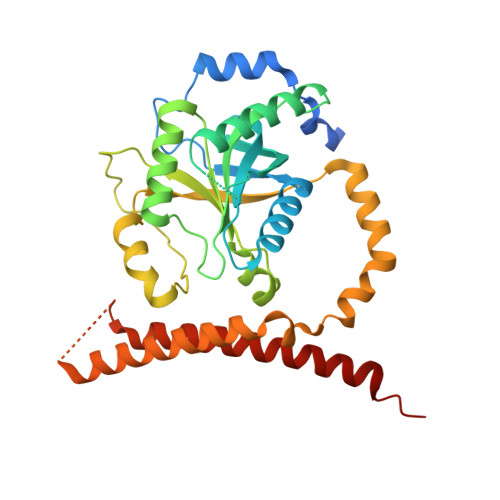

COP9 signalosome complex subunit 5334Homo sapiensMutation(s): 0
Gene Names: COPS5CSN5JAB1
EC: 3.4
UniProt & NIH Common Fund Data Resources
Find proteins for Q92905 (Homo sapiens)
Explore Q92905
Go to UniProtKB:  Q92905
PHAROS:  Q92905
GTEx:  ENSG00000121022
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ92905
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
COP9 signalosome complex subunit 6327Homo sapiensMutation(s): 0
Gene Names: COPS6CSN6HVIP
UniProt & NIH Common Fund Data Resources
Find proteins for Q7L5N1 (Homo sapiens)
Explore Q7L5N1
Go to UniProtKB:  Q7L5N1
PHAROS:  Q7L5N1
GTEx:  ENSG00000168090
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ7L5N1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

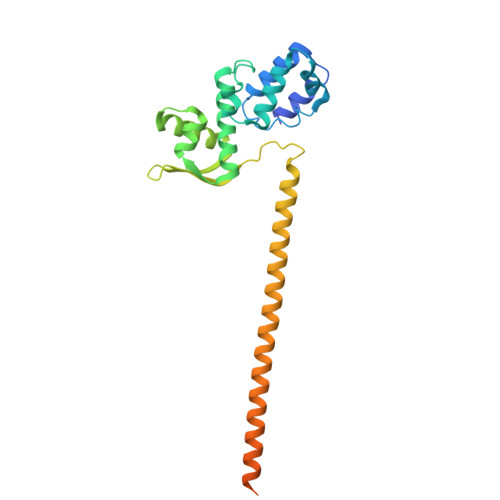

COP9 signalosome complex subunit 7b264Homo sapiensMutation(s): 0
Gene Names: COPS7BCSN7B
UniProt & NIH Common Fund Data Resources
Find proteins for Q9H9Q2 (Homo sapiens)
Explore Q9H9Q2
Go to UniProtKB:  Q9H9Q2
PHAROS:  Q9H9Q2
GTEx:  ENSG00000144524
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9H9Q2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage

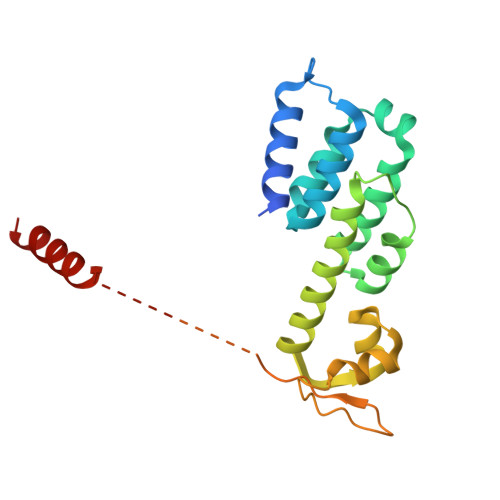

COP9 signalosome complex subunit 8209Homo sapiensMutation(s): 0
Gene Names: COPS8CSN8
UniProt & NIH Common Fund Data Resources
Find proteins for Q99627 (Homo sapiens)
Explore Q99627
Go to UniProtKB:  Q99627
PHAROS:  Q99627
GTEx:  ENSG00000198612
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ99627
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
6LT (Subject of Investigation/LOI)
Query on 6LT

Download Ideal Coordinates CCD File
I [auth E]3-(difluoromethyl)-N-{6-[(5S,6S)-6-hydroxy-6,7,8,9-tetrahydro-5H-imidazo[1,5-a]azepin-5-yl][1,1'-biphenyl]-3-yl}-1-(propan-2-yl)-1H-pyrazole-5-carboxamide
C28 H29 F2 N5 O2
ANNKHJQLDMGQFM-UIOOFZCWSA-N
ZN (Subject of Investigation/LOI)
Query on ZN

Download Ideal Coordinates CCD File
J [auth E]ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.30 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Howard Hughes Medical Institute (HHMI)United States--

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-03
    Type: Initial release
  • Version 1.1: 2026-02-18
    Changes: Data collection, Database references
  • Version 1.2: 2026-02-25
    Changes: Data collection, Database references
