9E7Y | pdb_00009e7y

De Novo Mycobacterium tuberculosis transcription initiation promoter complex with 7-mer RNA and disordered Beta' Lid element (RNA Polymerase with Sigma-A, CarD, and RbpA)


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.20 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structural Insights into De Novo Promoter Escape by Mycobacterium tuberculosis RNA Polymerase.

Brewer, J.Delbeau, M.Zoullas, W.B.Darst, S.A.Campbell, E.A.

(2025) Nat Commun 16: 9990-9990

  • DOI: https://doi.org/10.1038/s41467-025-64941-7
  • Primary Citation of Related Structures:
    9E7V, 9E7Y, 9E84, 9E85, 9E86, 9E87, 9E88

  • PubMed Abstract:

    Transcription in bacteria is a multi-step process. In the first step, contacts between RNA polymerase and the promoter DNA must be established for transcription initiation to begin, but then these contacts must be broken for the enzyme to transition into the elongation phase. Single-molecule and biochemical observations report that promoter escape is a highly regulated and sometimes rate-limiting step in the transcription cycle; however, the structural mechanisms of promoter escape remain obscure. Promoter escape also serves as the target for the clinically important antibiotic rifampicin, used to treat tuberculosis. Here, we present seven distinct intermediates showing the structural details of M. tuberculosis RNA polymerase initial transcribing complexes and promoter escape, using a de novo cryo-electron microscopy approach. We describe the structural rearrangements that RNA polymerase undergoes to clear the promoter, including those required to release the initiation factor, σ, providing a structural account for decades of biochemical observations. These structures and supporting biochemistry provide a model of promoter escape, a universal step in the transcription cycle, with conformations that may be used to develop Rifampicin alternatives.


  • Organizational Affiliation
    • Laboratory of Molecular Pathogenesis, The Rockefeller University, New York, NY, USA.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

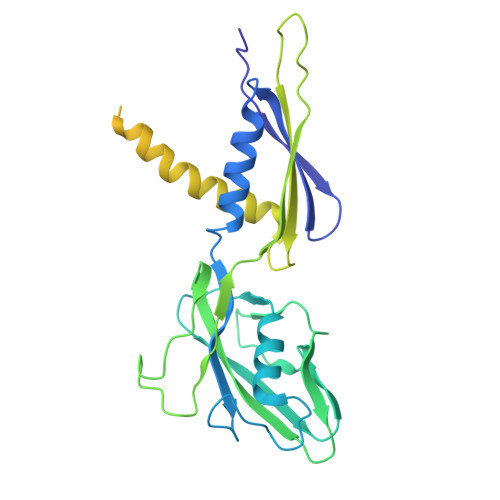

DNA-directed RNA polymerase subunit alpha
A, B
347Mycobacterium tuberculosisMutation(s): 0
Gene Names: rpoA
EC: 2.7.7.6
UniProt
Find proteins for P9WGZ1 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv))
Explore P9WGZ1
Go to UniProtKB:  P9WGZ1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP9WGZ1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit beta1,177Mycobacterium tuberculosisMutation(s): 0
Gene Names: rpoBMRA_0676
EC: 2.7.7.6
UniProt
Find proteins for P9WGZ1 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv))
Explore P9WGZ1
Go to UniProtKB:  P9WGZ1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP9WGZ1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

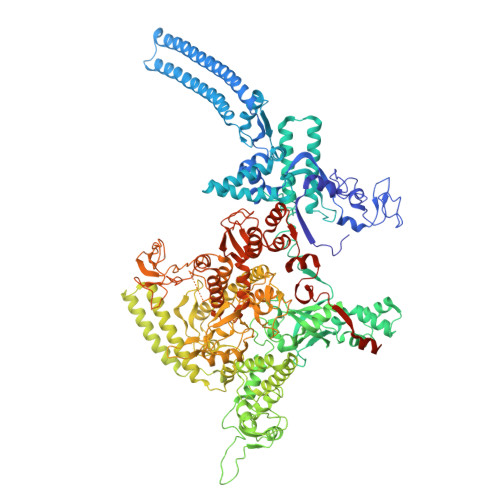

DNA-directed RNA polymerase subunit beta'1,333Mycobacterium tuberculosisMutation(s): 0
Gene Names: rpoCBQ2027_MB0687
EC: 2.7.7.6
UniProt
Find proteins for P9WGY9 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv))
Explore P9WGY9
Go to UniProtKB:  P9WGY9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP9WGY9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

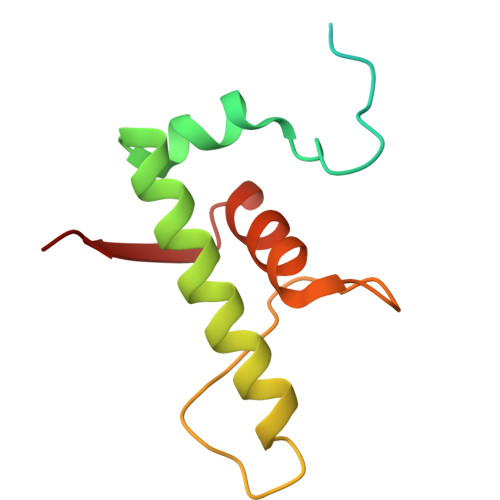

DNA-directed RNA polymerase subunit omega110Mycobacterium tuberculosisMutation(s): 0
Gene Names:
EC: 2.7.7.6
UniProt
Find proteins for P9WGY5 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv))
Explore P9WGY5
Go to UniProtKB:  P9WGY5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP9WGY5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

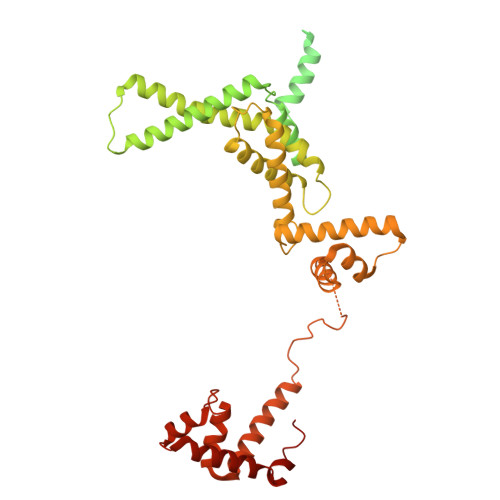

RNA polymerase sigma factor SigA550Mycobacterium tuberculosisMutation(s): 0
Gene Names: sigAmysArpoDrpoVBQ2027_MB2722
UniProt
Find proteins for P9WGI1 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv))
Explore P9WGI1
Go to UniProtKB:  P9WGI1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP9WGI1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage

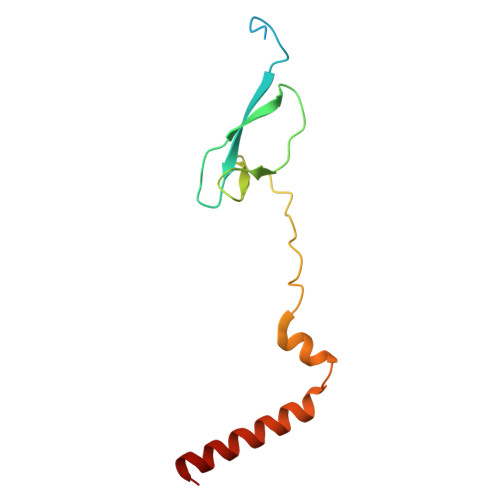

RNA polymerase-binding protein RbpAG [auth J]111Mycobacterium tuberculosisMutation(s): 0
Gene Names: rbpA
UniProt
Find proteins for P9WHJ5 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv))
Explore P9WHJ5
Go to UniProtKB:  P9WHJ5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP9WHJ5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

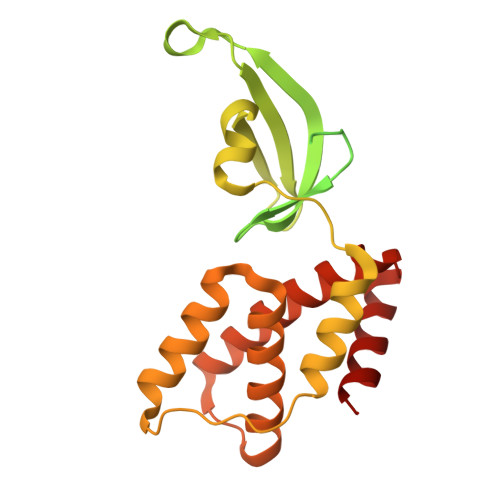

Ubiquitin-like protein SMT3,RNA polymerase-binding transcription factor CarDH [auth M]285Mycobacterium tuberculosisMutation(s): 0
Gene Names: SMT3YDR510WD9719.15carDMT3689
UniProt
Find proteins for P9WJG3 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv))
Explore P9WJG3
Go to UniProtKB:  P9WJG3
Find proteins for Q12306 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q12306
Go to UniProtKB:  Q12306
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupsP9WJG3Q12306
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains LengthOrganismImage

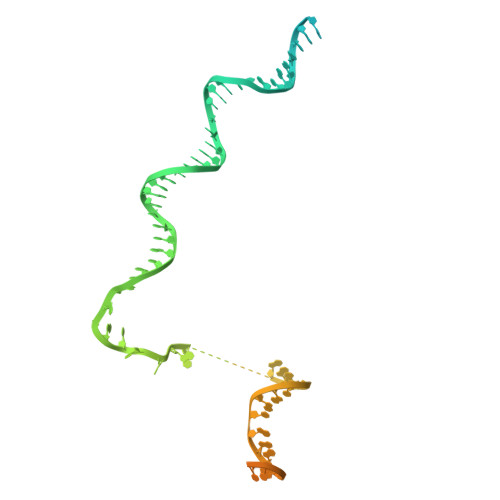

DNA (57-MER)I [auth N]127synthetic construct
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 9
MoleculeChains LengthOrganismImage

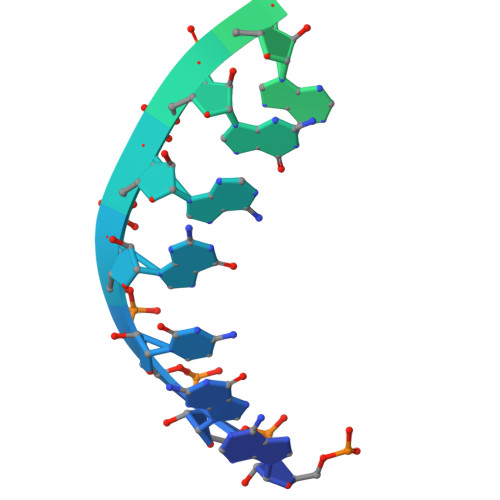

RNA (5'-R(P*AP*GP*AP*GP*GP*UP*A)-3')J [auth R]21synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains LengthOrganismImage

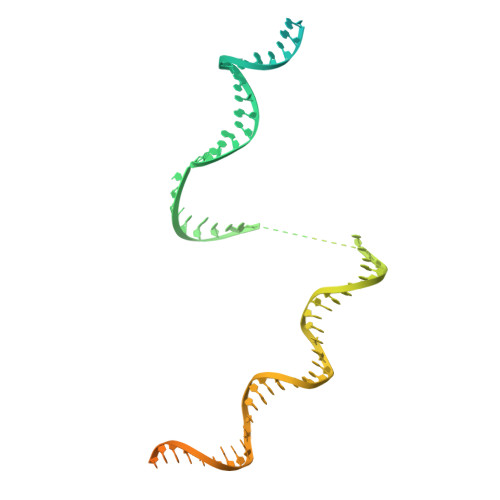

DNA (58-MER)K [auth T]127synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.20 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United States--

Revision History  (Full details and data files)

  • Version 1.0: 2025-10-01
    Type: Initial release
  • Version 1.1: 2025-12-03
    Changes: Data collection, Database references
