9E76 | pdb_00009e76

Yeast V-ATPase Vo proton channel bound to nanobody 1WVA25


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Monoclonal nanobodies alter the activity and assembly of the yeast vacuolar H + -ATPase.

Knight, K.Park, J.B.Oot, R.A.Khan, M.M.Roh, S.H.Wilkens, S.

(2025) bioRxiv

  • DOI: https://doi.org/10.1101/2025.01.10.632502
  • Primary Citation of Related Structures:
    9E76, 9E7L, 9MJ4

  • PubMed Abstract:

    The vacuolar ATPase (V-ATPase; V 1 V o ) is a multi-subunit rotary nanomotor proton pump that acidifies organelles in virtually all eukaryotic cells, and extracellular spaces in some specialized tissues of higher organisms. Evidence suggests that metastatic breast cancers mislocalize V-ATPase to the plasma membrane to promote cell survival and facilitate metastasis, making the V-ATPase a potential drug target. We have generated a library of camelid single-domain antibodies (Nanobodies; Nbs) against lipid-nanodisc reconstituted yeast V-ATPase V o proton channel subcomplex. Here, we present an in-depth characterization of three anti-V o Nbs using biochemical and biophysical in vitro experiments. We find that the Nbs bind V o with high affinity, with one Nb inhibiting holoenzyme activity and another one preventing enzyme assembly. Using cryoEM, we find that two of the Nbs bind the c subunit ring of the V o on the lumen side of the complex. Additionally, we show that one of the Nbs raised against yeast V o can pull down human V-ATPase ( Hs V 1 V o ). Our research demonstrates Nb versatility to target and modulate the activity of the V-ATPase, and highlights the potential for future therapeutic Nb development.


  • Organizational Affiliation
    • Department of Biochemistry and Molecular Biology, SUNY Upstate Medical University, Syracuse, NY 13210, USA.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

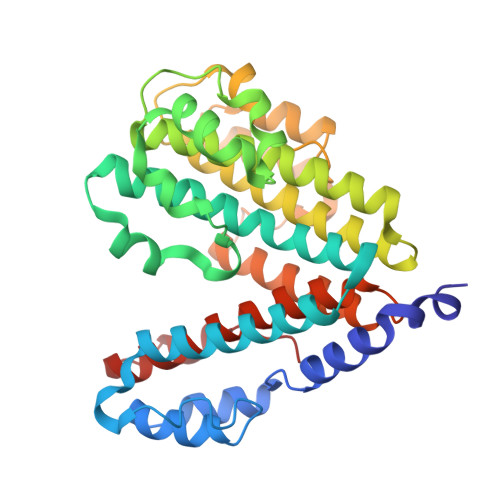

V-type proton ATPase subunit dA [auth B]345Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P32366 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P32366
Go to UniProtKB:  P32366
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP32366
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

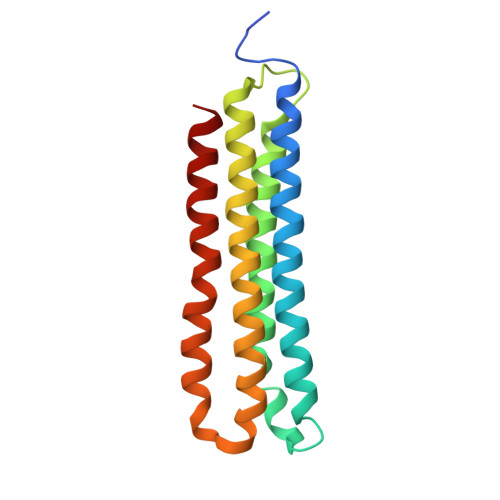

V-type proton ATPase subunit c''B [auth C]213Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P23968 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P23968
Go to UniProtKB:  P23968
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP23968
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

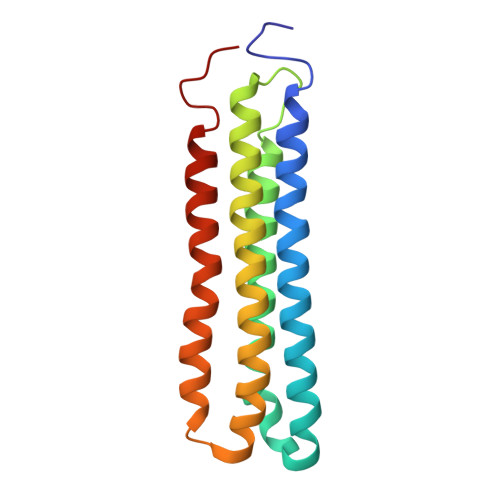

V-type proton ATPase subunit c'C [auth D]164Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P32842 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P32842
Go to UniProtKB:  P32842
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP32842
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
V-type proton ATPase subunit c160Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P25515 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P25515
Go to UniProtKB:  P25515
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25515
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

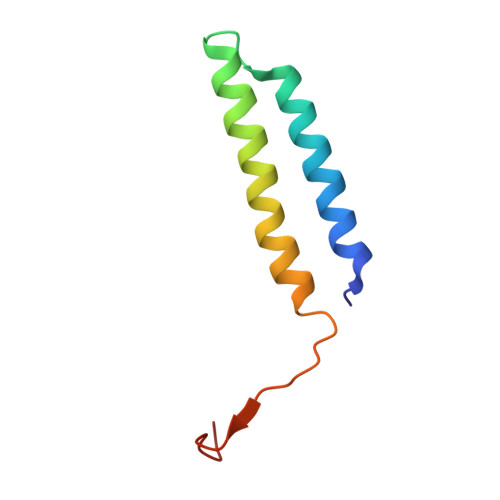

V-type proton ATPase subunit eK [auth M]73Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for Q3E7B6 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q3E7B6
Go to UniProtKB:  Q3E7B6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ3E7B6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
V0 assembly protein 1L [auth N]265Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P53262 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P53262
Go to UniProtKB:  P53262
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP53262
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
Yeast V-ATPase subunit fM [auth O]85Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P0C5R9 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P0C5R9
Go to UniProtKB:  P0C5R9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0C5R9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage

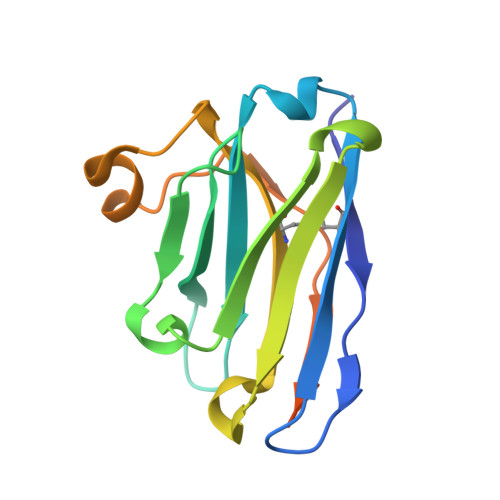

Nanobody 1WVA25N [auth Q],
O [auth R],
P [auth S],
Q [auth T]
146Lama glamaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage

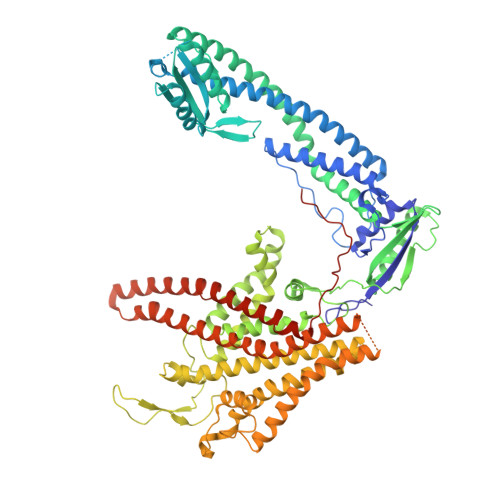

V-type proton ATPase subunit a, vacuolar isoformS [auth A]840Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P32563 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P32563
Go to UniProtKB:  P32563
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP32563
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
RECONSTRUCTIONRELION5

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM141908
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM058600

Revision History  (Full details and data files)

  • Version 1.0: 2025-02-05
    Type: Initial release
  • Version 1.1: 2025-05-14
    Changes: Data collection
