KIR3DL1 - HLA-B*38-YHE complex

• PDB DOI: https://doi.org/10.2210/pdb9D97/pdb

• Classification: IMMUNE SYSTEM
• Organism(s): Homo sapiens
• Expression System: Escherichia coli, synthetic construct, Homo sapiens
• Mutation(s): No


• Deposited: 2024-08-21 Released: 2025-09-03
• Deposition Author(s): Zhu, S., Vivian, J., Petersen, J., Rossjohn, J.
• Funding Organization(s): National Health and Medical Research Council (NHMRC, Australia)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.60 Å
• R-Value Free:
  0.195 (Depositor), 0.196 (DCC)
• R-Value Work:
  0.164 (Depositor), 0.165 (DCC)
• R-Value Observed:
  0.165 (Depositor)

Starting Model: experimental

Literature

The ancient MHC class I molecule HLA-B*38:01 calibrates the immune system to protect against multiple sclerosis

Ladell, K., Zhu, S., Kaufmann, M., Vivian, J., Petersen, J., Rossjohn, J., Price, D., Fugger, L.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 4-mer - A1B1C1D1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration, surface plasmon resonance

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 4-mer - A1B1C1D1

Biological assembly 2 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 78.99 kDa
• Atom Count: 5,961
• Modeled Residue Count: 674
• Deposited Residue Count: 686
• Unique protein chains: 4

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

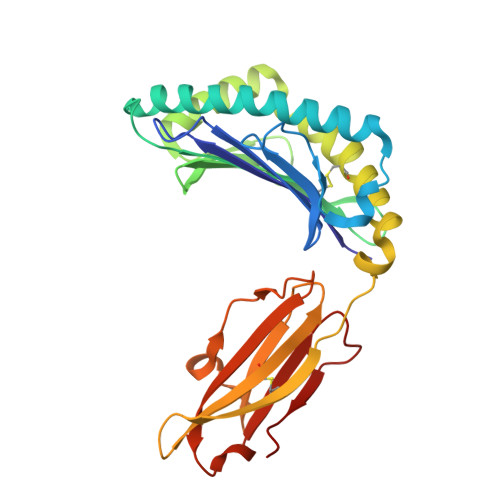

MHC class I antigen	A	276	Homo sapiens	Mutation(s): 0  Gene Names: HLA-B, HLA-DRB1
UniProt
Find proteins for E5FQ58 (Homo sapiens) Explore E5FQ58  Go to UniProtKB:  E5FQ58

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Beta-2-microglobulin	B	100	Homo sapiens	Mutation(s): 0  Gene Names: B2M, CDABP0092, HDCMA22P
UniProt & NIH Common Fund Data Resources
Find proteins for P61769 (Homo sapiens) Explore P61769  Go to UniProtKB:  P61769
PHAROS:  P61769 GTEx:  ENSG00000166710

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

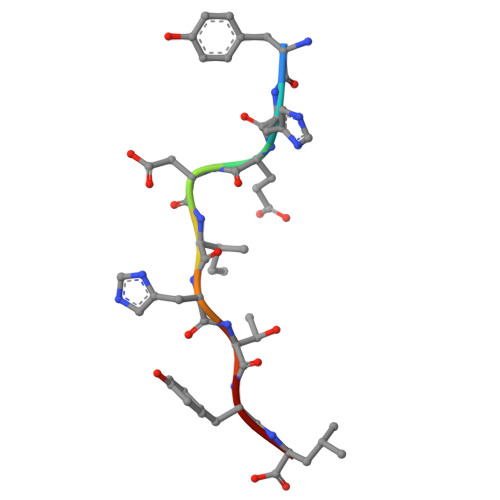

Cyclin-A2	C	9	Homo sapiens	Mutation(s): 0  Gene Names: CCNA2, CCN1, CCNA
UniProt & NIH Common Fund Data Resources
Find proteins for P20248 (Homo sapiens) Explore P20248  Go to UniProtKB:  P20248
PHAROS:  P20248 GTEx:  ENSG00000145386

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

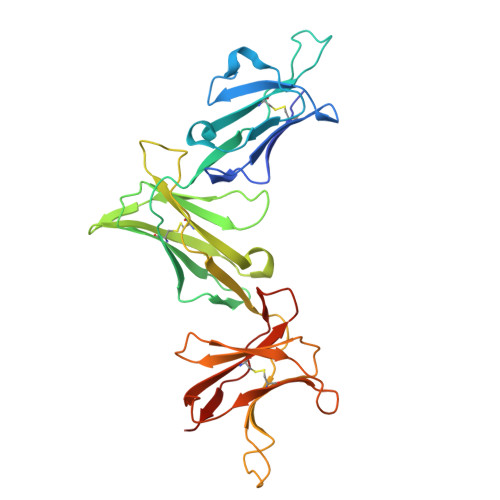

Killer cell immunoglobulin-like receptor 3DL1	D [auth G]	301	Homo sapiens	Mutation(s): 0  Gene Names: KIR3DL1, CD158E, NKAT3, NKB1
UniProt & NIH Common Fund Data Resources
Find proteins for P43629 (Homo sapiens) Explore P43629  Go to UniProtKB:  P43629
PHAROS:  P43629 GTEx:  ENSG00000167633
Glycosylation
Glycosylation Sites: 3		Go to GlyGen: P43629-1

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
NAG	E [auth G], F [auth G], G	2-acetamido-2-deoxy-beta-D-glucopyranose C8 H15 N O6 OVRNDRQMDRJTHS-FMDGEEDCSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.60 Å
• R-Value Free:  0.195 (Depositor), 0.196 (DCC)
• R-Value Work:  0.164 (Depositor), 0.165 (DCC)
• R-Value Observed: 0.165 (Depositor)

Space Group: P 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 46.963	α = 94.96
b = 60.047	β = 95.5
c = 63.337	γ = 106.23

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
Aimless	data scaling
PHASER	phasing

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2025-09-03
Deposition Author(s): Zhu, S., Vivian, J., Petersen, J., Rossjohn, J.

---

Funding Organization	Location	Grant Number
National Health and Medical Research Council (NHMRC, Australia)	Australia	--

Revision History

• Version 1.0: 2025-09-03
  Type: Initial release

• Version 1.1: 2025-11-12
  Changes: Data collection
