9D6R | pdb_00009d6r

[F:Au+:F-pH6] Gold base pair with 2-thiothymidine homopair at pH 6.0

• PDB DOI: https://doi.org/10.2210/pdb9D6R/pdb
• NAKB: 9D6R

• Classification: DNA
• Organism(s): synthetic construct
• Mutation(s): No


• Deposited: 2024-08-15 Released: 2025-08-20
• Deposition Author(s): Vecchioni, S., Imstepf, L., Woloszyn, K., Sha, R., Lu, B., Ohayon, Y.P.
• Funding Organization(s): Department of Energy (DOE, United States), National Science Foundation (NSF, United States), Office of Naval Research (ONR)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 6.92 Å
• R-Value Free:
  0.199 (Depositor), 0.227 (DCC)
• R-Value Work:
  0.148 (Depositor), 0.184 (DCC)
• R-Value Observed:
  0.155 (Depositor)

Literature

Thiothymidine metal base pairs

Vecchioni, S., Imstepf, L., Woloszyn, K., Sha, R., Lu, B., Ohayon, Y.P.

To be published.

Biological Assembly 1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: native gel electrophoresis

Macromolecule Content

• Total Structure Weight: 13.21 kDa
• Atom Count: 860
• Modeled Residue Count: 42
• Deposited Residue Count: 42
• Unique nucleic acid chains: 4

Macromolecules

Entity ID: 1
Molecule	Chains	Length	Organism	Image
DNA	A	21	synthetic construct

Entity ID: 2
Molecule	Chains	Length	Organism	Image

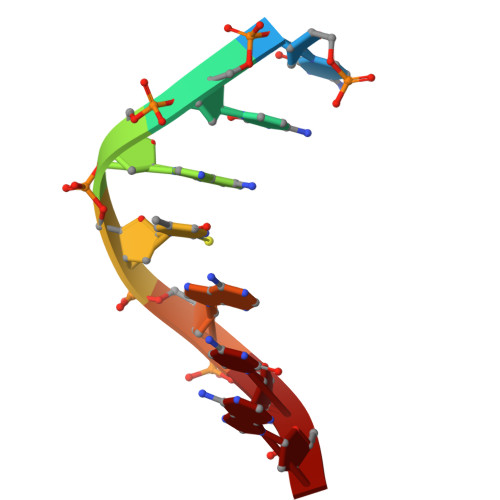

DNA	B	7	synthetic construct

Entity ID: 3
Molecule	Chains	Length	Organism	Image

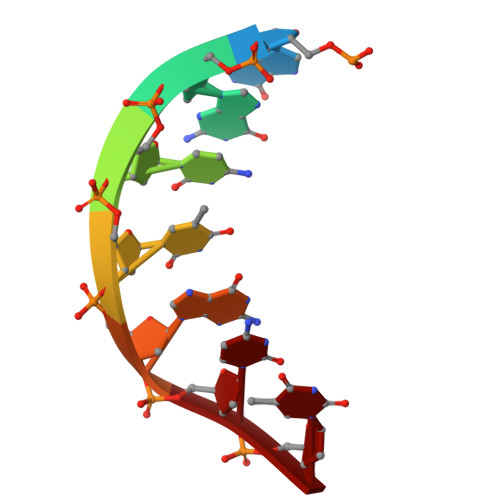

DNA (5'-D(P*GP*GP*CP*TP*GP*CP*T)-3')	C	7	synthetic construct

Entity ID: 4
Molecule	Chains	Length	Organism	Image

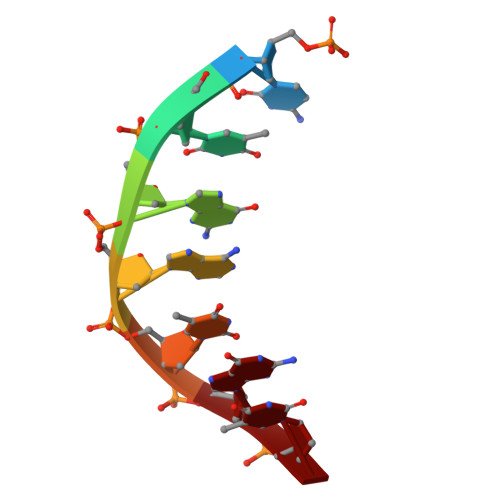

DNA (5'-D(P*CP*TP*GP*AP*TP*GP*T)-3')	D	7	synthetic construct

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
AU (Subject of Investigation/LOI)	E [auth B], F [auth B]	GOLD ION Au ZBKIUFWVEIBQRT-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 6.92 Å
• R-Value Free:  0.199 (Depositor), 0.227 (DCC)
• R-Value Work:  0.148 (Depositor), 0.184 (DCC)
• R-Value Observed: 0.155 (Depositor)

Space Group: H 3

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 108.62	α = 90
b = 108.62	β = 90
c = 94.596	γ = 120

Software Package:

Software Name	Purpose
PHENIX	refinement
autoPROC	data reduction
STARANISO	data scaling
AutoSol	phasing

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2025-08-20
Deposition Author(s): Vecchioni, S., Imstepf, L., Woloszyn, K., Sha, R., Lu, B., Ohayon, Y.P.

---

Funding Organization	Location	Grant Number
Department of Energy (DOE, United States)	United States	DE-SC0007991
National Science Foundation (NSF, United States)	United States	GCR-2317843
Office of Naval Research (ONR)	United States	N000141912596

Revision History

• Version 1.0: 2025-08-20
  Type: Initial release
