9D1L | pdb_00009d1l

Lucilia cuprina alpha esterase 7 directed evolution round 1


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.10 Å
  • R-Value Free:
    0.173 (Depositor), 0.173 (DCC)
  • R-Value Work:
    0.161 (Depositor), 0.161 (DCC)
  • R-Value Observed:
    0.162 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structural and evolutionary constraints of organophosphate resistance in dipteran carboxylesterases.

Frkic, R.L.Giang, A.Pulsford, S.B.Liu, J.W.Esmaeily, M.Carr, P.D.Fraser, N.J.Hopkins, D.Oakeshott, J.G.Batterham, P.Mabbitt, P.D.Jackson, C.J.

(2026) Proc Natl Acad Sci U S A 123: e2517957123-e2517957123

  • DOI: https://doi.org/10.1073/pnas.2517957123
  • Primary Citation of Related Structures:
    9D1J, 9D1K, 9D1L, 9D1M, 9D1N, 9D1O, 9D1P, 9D1Q, 9D1R, 9D1S, 9D1T

  • PubMed Abstract:

    Enzymatic detoxification of organophosphate (OP) insecticides can confer resistance in some insects, yet the precise molecular basis of this trait, and how it has evolved, remains poorly understood. In certain dipteran species, a G→D mutation in the oxyanion hole of α-carboxylesterases (CBEs) enhances OP hydrolysis, yet this adaptation is not widespread despite the presence of orthologous CBEs in other insect species that are also exposed to OPs. The extent, and molecular basis, of evolutionary contingency and epistasis in this catalytic OP resistance has not been explored, and how further mutations might optimize OP detoxification in the future is not clear. Here, we systematically compare OP hydrolysis and analyze structures of CBE orthologs across several dipteran species, revealing that the success of the G137D mutation is sequence context-dependent. We employed laboratory-directed evolution to enhance OP turnover over 1,000-fold vs. the wildtype enzyme and tested these variants in transgenic Drosophila melanogaster , demonstrating that improved catalytic rates do not directly translate to increased resistance. By highlighting the trade-off between organophosphate affinity and turnover, this work further clarifies the complex evolutionary trajectories determining why a particular resistance mechanism may evolve in some species but not others.


  • Organizational Affiliation
    • Research School of Chemistry, Australian National University, Canberra, ACT 2601, Australia.

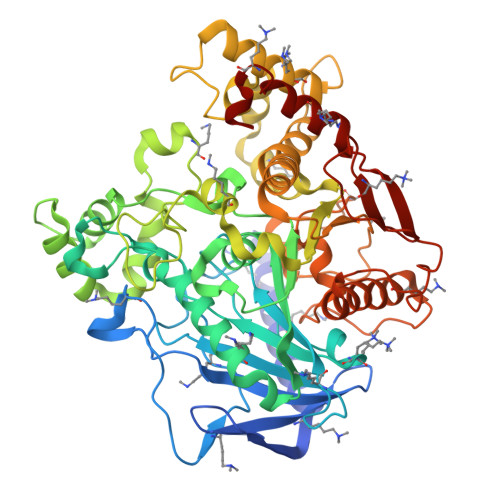

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Carboxylic ester hydrolase570Lucilia cuprinaMutation(s): 0
Gene Names: LcaE7
EC: 3.1.1
UniProt
Find proteins for Q25252 (Lucilia cuprina)
Explore Q25252
Go to UniProtKB:  Q25252
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ25252
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 5 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
BTB
Query on BTB

Download Ideal Coordinates CCD File
N [auth A]2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
C8 H19 N O5
OWMVSZAMULFTJU-UHFFFAOYSA-N
MPD
Query on MPD

Download Ideal Coordinates CCD File
G [auth A],
H [auth A],
L [auth A]
(4S)-2-METHYL-2,4-PENTANEDIOL
C6 H14 O2
SVTBMSDMJJWYQN-YFKPBYRVSA-N
PEG
Query on PEG

Download Ideal Coordinates CCD File
J [auth A],
M [auth A],
R [auth A]
DI(HYDROXYETHYL)ETHER
C4 H10 O3
MTHSVFCYNBDYFN-UHFFFAOYSA-N
EDO
Query on EDO

Download Ideal Coordinates CCD File
B [auth A]
D [auth A]
E [auth A]
F [auth A]
I [auth A]
B [auth A],
D [auth A],
E [auth A],
F [auth A],
I [auth A],
K [auth A],
O [auth A],
P [auth A],
Q [auth A],
S [auth A]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
ACT
Query on ACT

Download Ideal Coordinates CCD File
C [auth A]ACETATE ION
C2 H3 O2
QTBSBXVTEAMEQO-UHFFFAOYSA-M
Modified Residues  3 Unique
IDChains TypeFormula2D DiagramParent
M3L
Query on M3L
A
L-PEPTIDE LINKINGC9 H21 N2 O2LYS
MLY
Query on MLY
A
L-PEPTIDE LINKINGC8 H18 N2 O2LYS
MLZ
Query on MLZ
A
L-PEPTIDE LINKINGC7 H16 N2 O2LYS
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.10 Å
  • R-Value Free:  0.173 (Depositor), 0.173 (DCC)
  • R-Value Work:  0.161 (Depositor), 0.161 (DCC)
  • R-Value Observed: 0.162 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 57.963α = 90
b = 92.141β = 90
c = 104.975γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
Aimlessdata scaling
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Australian Research Council (ARC)AustraliaCE200100012
Australian Research Council (ARC)AustraliaCE200100029

Revision History  (Full details and data files)

  • Version 1.0: 2025-08-13
    Type: Initial release
  • Version 1.1: 2026-03-04
    Changes: Database references
