9COL | pdb_00009col

[D:Au3+:F] Tensegrity triangle with a 2,6-diaminopurine:2-thiothymidine base pair mediated by Au3+.

• PDB DOI: https://doi.org/10.2210/pdb9COL/pdb
• NAKB: 9COL

• Classification: DNA
• Organism(s): synthetic construct
• Mutation(s): No


• Deposited: 2024-07-16 Released: 2025-07-23
• Deposition Author(s): Vecchioni, S., Woloszyn, K., Sha, R., Ohayon, Y.P.
• Funding Organization(s): Department of Energy (DOE, United States), Office of Naval Research (ONR), National Science Foundation (NSF, United States)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 5.23 Å
• R-Value Free:
  0.204 (Depositor), 0.216 (DCC)
• R-Value Work:
  0.174 (Depositor), 0.192 (DCC)
• R-Value Observed:
  0.176 (Depositor)

Literature

2,6-diaminoourine metal base pairs

Woloszyn, K., Vecchioni, S., Sha, R., Ohayon, Y.P.

To be published.

Biological Assembly 1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: native gel electrophoresis

Macromolecule Content

• Total Structure Weight: 13.22 kDa
• Atom Count: 862
• Modeled Residue Count: 42
• Deposited Residue Count: 42
• Unique nucleic acid chains: 4

Macromolecules

Entity ID: 1
Molecule	Chains	Length	Organism	Image

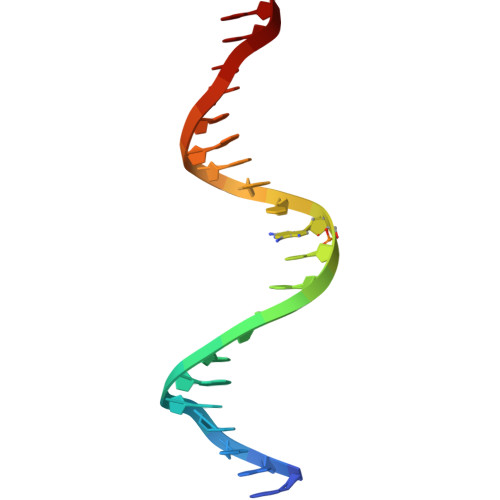

DNA (5'-D(*GP*AP*GP*CP*AP*GP*CP*CP*TP*GP*TP*(1AP)P*TP*GP*GP*AP*CP*AP*TP*CP*A)-3')	A	21	synthetic construct

Entity ID: 2
Molecule	Chains	Length	Organism	Image
DNA (5'-D(P*CP*CP*A)-3')	B	7	synthetic construct

Entity ID: 3
Molecule	Chains	Length	Organism	Image
DNA (5'-D(P*GP*GP*CP*TP*GP*CP*T)-3')	C	7	synthetic construct

Entity ID: 4
Molecule	Chains	Length	Organism	Image
DNA (5'-D(P*CP*TP*GP*AP*TP*GP*T)-3')	D	7	synthetic construct

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
AU (Subject of Investigation/LOI)	E [auth A], F [auth B]	GOLD ION Au ZBKIUFWVEIBQRT-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 5.23 Å
• R-Value Free:  0.204 (Depositor), 0.216 (DCC)
• R-Value Work:  0.174 (Depositor), 0.192 (DCC)
• R-Value Observed: 0.176 (Depositor)

Space Group: H 3

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 106.243	α = 90
b = 106.243	β = 90
c = 92.916	γ = 120

Software Package:

Software Name	Purpose
PHENIX	refinement
autoPROC	data reduction
STARANISO	data scaling
AutoSol	phasing

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2025-07-23
Deposition Author(s): Vecchioni, S., Woloszyn, K., Sha, R., Ohayon, Y.P.

---

Funding Organization	Location	Grant Number
Department of Energy (DOE, United States)	United States	DE-SC0007991
Office of Naval Research (ONR)	United States	N000141912596
National Science Foundation (NSF, United States)	United States	CCF-2106790
National Science Foundation (NSF, United States)	United States	GCR-2317843

Revision History

• Version 1.0: 2025-07-23
  Type: Initial release
