9CKS | pdb_00009cks

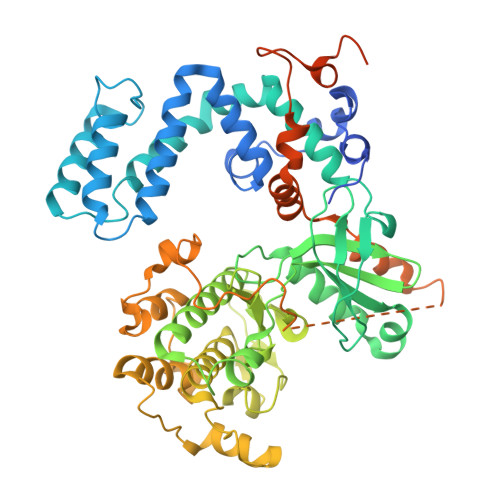

Human G protein-coupled receptor kinase 5-D311N in complex with ATP and manganese ion

• PDB DOI: https://doi.org/10.2210/pdb9CKS/pdb

• Classification: SIGNALING PROTEIN
• Organism(s): Homo sapiens
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): Yes


• Deposited: 2024-07-09 Released: 2025-07-16
• Deposition Author(s): Chen, Y., Tesmer, J.J.G.
• Funding Organization(s): National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 3.08 Å
• R-Value Free:
  0.280 (Depositor), 0.280 (DCC)
• R-Value Work:
  0.223 (Depositor), 0.224 (DCC)
• R-Value Observed:
  0.228 (Depositor)

Starting Model: in silico

Literature

Structures of G protein-coupled receptor kinase 5 in multiple conformations reveals mechanism of activation and inhibition

Chen, Y., Tesmer, J.J.G.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Macromolecule Content

• Total Structure Weight: 69.59 kDa
• Atom Count: 4,120
• Modeled Residue Count: 501
• Deposited Residue Count: 598
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
G protein-coupled receptor kinase 5	A	598	Homo sapiens	Mutation(s): 1  Gene Names: GRK5 EC: 2.7.11.16
UniProt & NIH Common Fund Data Resources
Find proteins for P34947 (Homo sapiens) Explore P34947  Go to UniProtKB:  P34947
PHAROS:  P34947 GTEx:  ENSG00000198873

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
ATP (Subject of Investigation/LOI)	D [auth A]	ADENOSINE-5'-TRIPHOSPHATE C10 H16 N5 O13 P3 ZKHQWZAMYRWXGA-KQYNXXCUSA-N
PO4 (Subject of Investigation/LOI)	B [auth A]	PHOSPHATE ION O4 P NBIIXXVUZAFLBC-UHFFFAOYSA-K
MN (Subject of Investigation/LOI)	C [auth A]	MANGANESE (II) ION Mn WAEMQWOKJMHJLA-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 3.08 Å
• R-Value Free:  0.280 (Depositor), 0.280 (DCC)
• R-Value Work:  0.223 (Depositor), 0.224 (DCC)
• R-Value Observed: 0.228 (Depositor)

Space Group: P 4₁ 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 137.825	α = 90
b = 137.825	β = 90
c = 71.289	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
DIALS	data reduction
xia2	data scaling
MOLREP	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-07-16
Deposition Author(s): Chen, Y., Tesmer, J.J.G.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)	United States	HL071818

Revision History

• Version 1.0: 2025-07-16
  Type: Initial release
