9C00 | pdb_00009c00

UIC-1 soaked with R/S 1-chloroethylbenzene

PDB DOI: https://doi.org/10.2210/pdb9C00/pdb

Classification: DE NOVO PROTEIN
Organism(s): synthetic construct
Mutation(s): No

Deposited: 2024-05-24 Released: 2025-11-26
Deposition Author(s): Heinz-Kunert, S.L., Nguyen, A.I.
Funding Organization(s): Department of Energy (DOE, United States)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 0.90 Å
R-Value Free:
0.211 (Depositor), 0.216 (DCC)
R-Value Work:
0.182 (Depositor), 0.184 (DCC)
R-Value Observed:
0.184 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 2.0 of the entry. See complete history.

Literature

Evolvable conformational diversity in assemblies of short peptides

Heinz-Kunert, S.L., Nguyen, A.I.

To be published.

Macromolecule Content

Total Structure Weight: 1.85 kDa
Atom Count: 173
Modeled Residue Count: 9
Deposited Residue Count: 9
Unique protein chains: 1

Macromolecules

Find similar proteins by: Sequence | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

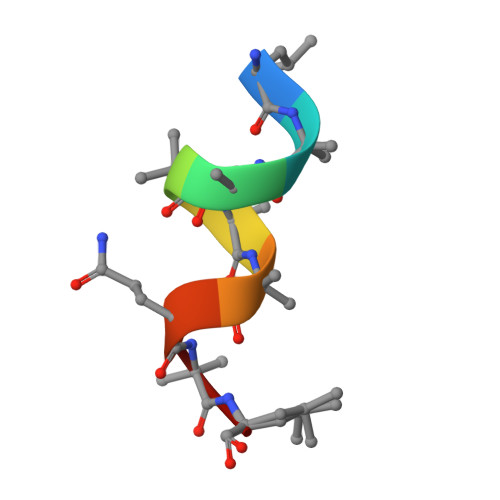

UIC-1	A	9	synthetic construct	Mutation(s): 0

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
I6W Query on I6W Download:Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	ethyl 5'-formyl[2,2'-bipyridine]-5-carboxylate C₁₄ H₁₂ N₂ O₄ FZDQJVHCAWGPRW-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]
I77 Query on I77 Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	5'-(hydrazinecarbonyl)[2,2'-bipyridine]-5-carboxamide C₁₂ H₁₁ N₅ O₂ HCFBUFHFZAJOFM-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
A1C1V (Subject of Investigation/LOI) Query on A1C1V Download:Ideal Coordinates CCD File SDF format, chain E [auth A] MOL2 format, chain E [auth A] mmCIF format, chain E [auth A]	E [auth A]	[(1R)-1-chloroethyl]benzene C₈ H₉ Cl GTLWADFFABIGAE-SSDOTTSWSA-N		Interactions Focus chain E [auth A] Interactions & Density Focus chain E [auth A]
A1ATC (Subject of Investigation/LOI) Query on A1ATC Download:Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain F [auth A] MOL2 format, chain D [auth A] MOL2 format, chain F [auth A] mmCIF format, chain D [auth A] mmCIF format, chain F [auth A]	D [auth A], F [auth A]	[(1S)-1-chloroethyl]benzene C₈ H₉ Cl GTLWADFFABIGAE-ZETCQYMHSA-N		Interactions Focus chain D [auth A] Focus chain F [auth A] Interactions & Density Focus chain D [auth A] Focus chain F [auth A]

Modified Residues 1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
AIB Query on AIB	A	L-PEPTIDE LINKING	C₄ H₉ N O₂		ALA

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 0.90 Å
R-Value Free: 0.211 (Depositor), 0.216 (DCC)
R-Value Work: 0.182 (Depositor), 0.184 (DCC)
R-Value Observed: 0.184 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 13.976	α = 90
b = 13.458	β = 90.188
c = 28.59	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
CrysalisPro	data reduction
CrysalisPro	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-11-26

Deposition Author(s):

Heinz-Kunert, S.L.

Nguyen, A.I.

Funding Organization	Location	Grant Number
Department of Energy (DOE, United States)	United States	DE-AC02-06CH11357

Revision History (Full details and data files)

Version 1.0: 2025-11-26
Type: Initial release
Version 2.0: 2025-12-03
Type: Coordinate replacement
Reason: Ligand identity
Changes: Advisory, Atomic model, Author supporting evidence, Data collection, Derived calculations, Non-polymer description, Other, Refinement description, Structure summary
