9BQN | pdb_00009bqn

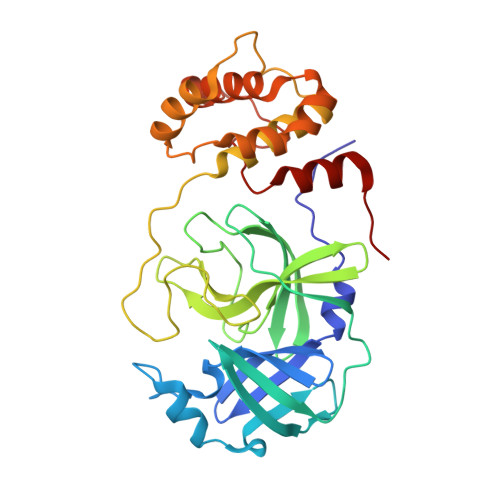

Structure of the SARS-CoV-2 main protease in complex with inhibitor VB-A-28

PDB DOI: https://doi.org/10.2210/pdb9BQN/pdb

Classification: VIRAL PROTEIN, Hydrolase
Organism(s): Severe acute respiratory syndrome coronavirus 2
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-05-10 Released: 2025-05-14
Deposition Author(s): Blankenship, L.R., Liu, W.R.
Funding Organization(s): Welch Foundation

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.00 Å
R-Value Free:
0.292 (Depositor), 0.293 (DCC)
R-Value Work:
0.258 (Depositor), 0.258 (DCC)
R-Value Observed:
0.260 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

To be determined

Blankenship, L.R., Liu, W.R.

To be published.

Macromolecule Content

Total Structure Weight: 34.42 kDa
Atom Count: 2,567
Modeled Residue Count: 306
Deposited Residue Count: 306
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
3C-like proteinase nsp5	A	306	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0 Gene Names: rep, 1a-1b EC: 3.4.22.69
UniProt
Find proteins for P0DTD1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTD1 Go to UniProtKB: P0DTD1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0DTD1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1ARK (Subject of Investigation/LOI) Query on A1ARK Download Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	O-tert-butyl-N-[(2,2,2-trifluoroethoxy)carbonyl]-L-threonyl-3-cyclohexyl-N-{(2R)-1-hydroxy-3-[(3S)-2-oxopyrrolidin-3-yl]propan-2-yl}-L-alaninamide C₂₇ H₄₅ F₃ N₄ O₇ QMUHWSZOWZSKBM-VLQCVTHLSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.00 Å
R-Value Free: 0.292 (Depositor), 0.293 (DCC)
R-Value Work: 0.258 (Depositor), 0.258 (DCC)
R-Value Observed: 0.260 (Depositor)

Space Group: I 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 54.484	α = 90
b = 81.506	β = 96.722
c = 86.693	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
PDB_EXTRACT	data extraction
PROTEUM PLUS	data reduction
Aimless	data scaling
PHENIX	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History & Funding Information

Deposition Data

Released Date: 2025-05-14

Deposition Author(s):

Blankenship, L.R.

Funding Organization	Location	Grant Number
Welch Foundation	United States	--

Revision History (Full details and data files)

Version 1.0: 2025-05-14
Type: Initial release
