9BPG | pdb_00009bpg

Artemia franciscana ATP synthase FO domain, state 1, pH 7.0

  • Classification: MEMBRANE PROTEIN
  • Organism(s): Artemia franciscana
  • Mutation(s): No
  • Membrane Protein: Yes  PDBTM

  • Deposited: 2024-05-07 Released: 2025-03-26
  • Deposition Author(s): Mnatsakanyan, N., Mello, J.F.R.
  • Funding Organization(s): National Institutes of Health/National Institute on Aging (NIH/NIA), National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.30 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: integrative
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Cryo-EM structure of the brine shrimp mitochondrial ATP synthase suggests an inactivation mechanism for the ATP synthase leak channel.

Kumar, A.da Fonseca Rezende E Mello, J.Wu, Y.Morris, D.Mezghani, I.Smith, E.Rombauts, S.Bossier, P.Krahn, J.Sigworth, F.J.Mnatsakanyan, N.

(2025) Cell Death Differ 32: 1518-1535

  • DOI: https://doi.org/10.1038/s41418-025-01476-w
  • Primary Citation of Related Structures:
    9B0X, 9B3J, 9BPG

  • PubMed Abstract:

    Mammalian mitochondria undergo Ca 2+ -induced and cyclosporinA (CsA)-regulated permeability transition (mPT) by activating the mitochondrial permeability transition pore (mPTP) situated in mitochondrial inner membranes. Ca 2+ -induced prolonged openings of mPTP under certain pathological conditions result in mitochondrial swelling and rupture of the outer membrane, leading to mitochondrial dysfunction and cell death. While the exact molecular composition and structure of mPTP remain unknown, mammalian ATP synthase was reported to form voltage and Ca 2+ -activated leak channels involved in mPT. Unlike in mammals, mitochondria of the crustacean Artemia franciscana have the ability to accumulate large amounts of Ca 2+ without undergoing the mPT. Here, we performed structural and functional analysis of A. franciscana ATP synthase to study the molecular mechanism of mPTP inhibition in this organism. We found that the channel formed by the A. franciscana ATP synthase dwells predominantly in its inactive state and is insensitive to Ca 2+ , in contrast to porcine heart ATP synthase. Single-particle cryo-electron microscopy (cryo-EM) analysis revealed distinct structural features in A. franciscana ATP synthase compared with mammals. The stronger density of the e-subunit C-terminal region and its enhanced interaction with the c-ring were found in A. franciscana ATP synthase. These data suggest an inactivation mechanism of the ATP synthase leak channel and its possible contribution to the lack of mPT in this organism.


  • Organizational Affiliation
    • Department of Cell and Biological Systems, Penn State College of Medicine, Hershey, PA, USA.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

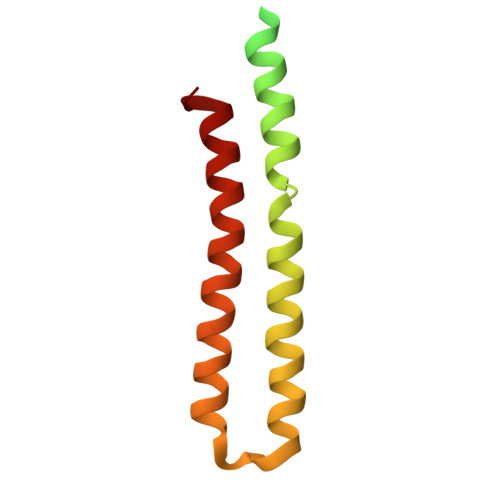

ATP synthase subunit c128Artemia franciscanaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

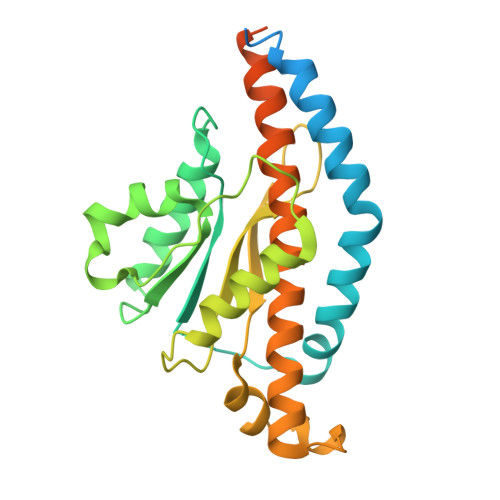

ATP synthase subunit gammaI [auth G]290Artemia franciscanaMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for A0AA88HFG7 (Artemia franciscana)
Explore A0AA88HFG7
Go to UniProtKB:  A0AA88HFG7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AA88HFG7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit deltaJ [auth H]169Artemia franciscanaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

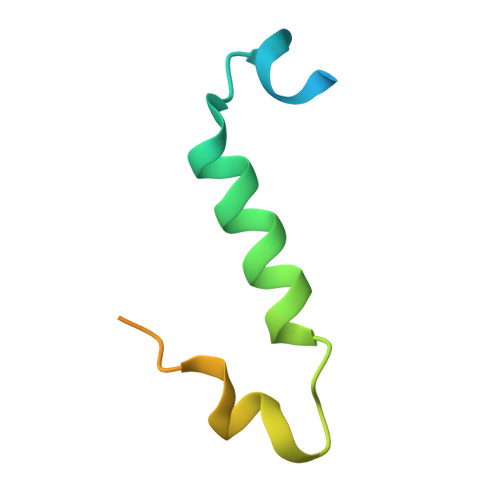

ATP synthase subunit epsilonK [auth I]66Artemia franciscanaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit bL [auth K]265Artemia franciscanaMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for A0AA88H718 (Artemia franciscana)
Explore A0AA88H718
Go to UniProtKB:  A0AA88H718
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AA88H718
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit d219Artemia franciscanaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit a219Artemia franciscanaMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for Q37708 (Artemia franciscana)
Explore Q37708
Go to UniProtKB:  Q37708
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ37708
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage

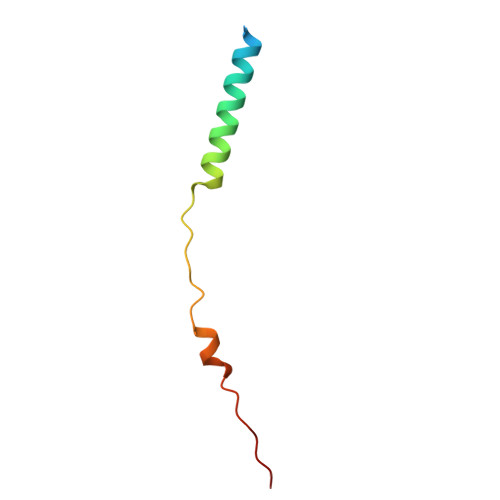

ATP synthase subunit 6.8PLO [auth P]44Artemia franciscanaMutation(s): 0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase protein 8P [auth Q]53Artemia franciscanaMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for Q37707 (Artemia franciscana)
Explore Q37707
Go to UniProtKB:  Q37707
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ37707
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit fQ [auth R]119Artemia franciscanaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage

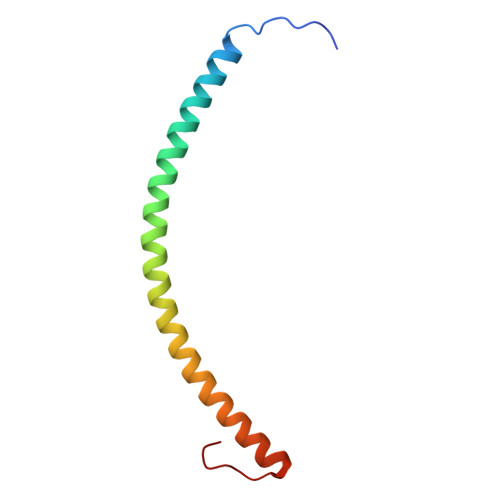

ATP synthase subunit gR [auth S]103Artemia franciscanaMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for A0AA88HPA7 (Artemia franciscana)
Explore A0AA88HPA7
Go to UniProtKB:  A0AA88HPA7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AA88HPA7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit eS [auth T]84Artemia franciscanaMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for A0AA88HBT7 (Artemia franciscana)
Explore A0AA88HBT7
Go to UniProtKB:  A0AA88HBT7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AA88HBT7
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.30 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute on Aging (NIH/NIA)United StatesRF1AG072484
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)United StatesR21NS137275

Revision History  (Full details and data files)

  • Version 1.0: 2025-03-26
    Type: Initial release
  • Version 1.1: 2025-08-13
    Changes: Data collection, Database references
