9BLF | pdb_00009blf

SARS-CoV-2 core polymerase complex inhibited by araCTP

PDB DOI: https://doi.org/10.2210/pdb9BLF/pdb
NAKB: 9BLF
EM Map EMD-44654: EMDB EMDataResource

Classification: VIRAL PROTEIN/RNA/INHIBITOR
Organism(s): Severe acute respiratory syndrome coronavirus 2, synthetic construct
Expression System: Spodoptera frugiperda, Escherichia coli BL21(DE3), synthetic construct
Mutation(s): No

Deposited: 2024-04-30 Released: 2025-05-14
Deposition Author(s): Anderson, T.K., Xiao, Z., Kirchdeorfer, R.N.
Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID), United States Department of Agriculture (USDA)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.31 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 2.0 of the entry. See complete history.

Literature

SARS-CoV-2 core polymerase complex inhibited by araCTP

Anderson, T.K., Xiao, Z., Kirchdeorfer, R.N.

To be published.

Macromolecule Content

Total Structure Weight: 186.91 kDa
Atom Count: 12,360
Modeled Residue Count: 1,439
Deposited Residue Count: 1,515
Unique protein chains: 3
Unique nucleic acid chains: 2

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
RNA-directed RNA polymerase nsp12	A	964	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0 Gene Names: rep, 1a-1b
UniProt
Find proteins for P0DTD1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTD1 Go to UniProtKB: P0DTD1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0DTD1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

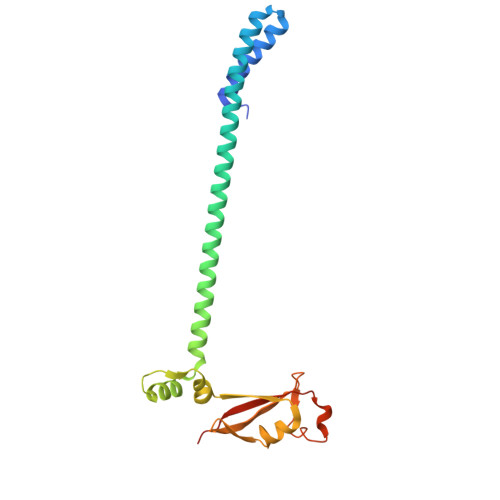

Non-structural protein 8	B, D	199	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0 Gene Names: rep, 1a-1b
UniProt
Find proteins for P0DTD1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTD1 Go to UniProtKB: P0DTD1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0DTD1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

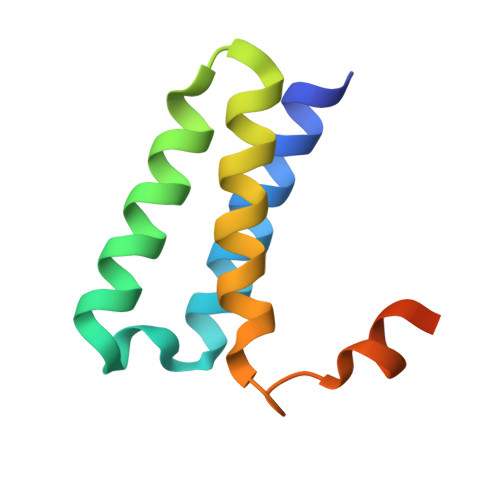

Non-structural protein 7	C	84	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0 Gene Names: rep, 1a-1b
UniProt
Find proteins for P0DTC1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC1 Go to UniProtKB: P0DTC1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0DTC1
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

Entity ID: 4
Molecule	Chains	Length	Organism	Image
Primer RNA	E [auth P]	31	Severe acute respiratory syndrome coronavirus 2
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

Entity ID: 5
Molecule	Chains	Length	Organism	Image

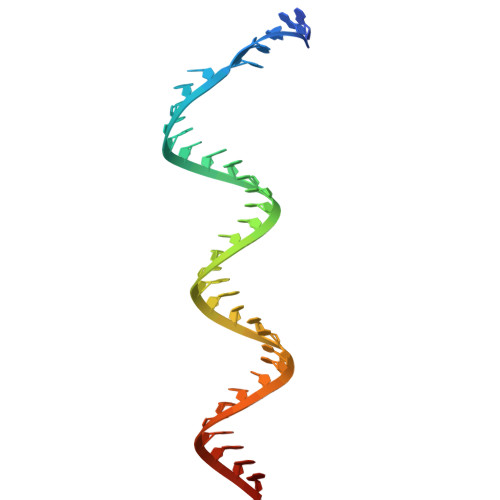

Template RNA	F [auth T]	38	synthetic construct
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
HF4 (Subject of Investigation/LOI) Query on HF4 Download Ideal Coordinates CCD File SDF format, chain J [auth A] SDF format, chain L [auth A] MOL2 format, chain J [auth A] MOL2 format, chain L [auth A] mmCIF format, chain J [auth A] mmCIF format, chain L [auth A]	J [auth A], L [auth A]	4-amino-1-{5-O-[(S)-hydroxy{[(R)-hydroxy(phosphonooxy)phosphoryl]oxy}phosphoryl]-beta-D-arabinofuranosyl}pyrimidin-2(1H)-one C₉ H₁₆ N₃ O₁₄ P₃ PCDQPRRSZKQHHS-CCXZUQQUSA-N		Interactions Focus chain J [auth A] Focus chain L [auth A] Interactions & Density Focus chain J [auth A] Focus chain L [auth A]
ZN Query on ZN Download Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain H [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A]	G [auth A], H [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Focus chain H [auth A] Interactions & Density Focus chain G [auth A] Focus chain H [auth A]
MG Query on MG Download Ideal Coordinates CCD File SDF format, chain I [auth A] SDF format, chain K [auth A] SDF format, chain M [auth A] MOL2 format, chain I [auth A] MOL2 format, chain K [auth A] MOL2 format, chain M [auth A] mmCIF format, chain I [auth A] mmCIF format, chain K [auth A] mmCIF format, chain M [auth A]	I [auth A], K [auth A], M [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Focus chain K [auth A] Focus chain M [auth A] Interactions & Density Focus chain I [auth A] Focus chain K [auth A] Focus chain M [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.31 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.2_5419
RECONSTRUCTION	cryoSPARC	v4.4.0

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2025-05-14

Deposition Author(s):

Anderson, T.K.

Xiao, Z.

Kirchdeorfer, R.N.

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	AI123498
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	AI158463
United States Department of Agriculture (USDA)	United States	WIS03099

Revision History (Full details and data files)

Version 1.0: 2025-05-14
Type: Initial release
Version 2.0: 2025-11-19
Type: Coordinate replacement
Reason: Ligand geometry
Changes: Advisory, Atomic model, Author supporting evidence, Data collection, Database references, Derived calculations, Polymer sequence, Refinement description, Source and taxonomy, Structure summary
