8ZW4 | pdb_00008zw4

TLR7 in complex with GUC-v1 (RR)

PDB DOI: https://doi.org/10.2210/pdb8ZW4/pdb
NAKB: 8ZW4
EM Map EMD-60515: EMDB EMDataResource

Classification: IMMUNE SYSTEM
Organism(s): Macaca mulatta, synthetic construct
Expression System: Drosophila melanogaster
Mutation(s): Yes

Deposited: 2024-06-12 Released: 2025-12-17
Deposition Author(s): Zhang, Z., Ohto, U., Shimizu, T.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.00 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 8ZW4

This is version 1.0 of the entry. See complete history.

Literature

TLR7 in complex with GUC-v1 (RR)

Alharbi, A., Sapkota, S., Zhang, Z., Jin, R.

To be published.

Macromolecule Content

Total Structure Weight: 199.97 kDa
Atom Count: 13,084
Modeled Residue Count: 1,540
Deposited Residue Count: 1,652
Unique protein chains: 1
Unique nucleic acid chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

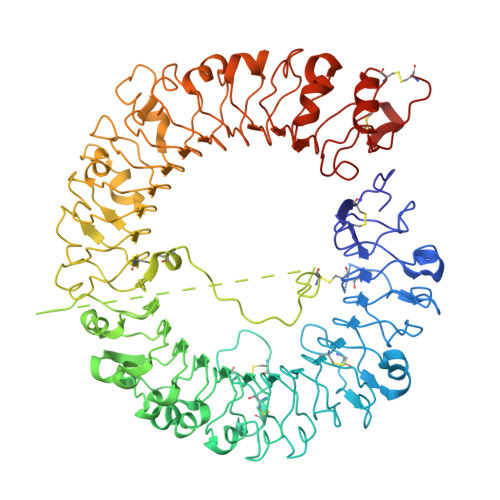

Toll-like receptor 7	A, B	823	Macaca mulatta	Mutation(s): 10 Gene Names: TLR7
UniProt
Find proteins for B3Y653 (Macaca mulatta) Explore B3Y653 Go to UniProtKB: B3Y653
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	B3Y653
Glycosylation
Glycosylation Sites: 10	Glycosylation Focus chain A Focus chain B
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by: Sequence

Molecule	Chains	Length	Organism	Image
Entity ID: 2

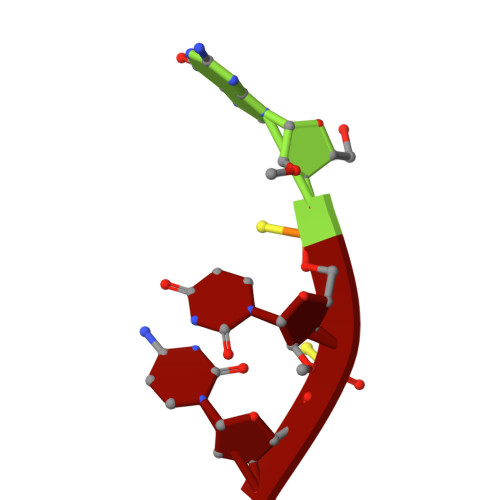

GUC	C [auth Q], D [auth R]	3	synthetic construct
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	E [auth C], G [auth E], L [auth J], N [auth L]	3		N-Glycosylation	Interactions Focus chain E [auth C] Focus chain G [auth E] Focus chain L [auth J] Focus chain N [auth L] Interactions & Density Focus chain E [auth C] Focus chain G [auth E] Focus chain L [auth J] Focus chain N [auth L]
Glycosylation Resources
GlyTouCan: G15407YE GlyCosmos: G15407YE GlyGen: G15407YE

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	F [auth D], M [auth K]	4		N-Glycosylation	Interactions Focus chain F [auth D] Focus chain M [auth K] Interactions & Density Focus chain F [auth D] Focus chain M [auth K]
Glycosylation Resources
GlyTouCan: G22573RC GlyCosmos: G22573RC GlyGen: G22573RC

Entity ID: 5
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	H [auth F], I [auth G], J [auth H], K [auth I], O [auth M], H [auth F], I [auth G], J [auth H], K [auth I], O [auth M], P [auth N], Q [auth O], R [auth P]	2		N-Glycosylation	Interactions Focus chain H [auth F] Focus chain I [auth G] Focus chain J [auth H] Focus chain K [auth I] Focus chain O [auth M] Focus chain P [auth N] Focus chain Q [auth O] Focus chain R [auth P] Interactions & Density Focus chain H [auth F] Focus chain I [auth G] Focus chain J [auth H] Focus chain K [auth I] Focus chain O [auth M] Focus chain P [auth N] Focus chain Q [auth O] Focus chain R [auth P]
Glycosylation Resources
GlyTouCan: G42666HT GlyCosmos: G42666HT GlyGen: G42666HT

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG Query on NAG Download:Ideal Coordinates CCD File SDF format, chain S [auth A] SDF format, chain U [auth A] SDF format, chain V [auth B] SDF format, chain W [auth B] SDF format, chain X [auth B] SDF format, chain T [auth A] MOL2 format, chain S [auth A] MOL2 format, chain U [auth A] MOL2 format, chain V [auth B] MOL2 format, chain W [auth B] MOL2 format, chain X [auth B] MOL2 format, chain T [auth A] mmCIF format, chain S [auth A] mmCIF format, chain U [auth A] mmCIF format, chain V [auth B] mmCIF format, chain W [auth B] mmCIF format, chain X [auth B] mmCIF format, chain T [auth A]	S [auth A] T [auth A] U [auth A] V [auth B] W [auth B] S [auth A], T [auth A], U [auth A], V [auth B], W [auth B], X [auth B]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain S [auth A] Focus chain T [auth A] Focus chain U [auth A] Focus chain V [auth B] Focus chain W [auth B] Focus chain X [auth B] Interactions & Density Focus chain S [auth A] Focus chain T [auth A] Focus chain U [auth A] Focus chain V [auth B] Focus chain W [auth B] Focus chain X [auth B]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.00 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-12-17

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2025-12-17
Type: Initial release
