8ZOG | pdb_00008zog

Structure of the astaxanthin mutant PSI-9VCPI supercomplex in Nannochloropsis oceanica

PDB DOI: https://doi.org/10.2210/pdb8ZOG/pdb
EM Map EMD-60292: EMDB EMDataResource

Classification: PHOTOSYNTHESIS
Organism(s): Nannochloropsis oceanica strain IMET1
Mutation(s): No

Deposited: 2024-05-28 Released: 2025-12-10
Deposition Author(s): Shen, L.L., Shen, J.R., Wang, W.D.
Funding Organization(s): Chinese Academy of Sciences

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.16 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structure of the astaxanthin mutant PSI-9VCPI supercomplex in Nannochloropsis oceanica

Shen, L.L., Shen, J.R., Wang, W.D.

To be published.

Macromolecule Content

Total Structure Weight: 701.24 kDa
Atom Count: 43,749
Modeled Residue Count: 3,888
Deposited Residue Count: 4,412
Unique protein chains: 20

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
VCPI-5	A [auth 5]	244	Nannochloropsis oceanica strain IMET1	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

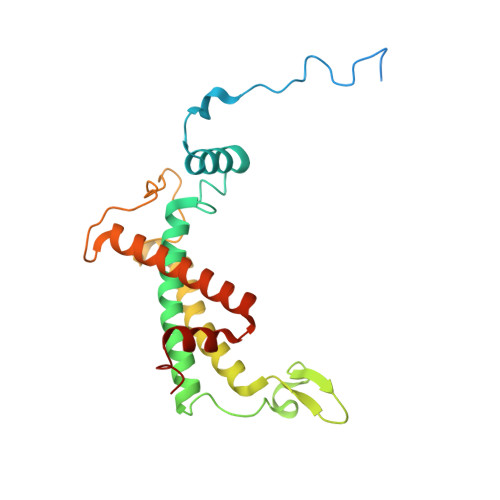

VCPI-9	B [auth 9]	232	Nannochloropsis oceanica strain IMET1	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

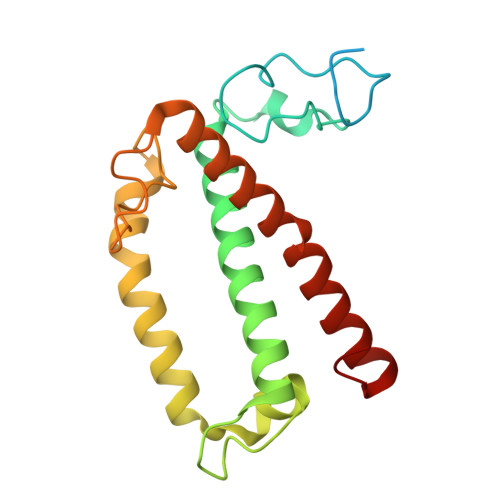

VCPI-8	C [auth 8]	200	Nannochloropsis oceanica strain IMET1	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

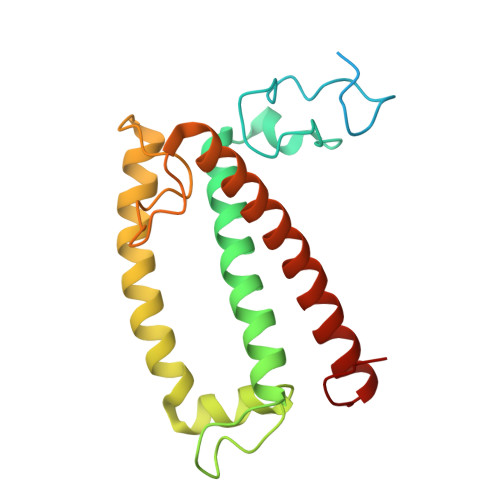

VCPI-4/7	D [auth 4], H [auth 7]	202	Nannochloropsis oceanica strain IMET1	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

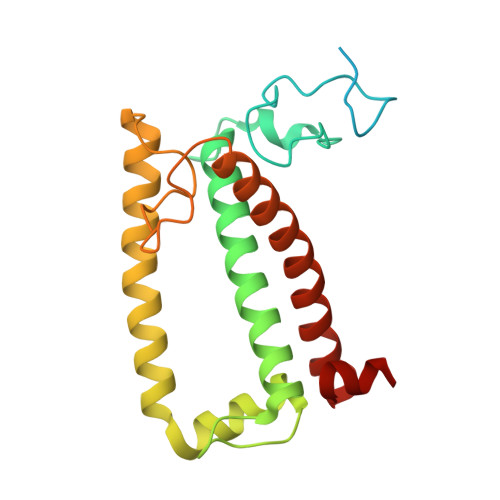

VCPI-3	E [auth 3]	220	Nannochloropsis oceanica strain IMET1	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

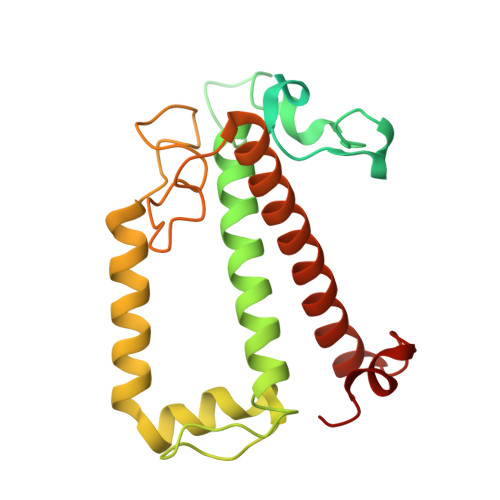

VCPI-6	F [auth 6]	259	Nannochloropsis oceanica strain IMET1	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image
VCPI-2	G [auth 2]	223	Nannochloropsis oceanica strain IMET1	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image

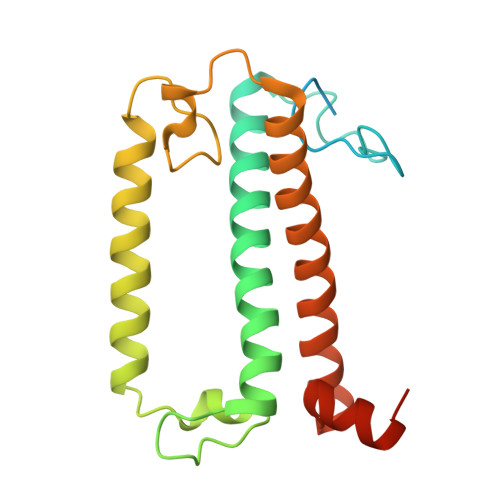

VCPI-1	I [auth 1]	208	Nannochloropsis oceanica strain IMET1	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image

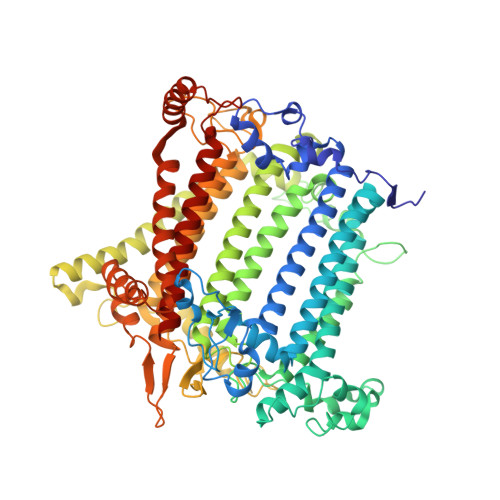

Photosystem I P700 chlorophyll a apoprotein A1	J [auth a]	745	Nannochloropsis oceanica strain IMET1	Mutation(s): 0 EC: 1.97.1.12
UniProt
Find proteins for T1RJP7 (Nannochloropsis oceanica) Explore T1RJP7 Go to UniProtKB: T1RJP7
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	T1RJP7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image

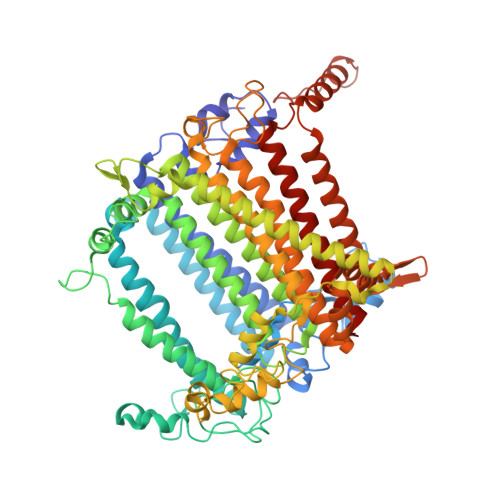

Photosystem I P700 chlorophyll a apoprotein A2	K [auth b]	737	Nannochloropsis oceanica strain IMET1	Mutation(s): 0 EC: 1.97.1.12
UniProt
Find proteins for T1RIQ1 (Nannochloropsis oceanica) Explore T1RIQ1 Go to UniProtKB: T1RIQ1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	T1RIQ1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image

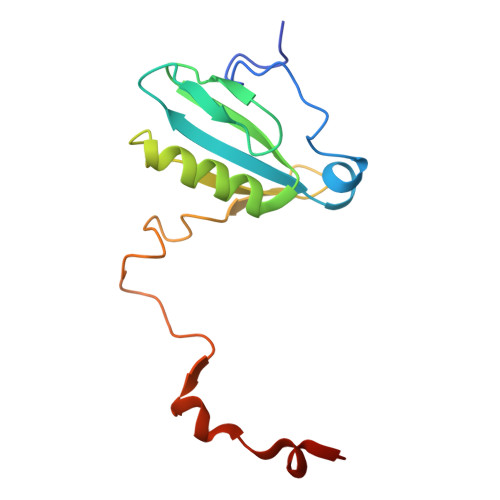

Photosystem I reaction center subunit II	L [auth d]	136	Nannochloropsis oceanica strain IMET1	Mutation(s): 0
UniProt
Find proteins for T1RIT2 (Nannochloropsis oceanica) Explore T1RIT2 Go to UniProtKB: T1RIT2
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	T1RIT2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem I reaction center subunit IV	M [auth e]	67	Nannochloropsis oceanica strain IMET1	Mutation(s): 0
UniProt
Find proteins for T1RJT6 (Nannochloropsis oceanica) Explore T1RJT6 Go to UniProtKB: T1RJT6
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	T1RJT6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image

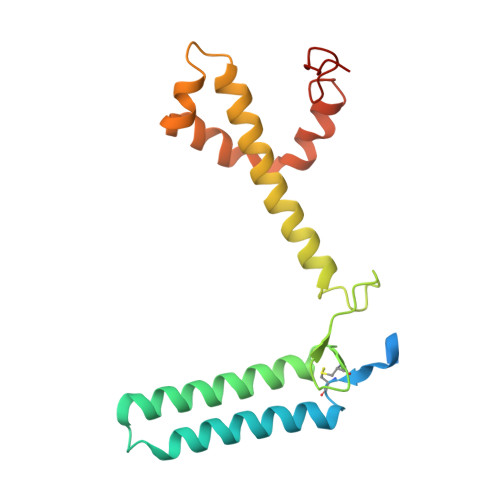

Photosystem I reaction center subunit III	N [auth f]	185	Nannochloropsis oceanica strain IMET1	Mutation(s): 0
UniProt
Find proteins for T1RJ05 (Nannochloropsis oceanica) Explore T1RJ05 Go to UniProtKB: T1RJ05
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	T1RJ05
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image
PsaR	O [auth h]	128	Nannochloropsis oceanica strain IMET1	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image

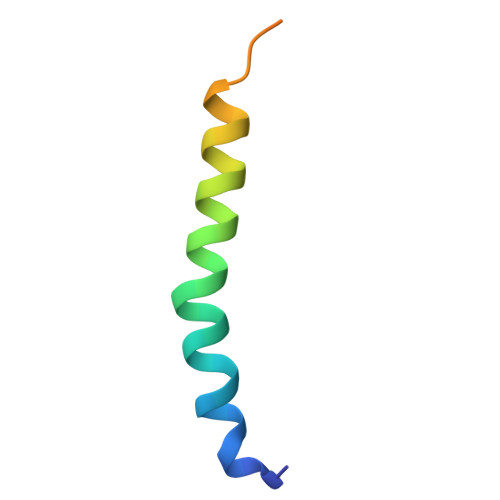

Photosystem I reaction center subunit VIII	P [auth i]	45	Nannochloropsis oceanica strain IMET1	Mutation(s): 0
UniProt
Find proteins for T1RJ07 (Nannochloropsis oceanica) Explore T1RJ07 Go to UniProtKB: T1RJ07
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	T1RJ07
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image

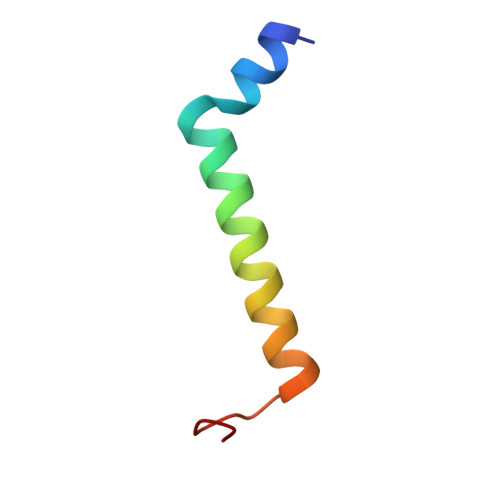

Photosystem I reaction center subunit IX	Q [auth j]	41	Nannochloropsis oceanica strain IMET1	Mutation(s): 0
UniProt
Find proteins for T1RJW8 (Nannochloropsis oceanica) Explore T1RJW8 Go to UniProtKB: T1RJW8
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	T1RJW8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 17
Molecule	Chains	Sequence Length	Organism	Details	Image

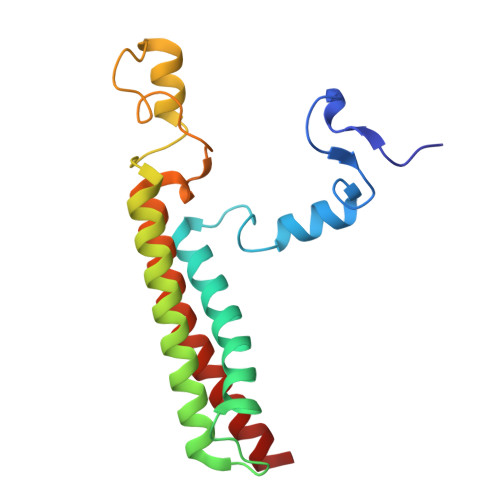

PSI subunit V	R [auth l]	172	Nannochloropsis oceanica strain IMET1	Mutation(s): 0
UniProt
Find proteins for T1RJZ1 (Nannochloropsis oceanica) Explore T1RJZ1 Go to UniProtKB: T1RJZ1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	T1RJZ1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 18
Molecule	Chains	Sequence Length	Organism	Details	Image

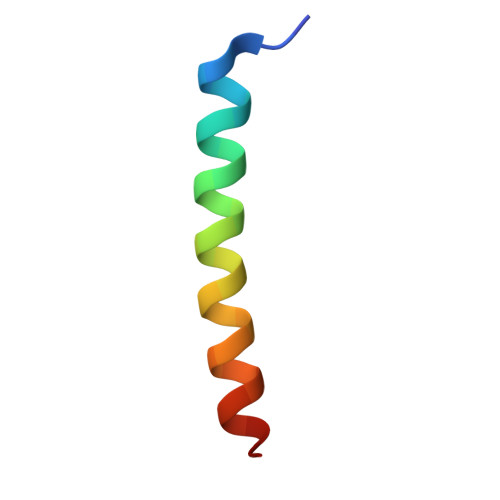

PsaM	S [auth m]	30	Nannochloropsis oceanica strain IMET1	Mutation(s): 0
UniProt
Find proteins for A0A8F5PPL2 (Chaetoceros tenuissimus) Explore A0A8F5PPL2 Go to UniProtKB: A0A8F5PPL2
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A8F5PPL2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 19
Molecule	Chains	Sequence Length	Organism	Details	Image

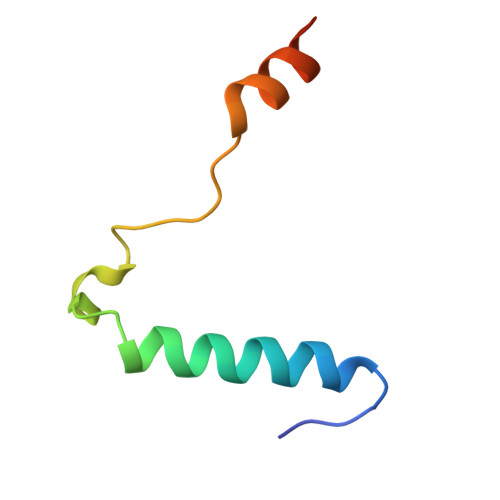

PsaS	T [auth g]	55	Nannochloropsis oceanica strain IMET1	Mutation(s): 0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 20
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem I iron-sulfur center	U [auth c]	81	Nannochloropsis oceanica strain IMET1	Mutation(s): 0 EC: 1.97.1.12
UniProt
Find proteins for T1RJY1 (Nannochloropsis oceanica) Explore T1RJY1 Go to UniProtKB: T1RJY1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	T1RJY1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 11 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
DGD (Subject of Investigation/LOI) Query on DGD Download Ideal Coordinates CCD File SDF format, chain HC [auth 4] SDF format, chain MJ [auth b] SDF format, chain QB [auth 8] MOL2 format, chain HC [auth 4] MOL2 format, chain MJ [auth b] MOL2 format, chain QB [auth 8] mmCIF format, chain HC [auth 4] mmCIF format, chain MJ [auth b] mmCIF format, chain QB [auth 8]	HC [auth 4], MJ [auth b], QB [auth 8]	DIGALACTOSYL DIACYL GLYCEROL (DGDG) C₅₁ H₉₆ O₁₅ LDQFLSUQYHBXSX-HXXRYREZSA-N		Interactions Focus chain HC [auth 4] Focus chain MJ [auth b] Focus chain QB [auth 8] Interactions & Density Focus chain HC [auth 4] Focus chain MJ [auth b] Focus chain QB [auth 8]
CLA (Subject of Investigation/LOI) Query on CLA Download Ideal Coordinates CCD File SDF format, chain AA [auth 5] SDF format, chain AB [auth 9] SDF format, chain AC [auth 4] SDF format, chain AE [auth 2] SDF format, chain AF [auth 1] SDF format, chain AG [auth a] SDF format, chain AI [auth b] SDF format, chain AJ [auth b] SDF format, chain BA [auth 5] SDF format, chain BB [auth 9] SDF format, chain BC [auth 4] SDF format, chain BE [auth 2] SDF format, chain BF [auth 1] SDF format, chain BG [auth a] SDF format, chain BH [auth a] SDF format, chain BI [auth b] SDF format, chain BJ [auth b] SDF format, chain BK [auth l] SDF format, chain CA [auth 5] SDF format, chain CC [auth 4] SDF format, chain CE [auth 2] SDF format, chain CF [auth 1] SDF format, chain CG [auth a] SDF format, chain CI [auth b] SDF format, chain CJ [auth b] SDF format, chain CK [auth l] SDF format, chain DA [auth 5] SDF format, chain DC [auth 4] SDF format, chain DD [auth 6] SDF format, chain DF [auth 1] SDF format, chain DG [auth a] SDF format, chain DI [auth b] SDF format, chain DK [auth l] SDF format, chain EA [auth 5] SDF format, chain EC [auth 4] SDF format, chain ED [auth 6] SDF format, chain EF [auth 1] SDF format, chain EG [auth a] SDF format, chain EI [auth b] SDF format, chain FA [auth 5] SDF format, chain FC [auth 4] SDF format, chain FD [auth 6] SDF format, chain FF [auth 1] SDF format, chain FG [auth a] SDF format, chain FI [auth b] SDF format, chain GA [auth 5] SDF format, chain GB [auth 8] SDF format, chain GC [auth 4] SDF format, chain GD [auth 6] SDF format, chain GF [auth 1] SDF format, chain GG [auth a] SDF format, chain GI [auth b] SDF format, chain HA [auth 5] SDF format, chain HB [auth 8] SDF format, chain HD [auth 6] SDF format, chain HF [auth 1] SDF format, chain HG [auth a] SDF format, chain HI [auth b] SDF format, chain IA [auth 5] SDF format, chain IB [auth 8] SDF format, chain ID [auth 6] SDF format, chain IF [auth 1] SDF format, chain IG [auth a] SDF format, chain II [auth b] SDF format, chain JA [auth 5] SDF format, chain JB [auth 8] SDF format, chain JD [auth 6] SDF format, chain JE [auth 7] SDF format, chain JG [auth a] SDF format, chain JH [auth a] SDF format, chain JI [auth b] SDF format, chain KA [auth 5] SDF format, chain KB [auth 8] SDF format, chain KD [auth 6] SDF format, chain KE [auth 7] SDF format, chain KF [auth a] SDF format, chain KG [auth a] SDF format, chain KI [auth b] SDF format, chain LB [auth 8] SDF format, chain LD [auth 6] SDF format, chain LE [auth 7] SDF format, chain LF [auth a] SDF format, chain LG [auth a] SDF format, chain LI [auth b] SDF format, chain MB [auth 8] SDF format, chain MD [auth 6] SDF format, chain ME [auth 7] SDF format, chain MF [auth a] SDF format, chain MG [auth a] SDF format, chain MI [auth b] SDF format, chain NB [auth 8] SDF format, chain NE [auth 7] SDF format, chain NF [auth a] SDF format, chain NG [auth a] SDF format, chain NH [auth a] SDF format, chain NI [auth b] SDF format, chain OB [auth 8] SDF format, chain OC [auth 3] SDF format, chain OE [auth 7] SDF format, chain OF [auth a] SDF format, chain OG [auth a] SDF format, chain OH [auth b] SDF format, chain OI [auth b] SDF format, chain PB [auth 8] SDF format, chain PC [auth 3] SDF format, chain PE [auth 7] SDF format, chain PF [auth a] SDF format, chain PG [auth a] SDF format, chain PH [auth b] SDF format, chain PI [auth b] SDF format, chain QC [auth 3] SDF format, chain QE [auth 7] SDF format, chain QF [auth a] SDF format, chain QG [auth a] SDF format, chain QH [auth b] SDF format, chain QI [auth b] SDF format, chain QJ [auth f] SDF format, chain RC [auth 3] SDF format, chain RE [auth 7] SDF format, chain RF [auth a] SDF format, chain RG [auth a] SDF format, chain RH [auth b] SDF format, chain RI [auth b] SDF format, chain RJ [auth f] SDF format, chain SC [auth 3] SDF format, chain SD [auth 2] SDF format, chain SE [auth 7] SDF format, chain SF [auth a] SDF format, chain SG [auth a] SDF format, chain SH [auth b] SDF format, chain SI [auth b] SDF format, chain TA [auth 9] SDF format, chain TC [auth 3] SDF format, chain TD [auth 2] SDF format, chain TE [auth 7] SDF format, chain TF [auth a] SDF format, chain TG [auth a] SDF format, chain TH [auth b] SDF format, chain TI [auth b] SDF format, chain TJ [auth h] SDF format, chain UA [auth 9] SDF format, chain UC [auth 3] SDF format, chain UD [auth 2] SDF format, chain UE [auth 7] SDF format, chain UF [auth a] SDF format, chain UG [auth a] SDF format, chain UH [auth b] SDF format, chain UI [auth b] SDF format, chain VA [auth 9] SDF format, chain VB [auth 4] SDF format, chain VC [auth 3] SDF format, chain VD [auth 2] SDF format, chain VF [auth a] SDF format, chain VG [auth a] SDF format, chain VH [auth b] SDF format, chain VI [auth b] SDF format, chain VJ [auth h] SDF format, chain WA [auth 9] SDF format, chain WB [auth 4] SDF format, chain WC [auth 3] SDF format, chain WD [auth 2] SDF format, chain WF [auth a] SDF format, chain WG [auth a] SDF format, chain WH [auth b] SDF format, chain WI [auth b] SDF format, chain XA [auth 9] SDF format, chain XB [auth 4] SDF format, chain XD [auth 2] SDF format, chain XF [auth a] SDF format, chain XG [auth a] SDF format, chain XH [auth b] SDF format, chain XI [auth b] SDF format, chain YA [auth 9] SDF format, chain YB [auth 4] SDF format, chain YD [auth 2] SDF format, chain YF [auth a] SDF format, chain YG [auth a] SDF format, chain YH [auth b] SDF format, chain YI [auth b] SDF format, chain YJ [auth j] SDF format, chain ZA [auth 9] SDF format, chain ZB [auth 4] SDF format, chain ZD [auth 2] SDF format, chain ZE [auth 1] SDF format, chain ZF [auth a] SDF format, chain ZG [auth a] SDF format, chain ZH [auth b] SDF format, chain ZI [auth b] MOL2 format, chain AA [auth 5] MOL2 format, chain AB [auth 9] MOL2 format, chain AC [auth 4] MOL2 format, chain AE [auth 2] MOL2 format, chain AF [auth 1] MOL2 format, chain AG [auth a] MOL2 format, chain AI [auth b] MOL2 format, chain AJ [auth b] MOL2 format, chain BA [auth 5] MOL2 format, chain BB [auth 9] MOL2 format, chain BC [auth 4] MOL2 format, chain BE [auth 2] MOL2 format, chain BF [auth 1] MOL2 format, chain BG [auth a] MOL2 format, chain BH [auth a] MOL2 format, chain BI [auth b] MOL2 format, chain BJ [auth b] MOL2 format, chain BK [auth l] MOL2 format, chain CA [auth 5] MOL2 format, chain CC [auth 4] MOL2 format, chain CE [auth 2] MOL2 format, chain CF [auth 1] MOL2 format, chain CG [auth a] MOL2 format, chain CI [auth b] MOL2 format, chain CJ [auth b] MOL2 format, chain CK [auth l] MOL2 format, chain DA [auth 5] MOL2 format, chain DC [auth 4] MOL2 format, chain DD [auth 6] MOL2 format, chain DF [auth 1] MOL2 format, chain DG [auth a] MOL2 format, chain DI [auth b] MOL2 format, chain DK [auth l] MOL2 format, chain EA [auth 5] MOL2 format, chain EC [auth 4] MOL2 format, chain ED [auth 6] MOL2 format, chain EF [auth 1] MOL2 format, chain EG [auth a] MOL2 format, chain EI [auth b] MOL2 format, chain FA [auth 5] MOL2 format, chain FC [auth 4] MOL2 format, chain FD [auth 6] MOL2 format, chain FF [auth 1] MOL2 format, chain FG [auth a] MOL2 format, chain FI [auth b] MOL2 format, chain GA [auth 5] MOL2 format, chain GB [auth 8] MOL2 format, chain GC [auth 4] MOL2 format, chain GD [auth 6] MOL2 format, chain GF [auth 1] MOL2 format, chain GG [auth a] MOL2 format, chain GI [auth b] MOL2 format, chain HA [auth 5] MOL2 format, chain HB [auth 8] MOL2 format, chain HD [auth 6] MOL2 format, chain HF [auth 1] MOL2 format, chain HG [auth a] MOL2 format, chain HI [auth b] MOL2 format, chain IA [auth 5] MOL2 format, chain IB [auth 8] MOL2 format, chain ID [auth 6] MOL2 format, chain IF [auth 1] MOL2 format, chain IG [auth a] MOL2 format, chain II [auth b] MOL2 format, chain JA [auth 5] MOL2 format, chain JB [auth 8] MOL2 format, chain JD [auth 6] MOL2 format, chain JE [auth 7] MOL2 format, chain JG [auth a] MOL2 format, chain JH [auth a] MOL2 format, chain JI [auth b] MOL2 format, chain KA [auth 5] MOL2 format, chain KB [auth 8] MOL2 format, chain KD [auth 6] MOL2 format, chain KE [auth 7] MOL2 format, chain KF [auth a] MOL2 format, chain KG [auth a] MOL2 format, chain KI [auth b] MOL2 format, chain LB [auth 8] MOL2 format, chain LD [auth 6] MOL2 format, chain LE [auth 7] MOL2 format, chain LF [auth a] MOL2 format, chain LG [auth a] MOL2 format, chain LI [auth b] MOL2 format, chain MB [auth 8] MOL2 format, chain MD [auth 6] MOL2 format, chain ME [auth 7] MOL2 format, chain MF [auth a] MOL2 format, chain MG [auth a] MOL2 format, chain MI [auth b] MOL2 format, chain NB [auth 8] MOL2 format, chain NE [auth 7] MOL2 format, chain NF [auth a] MOL2 format, chain NG [auth a] MOL2 format, chain NH [auth a] MOL2 format, chain NI [auth b] MOL2 format, chain OB [auth 8] MOL2 format, chain OC [auth 3] MOL2 format, chain OE [auth 7] MOL2 format, chain OF [auth a] MOL2 format, chain OG [auth a] MOL2 format, chain OH [auth b] MOL2 format, chain OI [auth b] MOL2 format, chain PB [auth 8] MOL2 format, chain PC [auth 3] MOL2 format, chain PE [auth 7] MOL2 format, chain PF [auth a] MOL2 format, chain PG [auth a] MOL2 format, chain PH [auth b] MOL2 format, chain PI [auth b] MOL2 format, chain QC [auth 3] MOL2 format, chain QE [auth 7] MOL2 format, chain QF [auth a] MOL2 format, chain QG [auth a] MOL2 format, chain QH [auth b] MOL2 format, chain QI [auth b] MOL2 format, chain QJ [auth f] MOL2 format, chain RC [auth 3] MOL2 format, chain RE [auth 7] MOL2 format, chain RF [auth a] MOL2 format, chain RG [auth a] MOL2 format, chain RH [auth b] MOL2 format, chain RI [auth b] MOL2 format, chain RJ [auth f] MOL2 format, chain SC [auth 3] MOL2 format, chain SD [auth 2] MOL2 format, chain SE [auth 7] MOL2 format, chain SF [auth a] MOL2 format, chain SG [auth a] MOL2 format, chain SH [auth b] MOL2 format, chain SI [auth b] MOL2 format, chain TA [auth 9] MOL2 format, chain TC [auth 3] MOL2 format, chain TD [auth 2] MOL2 format, chain TE [auth 7] MOL2 format, chain TF [auth a] MOL2 format, chain TG [auth a] MOL2 format, chain TH [auth b] MOL2 format, chain TI [auth b] MOL2 format, chain TJ [auth h] MOL2 format, chain UA [auth 9] MOL2 format, chain UC [auth 3] MOL2 format, chain UD [auth 2] MOL2 format, chain UE [auth 7] MOL2 format, chain UF [auth a] MOL2 format, chain UG [auth a] MOL2 format, chain UH [auth b] MOL2 format, chain UI [auth b] MOL2 format, chain VA [auth 9] MOL2 format, chain VB [auth 4] MOL2 format, chain VC [auth 3] MOL2 format, chain VD [auth 2] MOL2 format, chain VF [auth a] MOL2 format, chain VG [auth a] MOL2 format, chain VH [auth b] MOL2 format, chain VI [auth b] MOL2 format, chain VJ [auth h] MOL2 format, chain WA [auth 9] MOL2 format, chain WB [auth 4] MOL2 format, chain WC [auth 3] MOL2 format, chain WD [auth 2] MOL2 format, chain WF [auth a] MOL2 format, chain WG [auth a] MOL2 format, chain WH [auth b] MOL2 format, chain WI [auth b] MOL2 format, chain XA [auth 9] MOL2 format, chain XB [auth 4] MOL2 format, chain XD [auth 2] MOL2 format, chain XF [auth a] MOL2 format, chain XG [auth a] MOL2 format, chain XH [auth b] MOL2 format, chain XI [auth b] MOL2 format, chain YA [auth 9] MOL2 format, chain YB [auth 4] MOL2 format, chain YD [auth 2] MOL2 format, chain YF [auth a] MOL2 format, chain YG [auth a] MOL2 format, chain YH [auth b] MOL2 format, chain YI [auth b] MOL2 format, chain YJ [auth j] MOL2 format, chain ZA [auth 9] MOL2 format, chain ZB [auth 4] MOL2 format, chain ZD [auth 2] MOL2 format, chain ZE [auth 1] MOL2 format, chain ZF [auth a] MOL2 format, chain ZG [auth a] MOL2 format, chain ZH [auth b] MOL2 format, chain ZI [auth b] mmCIF format, chain AA [auth 5] mmCIF format, chain AB [auth 9] mmCIF format, chain AC [auth 4] mmCIF format, chain AE [auth 2] mmCIF format, chain AF [auth 1] mmCIF format, chain AG [auth a] mmCIF format, chain AI [auth b] mmCIF format, chain AJ [auth b] mmCIF format, chain BA [auth 5] mmCIF format, chain BB [auth 9] mmCIF format, chain BC [auth 4] mmCIF format, chain BE [auth 2] mmCIF format, chain BF [auth 1] mmCIF format, chain BG [auth a] mmCIF format, chain BH [auth a] mmCIF format, chain BI [auth b] mmCIF format, chain BJ [auth b] mmCIF format, chain BK [auth l] mmCIF format, chain CA [auth 5] mmCIF format, chain CC [auth 4] mmCIF format, chain CE [auth 2] mmCIF format, chain CF [auth 1] mmCIF format, chain CG [auth a] mmCIF format, chain CI [auth b] mmCIF format, chain CJ [auth b] mmCIF format, chain CK [auth l] mmCIF format, chain DA [auth 5] mmCIF format, chain DC [auth 4] mmCIF format, chain DD [auth 6] mmCIF format, chain DF [auth 1] mmCIF format, chain DG [auth a] mmCIF format, chain DI [auth b] mmCIF format, chain DK [auth l] mmCIF format, chain EA [auth 5] mmCIF format, chain EC [auth 4] mmCIF format, chain ED [auth 6] mmCIF format, chain EF [auth 1] mmCIF format, chain EG [auth a] mmCIF format, chain EI [auth b] mmCIF format, chain FA [auth 5] mmCIF format, chain FC [auth 4] mmCIF format, chain FD [auth 6] mmCIF format, chain FF [auth 1] mmCIF format, chain FG [auth a] mmCIF format, chain FI [auth b] mmCIF format, chain GA [auth 5] mmCIF format, chain GB [auth 8] mmCIF format, chain GC [auth 4] mmCIF format, chain GD [auth 6] mmCIF format, chain GF [auth 1] mmCIF format, chain GG [auth a] mmCIF format, chain GI [auth b] mmCIF format, chain HA [auth 5] mmCIF format, chain HB [auth 8] mmCIF format, chain HD [auth 6] mmCIF format, chain HF [auth 1] mmCIF format, chain HG [auth a] mmCIF format, chain HI [auth b] mmCIF format, chain IA [auth 5] mmCIF format, chain IB [auth 8] mmCIF format, chain ID [auth 6] mmCIF format, chain IF [auth 1] mmCIF format, chain IG [auth a] mmCIF format, chain II [auth b] mmCIF format, chain JA [auth 5] mmCIF format, chain JB [auth 8] mmCIF format, chain JD [auth 6] mmCIF format, chain JE [auth 7] mmCIF format, chain JG [auth a] mmCIF format, chain JH [auth a] mmCIF format, chain JI [auth b] mmCIF format, chain KA [auth 5] mmCIF format, chain KB [auth 8] mmCIF format, chain KD [auth 6] mmCIF format, chain KE [auth 7] mmCIF format, chain KF [auth a] mmCIF format, chain KG [auth a] mmCIF format, chain KI [auth b] mmCIF format, chain LB [auth 8] mmCIF format, chain LD [auth 6] mmCIF format, chain LE [auth 7] mmCIF format, chain LF [auth a] mmCIF format, chain LG [auth a] mmCIF format, chain LI [auth b] mmCIF format, chain MB [auth 8] mmCIF format, chain MD [auth 6] mmCIF format, chain ME [auth 7] mmCIF format, chain MF [auth a] mmCIF format, chain MG [auth a] mmCIF format, chain MI [auth b] mmCIF format, chain NB [auth 8] mmCIF format, chain NE [auth 7] mmCIF format, chain NF [auth a] mmCIF format, chain NG [auth a] mmCIF format, chain NH [auth a] mmCIF format, chain NI [auth b] mmCIF format, chain OB [auth 8] mmCIF format, chain OC [auth 3] mmCIF format, chain OE [auth 7] mmCIF format, chain OF [auth a] mmCIF format, chain OG [auth a] mmCIF format, chain OH [auth b] mmCIF format, chain OI [auth b] mmCIF format, chain PB [auth 8] mmCIF format, chain PC [auth 3] mmCIF format, chain PE [auth 7] mmCIF format, chain PF [auth a] mmCIF format, chain PG [auth a] mmCIF format, chain PH [auth b] mmCIF format, chain PI [auth b] mmCIF format, chain QC [auth 3] mmCIF format, chain QE [auth 7] mmCIF format, chain QF [auth a] mmCIF format, chain QG [auth a] mmCIF format, chain QH [auth b] mmCIF format, chain QI [auth b] mmCIF format, chain QJ [auth f] mmCIF format, chain RC [auth 3] mmCIF format, chain RE [auth 7] mmCIF format, chain RF [auth a] mmCIF format, chain RG [auth a] mmCIF format, chain RH [auth b] mmCIF format, chain RI [auth b] mmCIF format, chain RJ [auth f] mmCIF format, chain SC [auth 3] mmCIF format, chain SD [auth 2] mmCIF format, chain SE [auth 7] mmCIF format, chain SF [auth a] mmCIF format, chain SG [auth a] mmCIF format, chain SH [auth b] mmCIF format, chain SI [auth b] mmCIF format, chain TA [auth 9] mmCIF format, chain TC [auth 3] mmCIF format, chain TD [auth 2] mmCIF format, chain TE [auth 7] mmCIF format, chain TF [auth a] mmCIF format, chain TG [auth a] mmCIF format, chain TH [auth b] mmCIF format, chain TI [auth b] mmCIF format, chain TJ [auth h] mmCIF format, chain UA [auth 9] mmCIF format, chain UC [auth 3] mmCIF format, chain UD [auth 2] mmCIF format, chain UE [auth 7] mmCIF format, chain UF [auth a] mmCIF format, chain UG [auth a] mmCIF format, chain UH [auth b] mmCIF format, chain UI [auth b] mmCIF format, chain VA [auth 9] mmCIF format, chain VB [auth 4] mmCIF format, chain VC [auth 3] mmCIF format, chain VD [auth 2] mmCIF format, chain VF [auth a] mmCIF format, chain VG [auth a] mmCIF format, chain VH [auth b] mmCIF format, chain VI [auth b] mmCIF format, chain VJ [auth h] mmCIF format, chain WA [auth 9] mmCIF format, chain WB [auth 4] mmCIF format, chain WC [auth 3] mmCIF format, chain WD [auth 2] mmCIF format, chain WF [auth a] mmCIF format, chain WG [auth a] mmCIF format, chain WH [auth b] mmCIF format, chain WI [auth b] mmCIF format, chain XA [auth 9] mmCIF format, chain XB [auth 4] mmCIF format, chain XD [auth 2] mmCIF format, chain XF [auth a] mmCIF format, chain XG [auth a] mmCIF format, chain XH [auth b] mmCIF format, chain XI [auth b] mmCIF format, chain YA [auth 9] mmCIF format, chain YB [auth 4] mmCIF format, chain YD [auth 2] mmCIF format, chain YF [auth a] mmCIF format, chain YG [auth a] mmCIF format, chain YH [auth b] mmCIF format, chain YI [auth b] mmCIF format, chain YJ [auth j] mmCIF format, chain ZA [auth 9] mmCIF format, chain ZB [auth 4] mmCIF format, chain ZD [auth 2] mmCIF format, chain ZE [auth 1] mmCIF format, chain ZF [auth a] mmCIF format, chain ZG [auth a] mmCIF format, chain ZH [auth b] mmCIF format, chain ZI [auth b]	AA [auth 5] AB [auth 9] AC [auth 4] AE [auth 2] AF [auth 1] AA [auth 5], AB [auth 9], AC [auth 4], AE [auth 2], AF [auth 1], AG [auth a], AI [auth b], AJ [auth b], BA [auth 5], BB [auth 9], BC [auth 4], BE [auth 2], BF [auth 1], BG [auth a], BH [auth a], BI [auth b], BJ [auth b], BK [auth l], CA [auth 5], CC [auth 4], CE [auth 2], CF [auth 1], CG [auth a], CI [auth b], CJ [auth b], CK [auth l], DA [auth 5], DC [auth 4], DD [auth 6], DF [auth 1], DG [auth a], DI [auth b], DK [auth l], EA [auth 5], EC [auth 4], ED [auth 6], EF [auth 1], EG [auth a], EI [auth b], FA [auth 5], FC [auth 4], FD [auth 6], FF [auth 1], FG [auth a], FI [auth b], GA [auth 5], GB [auth 8], GC [auth 4], GD [auth 6], GF [auth 1], GG [auth a], GI [auth b], HA [auth 5], HB [auth 8], HD [auth 6], HF [auth 1], HG [auth a], HI [auth b], IA [auth 5], IB [auth 8], ID [auth 6], IF [auth 1], IG [auth a], II [auth b], JA [auth 5], JB [auth 8], JD [auth 6], JE [auth 7], JG [auth a], JH [auth a], JI [auth b], KA [auth 5], KB [auth 8], KD [auth 6], KE [auth 7], KF [auth a], KG [auth a], KI [auth b], LB [auth 8], LD [auth 6], LE [auth 7], LF [auth a], LG [auth a], LI [auth b], MB [auth 8], MD [auth 6], ME [auth 7], MF [auth a], MG [auth a], MI [auth b], NB [auth 8], NE [auth 7], NF [auth a], NG [auth a], NH [auth a], NI [auth b], OB [auth 8], OC [auth 3], OE [auth 7], OF [auth a], OG [auth a], OH [auth b], OI [auth b], PB [auth 8], PC [auth 3], PE [auth 7], PF [auth a], PG [auth a], PH [auth b], PI [auth b], QC [auth 3], QE [auth 7], QF [auth a], QG [auth a], QH [auth b], QI [auth b], QJ [auth f], RC [auth 3], RE [auth 7], RF [auth a], RG [auth a], RH [auth b], RI [auth b], RJ [auth f], SC [auth 3], SD [auth 2], SE [auth 7], SF [auth a], SG [auth a], SH [auth b], SI [auth b], TA [auth 9], TC [auth 3], TD [auth 2], TE [auth 7], TF [auth a], TG [auth a], TH [auth b], TI [auth b], TJ [auth h], UA [auth 9], UC [auth 3], UD [auth 2], UE [auth 7], UF [auth a], UG [auth a], UH [auth b], UI [auth b], VA [auth 9], VB [auth 4], VC [auth 3], VD [auth 2], VF [auth a], VG [auth a], VH [auth b], VI [auth b], VJ [auth h], WA [auth 9], WB [auth 4], WC [auth 3], WD [auth 2], WF [auth a], WG [auth a], WH [auth b], WI [auth b], XA [auth 9], XB [auth 4], XD [auth 2], XF [auth a], XG [auth a], XH [auth b], XI [auth b], YA [auth 9], YB [auth 4], YD [auth 2], YF [auth a], YG [auth a], YH [auth b], YI [auth b], YJ [auth j], ZA [auth 9], ZB [auth 4], ZD [auth 2], ZE [auth 1], ZF [auth a], ZG [auth a], ZH [auth b], ZI [auth b]	CHLOROPHYLL A C₅₅ H₇₂ Mg N₄ O₅ ATNHDLDRLWWWCB-AENOIHSZSA-M		Interactions Focus chain AA [auth 5] Focus chain AB [auth 9] Focus chain AC [auth 4] Focus chain AE [auth 2] Focus chain AF [auth 1] Focus chain AG [auth a] Focus chain AI [auth b] Focus chain AJ [auth b] Focus chain BA [auth 5] Focus chain BB [auth 9] Focus chain BC [auth 4] Focus chain BE [auth 2] Focus chain BF [auth 1] Focus chain BG [auth a] Focus chain BH [auth a] Focus chain BI [auth b] Focus chain BJ [auth b] Focus chain BK [auth l] Focus chain CA [auth 5] Focus chain CC [auth 4] Focus chain CE [auth 2] Focus chain CF [auth 1] Focus chain CG [auth a] Focus chain CI [auth b] Focus chain CJ [auth b] Focus chain CK [auth l] Focus chain DA [auth 5] Focus chain DC [auth 4] Focus chain DD [auth 6] Focus chain DF [auth 1] Focus chain DG [auth a] Focus chain DI [auth b] Focus chain DK [auth l] Focus chain EA [auth 5] Focus chain EC [auth 4] Focus chain ED [auth 6] Focus chain EF [auth 1] Focus chain EG [auth a] Focus chain EI [auth b] Focus chain FA [auth 5] Focus chain FC [auth 4] Focus chain FD [auth 6] Focus chain FF [auth 1] Focus chain FG [auth a] Focus chain FI [auth b] Focus chain GA [auth 5] Focus chain GB [auth 8] Focus chain GC [auth 4] Focus chain GD [auth 6] Focus chain GF [auth 1] Focus chain GG [auth a] Focus chain GI [auth b] Focus chain HA [auth 5] Focus chain HB [auth 8] Focus chain HD [auth 6] Focus chain HF [auth 1] Focus chain HG [auth a] Focus chain HI [auth b] Focus chain IA [auth 5] Focus chain IB [auth 8] Focus chain ID [auth 6] Focus chain IF [auth 1] Focus chain IG [auth a] Focus chain II [auth b] Focus chain JA [auth 5] Focus chain JB [auth 8] Focus chain JD [auth 6] Focus chain JE [auth 7] Focus chain JG [auth a] Focus chain JH [auth a] Focus chain JI [auth b] Focus chain KA [auth 5] Focus chain KB [auth 8] Focus chain KD [auth 6] Focus chain KE [auth 7] Focus chain KF [auth a] Focus chain KG [auth a] Focus chain KI [auth b] Focus chain LB [auth 8] Focus chain LD [auth 6] Focus chain LE [auth 7] Focus chain LF [auth a] Focus chain LG [auth a] Focus chain LI [auth b] Focus chain MB [auth 8] Focus chain MD [auth 6] Focus chain ME [auth 7] Focus chain MF [auth a] Focus chain MG [auth a] Focus chain MI [auth b] Focus chain NB [auth 8] Focus chain NE [auth 7] Focus chain NF [auth a] Focus chain NG [auth a] Focus chain NH [auth a] Focus chain NI [auth b] Focus chain OB [auth 8] Focus chain OC [auth 3] Focus chain OE [auth 7] Focus chain OF [auth a] Focus chain OG [auth a] Focus chain OH [auth b] Focus chain OI [auth b] Focus chain PB [auth 8] Focus chain PC [auth 3] Focus chain PE [auth 7] Focus chain PF [auth a] Focus chain PG [auth a] Focus chain PH [auth b] Focus chain PI [auth b] Focus chain QC [auth 3] Focus chain QE [auth 7] Focus chain QF [auth a] Focus chain QG [auth a] Focus chain QH [auth b] Focus chain QI [auth b] Focus chain QJ [auth f] Focus chain RC [auth 3] Focus chain RE [auth 7] Focus chain RF [auth a] Focus chain RG [auth a] Focus chain RH [auth b] Focus chain RI [auth b] Focus chain RJ [auth f] Focus chain SC [auth 3] Focus chain SD [auth 2] Focus chain SE [auth 7] Focus chain SF [auth a] Focus chain SG [auth a] Focus chain SH [auth b] Focus chain SI [auth b] Focus chain TA [auth 9] Focus chain TC [auth 3] Focus chain TD [auth 2] Focus chain TE [auth 7] Focus chain TF [auth a] Focus chain TG [auth a] Focus chain TH [auth b] Focus chain TI [auth b] Focus chain TJ [auth h] Focus chain UA [auth 9] Focus chain UC [auth 3] Focus chain UD [auth 2] Focus chain UE [auth 7] Focus chain UF [auth a] Focus chain UG [auth a] Focus chain UH [auth b] Focus chain UI [auth b] Focus chain VA [auth 9] Focus chain VB [auth 4] Focus chain VC [auth 3] Focus chain VD [auth 2] Focus chain VF [auth a] Focus chain VG [auth a] Focus chain VH [auth b] Focus chain VI [auth b] Focus chain VJ [auth h] Focus chain WA [auth 9] Focus chain WB [auth 4] Focus chain WC [auth 3] Focus chain WD [auth 2] Focus chain WF [auth a] Focus chain WG [auth a] Focus chain WH [auth b] Focus chain WI [auth b] Focus chain XA [auth 9] Focus chain XB [auth 4] Focus chain XD [auth 2] Focus chain XF [auth a] Focus chain XG [auth a] Focus chain XH [auth b] Focus chain XI [auth b] Focus chain YA [auth 9] Focus chain YB [auth 4] Focus chain YD [auth 2] Focus chain YF [auth a] Focus chain YG [auth a] Focus chain YH [auth b] Focus chain YI [auth b] Focus chain YJ [auth j] Focus chain ZA [auth 9] Focus chain ZB [auth 4] Focus chain ZD [auth 2] Focus chain ZE [auth 1] Focus chain ZF [auth a] Focus chain ZG [auth a] Focus chain ZH [auth b] Focus chain ZI [auth b] Interactions & Density Focus chain AA [auth 5] Focus chain AB [auth 9] Focus chain AC [auth 4] Focus chain AE [auth 2] Focus chain AF [auth 1] Focus chain AG [auth a] Focus chain AI [auth b] Focus chain AJ [auth b] Focus chain BA [auth 5] Focus chain BB [auth 9] Focus chain BC [auth 4] Focus chain BE [auth 2] Focus chain BF [auth 1] Focus chain BG [auth a] Focus chain BH [auth a] Focus chain BI [auth b] Focus chain BJ [auth b] Focus chain BK [auth l] Focus chain CA [auth 5] Focus chain CC [auth 4] Focus chain CE [auth 2] Focus chain CF [auth 1] Focus chain CG [auth a] Focus chain CI [auth b] Focus chain CJ [auth b] Focus chain CK [auth l] Focus chain DA [auth 5] Focus chain DC [auth 4] Focus chain DD [auth 6] Focus chain DF [auth 1] Focus chain DG [auth a] Focus chain DI [auth b] Focus chain DK [auth l] Focus chain EA [auth 5] Focus chain EC [auth 4] Focus chain ED [auth 6] Focus chain EF [auth 1] Focus chain EG [auth a] Focus chain EI [auth b] Focus chain FA [auth 5] Focus chain FC [auth 4] Focus chain FD [auth 6] Focus chain FF [auth 1] Focus chain FG [auth a] Focus chain FI [auth b] Focus chain GA [auth 5] Focus chain GB [auth 8] Focus chain GC [auth 4] Focus chain GD [auth 6] Focus chain GF [auth 1] Focus chain GG [auth a] Focus chain GI [auth b] Focus chain HA [auth 5] Focus chain HB [auth 8] Focus chain HD [auth 6] Focus chain HF [auth 1] Focus chain HG [auth a] Focus chain HI [auth b] Focus chain IA [auth 5] Focus chain IB [auth 8] Focus chain ID [auth 6] Focus chain IF [auth 1] Focus chain IG [auth a] Focus chain II [auth b] Focus chain JA [auth 5] Focus chain JB [auth 8] Focus chain JD [auth 6] Focus chain JE [auth 7] Focus chain JG [auth a] Focus chain JH [auth a] Focus chain JI [auth b] Focus chain KA [auth 5] Focus chain KB [auth 8] Focus chain KD [auth 6] Focus chain KE [auth 7] Focus chain KF [auth a] Focus chain KG [auth a] Focus chain KI [auth b] Focus chain LB [auth 8] Focus chain LD [auth 6] Focus chain LE [auth 7] Focus chain LF [auth a] Focus chain LG [auth a] Focus chain LI [auth b] Focus chain MB [auth 8] Focus chain MD [auth 6] Focus chain ME [auth 7] Focus chain MF [auth a] Focus chain MG [auth a] Focus chain MI [auth b] Focus chain NB [auth 8] Focus chain NE [auth 7] Focus chain NF [auth a] Focus chain NG [auth a] Focus chain NH [auth a] Focus chain NI [auth b] Focus chain OB [auth 8] Focus chain OC [auth 3] Focus chain OE [auth 7] Focus chain OF [auth a] Focus chain OG [auth a] Focus chain OH [auth b] Focus chain OI [auth b] Focus chain PB [auth 8] Focus chain PC [auth 3] Focus chain PE [auth 7] Focus chain PF [auth a] Focus chain PG [auth a] Focus chain PH [auth b] Focus chain PI [auth b] Focus chain QC [auth 3] Focus chain QE [auth 7] Focus chain QF [auth a] Focus chain QG [auth a] Focus chain QH [auth b] Focus chain QI [auth b] Focus chain QJ [auth f] Focus chain RC [auth 3] Focus chain RE [auth 7] Focus chain RF [auth a] Focus chain RG [auth a] Focus chain RH [auth b] Focus chain RI [auth b] Focus chain RJ [auth f] Focus chain SC [auth 3] Focus chain SD [auth 2] Focus chain SE [auth 7] Focus chain SF [auth a] Focus chain SG [auth a] Focus chain SH [auth b] Focus chain SI [auth b] Focus chain TA [auth 9] Focus chain TC [auth 3] Focus chain TD [auth 2] Focus chain TE [auth 7] Focus chain TF [auth a] Focus chain TG [auth a] Focus chain TH [auth b] Focus chain TI [auth b] Focus chain TJ [auth h] Focus chain UA [auth 9] Focus chain UC [auth 3] Focus chain UD [auth 2] Focus chain UE [auth 7] Focus chain UF [auth a] Focus chain UG [auth a] Focus chain UH [auth b] Focus chain UI [auth b] Focus chain VA [auth 9] Focus chain VB [auth 4] Focus chain VC [auth 3] Focus chain VD [auth 2] Focus chain VF [auth a] Focus chain VG [auth a] Focus chain VH [auth b] Focus chain VI [auth b] Focus chain VJ [auth h] Focus chain WA [auth 9] Focus chain WB [auth 4] Focus chain WC [auth 3] Focus chain WD [auth 2] Focus chain WF [auth a] Focus chain WG [auth a] Focus chain WH [auth b] Focus chain WI [auth b] Focus chain XA [auth 9] Focus chain XB [auth 4] Focus chain XD [auth 2] Focus chain XF [auth a] Focus chain XG [auth a] Focus chain XH [auth b] Focus chain XI [auth b] Focus chain YA [auth 9] Focus chain YB [auth 4] Focus chain YD [auth 2] Focus chain YF [auth a] Focus chain YG [auth a] Focus chain YH [auth b] Focus chain YI [auth b] Focus chain YJ [auth j] Focus chain ZA [auth 9] Focus chain ZB [auth 4] Focus chain ZD [auth 2] Focus chain ZE [auth 1] Focus chain ZF [auth a] Focus chain ZG [auth a] Focus chain ZH [auth b] Focus chain ZI [auth b]
SQD (Subject of Investigation/LOI) Query on SQD Download Ideal Coordinates CCD File SDF format, chain JF [auth 1] SDF format, chain LA [auth 5] MOL2 format, chain JF [auth 1] MOL2 format, chain LA [auth 5] mmCIF format, chain JF [auth 1] mmCIF format, chain LA [auth 5]	JF [auth 1], LA [auth 5]	1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL C₄₁ H₇₈ O₁₂ S RVUUQPKXGDTQPG-JUDHQOGESA-N		Interactions Focus chain JF [auth 1] Focus chain LA [auth 5] Interactions & Density Focus chain JF [auth 1] Focus chain LA [auth 5]
LMG (Subject of Investigation/LOI) Query on LMG Download Ideal Coordinates CCD File SDF format, chain AK [auth j] SDF format, chain DE [auth 2] SDF format, chain MH [auth a] MOL2 format, chain AK [auth j] MOL2 format, chain DE [auth 2] MOL2 format, chain MH [auth a] mmCIF format, chain AK [auth j] mmCIF format, chain DE [auth 2] mmCIF format, chain MH [auth a]	AK [auth j], DE [auth 2], MH [auth a]	1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE C₄₅ H₈₆ O₁₀ DCLTVZLYPPIIID-CVELTQQQSA-N		Interactions Focus chain AK [auth j] Focus chain DE [auth 2] Focus chain MH [auth a] Interactions & Density Focus chain AK [auth j] Focus chain DE [auth 2] Focus chain MH [auth a]
A1L1F (Subject of Investigation/LOI) Query on A1L1F Download Ideal Coordinates CCD File SDF format, chain AD [auth 6] SDF format, chain FB [auth 8] SDF format, chain NA [auth 9] SDF format, chain UJ [auth h] SDF format, chain XC [auth 6] SDF format, chain YE [auth 1] MOL2 format, chain AD [auth 6] MOL2 format, chain FB [auth 8] MOL2 format, chain NA [auth 9] MOL2 format, chain UJ [auth h] MOL2 format, chain XC [auth 6] MOL2 format, chain YE [auth 1] mmCIF format, chain AD [auth 6] mmCIF format, chain FB [auth 8] mmCIF format, chain NA [auth 9] mmCIF format, chain UJ [auth h] mmCIF format, chain XC [auth 6] mmCIF format, chain YE [auth 1]	AD [auth 6] FB [auth 8] NA [auth 9] UJ [auth h] XC [auth 6] AD [auth 6], FB [auth 8], NA [auth 9], UJ [auth h], XC [auth 6], YE [auth 1]	[(2~{Z},4~{E},6~{E},8~{E},10~{E},12~{E},14~{E})-17-[(4~{S},6~{R})-4-acetyloxy-2,2,6-trimethyl-6-oxidanyl-cyclohexylidene]-6,11,15-trimethyl-2-[(~{E})-2-[(1~{S},4~{S},6~{R})-2,2,6-trimethyl-4-oxidanyl-7-oxabicyclo[4.1.0]heptan-1-yl]ethenyl]heptadeca-2,4,6,8,10,12,14,16-octaenyl] octanoate C₅₀ H₇₂ O₇ JYJFYJLLQQTZBJ-AYSGSIDZSA-N		Interactions Focus chain AD [auth 6] Focus chain FB [auth 8] Focus chain NA [auth 9] Focus chain UJ [auth h] Focus chain XC [auth 6] Focus chain YE [auth 1] Interactions & Density Focus chain AD [auth 6] Focus chain FB [auth 8] Focus chain NA [auth 9] Focus chain UJ [auth h] Focus chain XC [auth 6] Focus chain YE [auth 1]
LHG (Subject of Investigation/LOI) Query on LHG Download Ideal Coordinates CCD File SDF format, chain CH [auth a] SDF format, chain DH [auth a] SDF format, chain EK [auth m] SDF format, chain KJ [auth b] SDF format, chain SA [auth 9] MOL2 format, chain CH [auth a] MOL2 format, chain DH [auth a] MOL2 format, chain EK [auth m] MOL2 format, chain KJ [auth b] MOL2 format, chain SA [auth 9] mmCIF format, chain CH [auth a] mmCIF format, chain DH [auth a] mmCIF format, chain EK [auth m] mmCIF format, chain KJ [auth b] mmCIF format, chain SA [auth 9]	CH [auth a], DH [auth a], EK [auth m], KJ [auth b], SA [auth 9]	1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE C₃₈ H₇₅ O₁₀ P BIABMEZBCHDPBV-MPQUPPDSSA-N		Interactions Focus chain CH [auth a] Focus chain DH [auth a] Focus chain EK [auth m] Focus chain KJ [auth b] Focus chain SA [auth 9] Interactions & Density Focus chain CH [auth a] Focus chain DH [auth a] Focus chain EK [auth m] Focus chain KJ [auth b] Focus chain SA [auth 9]
A1L1G (Subject of Investigation/LOI) Query on A1L1G Download Ideal Coordinates CCD File SDF format, chain FE [auth 7] SDF format, chain JC [auth 3] SDF format, chain MA [auth 9] SDF format, chain NC [auth 3] SDF format, chain RA [auth 9] SDF format, chain VE [auth 1] SDF format, chain Y [auth 5] MOL2 format, chain FE [auth 7] MOL2 format, chain JC [auth 3] MOL2 format, chain MA [auth 9] MOL2 format, chain NC [auth 3] MOL2 format, chain RA [auth 9] MOL2 format, chain VE [auth 1] MOL2 format, chain Y [auth 5] mmCIF format, chain FE [auth 7] mmCIF format, chain JC [auth 3] mmCIF format, chain MA [auth 9] mmCIF format, chain NC [auth 3] mmCIF format, chain RA [auth 9] mmCIF format, chain VE [auth 1] mmCIF format, chain Y [auth 5]	FE [auth 7] JC [auth 3] MA [auth 9] NC [auth 3] RA [auth 9] FE [auth 7], JC [auth 3], MA [auth 9], NC [auth 3], RA [auth 9], VE [auth 1], Y [auth 5]	(1~{R},3~{S})-6-[(3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{Z},17~{E})-16-(hydroxymethyl)-3,7,12-trimethyl-18-[(1~{S},4~{S},6~{R})-2,2,6-trimethyl-4-oxidanyl-7-oxabicyclo[4.1.0]heptan-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenylidene]-1,5,5-trimethyl-cyclohexane-1,3-diol C₄₀ H₅₆ O₅ OWWSPDNLRSCPIS-XZHZJERWSA-N		Interactions Focus chain FE [auth 7] Focus chain JC [auth 3] Focus chain MA [auth 9] Focus chain NC [auth 3] Focus chain RA [auth 9] Focus chain VE [auth 1] Focus chain Y [auth 5] Interactions & Density Focus chain FE [auth 7] Focus chain JC [auth 3] Focus chain MA [auth 9] Focus chain NC [auth 3] Focus chain RA [auth 9] Focus chain VE [auth 1] Focus chain Y [auth 5]
XAT (Subject of Investigation/LOI) Query on XAT Download Ideal Coordinates CCD File SDF format, chain BD [auth 6] SDF format, chain CB [auth 8] SDF format, chain CD [auth 6] SDF format, chain DB [auth 8] SDF format, chain EB [auth 8] SDF format, chain EE [auth 7] SDF format, chain GE [auth 7] SDF format, chain HE [auth 7] SDF format, chain IC [auth 3] SDF format, chain IE [auth 7] SDF format, chain KC [auth 3] SDF format, chain KH [auth a] SDF format, chain LC [auth 3] SDF format, chain LH [auth a] SDF format, chain MC [auth 3] SDF format, chain ND [auth 2] SDF format, chain OA [auth 9] SDF format, chain OD [auth 2] SDF format, chain PA [auth 9] SDF format, chain PD [auth 2] SDF format, chain QA [auth 9] SDF format, chain QD [auth 2] SDF format, chain RB [auth 4] SDF format, chain RD [auth 2] SDF format, chain SB [auth 4] SDF format, chain TB [auth 4] SDF format, chain UB [auth 4] SDF format, chain V [auth 5] SDF format, chain W [auth 5] SDF format, chain WE [auth 1] SDF format, chain X [auth 5] SDF format, chain XE [auth 1] SDF format, chain YC [auth 6] SDF format, chain Z [auth 5] SDF format, chain ZC [auth 6] MOL2 format, chain BD [auth 6] MOL2 format, chain CB [auth 8] MOL2 format, chain CD [auth 6] MOL2 format, chain DB [auth 8] MOL2 format, chain EB [auth 8] MOL2 format, chain EE [auth 7] MOL2 format, chain GE [auth 7] MOL2 format, chain HE [auth 7] MOL2 format, chain IC [auth 3] MOL2 format, chain IE [auth 7] MOL2 format, chain KC [auth 3] MOL2 format, chain KH [auth a] MOL2 format, chain LC [auth 3] MOL2 format, chain LH [auth a] MOL2 format, chain MC [auth 3] MOL2 format, chain ND [auth 2] MOL2 format, chain OA [auth 9] MOL2 format, chain OD [auth 2] MOL2 format, chain PA [auth 9] MOL2 format, chain PD [auth 2] MOL2 format, chain QA [auth 9] MOL2 format, chain QD [auth 2] MOL2 format, chain RB [auth 4] MOL2 format, chain RD [auth 2] MOL2 format, chain SB [auth 4] MOL2 format, chain TB [auth 4] MOL2 format, chain UB [auth 4] MOL2 format, chain V [auth 5] MOL2 format, chain W [auth 5] MOL2 format, chain WE [auth 1] MOL2 format, chain X [auth 5] MOL2 format, chain XE [auth 1] MOL2 format, chain YC [auth 6] MOL2 format, chain Z [auth 5] MOL2 format, chain ZC [auth 6] mmCIF format, chain BD [auth 6] mmCIF format, chain CB [auth 8] mmCIF format, chain CD [auth 6] mmCIF format, chain DB [auth 8] mmCIF format, chain EB [auth 8] mmCIF format, chain EE [auth 7] mmCIF format, chain GE [auth 7] mmCIF format, chain HE [auth 7] mmCIF format, chain IC [auth 3] mmCIF format, chain IE [auth 7] mmCIF format, chain KC [auth 3] mmCIF format, chain KH [auth a] mmCIF format, chain LC [auth 3] mmCIF format, chain LH [auth a] mmCIF format, chain MC [auth 3] mmCIF format, chain ND [auth 2] mmCIF format, chain OA [auth 9] mmCIF format, chain OD [auth 2] mmCIF format, chain PA [auth 9] mmCIF format, chain PD [auth 2] mmCIF format, chain QA [auth 9] mmCIF format, chain QD [auth 2] mmCIF format, chain RB [auth 4] mmCIF format, chain RD [auth 2] mmCIF format, chain SB [auth 4] mmCIF format, chain TB [auth 4] mmCIF format, chain UB [auth 4] mmCIF format, chain V [auth 5] mmCIF format, chain W [auth 5] mmCIF format, chain WE [auth 1] mmCIF format, chain X [auth 5] mmCIF format, chain XE [auth 1] mmCIF format, chain YC [auth 6] mmCIF format, chain Z [auth 5] mmCIF format, chain ZC [auth 6]	BD [auth 6] CB [auth 8] CD [auth 6] DB [auth 8] EB [auth 8] BD [auth 6], CB [auth 8], CD [auth 6], DB [auth 8], EB [auth 8], EE [auth 7], GE [auth 7], HE [auth 7], IC [auth 3], IE [auth 7], KC [auth 3], KH [auth a], LC [auth 3], LH [auth a], MC [auth 3], ND [auth 2], OA [auth 9], OD [auth 2], PA [auth 9], PD [auth 2], QA [auth 9], QD [auth 2], RB [auth 4], RD [auth 2], SB [auth 4], TB [auth 4], UB [auth 4], V [auth 5], W [auth 5], WE [auth 1], X [auth 5], XE [auth 1], YC [auth 6], Z [auth 5], ZC [auth 6]	(3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL C₄₀ H₅₆ O₄ SZCBXWMUOPQSOX-WVJDLNGLSA-N		Interactions Focus chain BD [auth 6] Focus chain CB [auth 8] Focus chain CD [auth 6] Focus chain DB [auth 8] Focus chain EB [auth 8] Focus chain EE [auth 7] Focus chain GE [auth 7] Focus chain HE [auth 7] Focus chain IC [auth 3] Focus chain IE [auth 7] Focus chain KC [auth 3] Focus chain KH [auth a] Focus chain LC [auth 3] Focus chain LH [auth a] Focus chain MC [auth 3] Focus chain ND [auth 2] Focus chain OA [auth 9] Focus chain OD [auth 2] Focus chain PA [auth 9] Focus chain PD [auth 2] Focus chain QA [auth 9] Focus chain QD [auth 2] Focus chain RB [auth 4] Focus chain RD [auth 2] Focus chain SB [auth 4] Focus chain TB [auth 4] Focus chain UB [auth 4] Focus chain V [auth 5] Focus chain W [auth 5] Focus chain WE [auth 1] Focus chain X [auth 5] Focus chain XE [auth 1] Focus chain YC [auth 6] Focus chain Z [auth 5] Focus chain ZC [auth 6] Interactions & Density Focus chain BD [auth 6] Focus chain CB [auth 8] Focus chain CD [auth 6] Focus chain DB [auth 8] Focus chain EB [auth 8] Focus chain EE [auth 7] Focus chain GE [auth 7] Focus chain HE [auth 7] Focus chain IC [auth 3] Focus chain IE [auth 7] Focus chain KC [auth 3] Focus chain KH [auth a] Focus chain LC [auth 3] Focus chain LH [auth a] Focus chain MC [auth 3] Focus chain ND [auth 2] Focus chain OA [auth 9] Focus chain OD [auth 2] Focus chain PA [auth 9] Focus chain PD [auth 2] Focus chain QA [auth 9] Focus chain QD [auth 2] Focus chain RB [auth 4] Focus chain RD [auth 2] Focus chain SB [auth 4] Focus chain TB [auth 4] Focus chain UB [auth 4] Focus chain V [auth 5] Focus chain W [auth 5] Focus chain WE [auth 1] Focus chain X [auth 5] Focus chain XE [auth 1] Focus chain YC [auth 6] Focus chain Z [auth 5] Focus chain ZC [auth 6]
BCR (Subject of Investigation/LOI) Query on BCR Download Ideal Coordinates CCD File SDF format, chain EH [auth a] SDF format, chain EJ [auth b] SDF format, chain FH [auth a] SDF format, chain FJ [auth b] SDF format, chain FK [auth m] SDF format, chain GH [auth a] SDF format, chain GJ [auth b] SDF format, chain HH [auth a] SDF format, chain HJ [auth b] SDF format, chain IJ [auth b] SDF format, chain JJ [auth b] SDF format, chain LJ [auth b] SDF format, chain NJ [auth b] SDF format, chain OJ [auth b] SDF format, chain PJ [auth f] SDF format, chain SJ [auth f] SDF format, chain WJ [auth i] SDF format, chain XJ [auth i] SDF format, chain ZJ [auth j] MOL2 format, chain EH [auth a] MOL2 format, chain EJ [auth b] MOL2 format, chain FH [auth a] MOL2 format, chain FJ [auth b] MOL2 format, chain FK [auth m] MOL2 format, chain GH [auth a] MOL2 format, chain GJ [auth b] MOL2 format, chain HH [auth a] MOL2 format, chain HJ [auth b] MOL2 format, chain IJ [auth b] MOL2 format, chain JJ [auth b] MOL2 format, chain LJ [auth b] MOL2 format, chain NJ [auth b] MOL2 format, chain OJ [auth b] MOL2 format, chain PJ [auth f] MOL2 format, chain SJ [auth f] MOL2 format, chain WJ [auth i] MOL2 format, chain XJ [auth i] MOL2 format, chain ZJ [auth j] mmCIF format, chain EH [auth a] mmCIF format, chain EJ [auth b] mmCIF format, chain FH [auth a] mmCIF format, chain FJ [auth b] mmCIF format, chain FK [auth m] mmCIF format, chain GH [auth a] mmCIF format, chain GJ [auth b] mmCIF format, chain HH [auth a] mmCIF format, chain HJ [auth b] mmCIF format, chain IJ [auth b] mmCIF format, chain JJ [auth b] mmCIF format, chain LJ [auth b] mmCIF format, chain NJ [auth b] mmCIF format, chain OJ [auth b] mmCIF format, chain PJ [auth f] mmCIF format, chain SJ [auth f] mmCIF format, chain WJ [auth i] mmCIF format, chain XJ [auth i] mmCIF format, chain ZJ [auth j]	EH [auth a] EJ [auth b] FH [auth a] FJ [auth b] FK [auth m] EH [auth a], EJ [auth b], FH [auth a], FJ [auth b], FK [auth m], GH [auth a], GJ [auth b], HH [auth a], HJ [auth b], IJ [auth b], JJ [auth b], LJ [auth b], NJ [auth b], OJ [auth b], PJ [auth f], SJ [auth f], WJ [auth i], XJ [auth i], ZJ [auth j]	BETA-CAROTENE C₄₀ H₅₆ OENHQHLEOONYIE-JLTXGRSLSA-N		Interactions Focus chain EH [auth a] Focus chain EJ [auth b] Focus chain FH [auth a] Focus chain FJ [auth b] Focus chain FK [auth m] Focus chain GH [auth a] Focus chain GJ [auth b] Focus chain HH [auth a] Focus chain HJ [auth b] Focus chain IJ [auth b] Focus chain JJ [auth b] Focus chain LJ [auth b] Focus chain NJ [auth b] Focus chain OJ [auth b] Focus chain PJ [auth f] Focus chain SJ [auth f] Focus chain WJ [auth i] Focus chain XJ [auth i] Focus chain ZJ [auth j] Interactions & Density Focus chain EH [auth a] Focus chain EJ [auth b] Focus chain FH [auth a] Focus chain FJ [auth b] Focus chain FK [auth m] Focus chain GH [auth a] Focus chain GJ [auth b] Focus chain HH [auth a] Focus chain HJ [auth b] Focus chain IJ [auth b] Focus chain JJ [auth b] Focus chain LJ [auth b] Focus chain NJ [auth b] Focus chain OJ [auth b] Focus chain PJ [auth f] Focus chain SJ [auth f] Focus chain WJ [auth i] Focus chain XJ [auth i] Focus chain ZJ [auth j]
PQN (Subject of Investigation/LOI) Query on PQN Download Ideal Coordinates CCD File SDF format, chain AH [auth a] SDF format, chain DJ [auth b] MOL2 format, chain AH [auth a] MOL2 format, chain DJ [auth b] mmCIF format, chain AH [auth a] mmCIF format, chain DJ [auth b]	AH [auth a], DJ [auth b]	PHYLLOQUINONE C₃₁ H₄₆ O₂ MBWXNTAXLNYFJB-NKFFZRIASA-N		Interactions Focus chain AH [auth a] Focus chain DJ [auth b] Interactions & Density Focus chain AH [auth a] Focus chain DJ [auth b]
SF4 (Subject of Investigation/LOI) Query on SF4 Download Ideal Coordinates CCD File SDF format, chain GK [auth c] SDF format, chain HK [auth c] SDF format, chain IH [auth a] MOL2 format, chain GK [auth c] MOL2 format, chain HK [auth c] MOL2 format, chain IH [auth a] mmCIF format, chain GK [auth c] mmCIF format, chain HK [auth c] mmCIF format, chain IH [auth a]	GK [auth c], HK [auth c], IH [auth a]	IRON/SULFUR CLUSTER Fe₄ S₄ LJBDFODJNLIPKO-UHFFFAOYSA-N		Interactions Focus chain GK [auth c] Focus chain HK [auth c] Focus chain IH [auth a] Interactions & Density Focus chain GK [auth c] Focus chain HK [auth c] Focus chain IH [auth a]
