8ZO4 | pdb_00008zo4

Crystal structure of Tfh TCR ectodomain thermostable mutant


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.60 Å
  • R-Value Free:
    0.276 (Depositor), 0.278 (DCC)
  • R-Value Work:
    0.226 (Depositor), 0.235 (DCC)
  • R-Value Observed:
    0.229 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 8ZO4

Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history

Literature

A conserved human CD4+ T cell subset recognizing the mycobacterial adjuvant, trehalose monomycolate.

Sakai, Y.Asa, M.Hirose, M.Kusuhara, W.Fujiwara, N.Tamashima, H.Ikazaki, T.Oka, S.Kuraba, K.Tanaka, K.Yoshiyama, T.Nagae, M.Hoshino, Y.Motooka, D.Van Rhijn, I.Lu, X.Ishikawa, E.Moody, D.B.Kato, T.Inuki, S.Hirai, G.Yamasaki, S.

(2024) J Clin Invest 135

  • DOI: https://doi.org/10.1172/JCI185443
  • Primary Citation Related Structures:
    8XUB, 8ZO4, 8ZOX

  • PubMed Abstract:

    Mycobacterium tuberculosis causes human tuberculosis (TB). As mycobacteria are protected by a thick lipid cell wall, humans have developed immune responses against diverse mycobacterial lipids. Most of these immunostimulatory lipids are known as adjuvants acting through innate immune receptors, such as C-type lectin receptors. Although a few mycobacterial lipid antigens activate unconventional T cells, the antigenicity of most adjuvantic lipids is unknown. Here, we identified that trehalose monomycolate (TMM), an abundant mycobacterial adjuvant, activated human T cells bearing a unique αβ T cell receptor (αβTCR). This recognition was restricted by CD1b, a monomorphic antigen-presenting molecule conserved in primates but not mice. Single-cell TCR-RNA-Seq using newly established CD1b-TMM tetramers revealed that TMM-specific T cells were present as CD4+ effector memory T cells in the periphery of uninfected donors but expressed IFN-γ, TNF, and anti-mycobacterial effectors upon TMM stimulation. TMM-specific T cells were detected in cord blood and PBMCs of donors without bacillus Calmette-Guérin vaccination but were expanded in patients with active TB. A cryo-electron microscopy study of CD1b-TMM-TCR complexes revealed unique antigen recognition by conserved features of TCRs, positively charged CDR3α, and long CDR3β regions. These results indicate that humans have a commonly shared and preformed CD4+ T cell subset recognizing a typical mycobacterial adjuvant as an antigen. Furthermore, the dual role of TMM justifies reconsideration of the mechanism of action of adjuvants.


  • Organizational Affiliation
    • Department of Molecular Immunology, Research Institute for Microbial Diseases.

Macromolecule Content

  • Total Structure Weight: 111.54 kDa
  • Atom Count: 6,931
  • Modeled Residue Count: 863
  • Deposited Residue Count: 982
  • Unique protein chains: 2

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

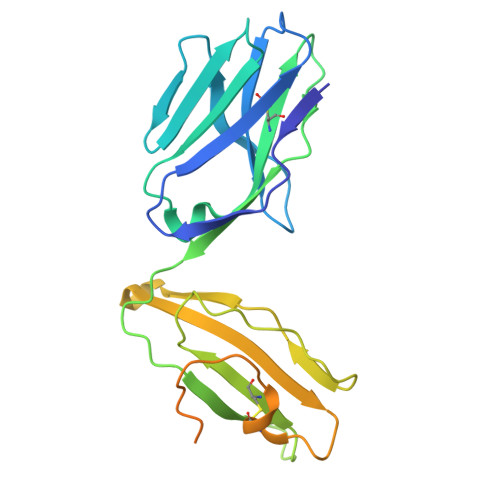

TCR stable mutant Alpha chain
A, C
249Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Glycosylation
Glycosylation Sites: 1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
TCR stable mutant Beta chian
B, D
242Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.60 Å
  • R-Value Free:  0.276 (Depositor), 0.278 (DCC)
  • R-Value Work:  0.226 (Depositor), 0.235 (DCC)
  • R-Value Observed: 0.229 (Depositor)
Space Group: P 32 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 89.156α = 90
b = 89.156β = 90
c = 208.683γ = 120
Software Package:
Software NamePurpose
REFMACrefinement
XDSdata reduction
Aimlessdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Japan Society for the Promotion of Science (JSPS)Japan--

Revision History  (Full details and data files)

  • Version 1.0: 2025-01-01
    Type: Initial release
  • Version 1.1: 2025-03-26
    Changes: Database references
