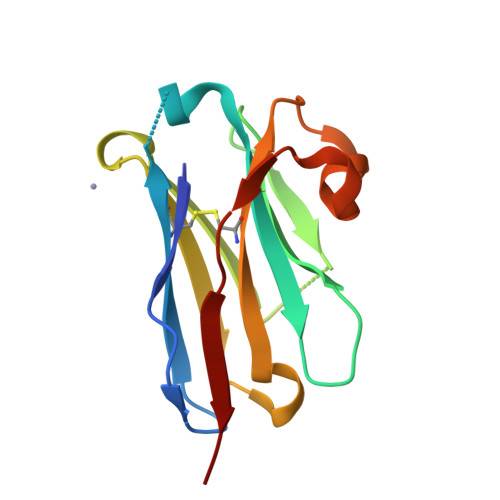

anti-VEGF nanobody mutant

Experimental Data Snapshot

  • Resolution: 1.75 Å
  • R-Value Free: 0.220
  • R-Value Work: 0.201
  • R-Value Observed: 0.203

wwPDB Validation   3D Report Full Report

This is version 1.0 of the entry. See complete history


Polymorphic nanobody crystals as long-acting intravitreal therapy for wet age-related macular degeneration.

Zhu, S.Fan, S.Tang, T.Huang, J.Zhou, H.Huang, C.Chen, Y.Qian, F.

(2023) Bioeng Transl Med 8: e10523-e10523

  • DOI: https://doi.org/10.1002/btm2.10523
  • Primary Citation of Related Structures:
    8IIU, 8IJS, 8IJZ

  • PubMed Abstract:

    Wet age-related macular degeneration (wet AMD) is the most common cause of blindness, and chronic intravitreal injection of anti-vascular endothelial growth factor (VEGF) proteins has been the dominant therapeutic approach. Less intravitreal injection and a prolonged inter-injection interval are the main drivers behind new wet AMD drug innovations. By rationally engineering the surface residues of a model anti-VEGF nanobody, we obtained a series of anti-VEGF nanobodies with identical protein structures and VEGF binding affinities, while drastically different crystallization propensities and crystal lattice structures. Among these nanobody crystals, the P 2 1 2 1 2 1 lattice appeared to be denser and released protein slower than the P 1 lattice, while nanobody crystals embedding zinc coordination further slowed the protein release rate. The polymorphic protein crystals could be a potentially breakthrough strategy for chronic intravitreal administration of anti-VEGF proteins.

  • Organizational Affiliation

    School of Pharmaceutical Sciences, Beijing Advanced Innovation Center for Structural Biology, and Key Laboratory of Bioorganic Phosphorus Chemistry and Chemical Biology (Ministry of Education) Tsinghua University Beijing People's Republic of China.

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
anti-VEGF nanobody126Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Resolution: 1.75 Å
  • R-Value Free: 0.220
  • R-Value Work: 0.201
  • R-Value Observed: 0.203
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 24.915α = 90
b = 53.205β = 90
c = 65.376γ = 90
Software Package:
Software NamePurpose
SCALEPACKdata scaling
HKL-2000data reduction

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China--

Revision History  (Full details and data files)

  • Version 1.0: 2023-12-27
    Type: Initial release
