8YST | pdb_00008yst

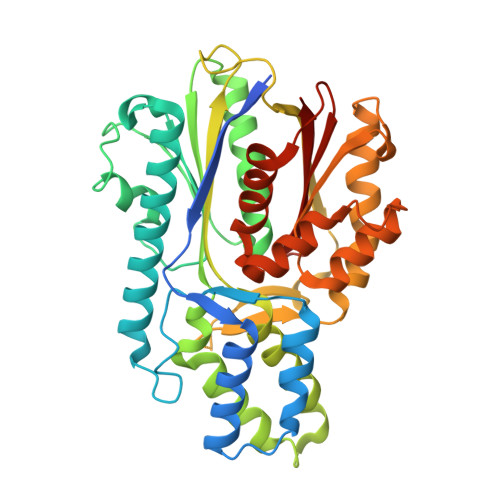

Structure of CylI in complex with beta-ketoacyl-SNAC substrate


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free:
    0.230 (Depositor), 0.230 (DCC)
  • R-Value Work:
    0.193 (Depositor), 0.193 (DCC)
  • R-Value Observed:
    0.195 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Structural insights into type III polyketide synthase CylI from cylindrocyclophane biosynthesis.

Wang, H.Q.Xiang, Z.

(2024) Protein Sci 33: e5130-e5130

  • DOI: https://doi.org/10.1002/pro.5130
  • Primary Citation of Related Structures:
    8YSP, 8YST, 8YT0, 8YW7

  • PubMed Abstract:

    Type III polyketide synthases (PKSs) catalyze the formation of a variety of polyketide natural products with remarkable structural diversity and biological activities. Despite significant progress in structural and mechanistic studies of type III PKSs in bacteria, fungi, and plants, research on type III PKSs in cyanobacteria is lacking. Here, we report structural and mechanistic insights into CylI, a type III PKS that catalyzes the formation of the alkylresorcinol intermediate in cylindrocyclophane biosynthesis. The crystal structure of apo-CylI reveals a distinct arrangement of structural elements that are proximal to the active site. We further solved the crystal structures of CylI in complexes with two substrate analogues at resolutions of 1.9 Å. The complex structures indicate that N259 is the key residue that determines the substrate preference of CylI. We also solved the crystal structure of CylI complexed with the alkylresorcinol product at a resolution of 2.0 Å. Structural analysis and mutagenesis experiments suggested that S170 functions as a key residue that determines cyclization specificity. On the basis of this result, a double mutant was engineered to completely switch the cyclization of CylI from aldol condensation to lactonization. This work elucidates the molecular basis of type III PKS in cyanobacteria and lays the foundation for engineering CylI-like enzymes to generate new products.


  • Organizational Affiliation
    • State Key Laboratory of Chemical Oncogenomics, Shenzhen Key Laboratory of Chemical Genomics, AI for Science (AI4S) Preferred Program, School of Chemical Biology and Biotechnology, Peking University Shenzhen Graduate School, Shenzhen, PR China.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
CylI
A, B
394Cylindrospermum licheniforme UTEX B 2014Mutation(s): 0
Gene Names: cylI
UniProt
Find proteins for K7SIG4 (Cylindrospermum licheniforme UTEX B 2014)
Explore K7SIG4
Go to UniProtKB:  K7SIG4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupK7SIG4
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1D7D (Subject of Investigation/LOI)
Query on A1D7D

Download Ideal Coordinates CCD File
C [auth B]3-oxidanylidenetetradecanal
C14 H26 O2
XLYLQUQHYUOPIW-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free:  0.230 (Depositor), 0.230 (DCC)
  • R-Value Work:  0.193 (Depositor), 0.193 (DCC)
  • R-Value Observed: 0.195 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 48.85α = 90
b = 113.441β = 90
c = 134.189γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
Aimlessdata scaling
PHENIXphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Shenzhen science and technology programChina20170330155106581
Key-Area Research and Development Program of Guangdong ProvinceChina2020B0303070002

Revision History  (Full details and data files)

  • Version 1.0: 2025-02-26
    Type: Initial release
