8X8A | pdb_00008x8a

Crystal structure of STBD1 LIR motif in complex with GABARAPL1


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.53 Å
  • R-Value Free:
    0.187 (Depositor), 0.186 (DCC)
  • R-Value Work:
    0.173 (Depositor), 0.174 (DCC)
  • R-Value Observed:
    0.173 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Decoding the molecular mechanism of selective autophagy of glycogen mediated by autophagy receptor STBD1.

Zhang, Y.Sun, Y.Shi, J.Xu, P.Wang, Y.Liu, J.Gong, X.Wang, Y.Tang, Y.Liu, H.Zhou, X.Lin, Z.Baba, O.Morita, T.Yu, B.Pan, L.

(2024) Proc Natl Acad Sci U S A 121: e2402817121-e2402817121

  • DOI: https://doi.org/10.1073/pnas.2402817121
  • Primary Citation of Related Structures:
    8X8A, 8X8K

  • PubMed Abstract:

    Autophagy of glycogen (glycophagy) is crucial for the maintenance of cellular glucose homeostasis and physiology in mammals. STBD1 can serve as an autophagy receptor to mediate glycophagy by specifically recognizing glycogen and relevant key autophagic factors, but with poorly understood mechanisms. Here, we systematically characterize the interactions of STBD1 with glycogen and related saccharides, and determine the crystal structure of the STBD1 CBM20 domain with maltotetraose, uncovering a unique binding mode involving two different oligosaccharide-binding sites adopted by STBD1 CBM20 for recognizing glycogen. In addition, we demonstrate that the LC3-interacting region (LIR) motif of STBD1 can selectively bind to six mammalian ATG8 family members. We elucidate the detailed molecular mechanism underlying the selective interactions of STBD1 with ATG8 family proteins by solving the STBD1 LIR/GABARAPL1 complex structure. Importantly, our cell-based assays reveal that both the STBD1 LIR/GABARAPL1 interaction and the intact two oligosaccharide binding sites of STBD1 CBM20 are essential for the effective association of STBD1, GABARAPL1, and glycogen in cells. Finally, through mass spectrometry, biochemical, and structural modeling analyses, we unveil that STBD1 can directly bind to the Claw domain of RB1CC1 through its LIR, thereby recruiting the key autophagy initiation factor RB1CC1. In all, our findings provide mechanistic insights into the recognitions of glycogen, ATG8 family proteins, and RB1CC1 by STBD1 and shed light on the potential working mechanism of STBD1-mediated glycophagy.


  • Organizational Affiliation

    State Key Laboratory of Chemical Biology, Shanghai Institute of Organic Chemistry, Chinese Academy of Sciences, University of Chinese Academy of Sciences, Shanghai 200032, China.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

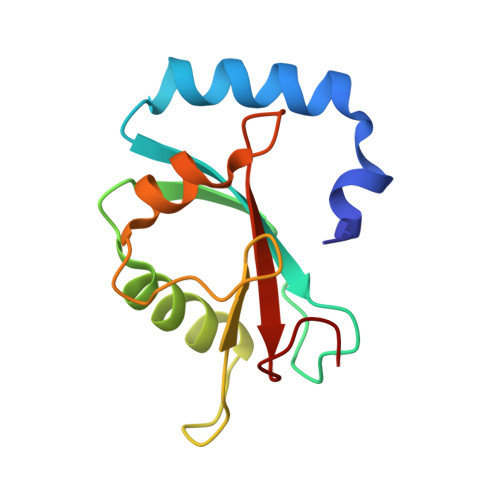

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Gamma-aminobutyric acid receptor-associated protein-like 1117Homo sapiensMutation(s): 0
Gene Names: GABARAPL1GEC1
UniProt & NIH Common Fund Data Resources
Find proteins for Q9H0R8 (Homo sapiens)
Explore Q9H0R8
Go to UniProtKB:  Q9H0R8
PHAROS:  Q9H0R8
GTEx:  ENSG00000139112
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9H0R8
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

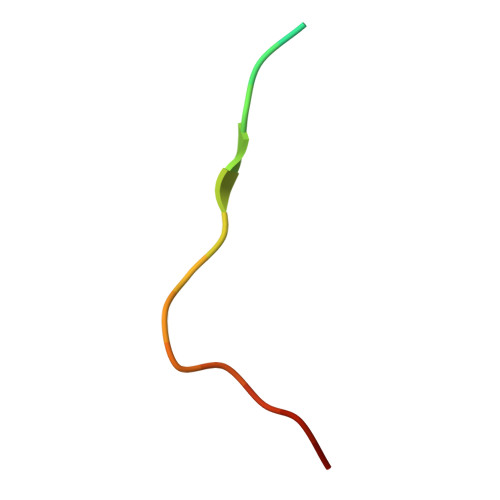

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Starch-binding domain-containing protein 119Homo sapiensMutation(s): 0
Gene Names: STBD1GENX-3414
UniProt & NIH Common Fund Data Resources
Find proteins for O95210 (Homo sapiens)
Explore O95210
Go to UniProtKB:  O95210
GTEx:  ENSG00000118804
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO95210
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.53 Å
  • R-Value Free:  0.187 (Depositor), 0.186 (DCC)
  • R-Value Work:  0.173 (Depositor), 0.174 (DCC)
  • R-Value Observed: 0.173 (Depositor)
Space Group: I 2 3
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 100.395α = 90
b = 100.395β = 90
c = 100.395γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
PHENIXrefinement
AutoProcessdata reduction
AutoProcessdata scaling
PHENIXphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China--

Revision History  (Full details and data files)

  • Version 1.0: 2024-09-18
    Type: Initial release
