8WW6 | pdb_00008ww6

Structure of ATP-rs-Form AsfvPrimPol Hexamer

PDB DOI: https://doi.org/10.2210/pdb8WW6/pdb
NAKB: 8WW6
EM Map EMD-37882: EMDB EMDataResource

Classification: DNA BINDING PROTEIN/DNA
Organism(s): Homo sapiens, African swine fever virus
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2023-10-25 Released: 2025-04-30
Deposition Author(s): Shi, T.H., Guo, Y.Y., Yan, R.H.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.73 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structure of ADP-Form AsfvPrimPol Hexamer

Shi, T.H., Guo, Y.Y., Yan, R.H.

To be published.

Macromolecule Content

Total Structure Weight: 688.38 kDa
Atom Count: 32,825
Modeled Residue Count: 3,900
Deposited Residue Count: 5,861
Unique protein chains: 1
Unique nucleic acid chains: 2

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

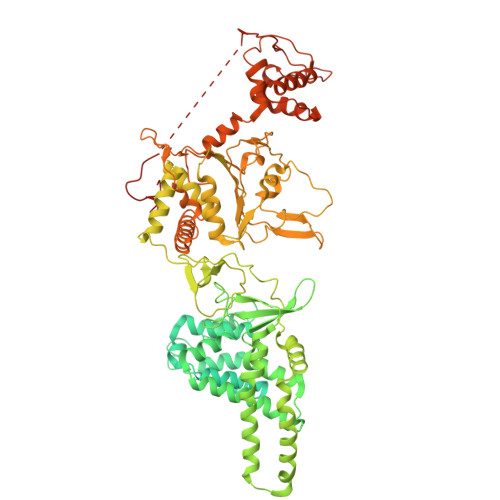

Putative primase C962R	C [auth B] D [auth A] E [auth C] F [auth D] G [auth E] C [auth B], D [auth A], E [auth C], F [auth D], G [auth E], H [auth F]	972	African swine fever virus	Mutation(s): 0 Gene Names: C962R CDS
UniProt
Find proteins for A0A2X0TKI6 (African swine fever virus) Explore A0A2X0TKI6 Go to UniProtKB: A0A2X0TKI6
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A2X0TKI6
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by: Sequence | 3D Structure

Entity ID: 1
Molecule	Chains	Length	Organism	Image

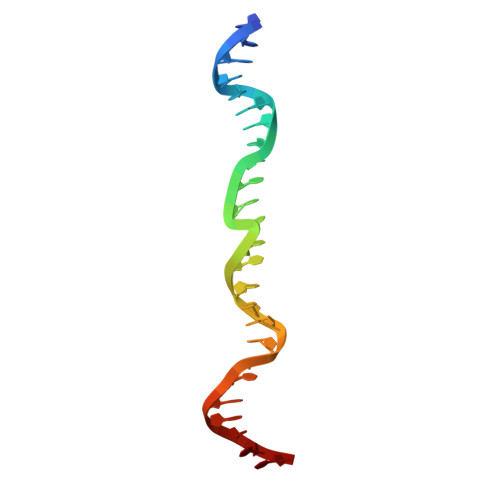

DNA (25-MER)	A [auth H]	25	Homo sapiens
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by: Sequence | 3D Structure

Entity ID: 2
Molecule	Chains	Length	Organism	Image

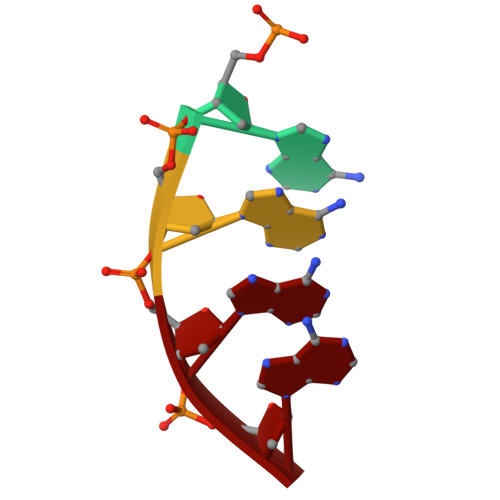

DNA (5'-D(PAPAPAPA)-3')	B [auth I]	4	Homo sapiens
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
AGS Query on AGS Download Ideal Coordinates CCD File SDF format, chain I [auth B] SDF format, chain K [auth A] SDF format, chain M [auth C] SDF format, chain O [auth D] SDF format, chain Q [auth E] SDF format, chain S [auth F] MOL2 format, chain I [auth B] MOL2 format, chain K [auth A] MOL2 format, chain M [auth C] MOL2 format, chain O [auth D] MOL2 format, chain Q [auth E] MOL2 format, chain S [auth F] mmCIF format, chain I [auth B] mmCIF format, chain K [auth A] mmCIF format, chain M [auth C] mmCIF format, chain O [auth D] mmCIF format, chain Q [auth E] mmCIF format, chain S [auth F]	I [auth B] K [auth A] M [auth C] O [auth D] Q [auth E] I [auth B], K [auth A], M [auth C], O [auth D], Q [auth E], S [auth F]	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER C₁₀ H₁₆ N₅ O₁₂ P₃ S NLTUCYMLOPLUHL-KQYNXXCUSA-N		Interactions Focus chain I [auth B] Focus chain K [auth A] Focus chain M [auth C] Focus chain O [auth D] Focus chain Q [auth E] Focus chain S [auth F] Interactions & Density Focus chain I [auth B] Focus chain K [auth A] Focus chain M [auth C] Focus chain O [auth D] Focus chain Q [auth E] Focus chain S [auth F]
MG Query on MG Download Ideal Coordinates CCD File SDF format, chain J [auth B] SDF format, chain L [auth A] SDF format, chain N [auth C] SDF format, chain P [auth D] SDF format, chain T [auth F] SDF format, chain R [auth E] MOL2 format, chain J [auth B] MOL2 format, chain L [auth A] MOL2 format, chain N [auth C] MOL2 format, chain P [auth D] MOL2 format, chain T [auth F] MOL2 format, chain R [auth E] mmCIF format, chain J [auth B] mmCIF format, chain L [auth A] mmCIF format, chain N [auth C] mmCIF format, chain P [auth D] mmCIF format, chain T [auth F] mmCIF format, chain R [auth E]	J [auth B] L [auth A] N [auth C] P [auth D] R [auth E] J [auth B], L [auth A], N [auth C], P [auth D], R [auth E], T [auth F]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain J [auth B] Focus chain L [auth A] Focus chain N [auth C] Focus chain P [auth D] Focus chain R [auth E] Focus chain T [auth F] Interactions & Density Focus chain J [auth B] Focus chain L [auth A] Focus chain N [auth C] Focus chain P [auth D] Focus chain R [auth E] Focus chain T [auth F]
