8V94 | pdb_00008v94

De novo designed homo-oligomeric TM domain aITL_04927

PDB DOI: https://doi.org/10.2210/pdb8V94/pdb

Classification: DE NOVO PROTEIN
Organism(s): synthetic construct
Expression System: Escherichia coli B
Mutation(s): No

Deposited: 2023-12-07 Released: 2025-03-19
Deposition Author(s): Mravic, M., Anderson, C.T.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.24 Å
R-Value Free:
0.175 (Depositor), 0.176 (DCC)
R-Value Work:
0.163 (Depositor), 0.162 (DCC)
R-Value Observed:
0.164 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

De Novo Design of Specific Transmembrane Assemblies By Apolar Steric Packing

Mravic, M., Anderson, C.T.

To be published.

Macromolecule Content

Total Structure Weight: 3.31 kDa
Atom Count: 222
Modeled Residue Count: 29
Deposited Residue Count: 29
Unique protein chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

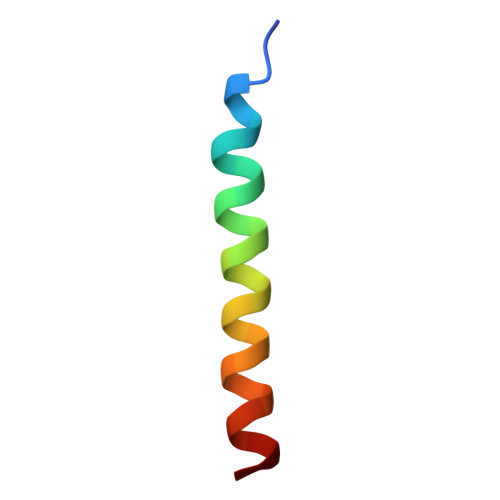

Designed apolar TM domain aITL_04927	A	29	synthetic construct	Mutation(s): 0

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.24 Å
R-Value Free: 0.175 (Depositor), 0.176 (DCC)
R-Value Work: 0.163 (Depositor), 0.162 (DCC)
R-Value Observed: 0.164 (Depositor)

Space Group: P 2₁ 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 22.059	α = 90
b = 85.888	β = 90
c = 10.759	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
Aimless	data scaling
PHENIX	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-03-19

Deposition Author(s):

Mravic, M.

Anderson, C.T.

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2025-03-19
Type: Initial release
