8TYK | pdb_00008tyk

Crystal Structure of SARS-CoV-2 Main Protease (Mpro) T21I Mutant

PDB DOI: https://doi.org/10.2210/pdb8TYK/pdb

Classification: HYDROLASE
Organism(s): Severe acute respiratory syndrome coronavirus 2
Expression System: Escherichia coli
Mutation(s): Yes

Deposited: 2023-08-25 Released: 2024-12-18
Deposition Author(s): Kohaal, N., Lewandowski, E.M., Wang, J., Chen, Y.
Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.98 Å
R-Value Free:
0.235 (Depositor), 0.236 (DCC)
R-Value Work:
0.196 (Depositor), 0.202 (DCC)
R-Value Observed:
0.198 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 8TYK

This is version 1.0 of the entry. See complete history.

Literature

Crystal Structure of SARS-CoV-2 Main Protease (Mpro) T21I Mutant

Lewandowski, E.M., Kohaal, N., Wang, J., Chen, Y.

To be published.

Macromolecule Content

Total Structure Weight: 33.84 kDa
Atom Count: 2,442
Modeled Residue Count: 306
Deposited Residue Count: 306
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

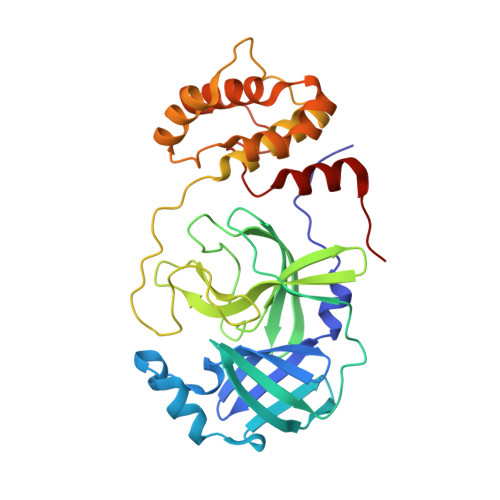

3C-like proteinase	A	306	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 1 EC: 3.4.22.69
UniProt
Find proteins for P0DTC1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC1 Go to UniProtKB: P0DTC1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0DTC1
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.98 Å
R-Value Free: 0.235 (Depositor), 0.236 (DCC)
R-Value Work: 0.196 (Depositor), 0.202 (DCC)
R-Value Observed: 0.198 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 113.67	α = 90
b = 53.82	β = 101.41
c = 44.709	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
HKL-2000	data reduction
PDB_EXTRACT	data extraction
HKL-2000	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2024-12-18

Deposition Author(s):

Lewandowski, E.M.

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	AI158775

Revision History (Full details and data files)

Version 1.0: 2024-12-18
Type: Initial release
