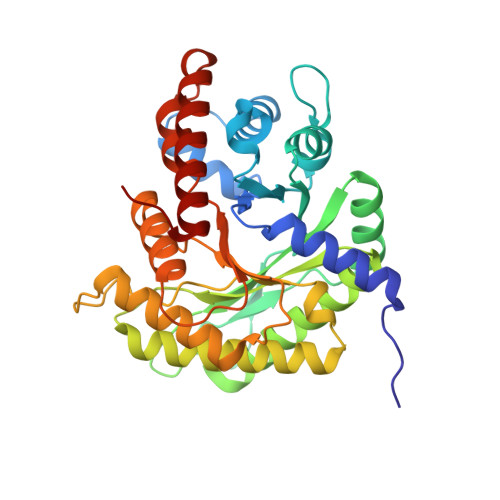

8TWK | pdb_00008twk

Cryo-EM structure of Aldolase collected by EPU on Glacios at 2.6 Angstrom resolution

PDB DOI: https://doi.org/10.2210/pdb8TWK/pdb
EM Map EMD-41669: EMDB EMDataResource

Classification: LYASE
Organism(s): Oryctolagus cuniculus
Mutation(s): No

Deposited: 2023-08-21 Released: 2024-09-04
Deposition Author(s): Jia, L., Ruben, E.A., Olsen, S.K., Wasmuth, E.V.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.60 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 8TWK

This is version 1.1 of the entry. See complete history.

Literature

Cryo-EM structure of Aldolase collected by EPU on Glacios at 2.6 Angstrom resolution

Jia, L., Ruben, E.A., Olsen, S.K., Wasmuth, E.V.

To be published.

Macromolecule Content

Total Structure Weight: 149.6 kDa
Atom Count: 10,800
Modeled Residue Count: 1,372
Deposited Residue Count: 1,376
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Fructose-bisphosphate aldolase A	A, B, C, D	344	Oryctolagus cuniculus	Mutation(s): 0 EC: 4.1.2.13
UniProt
Find proteins for P00883 (Oryctolagus cuniculus) Explore P00883 Go to UniProtKB: P00883
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P00883
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.60 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2024-09-04

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	--

Revision History (Full details and data files)

Version 1.0: 2024-09-04
Type: Initial release
Version 1.1: 2025-06-04
Changes: Data collection, Structure summary
