8RS6 | pdb_00008rs6

Crystal structure of Zika Virus NS2B-NS3 protease in complex with compound 1

PDB DOI: https://doi.org/10.2210/pdb8RS6/pdb

Classification: HYDROLASE
Organism(s): Zika virus
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-01-24 Released: 2025-11-05
Deposition Author(s): Ontoria, J.M., Torrente, E.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.30 Å
R-Value Free:
0.270 (Depositor), 0.273 (DCC)
R-Value Work:
0.225 (Depositor), 0.226 (DCC)
R-Value Observed:
0.227 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.1 of the entry. See complete history.

Literature

Crystal structure of Zika Virus NS2B-NS3 protease in complex with compound 1

Ontoria, J.M., Torrente, E.

To be published.

Macromolecule Content

Total Structure Weight: 48.68 kDa
Atom Count: 2,657
Modeled Residue Count: 333
Deposited Residue Count: 454
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

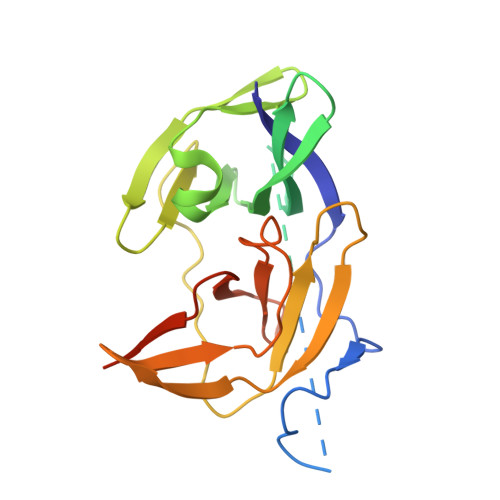

Genome polyprotein	A, B	227	Zika virus	Mutation(s): 0
UniProt
Find proteins for A0A140DLX4 (Zika virus) Explore A0A140DLX4 Go to UniProtKB: A0A140DLX4
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A140DLX4
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1H2Z (Subject of Investigation/LOI) Query on A1H2Z Download Ideal Coordinates CCD File SDF format, chain D [auth B] SDF format, chain C [auth A] MOL2 format, chain D [auth B] MOL2 format, chain C [auth A] mmCIF format, chain D [auth B] mmCIF format, chain C [auth A]	C [auth A], D [auth B]	(1~{E})-1-[3-[(2~{R})-1-phenylpropan-2-yl]-2~{H}-1,2,3-oxadiazol-3-ium-5-ylidene]-3-[3-(trifluoromethyl)phenyl]urea C₁₉ H₁₈ F₃ N₄ O₂ PGKQTFPLIZHIIO-CYBMUJFWSA-O		Interactions Focus chain C [auth A] Focus chain D [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.30 Å
R-Value Free: 0.270 (Depositor), 0.273 (DCC)
R-Value Work: 0.225 (Depositor), 0.226 (DCC)
R-Value Observed: 0.227 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 52.932	α = 90
b = 91.897	β = 97.97
c = 58.438	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
pointless	data scaling
XDS	data reduction
PHASER	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History & Funding Information

Deposition Data

Released Date: 2025-11-05

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2025-11-05
Type: Initial release
Version 1.1: 2025-12-03
Changes: Structure summary
