8RCZ | pdb_00008rcz

Structure of the enoyl-ACP reductase FabV from Pseudomonas aeruginosa with NADH cofactor

PDB DOI: https://doi.org/10.2210/pdb8RCZ/pdb

Classification: OXIDOREDUCTASE
Organism(s): Pseudomonas aeruginosa
Expression System: Escherichia coli 'BL21-Gold(DE3)pLysS AG
Mutation(s): No

Deposited: 2023-12-07 Released: 2024-12-18
Deposition Author(s): Vandebroek, L., Van Olmen, F., Voet, A.R.D., Verwilst, P.
Funding Organization(s): Research Foundation - Flanders (FWO)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.25 Å
R-Value Free:
0.242 (Depositor), 0.248 (DCC)
R-Value Work:
0.197 (Depositor), 0.200 (DCC)
R-Value Observed:
0.199 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 8RCZ

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Structure of the enoyl-ACP reductase FabV from Pseudomonas aeruginosa with NADH cofactor

Vandebroek, L., Van Olmen, F., Voet, A.R.D., Verwilst, P.

To be published.

Macromolecule Content

Total Structure Weight: 89.12 kDa
Atom Count: 6,220
Modeled Residue Count: 775
Deposited Residue Count: 802
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

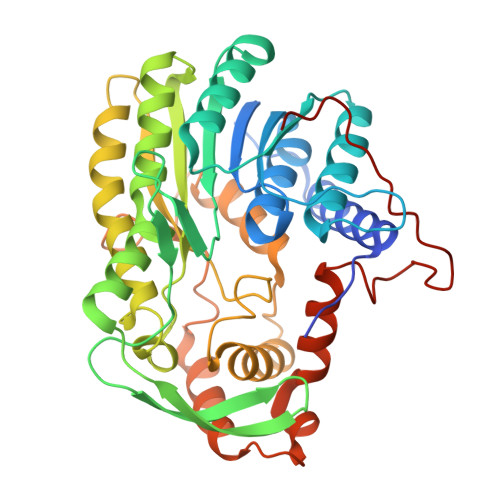

Enoyl-[acyl-carrier-protein] reductase [NADH]	A, B	401	Pseudomonas aeruginosa	Mutation(s): 0 Gene Names: fabV EC: 1.3.1.9 (UniProt), 1.3.1.44 (UniProt)
UniProt
Find proteins for Q9HZP8 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HZP8 Go to UniProtKB: Q9HZP8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HZP8
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAI (Subject of Investigation/LOI) Query on NAI Download:Ideal Coordinates CCD File SDF format, chain D [auth B] SDF format, chain C [auth A] MOL2 format, chain D [auth B] MOL2 format, chain C [auth A] mmCIF format, chain D [auth B] mmCIF format, chain C [auth A]	C [auth A], D [auth B]	1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE C₂₁ H₂₉ N₇ O₁₄ P₂ BOPGDPNILDQYTO-NNYOXOHSSA-N		Interactions Focus chain C [auth A] Focus chain D [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.25 Å
R-Value Free: 0.242 (Depositor), 0.248 (DCC)
R-Value Work: 0.197 (Depositor), 0.200 (DCC)
R-Value Observed: 0.199 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 54.744	α = 90
b = 88.729	β = 90
c = 158.172	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
Aimless	data scaling
PHASER	phasing
XDS	data reduction

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2024-12-18

Deposition Author(s):

Funding Organization	Location	Grant Number
Research Foundation - Flanders (FWO)	Belgium	1235722N

Revision History (Full details and data files)

Version 1.0: 2024-12-18
Type: Initial release
