8P9A | pdb_00008p9a

80S yeast ribosome in complex with Methyllissoclimide

• PDB DOI: https://doi.org/10.2210/pdb8P9A/pdb
• NAKB: 8P9A

• Classification: RIBOSOME
• Organism(s): Saccharomyces cerevisiae
• Mutation(s): No


• Deposited: 2023-06-05 Released: 2024-11-27
• Deposition Author(s): Terrosu, S., Yusupov, M., Vanderwal, C.
• Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.90 Å
• R-Value Free:
  0.238 (DCC)
• R-Value Work:
  0.214 (Depositor), 0.216 (DCC)

Starting Model: experimental

Re-refinement Note

A newer entry is available that reflects an alternative modeling of the original data: 8PNN

Literature

Synthesis of Differentially Halogenated Lissoclimide Analogues To Probe Ribosome E-Site Binding.

Terrosu, S., Nurullina, L., Supantanapong, N., Pak, B.S., Nguyen, S., Holm, M., Wu, C., Lin, M., Horne, D., Sachs, M.S., Blanchard, S.C., Yusupov, M., Vanderwal, C.D.

(2025) ACS Chem Biol 20: 858-869

• PubMed: 40119759
• DOI: https://doi.org/10.1021/acschembio.4c00825
• Primary Citation of Related Structures:
  8P4V, 8P9A, 8PNN


• PubMed Abstract:


  Halogenated natural products from marine sources often demonstrate potent activity against microorganisms and cancer cell lines. During the last three decades, the lissoclimide class of chlorinated labdane diterpenoids has been characterized with respect to structure and cytotoxic activity. Recently, our laboratories have developed different strategies to produce a broad range of naturally occurring lissoclimides and designed synthetic analogues. This work led to the discovery of a novel halogen-π dispersion interaction between the C2 chloride of chlorolissoclimide and guanine residues in the tRNA exit (E) site of the ribosome. In this study, we aimed to synthesize lissoclimide analogues bearing different substituents in place of the chloride to investigate the importance of the halogen identity for binding, translation inhibition, and cytotoxicity. With previous access to the protio and chloro compounds (haterumaimide Q and chlorolissoclimide), we synthesized two more halogenated variants, fluorolissoclimide and bromolissoclimide, as well as a methylated analogue, methyllissoclimide, to complete a panel of chemical probes for functional and structural studies. Using an integrative approach, we explored the effects of these analogues on the eukaryotic translational machinery in vivo and in vitro. X-ray cocrystal structures with the eukaryotic ribosome were solved for each probe molecule, and the effects on ribosomal thermal stability and FRET-derived ribosome binding constants were determined. Together, these data provide a detailed understanding of the different modes of binding of lissoclimides and insight into their relative activities, which vary according to the substitutions that interact with the eukaryote-specific ribosomal protein eL42. Ultimately, we learned that the presence of a lissoclimide C2-halogen atom─offering a potentially stabilizing halogen-π interaction─appears to facilitate or to synergize with a hydrogen-bonding interaction between the C7-hydroxyl group and the backbone of the ribosomal protein eL42, leading to stronger translation inhibition. We therefore conclude that the C2-halogen and C7-hydroxyl groups are critical contributors to potency, and this idea is borne out in the observations of reduced biological activities in the absence of either group.

---

Organizational Affiliation:

INSERM U964, CNRS UMR7104, Université de Strasbourg, Institut de Génétique et de Biologie Moléculaire et Cellulaire (IGBMC), 67404 Illkirch, France.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 150-mer - AA2AB2AC2AD2AE2AF2AG2AH2AI2AJ2AK2AL2AM2AN2AO2AP2AQ2AR2AS2AT2AU2AV2AW2AX2AY2AZ2Aa2Ab2Ac2Ad2Ae2Af2Ag2Ah2Ai2Aj2Ak2Al2Am2An2Ao2Ap2Aq2Ar2As2At2Au2Av2Aw2Ax2Ay2Az2BA2BB2BC2BD2BE2BF2BG2BH2BI2BJ2BK2BL2BM2BN2BO2BP2BQ2BR2BS2BT1BU1BV1BW1BX1BY1BZ1Ba1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 150-mer - AA3AB2AC2AD2AE2AF2AG2AH2AI2AJ2AK2AL2AM2AN2AO2AP2AQ2AR2AS2AT2AU2AV2AW2AX2AY2AZ2Aa2Ab2Ac2Ad2Ae2Af2Ag2Ah2Ai2Aj2Ak2Al2Am2An2Ao2Ap2Aq2Ar2As2At2Au2Av2Aw2Ax2Ay2Az2BA2BB2BC2BD2BE2BF2BG2BH2BI2BJ2BK2BL2BM2BN2BO2BP2BQ2BR2BS2BT2BU2BV1BW1BX1

Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AA2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AB2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AD2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AE2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AF2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AG2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AH2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AI2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AJ2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AL2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AM2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AN2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AO2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AP2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AR2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AS2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AT2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AU2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AV2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AW2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AX2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AY2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - AZ2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Aa2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Ab2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Ac2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Ad2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Ae2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Ag2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Ah2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Ai2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Aj2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Ak2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Al2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Am2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - An2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Ao2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Ap2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Aq2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Ar2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - As2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - At2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Au2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Av2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Aw2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Ax2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Ay2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - Az2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BA2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BB2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BC2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BD2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BE2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BF2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BG2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BH2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BI2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BJ2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BK2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BL2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BM2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BN2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BO2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BP2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BQ2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BR2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - BS2

Biological assembly 1 assigned by authors.

Macromolecule Content

• Total Structure Weight: 6,435.05 kDa
• Atom Count: 405,377
• Modeled Residue Count: 32,652
• Deposited Residue Count: 34,933
• Unique protein chains: 76
• Unique nucleic acid chains: 4

Macromolecules

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L2-A	D [auth j], WA [auth CD]	254	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX45 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX45  Go to UniProtKB:  P0CX45

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

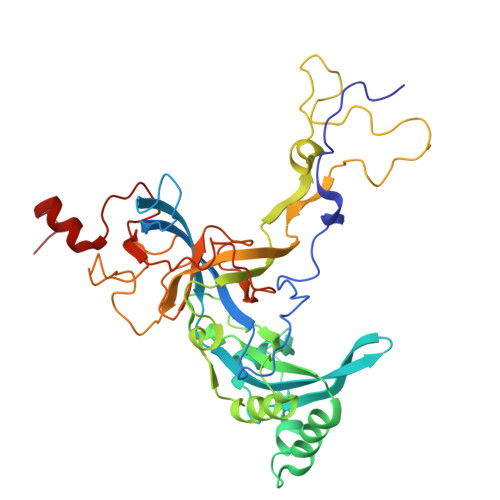

60S ribosomal protein L3	E [auth k], XA [auth CE]	387	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P14126 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P14126  Go to UniProtKB:  P14126

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

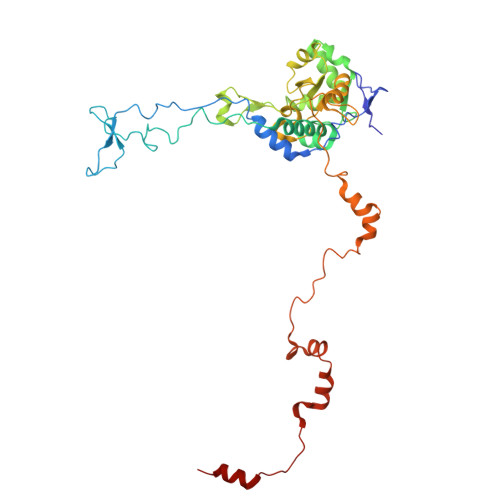

60S ribosomal protein L4-A	F [auth l], YA [auth CF]	362	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P10664 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P10664  Go to UniProtKB:  P10664

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image

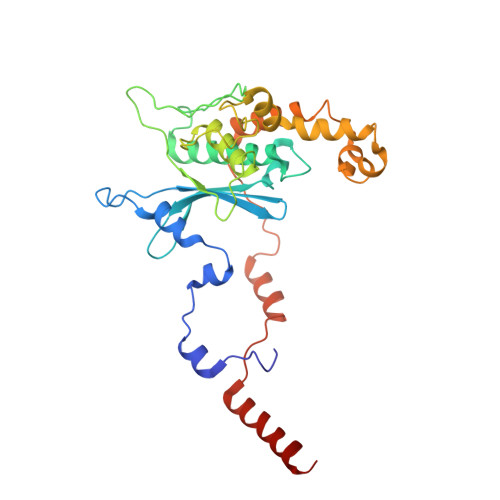

60S ribosomal protein L5	G [auth m], ZA [auth CG]	297	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P26321 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P26321  Go to UniProtKB:  P26321

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L6-A	AB [auth CH], H [auth n]	176	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for Q02326 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore Q02326  Go to UniProtKB:  Q02326

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image

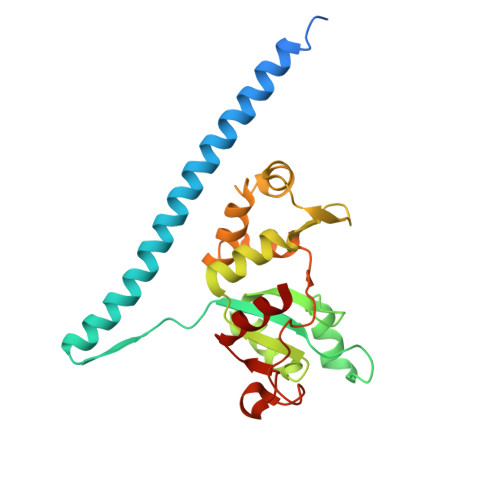

60S ribosomal protein L7-A	BB [auth CI], I [auth o]	244	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P05737 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05737  Go to UniProtKB:  P05737

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L8-A	CB [auth CJ], J [auth p]	256	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P17076 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P17076  Go to UniProtKB:  P17076

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L9-A	DB [auth CK], K [auth q]	191	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P05738 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05738  Go to UniProtKB:  P05738

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image

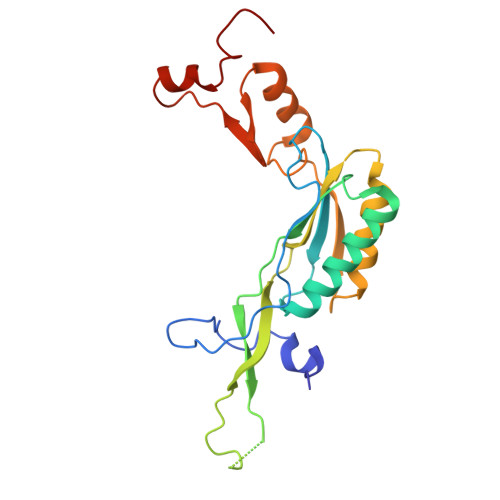

60S ribosomal protein L10	EB [auth CL], L [auth r]	221	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P41805 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P41805  Go to UniProtKB:  P41805

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image

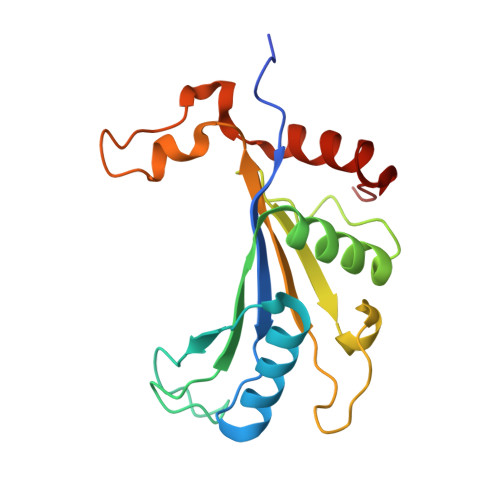

Large ribosomal subunit protein uL5B	FB [auth CM], M [auth s]	174	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0C0W9 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0C0W9  Go to UniProtKB:  P0C0W9

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L13-A	GB [auth CN], N [auth t]	199	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for Q12690 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore Q12690  Go to UniProtKB:  Q12690

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L14-A	HB [auth CO], O [auth u]	138	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P36105 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P36105  Go to UniProtKB:  P36105

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L15-A	IB [auth CP], P [auth v]	204	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P05748 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05748  Go to UniProtKB:  P05748

Entity ID: 17
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L16-A	JB [auth CQ], Q [auth w]	199	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P26784 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P26784  Go to UniProtKB:  P26784

Entity ID: 18
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L17-A	KB [auth CR], R [auth x]	184	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P05740 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05740  Go to UniProtKB:  P05740

Entity ID: 19
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L18-A	LB [auth CS], S [auth y]	186	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX49 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX49  Go to UniProtKB:  P0CX49

Entity ID: 20
Molecule	Chains	Sequence Length	Organism	Details	Image

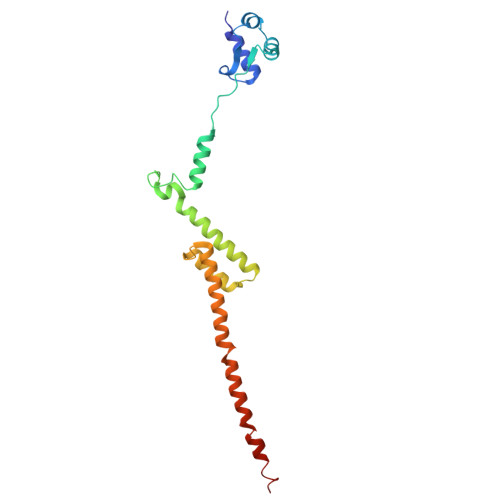

60S ribosomal protein L19-A	MB [auth CT], T [auth z]	189	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX82 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX82  Go to UniProtKB:  P0CX82

Entity ID: 21
Molecule	Chains	Sequence Length	Organism	Details	Image

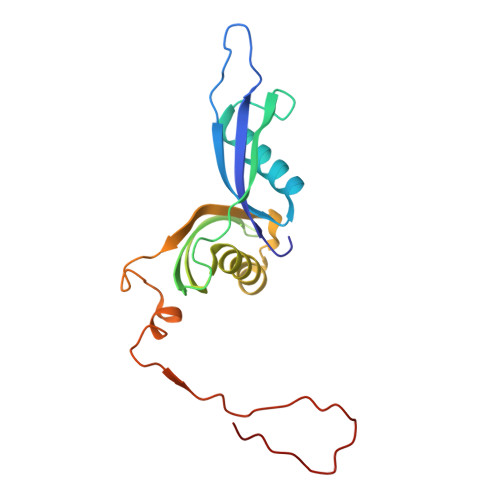

60S ribosomal protein L20-A	NB [auth CU], U [auth 0]	172	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX23 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX23  Go to UniProtKB:  P0CX23

Entity ID: 22
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L21-A	OB [auth CV], V [auth 2]	160	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for Q02753 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore Q02753  Go to UniProtKB:  Q02753

Entity ID: 23
Molecule	Chains	Sequence Length	Organism	Details	Image

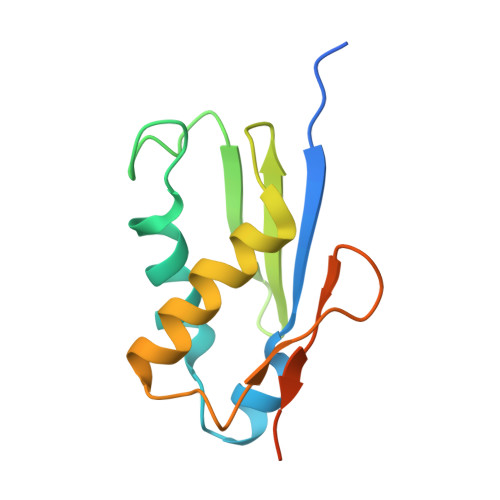

60S ribosomal protein L22-A	PB [auth CW], W [auth 5]	121	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P05749 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05749  Go to UniProtKB:  P05749

Entity ID: 24
Molecule	Chains	Sequence Length	Organism	Details	Image

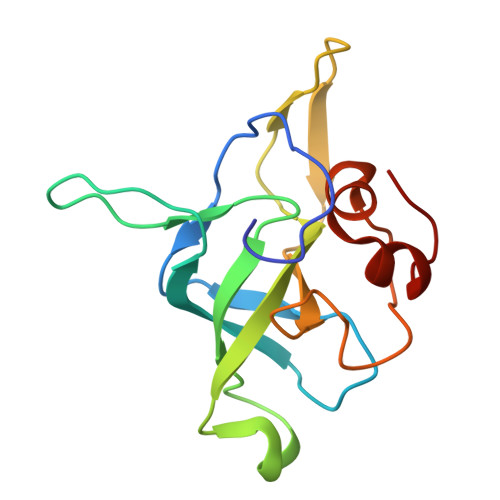

60S ribosomal protein L23-A	QB [auth CX], X [auth 6]	137	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX41 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX41  Go to UniProtKB:  P0CX41

Entity ID: 25
Molecule	Chains	Sequence Length	Organism	Details	Image

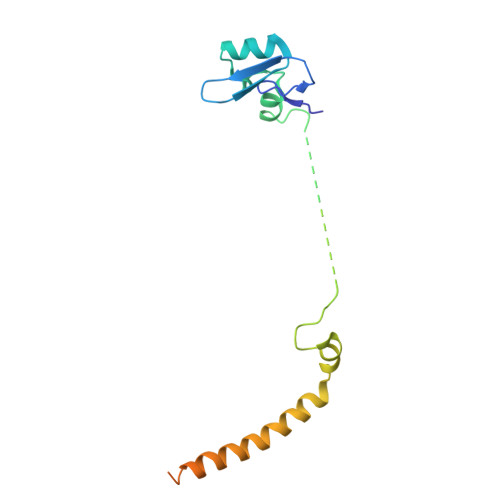

60S ribosomal protein L24-A	RB [auth CY], Y [auth 7]	155	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P04449 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P04449  Go to UniProtKB:  P04449

Entity ID: 26
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L25	SB [auth CZ], Z [auth 8]	142	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P04456 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P04456  Go to UniProtKB:  P04456

Entity ID: 27
Molecule	Chains	Sequence Length	Organism	Details	Image

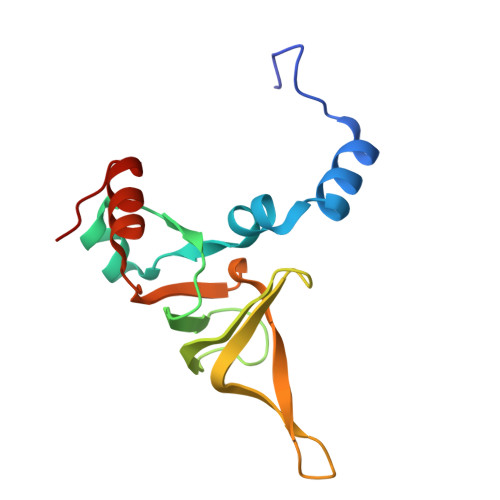

60S ribosomal protein L26-A	AA [auth 9], TB [auth DA]	127	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P05743 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05743  Go to UniProtKB:  P05743

Entity ID: 28
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L27-A	BA [auth AA], UB [auth DB]	136	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0C2H6 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0C2H6  Go to UniProtKB:  P0C2H6

Entity ID: 29
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L28	CA [auth AB], VB [auth DC]	149	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P02406 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P02406  Go to UniProtKB:  P02406

Entity ID: 30
Molecule	Chains	Sequence Length	Organism	Details	Image

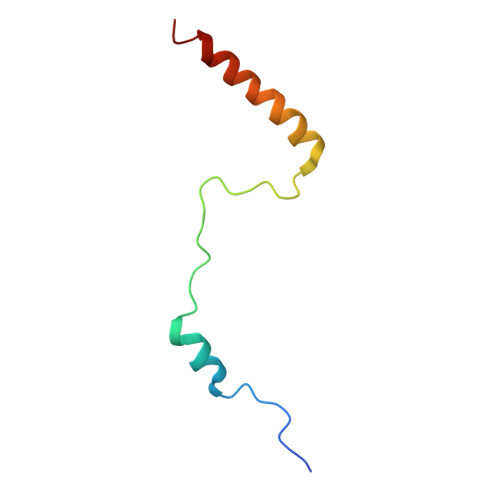

60S ribosomal protein L29	DA [auth AC], WB [auth DD]	59	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P05747 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05747  Go to UniProtKB:  P05747

Entity ID: 31
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L30	EA [auth AD], XB [auth DE]	105	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P14120 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P14120  Go to UniProtKB:  P14120

Entity ID: 32
Molecule	Chains	Sequence Length	Organism	Details	Image

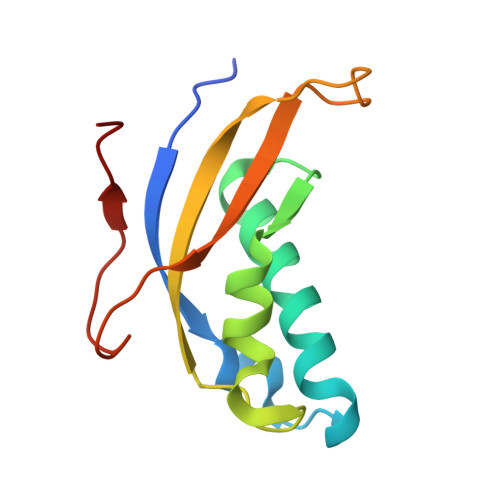

60S ribosomal protein L31-A	FA [auth AE], YB [auth DF]	113	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0C2H8 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0C2H8  Go to UniProtKB:  P0C2H8

Entity ID: 33
Molecule	Chains	Sequence Length	Organism	Details	Image

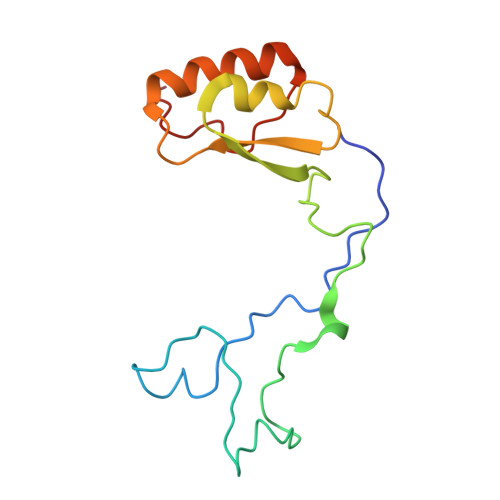

60S ribosomal protein L32	GA [auth AF], ZB [auth DG]	130	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P38061 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P38061  Go to UniProtKB:  P38061

Entity ID: 34
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L33-A	AC [auth DH], HA [auth AG]	107	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P05744 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05744  Go to UniProtKB:  P05744

Entity ID: 35
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L34-A	BC [auth DI], IA [auth AH]	121	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P87262 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P87262  Go to UniProtKB:  P87262

Entity ID: 36
Molecule	Chains	Sequence Length	Organism	Details	Image

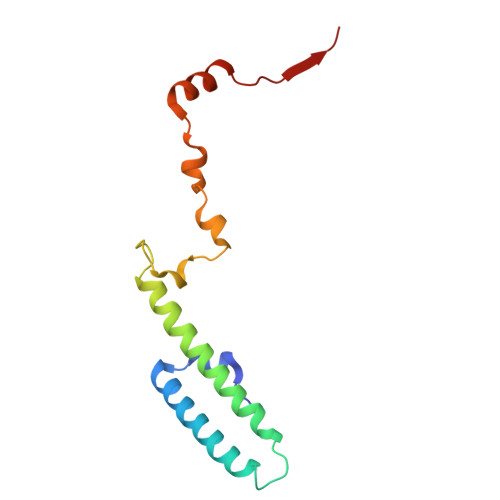

60S ribosomal protein L35-A	CC [auth DJ], JA [auth AI]	120	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX84 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX84  Go to UniProtKB:  P0CX84

Entity ID: 37
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L36-A	DC [auth DK], KA [auth AJ]	100	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P05745 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05745  Go to UniProtKB:  P05745

Entity ID: 38
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L37-A	EC [auth DL], LA [auth AK]	88	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P49166 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P49166  Go to UniProtKB:  P49166

Entity ID: 39
Molecule	Chains	Sequence Length	Organism	Details	Image

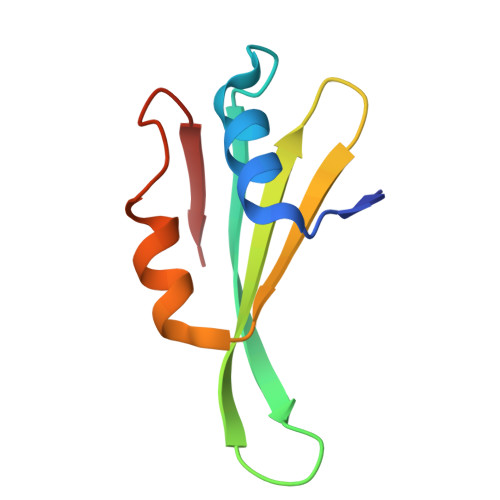

60S ribosomal protein L38	FC [auth DM], MA [auth AL]	78	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P49167 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P49167  Go to UniProtKB:  P49167

Entity ID: 40
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L39	GC [auth DN], NA [auth AM]	51	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P04650 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P04650  Go to UniProtKB:  P04650

Entity ID: 41
Molecule	Chains	Sequence Length	Organism	Details	Image

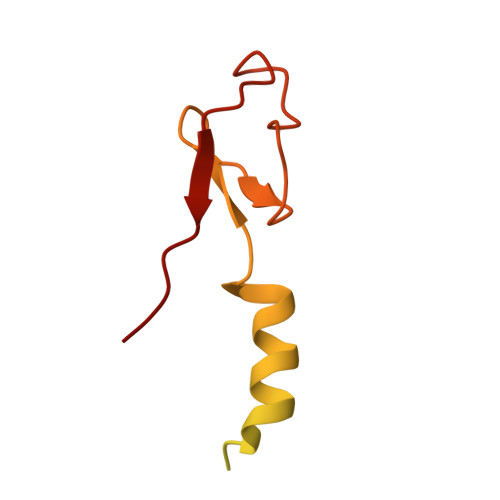

Ubiquitin-60S ribosomal protein L40	HC [auth DO], OA [auth AN]	128	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CH08 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CH08  Go to UniProtKB:  P0CH08

Entity ID: 42
Molecule	Chains	Sequence Length	Organism	Details	Image

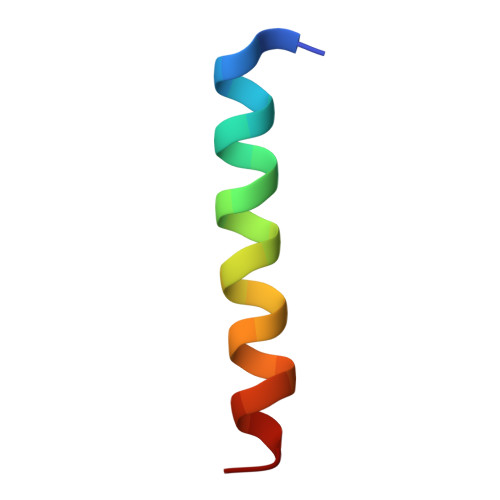

Large ribosomal subunit protein eL41B	IC [auth DP], PA [auth AO]	25	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX86 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX86  Go to UniProtKB:  P0CX86

Entity ID: 43
Molecule	Chains	Sequence Length	Organism	Details	Image

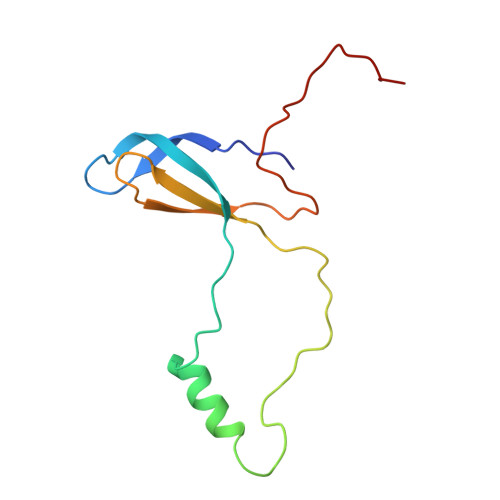

60S ribosomal protein L42-A	JC [auth DQ], QA [auth AP]	106	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX27 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX27  Go to UniProtKB:  P0CX27

Entity ID: 44
Molecule	Chains	Sequence Length	Organism	Details	Image

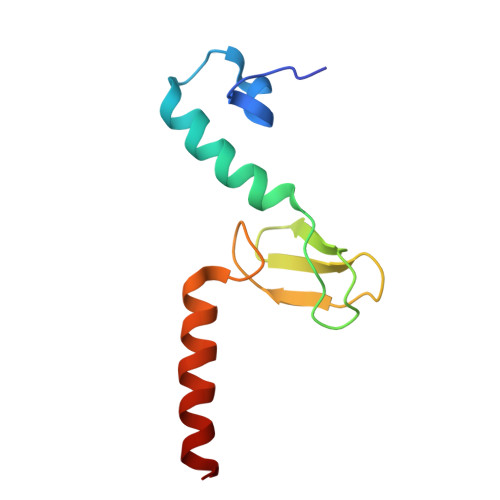

60S ribosomal protein L43-A	KC [auth DR], RA [auth AQ]	92	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX25 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX25  Go to UniProtKB:  P0CX25

Entity ID: 45
Molecule	Chains	Sequence Length	Organism	Details	Image
Suppressor protein STM1	MC [auth sM], SA [auth i]	273	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P39015 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P39015  Go to UniProtKB:  P39015

Entity ID: 46
Molecule	Chains	Sequence Length	Organism	Details	Image

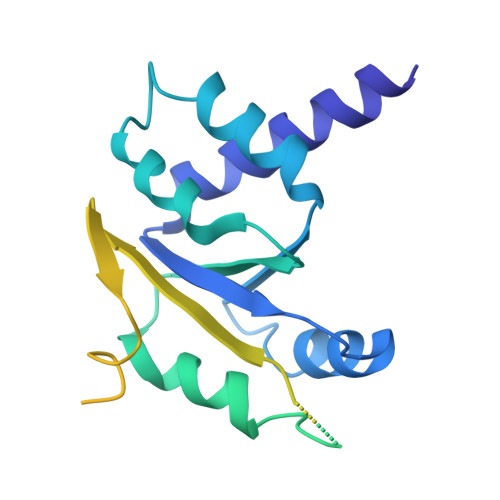

60S acidic ribosomal protein P0	LC [auth p0]	312	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P05317 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05317  Go to UniProtKB:  P05317

Entity ID: 48
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S0-A	OC [auth B], XD [auth s0]	252	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P32905 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P32905  Go to UniProtKB:  P32905

Entity ID: 49
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S1-A	PC [auth C], YD [auth s1]	255	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P33442 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P33442  Go to UniProtKB:  P33442

Entity ID: 50
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S2	QC [auth D], ZD [auth s2]	254	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P25443 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P25443  Go to UniProtKB:  P25443

Entity ID: 51
Molecule	Chains	Sequence Length	Organism	Details	Image

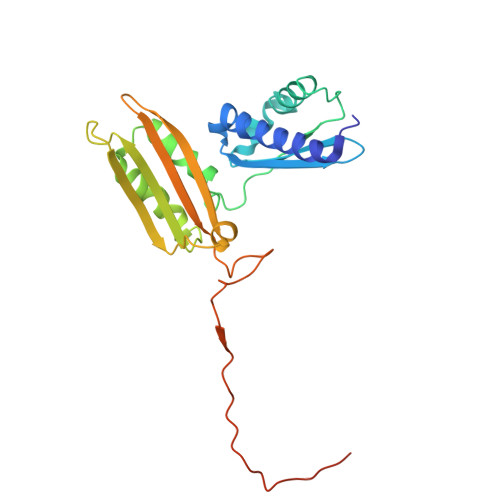

Small ribosomal subunit protein uS3	AE [auth s3], RC [auth E]	240	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P05750 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05750  Go to UniProtKB:  P05750

Entity ID: 52
Molecule	Chains	Sequence Length	Organism	Details	Image

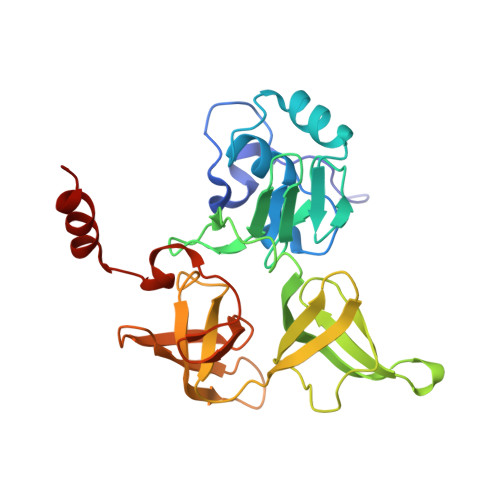

40S ribosomal protein S4-A	BE [auth s4], SC [auth F]	261	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX35 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX35  Go to UniProtKB:  P0CX35

Entity ID: 53
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S5	CE [auth s5], TC [auth G]	225	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P26783 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P26783  Go to UniProtKB:  P26783

Entity ID: 54
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S6-A	DE [auth s6], UC [auth H]	236	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX37 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX37  Go to UniProtKB:  P0CX37

Entity ID: 55
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S7-A	EE [auth s7], VC [auth I]	190	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P26786 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P26786  Go to UniProtKB:  P26786

Entity ID: 56
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S8-A	FE [auth s8], WC [auth J]	200	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX39 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX39  Go to UniProtKB:  P0CX39

Entity ID: 57
Molecule	Chains	Sequence Length	Organism	Details	Image

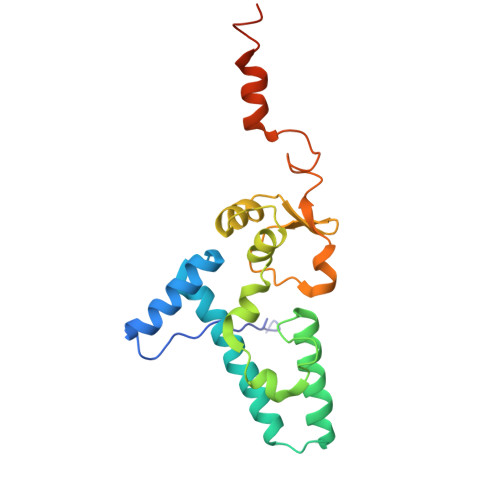

40S ribosomal protein S9-A	GE [auth s9], XC [auth K]	197	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for O13516 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore O13516  Go to UniProtKB:  O13516

Entity ID: 58
Molecule	Chains	Sequence Length	Organism	Details	Image

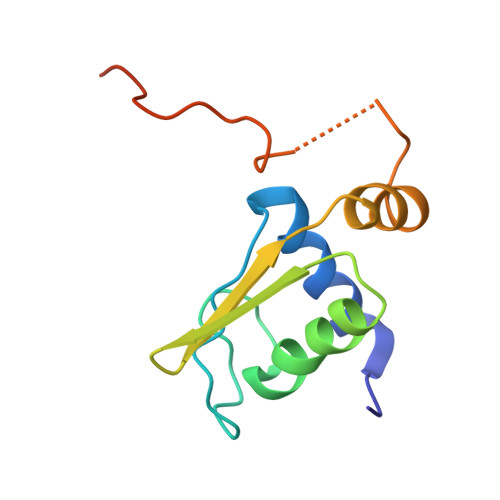

40S ribosomal protein S10-A	HE [auth c0], YC [auth L]	105	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for Q08745 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore Q08745  Go to UniProtKB:  Q08745

Entity ID: 59
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S11-A	IE [auth c1], ZC [auth M]	156	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX47 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX47  Go to UniProtKB:  P0CX47

Entity ID: 60
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S12	AD [auth N]	143	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P48589 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P48589  Go to UniProtKB:  P48589

Entity ID: 61
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S13	BD [auth O], JE [auth c3]	151	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P05756 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05756  Go to UniProtKB:  P05756

Entity ID: 62
Molecule	Chains	Sequence Length	Organism	Details	Image

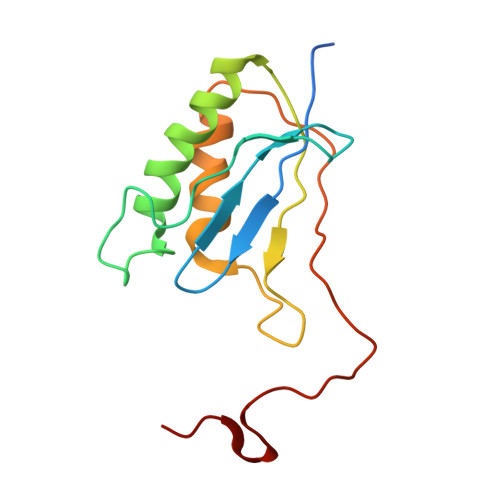

40S ribosomal protein S14-B	CD [auth P], KE [auth c4]	138	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P06367 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P06367  Go to UniProtKB:  P06367

Entity ID: 63
Molecule	Chains	Sequence Length	Organism	Details	Image

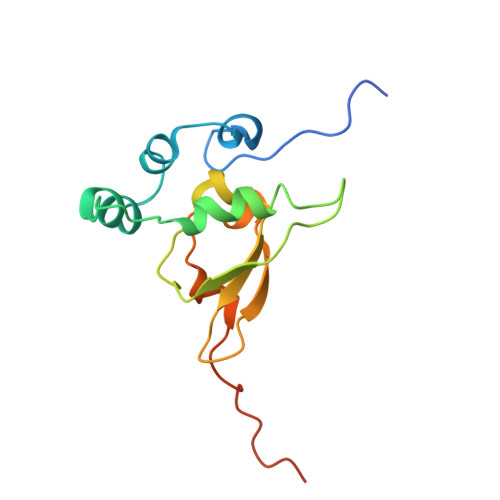

40S ribosomal protein S15	DD [auth Q], LE [auth c5]	142	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for Q01855 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore Q01855  Go to UniProtKB:  Q01855

Entity ID: 64
Molecule	Chains	Sequence Length	Organism	Details	Image

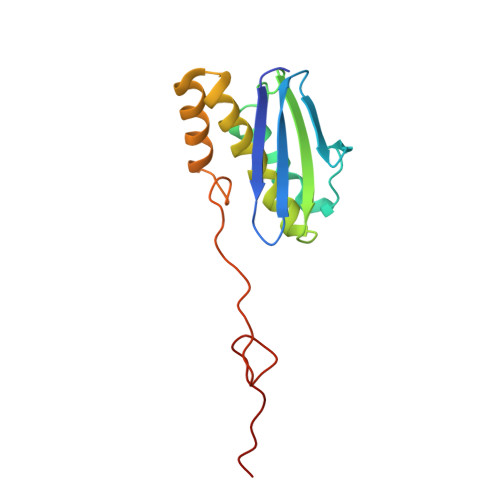

40S ribosomal protein S16-A	ED [auth R], ME [auth c6]	143	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX51 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX51  Go to UniProtKB:  P0CX51

Entity ID: 65
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S17-A	FD [auth S], NE [auth c7]	136	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P02407 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P02407  Go to UniProtKB:  P02407

Entity ID: 66
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S18-A	GD [auth T], OE [auth c8]	146	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX55 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX55  Go to UniProtKB:  P0CX55

Entity ID: 67
Molecule	Chains	Sequence Length	Organism	Details	Image

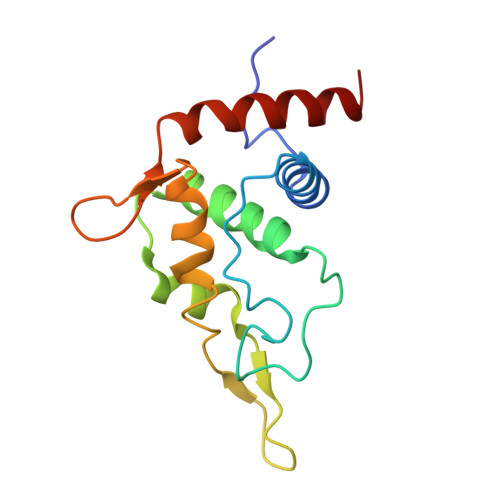

40S ribosomal protein S19-A	HD [auth U], PE [auth c9]	144	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P07280 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P07280  Go to UniProtKB:  P07280

Entity ID: 68
Molecule	Chains	Sequence Length	Organism	Details	Image

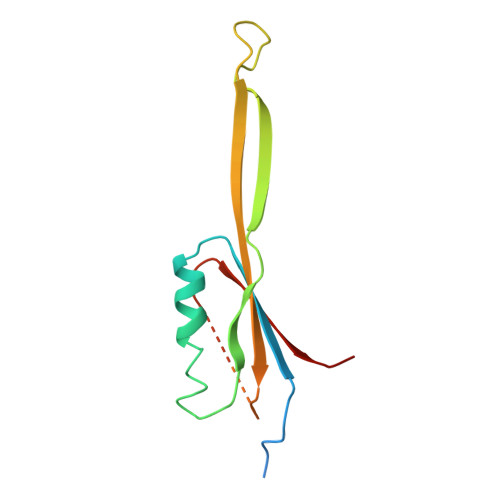

Small ribosomal subunit protein uS10	ID [auth V], QE [auth d0]	121	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P38701 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P38701  Go to UniProtKB:  P38701

Entity ID: 69
Molecule	Chains	Sequence Length	Organism	Details	Image

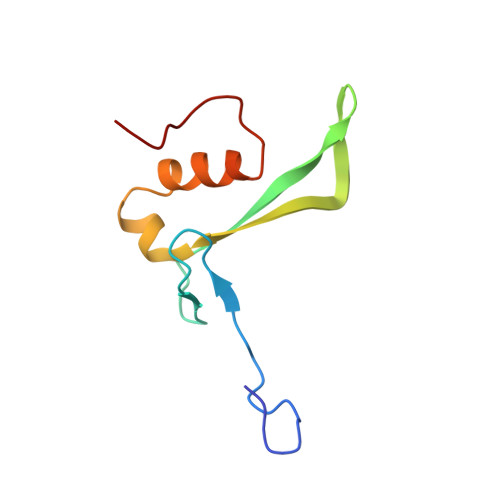

40S ribosomal protein S21-A	JD [auth W], RE [auth d1]	87	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0C0V8 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0C0V8  Go to UniProtKB:  P0C0V8

Entity ID: 70
Molecule	Chains	Sequence Length	Organism	Details	Image

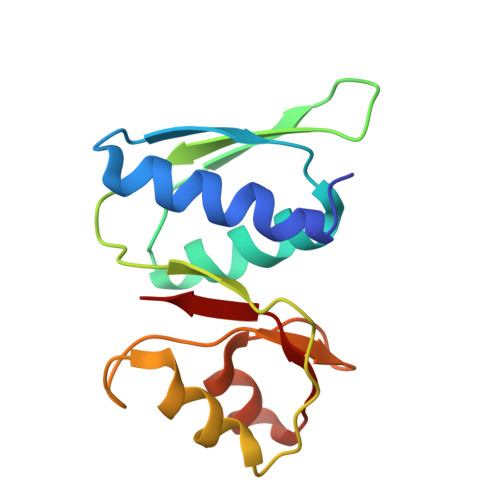

40S ribosomal protein S22-A	KD [auth X], SE [auth d2]	130	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0C0W1 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0C0W1  Go to UniProtKB:  P0C0W1

Entity ID: 71
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S23-A	LD [auth Y], TE [auth d3]	145	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX29 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX29  Go to UniProtKB:  P0CX29

Entity ID: 72
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S24-A	MD [auth Z], UE [auth d4]	135	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX31 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX31  Go to UniProtKB:  P0CX31

Entity ID: 73
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S25-A	ND [auth a], VE [auth d5]	108	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for Q3E792 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore Q3E792  Go to UniProtKB:  Q3E792

Entity ID: 74
Molecule	Chains	Sequence Length	Organism	Details	Image

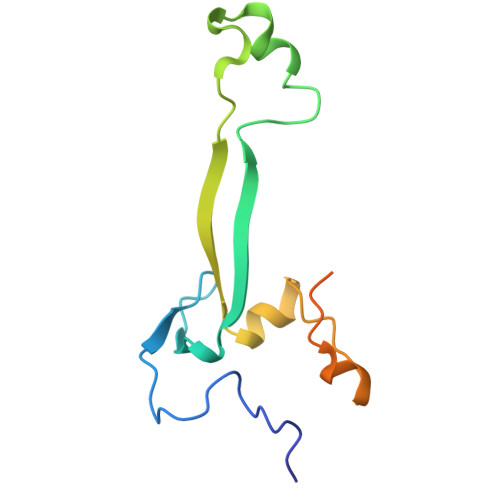

Small ribosomal subunit protein eS26B	OD [auth b], WE [auth d6]	119	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P39939 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P39939  Go to UniProtKB:  P39939

Entity ID: 75
Molecule	Chains	Sequence Length	Organism	Details	Image

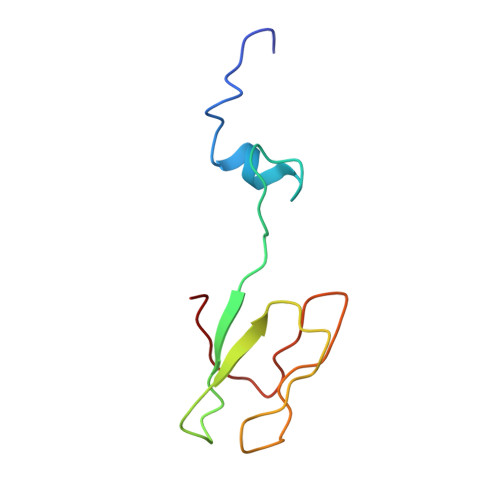

40S ribosomal protein S27-A	PD [auth c], XE [auth d7]	82	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P35997 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P35997  Go to UniProtKB:  P35997

Entity ID: 76
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S28-A	QD [auth d], YE [auth d8]	67	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for Q3E7X9 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore Q3E7X9  Go to UniProtKB:  Q3E7X9

Entity ID: 77
Molecule	Chains	Sequence Length	Organism	Details	Image

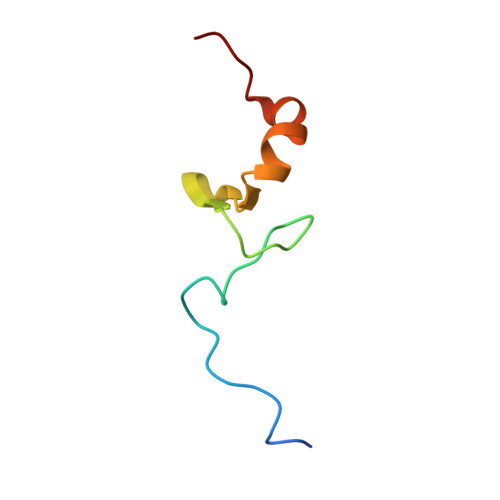

Small ribosomal subunit protein uS14A	RD [auth e], ZE [auth d9]	56	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P41057 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P41057  Go to UniProtKB:  P41057

Entity ID: 78
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S30-A	AF [auth e0], SD [auth f]	63	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P0CX33 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX33  Go to UniProtKB:  P0CX33

Entity ID: 79
Molecule	Chains	Sequence Length	Organism	Details	Image

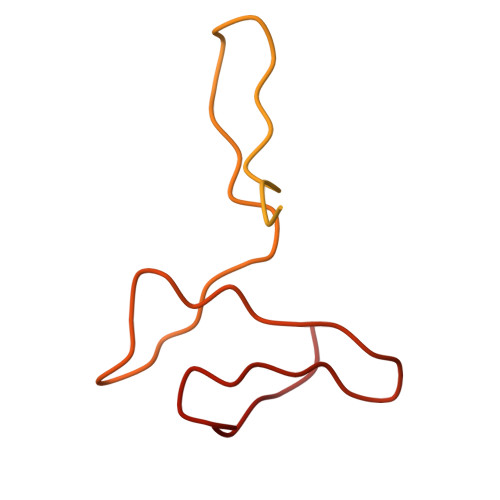

Ubiquitin	BF [auth e1], TD [auth g]	152	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P05759 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05759  Go to UniProtKB:  P05759

Entity ID: 80
Molecule	Chains	Sequence Length	Organism	Details	Image

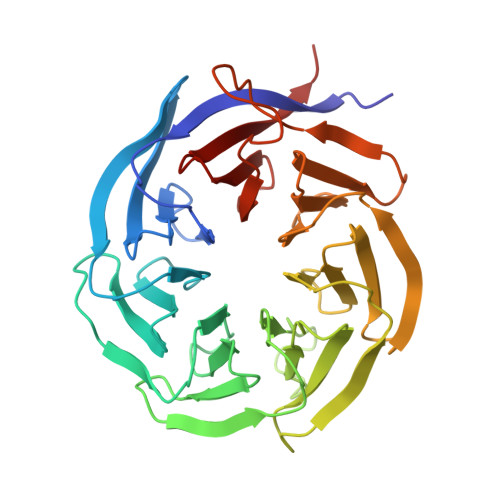

Guanine nucleotide-binding protein subunit beta-like protein	UD [auth h], WD [auth Rb]	319	Saccharomyces cerevisiae	Mutation(s): 0
UniProt
Find proteins for P38011 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P38011  Go to UniProtKB:  P38011

Entity ID: 1
Molecule	Chains	Length	Organism	Image

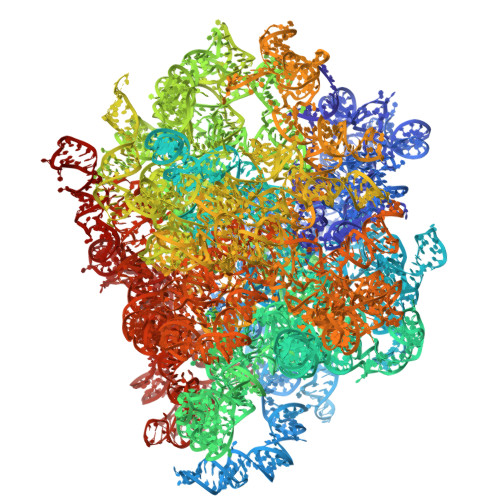

25S ribosomal RNA	A [auth 1], TA [auth AR]	3,149	Saccharomyces cerevisiae

Entity ID: 2
Molecule	Chains	Length	Organism	Image
5S ribosomal RNA	B [auth 3], UA [auth AS]	121	Saccharomyces cerevisiae

Entity ID: 3
Molecule	Chains	Length	Organism	Image
5.8 ribosomal RNA	C [auth 4], VA [auth AT]	158	Saccharomyces cerevisiae

Entity ID: 47
Molecule	Chains	Length	Organism	Image

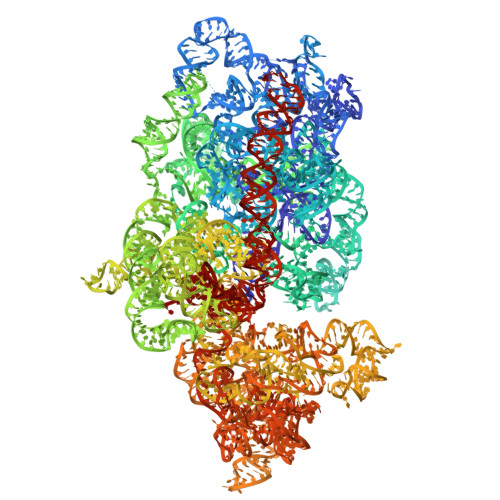

16S ribosomal RNA	NC [auth A], VD [auth sR]	1,800	Saccharomyces cerevisiae

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
XBI	EIA [auth 1], HSB [auth AR]	(3~{R})-3-[(1~{S})-2-[(1~{R},3~{S},4~{a}~{S},7~{S},8~{a}~{S})-5,5,7,8~{a}-tetramethyl-2-methylidene-3-oxidanyl-3,4,4~{a},6,7,8-hexahydro-1~{H}-naphthalen-1-yl]-1-oxidanyl-ethyl]pyrrolidine-2,5-dione C21 H33 N O4 QJMIOMDKNQXZMN-LYGYNGHHSA-N
OHX	AAC [auth A], AFA [auth 1], AG [auth 1], AGA [auth 1], AGC [auth A], AH [auth 1], AHA [auth 1], AI [auth 1], AIC [auth sR], AJ [auth 1], AJA [auth 3], AJC [auth sR], AK [auth 1], AKC [auth sR], AL [auth 1], ALC [auth sR], AM [auth 1], AMC [auth sR], AN [auth 1], ANA [auth AR], AOA [auth AR], APA [auth AR], AQA [auth AR], ARA [auth AR], ASA [auth AR], ATA [auth AR], AUA [auth AR], AUB [auth AT], AVA [auth AR], AWA [auth AR], AXA [auth AR], AYB [auth A], AZB [auth A], BAC [auth A], BFA [auth 1], BG [auth 1], BGA [auth 1], BGC [auth A], BH [auth 1], BHA [auth 1], BI [auth 1], BIC [auth sR], BJ [auth 1], BJA [auth 4], BJC [auth sR], BK [auth 1], BKC [auth sR], BL [auth 1], BLC [auth sR], BM [auth 1], BMC [auth sR], BN [auth 1], BNA [auth AR], BOA [auth AR], BPA [auth AR], BQA [auth AR], BRA [auth AR], BSA [auth AR], BTA [auth AR], BUA [auth AR], BUB [auth AT], BVA [auth AR], BWA [auth AR], BXA [auth AR], BXB [auth DL], BYB [auth A], BZB [auth A], CAC [auth A], CF [auth 1], CG [auth 1], CGA [auth 1], CGC [auth A], CH [auth 1], CHA [auth 1], CI [auth 1], CIC [auth sR], CJ [auth 1], CJA [auth 4], CJC [auth sR], CK [auth 1], CKC [auth sR], CL [auth 1], CLC [auth sR], CM [auth 1], CMA [auth AC], CMC [auth sR], CN [auth 1], CNA [auth AR], COA [auth AR], CPA [auth AR], CQA [auth AR], CRA [auth AR], CSA [auth AR], CTA [auth AR], CTC [auth c3], CUA [auth AR], CVA [auth AR], CWA [auth AR], CXA [auth AR], CYB [auth A], CZB [auth A], DAC [auth A], DF [auth 1], DG [auth 1], DGA [auth 1], DGC [auth A], DH [auth 1], DHA [auth 1], DI [auth 1], DIC [auth sR], DJ [auth 1], DJC [auth sR], DK [auth 1], DKC [auth sR], DL [auth 1], DLA [auth v], DLC [auth sR], DM [auth 1], DMC [auth sR], DN [auth 1], DNA [auth AR], DOA [auth AR], DPA [auth AR], DQA [auth AR], DRA [auth AR], DSA [auth AR], DSC [auth sR], DTA [auth AR], DUA [auth AR], DVA [auth AR], DWA [auth AR], DXA [auth AR], DYB [auth A], DZB [auth A], EAC [auth A], EF [auth 1], EFC [auth A], EG [auth 1], EGA [auth 1], EGC [auth A], EH [auth 1], EHA [auth 1], EI [auth 1], EIC [auth sR], EJ [auth 1], EJA [auth 4], EJC [auth sR], EK [auth 1], EKC [auth sR], EL [auth 1], ELC [auth sR], EM [auth 1], EMC [auth sR], EN [auth 1], ENA [auth AR], EOA [auth AR], EPA [auth AR], EQA [auth AR], ERA [auth AR], ESA [auth AR], ESC [auth sR], ETA [auth AR], EUA [auth AR], EVA [auth AR], EVB [auth CG], EWA [auth AR], EXA [auth AR], EYB [auth A], EZB [auth A], FAC [auth A], FF [auth 1], FG [auth 1], FGA [auth 1], FGC [auth A], FH [auth 1], FHA [auth 1], FI [auth 1], FIA [auth 3], FIC [auth sR], FJ [auth 1], FJA [auth 4], FJC [auth sR], FK [auth 1], FKC [auth sR], FL [auth 1], FLC [auth sR], FM [auth 1], FMC [auth sR], FN [auth 1], FNA [auth AR], FOA [auth AR], FPA [auth AR], FQA [auth AR], FRA [auth AR], FSA [auth AR], FSC [auth sR], FTA [auth AR], FTC [auth c5], FUA [auth AR], FVA [auth AR], FVB [auth CG], FWA [auth AR], FXA [auth AR], FYB [auth A], FZB [auth A], GAC [auth A], GF [auth 1], GG [auth 1], GGA [auth 1], GGC [auth A], GH [auth 1], GHA [auth 1], GHC [auth J], GI [auth 1], GIA [auth 3], GIC [auth sR], GJ [auth 1], GJA [auth 4], GJC [auth sR], GK [auth 1], GKC [auth sR], GL [auth 1], GLC [auth sR], GM [auth 1], GMC [auth sR], GN [auth 1], GNA [auth AR], GOA [auth AR], GPA [auth AR], GQA [auth AR], GRA [auth AR], GRB [auth AR], GSA [auth AR], GSC [auth sR], GTA [auth AR], GUA [auth AR], GVA [auth AR], GVB [auth CG], GWA [auth AR], GXA [auth AR], GYB [auth A], GZB [auth A], HAC [auth A], HF [auth 1], HFC [auth A], HG [auth 1], HGA [auth 1], HGC [auth A], HH [auth 1], HHA [auth 1], HHC [auth O], HI [auth 1], HIA [auth 3], HIC [auth sR], HJ [auth 1], HJA [auth 4], HJC [auth sR], HK [auth 1], HKC [auth sR], HL [auth 1], HLC [auth sR], HM [auth 1], HMC [auth sR], HN [auth 1], HNA [auth AR], HOA [auth AR], HPA [auth AR], HQA [auth AR], HRA [auth AR], HRB [auth AR], HSA [auth AR], HSC [auth sR], HTA [auth AR], HUA [auth AR], HVA [auth AR], HWA [auth AR], HXA [auth AR], HXB [auth DQ], HYB [auth A], HZB [auth A], IAC [auth A], IF [auth 1], IFC [auth A], IG [auth 1], IGA [auth 1], IGC [auth A], IH [auth 1], IHA [auth 1], II [auth 1], IIA [auth 3], IIC [auth sR], IJ [auth 1], IJA [auth 4], IJC [auth sR], IK [auth 1], IKC [auth sR], IL [auth 1], ILC [auth sR], IM [auth 1], IMA [auth AG], IMC [auth sR], IN [auth 1], INA [auth AR], IOA [auth AR], IPA [auth AR], IQA [auth AR], IRA [auth AR], IRB [auth AR], ISA [auth AR], ISB [auth AS], ISC [auth sR], ITA [auth AR], ITC [auth c8], IUA [auth AR], IVA [auth AR], IWA [auth AR], IWB [auth CS], IXA [auth AR], IYB [auth A], IZB [auth A], JAC [auth A], JF [auth 1], JFC [auth A], JG [auth 1], JGA [auth 1], JGC [auth A], JH [auth 1], JHA [auth 1], JI [auth 1], JIA [auth 3], JIC [auth sR], JJ [auth 1], JJA [auth 4], JJC [auth sR], JK [auth 1], JKA [auth 4], JKC [auth sR], JL [auth 1], JLC [auth sR], JM [auth 1], JMC [auth sR], JN [auth 1], JNA [auth AR], JOA [auth AR], JPA [auth AR], JQA [auth AR], JRA [auth AR], JRB [auth AR], JSA [auth AR], JSC [auth sR], JTA [auth AR], JUA [auth AR], JVA [auth AR], JWA [auth AR], JXA [auth AR], JYB [auth A], JZB [auth A], KF [auth 1], KFC [auth A], KG [auth 1], KGA [auth 1], KGC [auth A], KH [auth 1], KHA [auth 1], KHC [auth Q], KI [auth 1], KIA [auth 3], KIC [auth sR], KJ [auth 1], KJA [auth 4], KJC [auth sR], KK [auth 1], KKC [auth sR], KL [auth 1], KLC [auth sR], KM [auth 1], KMC [auth sR], KN [auth 1], KNA [auth AR], KOA [auth AR], KPA [auth AR], KQA [auth AR], KRA [auth AR], KRB [auth AR], KSA [auth AR], KSB [auth AS], KSC [auth sR], KTA [auth AR], KUA [auth AR], KVA [auth AR], KWA [auth AR], KWB [auth CX], KXA [auth AR], KYB [auth A], KZB [auth A], LF [auth 1], LFC [auth A], LG [auth 1], LGA [auth 1], LGC [auth A], LH [auth 1], LHA [auth 1], LHC [auth S], LI [auth 1], LIC [auth sR], LJ [auth 1], LJA [auth 4], LJC [auth sR], LK [auth 1], LKC [auth sR], LL [auth 1], LLC [auth sR], LM [auth 1], LMC [auth sR], LNA [auth AR], LOA [auth AR], LPA [auth AR], LQA [auth AR], LRA [auth AR], LRB [auth AR], LSA [auth AR], LSB [auth AS], LSC [auth sR], LTA [auth AR], LTB [auth AS], LTC [auth d0], LUA [auth AR], LVA [auth AR], LVB [auth CK], LWA [auth AR], LWB [auth CX], LXA [auth AR], LYB [auth A], LZB [auth A], MF [auth 1], MFA [auth 1], MFC [auth A], MG [auth 1], MGA [auth 1], MGC [auth A], MH [auth 1], MHA [auth 1], MHC [auth T], MI [auth 1], MIC [auth sR], MJ [auth 1], MJA [auth 4], MJC [auth sR], MK [auth 1], MKC [auth sR], ML [auth 1], MLC [auth sR], MM [auth 1], MMC [auth sR], MNA [auth AR], MOA [auth AR], MPA [auth AR], MQA [auth AR], MQB [auth AR], MRA [auth AR], MRB [auth AR], MSA [auth AR], MSB [auth AS], MSC [auth sR], MTA [auth AR], MTB [auth AT], MUA [auth AR], MVA [auth AR], MWA [auth AR], MXA [auth AR], MYB [auth A], MZB [auth A], NF [auth 1], NFA [auth 1], NFC [auth A], NG [auth 1], NGA [auth 1], NGC [auth A], NH [auth 1], NHA [auth 1], NHC [auth U], NI [auth 1], NIC [auth sR], NJ [auth 1], NJA [auth 4], NJC [auth sR], NK [auth 1], NKC [auth sR], NL [auth 1], NLC [auth sR], NM [auth 1], NMA [auth AK], NMC [auth sR], NNA [auth AR], NOA [auth AR], NPA [auth AR], NQA [auth AR], NRA [auth AR], NRB [auth AR], NSA [auth AR], NSB [auth AS], NSC [auth sR], NTA [auth AR], NTB [auth AT], NUA [auth AR], NVA [auth AR], NVB [auth CL], NWA [auth AR], NXA [auth AR], NXB [auth A], NYB [auth A], NZB [auth A], OF [auth 1], OFA [auth 1], OFC [auth A], OG [auth 1], OGA [auth 1], OGC [auth A], OH [auth 1], OHA [auth 1], OI [auth 1], OIC [auth sR], OJ [auth 1], OJA [auth 4], OJC [auth sR], OK [auth 1], OKA [auth k], OKC [auth sR], OL [auth 1], OLC [auth sR], OM [auth 1], OMC [auth sR], ONA [auth AR], OOA [auth AR], OPA [auth AR], OQA [auth AR], ORA [auth AR], ORB [auth AR], OSA [auth AR], OSB [auth AS], OTA [auth AR], OTB [auth AT], OUA [auth AR], OVA [auth AR], OVB [auth CL], OWA [auth AR], OXA [auth AR], OXB [auth A], OYB [auth A], OZB [auth A], PF [auth 1], PFA [auth 1], PFC [auth A], PG [auth 1], PGA [auth 1], PGC [auth A], PH [auth 1], PHA [auth 1], PI [auth 1], PIC [auth sR], PJ [auth 1], PJA [auth 4], PJC [auth sR], PK [auth 1], PKC [auth sR], PL [auth 1], PLC [auth sR], PM [auth 1], PMC [auth sR], PNA [auth AR], POA [auth AR], PPA [auth AR], PQA [auth AR], PRA [auth AR], PRB [auth AR], PSA [auth AR], PSB [auth AS], PTA [auth AR], PUA [auth AR], PVA [auth AR], PWA [auth AR], PXA [auth AR], PXB [auth A], PYB [auth A], PZB [auth A], QF [auth 1], QFA [auth 1], QFC [auth A], QG [auth 1], QGA [auth 1], QGC [auth A], QH [auth 1], QHA [auth 1], QI [auth 1], QIC [auth sR], QJ [auth 1], QJC [auth sR], QK [auth 1], QKA [auth l], QKC [auth sR], QL [auth 1], QLA [auth x], QLC [auth sR], QM [auth 1], QMA [auth AP], QMC [auth sR], QNA [auth AR], QOA [auth AR], QPA [auth AR], QQA [auth AR], QQB [auth AR], QRA [auth AR], QRB [auth AR], QSA [auth AR], QSB [auth AS], QTA [auth AR], QUA [auth AR], QVA [auth AR], QWA [auth AR], QXA [auth AR], QXB [auth A], QYB [auth A], QZB [auth A], RF [auth 1], RFA [auth 1], RFC [auth A], RG [auth 1], RGA [auth 1], RGC [auth A], RH [auth 1], RI [auth 1], RIC [auth sR], RJ [auth 1], RJC [auth sR], RK [auth 1], RKC [auth sR], RL [auth 1], RLA [auth z], RLC [auth sR], RM [auth 1], RMC [auth sR], RNA [auth AR], ROA [auth AR], RPA [auth AR], RQA [auth AR], RRA [auth AR], RSA [auth AR], RSB [auth AS], RTA [auth AR], RTB [auth AT], RUA [auth AR], RVA [auth AR], RWA [auth AR], RXA [auth AR], RXB [auth A], RYB [auth A], RZB [auth A], SF [auth 1], SFA [auth 1], SFC [auth A], SG [auth 1], SGA [auth 1], SGC [auth A], SH [auth 1], SI [auth 1], SIC [auth sR], SJ [auth 1], SJC [auth sR], SK [auth 1], SKC [auth sR], SL [auth 1], SLC [auth sR], SM [auth 1], SMA [auth AR], SMC [auth sR], SNA [auth AR], SOA [auth AR], SPA [auth AR], SQA [auth AR], SRA [auth AR], SSA [auth AR], SSC [auth s1], STA [auth AR], STB [auth AT], SUA [auth AR], SVA [auth AR], SWA [auth AR], SXA [auth AR], SXB [auth A], SYB [auth A], SZB [auth A], TEA [auth 1], TF [auth 1], TFA [auth 1], TFC [auth A], TG [auth 1], TGA [auth 1], TGC [auth A], TH [auth 1], TI [auth 1], TIC [auth sR], TJ [auth 1], TJC [auth sR], TK [auth 1], TKC [auth sR], TL [auth 1], TLA [auth z], TLC [auth sR], TM [auth 1], TMA [auth AR], TMC [auth sR], TNA [auth AR], TOA [auth AR], TPA [auth AR], TQA [auth AR], TRA [auth AR], TSA [auth AR], TTA [auth AR], TTB [auth AT], TUA [auth AR], TVA [auth AR], TVB [auth CP], TWA [auth AR], TWB [auth DD], TXA [auth AR], TXB [auth A], TYB [auth A], TZB [auth A], UF [auth 1], UFA [auth 1], UFC [auth A], UG [auth 1], UGA [auth 1], UGC [auth A], UH [auth 1], UHC [auth e], UI [auth 1], UIC [auth sR], UJ [auth 1], UJC [auth sR], UK [auth 1], UKC [auth sR], UL [auth 1], ULC [auth sR], UM [auth 1], UMA [auth AR], UNA [auth AR], UOA [auth AR], UPA [auth AR], UQA [auth AR], URA [auth AR], USA [auth AR], UTA [auth AR], UTB [auth AT], UUA [auth AR], UVA [auth AR], UWA [auth AR], UXB [auth A], UYB [auth A], UZB [auth A], VF [auth 1], VFA [auth 1], VFC [auth A], VG [auth 1], VGA [auth 1], VGC [auth A], VH [auth 1], VI [auth 1], VIC [auth sR], VJ [auth 1], VJC [auth sR], VK [auth 1], VKC [auth sR], VL [auth 1], VLC [auth sR], VM [auth 1], VMA [auth AR], VNA [auth AR], VOA [auth AR], VPA [auth AR], VQA [auth AR], VRA [auth AR], VSA [auth AR], VSC [auth s4], VTA [auth AR], VTB [auth AT], VUA [auth AR], VVA [auth AR], VVB [auth CP], VWA [auth AR], VXB [auth A], VYB [auth A], VZB [auth A], WEA [auth 1], WF [auth 1], WFA [auth 1], WFC [auth A], WG [auth 1], WGA [auth 1], WGC [auth A], WH [auth 1], WHC [auth sR], WI [auth 1], WIA [auth 3], WIC [auth sR], WJ [auth 1], WJC [auth sR], WK [auth 1], WKC [auth sR], WL [auth 1], WLC [auth sR], WM [auth 1], WMA [auth AR], WNA [auth AR], WOA [auth AR], WPA [auth AR], WQA [auth AR], WRA [auth AR], WSA [auth AR], WTA [auth AR], WTB [auth AT], WUA [auth AR], WUB [auth CE], WVA [auth AR], WWA [auth AR], WXB [auth A], WYB [auth A], WZB [auth A], XEA [auth 1], XF [auth 1], XFA [auth 1], XFC [auth A], XG [auth 1], XGA [auth 1], XGC [auth A], XH [auth 1], XI [auth 1], XIA [auth 3], XIC [auth sR], XJ [auth 1], XJC [auth sR], XK [auth 1], XKC [auth sR], XL [auth 1], XLC [auth sR], XM [auth 1], XMA [auth AR], XNA [auth AR], XOA [auth AR], XPA [auth AR], XQA [auth AR], XRA [auth AR], XSA [auth AR], XTA [auth AR], XTB [auth AT], XUA [auth AR], XUB [auth CE], XVA [auth AR], XWA [auth AR], XXB [auth A], XYB [auth A], XZB [auth A], YF [auth 1], YFA [auth 1], YFC [auth A], YG [auth 1], YGA [auth 1], YH [auth 1], YHC [auth sR], YI [auth 1], YIA [auth 3], YIC [auth sR], YJ [auth 1], YJC [auth sR], YK [auth 1], YKA [auth r], YKC [auth sR], YL [auth 1], YLC [auth sR], YM [auth 1], YMA [auth AR], YNA [auth AR], YOA [auth AR], YPA [auth AR], YQA [auth AR], YRA [auth AR], YSA [auth AR], YSC [auth s8], YTA [auth AR], YTB [auth AT], YUA [auth AR], YVA [auth AR], YWA [auth AR], YXB [auth A], YYB [auth A], YZB [auth A], ZF [auth 1], ZFA [auth 1], ZFC [auth A], ZG [auth 1], ZGA [auth 1], ZH [auth 1], ZHC [auth sR], ZI [auth 1], ZIA [auth 3], ZIC [auth sR], ZJ [auth 1], ZJC [auth sR], ZK [auth 1], ZKC [auth sR], ZL [auth 1], ZLC [auth sR], ZM [auth 1], ZMA [auth AR], ZNA [auth AR], ZOA [auth AR], ZPA [auth AR], ZQA [auth AR], ZRA [auth AR], ZSA [auth AR], ZTA [auth AR], ZTB [auth AT], ZUA [auth AR], ZVA [auth AR], ZVB [auth CQ], ZWA [auth AR], ZWB [auth DK], ZXB [auth A], ZYB [auth A], ZZB [auth A]	osmium (III) hexammine H12 N6 Os OWCQTVJQFLTQTE-UHFFFAOYSA-N
SPD	RHA [auth 1], RRB [auth AR]	SPERMIDINE C7 H19 N3 ATHGHQPFGPMSJY-UHFFFAOYSA-N
ZN	CXB [auth DL], DXB [auth DO], GXB [auth DQ], KMA [auth AH], KXB [auth DR], MMA [auth AK], OMA [auth AN], PMA [auth AP], QHC [auth b], RMA [auth AQ], SHC [auth c], THC [auth e], UTC [auth d6], VHC [auth g], WTC [auth d7], XTC [auth d9], YWB [auth DI], ZTC [auth e1]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N
MG	AAA [auth 1], AAB [auth AR], ABA [auth 1], ABB [auth AR], ABC [auth A], ACA [auth 1], ACB [auth AR], ACC [auth A], ADA [auth 1], ADB [auth AR], ADC [auth A], AEA [auth 1], AEB [auth AR], AEC [auth A], AFB [auth AR], AFC [auth A], AGB [auth AR], AHB [auth AR], AHC [auth A], AIA [auth 1], AIB [auth AR], AJB [auth AR], AKA [auth 4], AKB [auth AR], ALA [auth t], ALB [auth AR], AMA [auth AB], AMB [auth AR], ANB [auth AR], ANC [auth sR], AO [auth 1], AOB [auth AR], AOC [auth sR], AP [auth 1], APB [auth AR], APC [auth sR], AQ [auth 1], AQB [auth AR], AQC [auth sR], AR [auth 1], ARB [auth AR], ARC [auth sR], AS [auth 1], ASB [auth AR], ASC [auth sR], AT [auth 1], ATB [auth AS], ATC [auth s9], AU [auth 1], AV [auth 1], AVB [auth CE], AW [auth 1], AWB [auth CQ], AX [auth 1], AXB [auth DL], AY [auth 1], AYA [auth AR], AZ [auth 1], AZA [auth AR], BAA [auth 1], BAB [auth AR], BBA [auth 1], BBB [auth AR], BBC [auth A], BCA [auth 1], BCB [auth AR], BCC [auth A], BDA [auth 1], BDB [auth AR], BDC [auth A], BEA [auth 1], BEB [auth AR], BEC [auth A], BFB [auth AR], BFC [auth A], BGB [auth AR], BHB [auth AR], BHC [auth A], BIA [auth 1], BIB [auth AR], BJB [auth AR], BKA [auth 4], BKB [auth AR], BLA [auth t], BLB [auth AR], BMA [auth AB], BMB [auth AR], BNB [auth AR], BNC [auth sR], BO [auth 1], BOB [auth AR], BOC [auth sR], BP [auth 1], BPB [auth AR], BPC [auth sR], BQ [auth 1], BQB [auth AR], BQC [auth sR], BR [auth 1], BRB [auth AR], BRC [auth sR], BS [auth 1], BSB [auth AR], BSC [auth sR], BT [auth 1], BTB [auth AS], BTC [auth c1], BU [auth 1], BV [auth 1], BVB [auth CE], BW [auth 1], BWB [auth CQ], BX [auth 1], BY [auth 1], BYA [auth AR], BZ [auth 1], BZA [auth AR], CAA [auth 1], CAB [auth AR], CBA [auth 1], CBB [auth AR], CBC [auth A], CCA [auth 1], CCB [auth AR], CCC [auth A], CDA [auth 1], CDB [auth AR], CDC [auth A], CEA [auth 1], CEB [auth AR], CEC [auth A], CFA [auth 1], CFB [auth AR], CFC [auth A], CGB [auth AR], CHB [auth AR], CHC [auth A], CIA [auth 1], CIB [auth AR], CJB [auth AR], CKA [auth 4], CKB [auth AR], CLA [auth t], CLB [auth AR], CMB [auth AR], CNB [auth AR], CNC [auth sR], CO [auth 1], COB [auth AR], COC [auth sR], CP [auth 1], CPB [auth AR], CPC [auth sR], CQ [auth 1], CQB [auth AR], CQC [auth sR], CR [auth 1], CRB [auth AR], CRC [auth sR], CS [auth 1], CSB [auth AR], CSC [auth sR], CT [auth 1], CTB [auth AS], CU [auth 1], CUB [auth AT], CV [auth 1], CVB [auth CF], CW [auth 1], CWB [auth CQ], CX [auth 1], CY [auth 1], CYA [auth AR], CZ [auth 1], CZA [auth AR], DAA [auth 1], DAB [auth AR], DBA [auth 1], DBB [auth AR], DBC [auth A], DCA [auth 1], DCB [auth AR], DCC [auth A], DDA [auth 1], DDB [auth AR], DDC [auth A], DEA [auth 1], DEB [auth AR], DEC [auth A], DFA [auth 1], DFB [auth AR], DFC [auth A], DGB [auth AR], DHB [auth AR], DHC [auth A], DIA [auth 1], DIB [auth AR], DJA [auth 4], DJB [auth AR], DKA [auth 4], DKB [auth AR], DLB [auth AR], DMA [auth AF], DMB [auth AR], DNB [auth AR], DNC [auth sR], DO [auth 1], DOB [auth AR], DOC [auth sR], DP [auth 1], DPB [auth AR], DPC [auth sR], DQ [auth 1], DQB [auth AR], DQC [auth sR], DR [auth 1], DRB [auth AR], DRC [auth sR], DS [auth 1], DSB [auth AR], DT [auth 1], DTB [auth AS], DTC [auth c4], DU [auth 1], DUB [auth AT], DV [auth 1], DVB [auth CF], DW [auth 1], DWB [auth CR], DX [auth 1], DY [auth 1], DYA [auth AR], DZ [auth 1], DZA [auth AR], EAA [auth 1], EAB [auth AR], EBA [auth 1], EBB [auth AR], EBC [auth A], ECA [auth 1], ECB [auth AR], ECC [auth A], EDA [auth 1], EDB [auth AR], EDC [auth A], EEA [auth 1], EEB [auth AR], EEC [auth A], EFA [auth 1], EFB [auth AR], EGB [auth AR], EHB [auth AR], EHC [auth F], EIB [auth AR], EJB [auth AR], EKA [auth 4], EKB [auth AR], ELA [auth v], ELB [auth AR], EMA [auth AF], EMB [auth AR], ENB [auth AR], ENC [auth sR], EO [auth 1], EOB [auth AR], EOC [auth sR], EP [auth 1], EPB [auth AR], EPC [auth sR], EQ [auth 1], EQB [auth AR], EQC [auth sR], ER [auth 1], ERB [auth AR], ERC [auth sR], ES [auth 1], ESB [auth AR], ET [auth 1], ETB [auth AS], ETC [auth c4], EU [auth 1], EUB [auth AT], EV [auth 1], EW [auth 1], EWB [auth CR], EX [auth 1], EXB [auth DO], EY [auth 1], EYA [auth AR], EZ [auth 1], EZA [auth AR], FAA [auth 1], FAB [auth AR], FBA [auth 1], FBB [auth AR], FBC [auth A], FCA [auth 1], FCB [auth AR], FCC [auth A], FDA [auth 1], FDB [auth AR], FDC [auth A], FEA [auth 1], FEB [auth AR], FEC [auth A], FFA [auth 1], FFB [auth AR], FFC [auth A], FGB [auth AR], FHB [auth AR], FHC [auth H], FIB [auth AR], FJB [auth AR], FKA [auth 4], FKB [auth AR], FLA [auth v], FLB [auth AR], FMA [auth AF], FMB [auth AR], FNB [auth AR], FNC [auth sR], FO [auth 1], FOB [auth AR], FOC [auth sR], FP [auth 1], FPB [auth AR], FPC [auth sR], FQ [auth 1], FQB [auth AR], FQC [auth sR], FR [auth 1], FRB [auth AR], FRC [auth sR], FS [auth 1], FSB [auth AR], FT [auth 1], FTB [auth AS], FU [auth 1], FUB [auth AT], FV [auth 1], FW [auth 1], FWB [auth CR], FX [auth 1], FXB [auth DP], FY [auth 1], FYA [auth AR], FZ [auth 1], FZA [auth AR], GAA [auth 1], GAB [auth AR], GBA [auth 1], GBB [auth AR], GBC [auth A], GCA [auth 1], GCB [auth AR], GCC [auth A], GDA [auth 1], GDB [auth AR], GDC [auth A], GEA [auth 1], GEB [auth AR], GEC [auth A], GFA [auth 1], GFB [auth AR], GFC [auth A], GGB [auth AR], GHB [auth AR], GIB [auth AR], GJB [auth AR], GKA [auth 4], GKB [auth AR], GLA [auth v], GLB [auth AR], GMA [auth AF], GMB [auth AR], GNB [auth AR], GNC [auth sR], GO [auth 1], GOB [auth AR], GOC [auth sR], GP [auth 1], GPB [auth AR], GPC [auth sR], GQ [auth 1], GQB [auth AR], GQC [auth sR], GR [auth 1], GRC [auth sR], GS [auth 1], GSB [auth AR], GT [auth 1], GTB [auth AS], GTC [auth c6], GU [auth 1], GUB [auth AT], GV [auth 1], GW [auth 1], GWB [auth CR], GX [auth 1], GY [auth 1], GYA [auth AR], GZ [auth 1], GZA [auth AR], HAA [auth 1], HAB [auth AR], HBA [auth 1], HBB [auth AR], HBC [auth A], HCA [auth 1], HCB [auth AR], HCC [auth A], HDA [auth 1], HDB [auth AR], HDC [auth A], HEA [auth 1], HEB [auth AR], HEC [auth A], HFA [auth 1], HFB [auth AR], HGB [auth AR], HHB [auth AR], HIB [auth AR], HJB [auth AR], HKA [auth 4], HKB [auth AR], HLA [auth w], HLB [auth AR], HMA [auth AG], HMB [auth AR], HNB [auth AR], HNC [auth sR], HO [auth 1], HOB [auth AR], HOC [auth sR], HP [auth 1], HPB [auth AR], HPC [auth sR], HQ [auth 1], HQB [auth AR], HQC [auth sR], HR [auth 1], HRC [auth sR], HS [auth 1], HT [auth 1], HTB [auth AS], HTC [auth c6], HU [auth 1], HUB [auth AT], HV [auth 1], HVB [auth CG], HW [auth 1], HWB [auth CR], HX [auth 1], HY [auth 1], HYA [auth AR], HZ [auth 1], HZA [auth AR], IAA [auth 1], IAB [auth AR], IBA [auth 1], IBB [auth AR], IBC [auth A], ICA [auth 1], ICB [auth AR], ICC [auth A], IDA [auth 1], IDB [auth AR], IDC [auth A], IEA [auth 1], IEB [auth AR], IEC [auth A], IFA [auth 1], IFB [auth AR], IGB [auth AR], IHB [auth AR], IHC [auth O], IIB [auth AR], IJB [auth AR], IKA [auth 4], IKB [auth AR], ILA [auth x], ILB [auth AR], IMB [auth AR], INB [auth AR], INC [auth sR], IO [auth 1], IOB [auth AR], IOC [auth sR], IP [auth 1], IPB [auth AR], IPC [auth sR], IQ [auth 1], IQB [auth AR], IQC [auth sR], IR [auth 1], IRC [auth sR], IS [auth 1], IT [auth 1], ITB [auth AS], IU [auth 1], IUB [auth AT], IV [auth 1], IVB [auth CI], IW [auth 1], IX [auth 1], IXB [auth DQ], IY [auth 1], IYA [auth AR], IZ [auth 1], IZA [auth AR], JAA [auth 1], JAB [auth AR], JBA [auth 1], JBB [auth AR], JBC [auth A], JCA [auth 1], JCB [auth AR], JCC [auth A], JDA [auth 1], JDB [auth AR], JDC [auth A], JEA [auth 1], JEB [auth AR], JEC [auth A], JFA [auth 1], JFB [auth AR], JGB [auth AR], JHB [auth AR], JHC [auth P], JIB [auth AR], JJB [auth AR], JKB [auth AR], JLA [auth x], JLB [auth AR], JMA [auth AG], JMB [auth AR], JNB [auth AR], JNC [auth sR], JO [auth 1], JOB [auth AR], JOC [auth sR], JP [auth 1], JPB [auth AR], JPC [auth sR], JQ [auth 1], JQB [auth AR], JQC [auth sR], JR [auth 1], JRC [auth sR], JS [auth 1], JSB [auth AS], JT [auth 1], JTB [auth AS], JTC [auth c8], JU [auth 1], JUB [auth AT], JV [auth 1], JVB [auth CI], JW [auth 1], JWB [auth CU], JX [auth 1], JXB [auth DQ], JY [auth 1], JYA [auth AR], JZ [auth 1], JZA [auth AR], KAA [auth 1], KAB [auth AR], KAC [auth A], KBA [auth 1], KBB [auth AR], KBC [auth A], KCA [auth 1], KCB [auth AR], KCC [auth A], KDA [auth 1], KDB [auth AR], KDC [auth A], KEA [auth 1], KEB [auth AR], KEC [auth A], KFA [auth 1], KFB [auth AR], KGB [auth AR], KHB [auth AR], KIB [auth AR], KJB [auth AR], KKA [auth j], KKB [auth AR], KLA [auth x], KLB [auth AR], KMB [auth AR], KNB [auth AR], KNC [auth sR], KO [auth 1], KOB [auth AR], KOC [auth sR], KP [auth 1], KPB [auth AR], KPC [auth sR], KQ [auth 1], KQB [auth AR], KQC [auth sR], KR [auth 1], KRC [auth sR], KS [auth 1], KT [auth 1], KTB [auth AS], KTC [auth c9], KU [auth 1], KUB [auth AT], KV [auth 1], KVB [auth CI], KW [auth 1], KX [auth 1], KY [auth 1], KYA [auth AR], KZ [auth 1], KZA [auth AR], LAA [auth 1], LAB [auth AR], LAC [auth A], LBA [auth 1], LBB [auth AR], LBC [auth A], LCA [auth 1], LCB [auth AR], LCC [auth A], LDA [auth 1], LDB [auth AR], LDC [auth A], LEA [auth 1], LEB [auth AR], LEC [auth A], LFA [auth 1], LFB [auth AR], LGB [auth AR], LHB [auth AR], LIA [auth 3], LIB [auth AR], LJB [auth AR], LKA [auth j], LKB [auth AR], LLA [auth x], LLB [auth AR], LMA [auth AK], LMB [auth AR], LN [auth 1], LNB [auth AR], LNC [auth sR], LO [auth 1], LOB [auth AR], LOC [auth sR], LP [auth 1], LPB [auth AR], LPC [auth sR], LQ [auth 1], LQB [auth AR], LQC [auth sR], LR [auth 1], LRC [auth sR], LS [auth 1], LT [auth 1], LU [auth 1], LUB [auth AT], LV [auth 1], LW [auth 1], LX [auth 1], LXB [auth sM], LY [auth 1], LYA [auth AR], LZ [auth 1], LZA [auth AR], MAA [auth 1], MAB [auth AR], MAC [auth A], MBA [auth 1], MBB [auth AR], MBC [auth A], MCA [auth 1], MCB [auth AR], MCC [auth A], MDA [auth 1], MDB [auth AR], MDC [auth A], MEA [auth 1], MEB [auth AR], MEC [auth A], MFB [auth AR], MGB [auth AR], MHB [auth AR], MIA [auth 3], MIB [auth AR], MJB [auth AR], MKA [auth j], MKB [auth AR], MLA [auth x], MLB [auth AR], MMB [auth AR], MN [auth 1], MNB [auth AR], MNC [auth sR], MO [auth 1], MOB [auth AR], MOC [auth sR], MP [auth 1], MPB [auth AR], MPC [auth sR], MQ [auth 1], MQC [auth sR], MR [auth 1], MRC [auth sR], MS [auth 1], MT [auth 1], MTC [auth d3], MU [auth 1], MUB [auth AT], MV [auth 1], MVB [auth CK], MW [auth 1], MWB [auth CX], MX [auth 1], MXB [auth sM], MY [auth 1], MYA [auth AR], MZ [auth 1], MZA [auth AR], NAA [auth 1], NAB [auth AR], NAC [auth A], NBA [auth 1], NBB [auth AR], NBC [auth A], NCA [auth 1], NCB [auth AR], NCC [auth A], NDA [auth 1], NDB [auth AR], NDC [auth A], NEA [auth 1], NEB [auth AR], NEC [auth A], NFB [auth AR], NGB [auth AR], NHB [auth AR], NIA [auth 3], NIB [auth AR], NJB [auth AR], NKA [auth k], NKB [auth AR], NLA [auth x], NLB [auth AR], NMB [auth AR], NN [auth 1], NNB [auth AR], NNC [auth sR], NO [auth 1], NOB [auth AR], NOC [auth sR], NP [auth 1], NPB [auth AR], NPC [auth sR], NQ [auth 1], NQB [auth AR], NQC [auth sR], NR [auth 1], NRC [auth sR], NS [auth 1], NT [auth 1], NTC [auth d3], NU [auth 1], NUB [auth AT], NV [auth 1], NW [auth 1], NWB [auth CY], NX [auth 1], NY [auth 1], NYA [auth AR], NZ [auth 1], NZA [auth AR], OAA [auth 1], OAB [auth AR], OAC [auth A], OBA [auth 1], OBB [auth AR], OBC [auth A], OCA [auth 1], OCB [auth AR], OCC [auth A], ODA [auth 1], ODB [auth AR], ODC [auth A], OEA [auth 1], OEB [auth AR], OEC [auth A], OFB [auth AR], OGB [auth AR], OHB [auth AR], OHC [auth X], OIA [auth 3], OIB [auth AR], OJB [auth AR], OKB [auth AR], OLA [auth x], OLB [auth AR], OMB [auth AR], ON [auth 1], ONB [auth AR], ONC [auth sR], OO [auth 1], OOB [auth AR], OOC [auth sR], OP [auth 1], OPB [auth AR], OPC [auth sR], OQ [auth 1], OQB [auth AR], OQC [auth sR], OR [auth 1], ORC [auth sR], OS [auth 1], OSC [auth sR], OT [auth 1], OTC [auth d3], OU [auth 1], OUB [auth AT], OV [auth 1], OW [auth 1], OWB [auth DA], OX [auth 1], OY [auth 1], OYA [auth AR], OZ [auth 1], OZA [auth AR], PAA [auth 1], PAB [auth AR], PAC [auth A], PBA [auth 1], PBB [auth AR], PBC [auth A], PCA [auth 1], PCB [auth AR], PCC [auth A], PDA [auth 1], PDB [auth AR], PDC [auth A], PEA [auth 1], PEB [auth AR], PEC [auth A], PFB [auth AR], PGB [auth AR], PHB [auth AR], PHC [auth Y], PIA [auth 3], PIB [auth AR], PJB [auth AR], PKA [auth l], PKB [auth AR], PLA [auth x], PLB [auth AR], PMB [auth AR], PN [auth 1], PNB [auth AR], PNC [auth sR], PO [auth 1], POB [auth AR], POC [auth sR], PP [auth 1], PPB [auth AR], PPC [auth sR], PQ [auth 1], PQB [auth AR], PQC [auth sR], PR [auth 1], PRC [auth sR], PS [auth 1], PSC [auth sR], PT [auth 1], PTB [auth AT], PTC [auth d3], PU [auth 1], PUB [auth AT], PV [auth 1], PVB [auth CL], PW [auth 1], PWB [auth DA], PX [auth 1], PY [auth 1], PYA [auth AR], PZ [auth 1], PZA [auth AR], QAA [auth 1], QAB [auth AR], QAC [auth A], QBA [auth 1], QBB [auth AR], QBC [auth A], QCA [auth 1], QCB [auth AR], QCC [auth A], QDA [auth 1], QDB [auth AR], QDC [auth A], QEA [auth 1], QEB [auth AR], QEC [auth A], QFB [auth AR], QGB [auth AR], QHB [auth AR], QIA [auth 3], QIB [auth AR], QJA [auth 4], QJB [auth AR], QKB [auth AR], QLB [auth AR], QMB [auth AR], QN [auth 1], QNB [auth AR], QNC [auth sR], QO [auth 1], QOB [auth AR], QOC [auth sR], QP [auth 1], QPB [auth AR], QPC [auth sR], QQ [auth 1], QQC [auth sR], QR [auth 1], QRC [auth sR], QS [auth 1], QSC [auth sR], QT [auth 1], QTB [auth AT], QTC [auth d4], QU [auth 1], QUB [auth AT], QV [auth 1], QVB [auth CM], QW [auth 1], QWB [auth DC], QX [auth 1], QY [auth 1], QYA [auth AR], QZ [auth 1], QZA [auth AR], RAA [auth 1], RAB [auth AR], RAC [auth A], RBA [auth 1], RBB [auth AR], RBC [auth A], RCA [auth 1], RCB [auth AR], RCC [auth A], RDA [auth 1], RDB [auth AR], RDC [auth A], REA [auth 1], REB [auth AR], REC [auth A], RFB [auth AR], RGB [auth AR], RHB [auth AR], RHC [auth b], RIA [auth 3], RIB [auth AR], RJA [auth 4], RJB [auth AR], RKA [auth l], RKB [auth AR], RLB [auth AR], RMB [auth AR], RN [auth 1], RNB [auth AR], RNC [auth sR], RO [auth 1], ROB [auth AR], ROC [auth sR], RP [auth 1], RPB [auth AR], RPC [auth sR], RQ [auth 1], RQB [auth AR], RQC [auth sR], RR [auth 1], RRC [auth sR], RS [auth 1], RSC [auth sR], RT [auth 1], RTC [auth d4], RU [auth 1], RUB [auth CD], RV [auth 1], RVB [auth CM], RW [auth 1], RWB [auth DC], RX [auth 1], RY [auth 1], RYA [auth AR], RZ [auth 1], RZA [auth AR], SAA [auth 1], SAB [auth AR], SAC [auth A], SBA [auth 1], SBB [auth AR], SBC [auth A], SCA [auth 1], SCB [auth AR], SCC [auth A], SDA [auth 1], SDB [auth AR], SDC [auth A], SEA [auth 1], SEB [auth AR], SEC [auth A], SFB [auth AR], SGB [auth AR], SHA [auth 1], SHB [auth AR], SIA [auth 3], SIB [auth AR], SJA [auth 4], SJB [auth AR], SKA [auth l], SKB [auth AR], SLA [auth z], SLB [auth AR], SMB [auth AR], SN [auth 1], SNB [auth AR], SNC [auth sR], SO [auth 1], SOB [auth AR], SOC [auth sR], SP [auth 1], SPB [auth AR], SPC [auth sR], SQ [auth 1], SQB [auth AR], SQC [auth sR], SR [auth 1], SRB [auth AR], SRC [auth sR], SS [auth 1], SSB [auth AS], ST [auth 1], STC [auth d4], SU [auth 1], SUB [auth CD], SV [auth 1], SVB [auth CO], SW [auth 1], SWB [auth DC], SX [auth 1], SY [auth 1], SYA [auth AR], SZ [auth 1], SZA [auth AR], TAA [auth 1], TAB [auth AR], TAC [auth A], TBA [auth 1], TBB [auth AR], TBC [auth A], TCA [auth 1], TCB [auth AR], TCC [auth A], TDA [auth 1], TDB [auth AR], TDC [auth A], TEB [auth AR], TEC [auth A], TFB [auth AR], TGB [auth AR], THA [auth 1], THB [auth AR], TIA [auth 3], TIB [auth AR], TJA [auth 4], TJB [auth AR], TKA [auth n], TKB [auth AR], TLB [auth AR], TMB [auth AR], TN [auth 1], TNB [auth AR], TNC [auth sR], TO [auth 1], TOB [auth AR], TOC [auth sR], TP [auth 1], TPB [auth AR], TPC [auth sR], TQ [auth 1], TQB [auth AR], TQC [auth sR], TR [auth 1], TRB [auth AR], TRC [auth sR], TS [auth 1], TSB [auth AS], TSC [auth s1], TT [auth 1], TTC [auth d6], TU [auth 1], TUB [auth CD], TV [auth 1], TW [auth 1], TX [auth 1], TY [auth 1], TYA [auth AR], TZ [auth 1], TZA [auth AR], UAA [auth 1], UAB [auth AR], UAC [auth A], UBA [auth 1], UBB [auth AR], UBC [auth A], UCA [auth 1], UCB [auth AR], UCC [auth A], UDA [auth 1], UDB [auth AR], UDC [auth A], UEA [auth 1], UEB [auth AR], UEC [auth A], UFB [auth AR], UGB [auth AR], UHA [auth 1], UHB [auth AR], UIA [auth 3], UIB [auth AR], UJA [auth 4], UJB [auth AR], UKA [auth o], UKB [auth AR], ULA [auth 6], ULB [auth AR], UMB [auth AR], UMC [auth sR], UN [auth 1], UNB [auth AR], UNC [auth sR], UO [auth 1], UOB [auth AR], UOC [auth sR], UP [auth 1], UPB [auth AR], UPC [auth sR], UQ [auth 1], UQB [auth AR], UQC [auth sR], UR [auth 1], URB [auth AR], URC [auth sR], US [auth 1], USB [auth AS], USC [auth s2], UT [auth 1], UU [auth 1], UUB [auth CE], UV [auth 1], UVB [auth CP], UW [auth 1], UWB [auth DF], UX [auth 1], UXA [auth AR], UY [auth 1], UYA [auth AR], UZ [auth 1], UZA [auth AR], VAA [auth 1], VAB [auth AR], VAC [auth A], VBA [auth 1], VBB [auth AR], VBC [auth A], VCA [auth 1], VCB [auth AR], VCC [auth A], VDA [auth 1], VDB [auth AR], VDC [auth A], VEA [auth 1], VEB [auth AR], VEC [auth A], VFB [auth AR], VGB [auth AR], VHA [auth 1], VHB [auth AR], VIA [auth 3], VIB [auth AR], VJA [auth 4], VJB [auth AR], VKA [auth r], VKB [auth AR], VLA [auth 6], VLB [auth AR], VMB [auth AR], VMC [auth sR], VN [auth 1], VNB [auth AR], VNC [auth sR], VO [auth 1], VOB [auth AR], VOC [auth sR], VP [auth 1], VPB [auth AR], VPC [auth sR], VQ [auth 1], VQB [auth AR], VQC [auth sR], VR [auth 1], VRB [auth AR], VRC [auth sR], VS [auth 1], VSB [auth AS], VT [auth 1], VTC [auth d6], VU [auth 1], VUB [auth CE], VV [auth 1], VW [auth 1], VWB [auth DH], VX [auth 1], VXA [auth AR], VY [auth 1], VYA [auth AR], VZ [auth 1], VZA [auth AR], WAA [auth 1], WAB [auth AR], WAC [auth A], WBA [auth 1], WBB [auth AR], WBC [auth A], WCA [auth 1], WCB [auth AR], WCC [auth A], WDA [auth 1], WDB [auth AR], WDC [auth A], WEB [auth AR], WEC [auth A], WFB [auth AR], WGB [auth AR], WHA [auth 1], WHB [auth AR], WIB [auth AR], WJA [auth 4], WJB [auth AR], WKA [auth r], WKB [auth AR], WLA [auth 6], WLB [auth AR], WMB [auth AR], WMC [auth sR], WN [auth 1], WNB [auth AR], WNC [auth sR], WO [auth 1], WOB [auth AR], WOC [auth sR], WP [auth 1], WPB [auth AR], WPC [auth sR], WQ [auth 1], WQB [auth AR], WQC [auth sR], WR [auth 1], WRB [auth AR], WRC [auth sR], WS [auth 1], WSB [auth AS], WSC [auth s4], WT [auth 1], WU [auth 1], WV [auth 1], WVB [auth CP], WW [auth 1], WWB [auth DH], WX [auth 1], WXA [auth AR], WY [auth 1], WYA [auth AR], WZ [auth 1], WZA [auth AR], XAA [auth 1], XAB [auth AR], XAC [auth A], XBA [auth 1], XBB [auth AR], XBC [auth A], XCA [auth 1], XCB [auth AR], XCC [auth A], XDA [auth 1], XDB [auth AR], XDC [auth A], XEB [auth AR], XEC [auth A], XFB [auth AR], XGB [auth AR], XHA [auth 1], XHB [auth AR], XHC [auth sR], XIB [auth AR], XJA [auth 4], XJB [auth AR], XKA [auth r], XKB [auth AR], XLA [auth AB], XLB [auth AR], XMB [auth AR], XMC [auth sR], XN [auth 1], XNB [auth AR], XNC [auth sR], XO [auth 1], XOB [auth AR], XOC [auth sR], XP [auth 1], XPB [auth AR], XPC [auth sR], XQ [auth 1], XQB [auth AR], XQC [auth sR], XR [auth 1], XRB [auth AR], XRC [auth sR], XS [auth 1], XSB [auth AS], XSC [auth s8], XT [auth 1], XU [auth 1], XV [auth 1], XVB [auth CP], XW [auth 1], XWB [auth DI], XX [auth 1], XXA [auth AR], XY [auth 1], XYA [auth AR], XZ [auth 1], XZA [auth AR], YAA [auth 1], YAB [auth AR], YAC [auth A], YBA [auth 1], YBB [auth AR], YBC [auth A], YCA [auth 1], YCB [auth AR], YCC [auth A], YDA [auth 1], YDB [auth AR], YDC [auth A], YEA [auth 1], YEB [auth AR], YEC [auth A], YFB [auth AR], YGB [auth AR], YGC [auth A], YHA [auth 1], YHB [auth AR], YIB [auth AR], YJA [auth 4], YJB [auth AR], YKB [auth AR], YLA [auth AB], YLB [auth AR], YMB [auth AR], YMC [auth sR], YN [auth 1], YNB [auth AR], YNC [auth sR], YO [auth 1], YOB [auth AR], YOC [auth sR], YP [auth 1], YPB [auth AR], YPC [auth sR], YQ [auth 1], YQB [auth AR], YQC [auth sR], YR [auth 1], YRB [auth AR], YRC [auth sR], YS [auth 1], YSB [auth AS], YT [auth 1], YTC [auth d9], YU [auth 1], YUB [auth CE], YV [auth 1], YVB [auth CQ], YW [auth 1], YX [auth 1], YXA [auth AR], YY [auth 1], YYA [auth AR], YZ [auth 1], YZA [auth AR], ZAA [auth 1], ZAB [auth AR], ZAC [auth A], ZBA [auth 1], ZBB [auth AR], ZBC [auth A], ZCA [auth 1], ZCB [auth AR], ZCC [auth A], ZDA [auth 1], ZDB [auth AR], ZDC [auth A], ZEA [auth 1], ZEB [auth AR], ZEC [auth A], ZFB [auth AR], ZGB [auth AR], ZGC [auth A], ZHA [auth 1], ZHB [auth AR], ZIB [auth AR], ZJA [auth 4], ZJB [auth AR], ZKA [auth s], ZKB [auth AR], ZLA [auth AB], ZLB [auth AR], ZMB [auth AR], ZMC [auth sR], ZN [auth 1], ZNB [auth AR], ZNC [auth sR], ZO [auth 1], ZOB [auth AR], ZOC [auth sR], ZP [auth 1], ZPB [auth AR], ZPC [auth sR], ZQ [auth 1], ZQB [auth AR], ZQC [auth sR], ZR [auth 1], ZRB [auth AR], ZRC [auth sR], ZS [auth 1], ZSB [auth AS], ZSC [auth s8], ZT [auth 1], ZU [auth 1], ZUB [auth CE], ZV [auth 1], ZW [auth 1], ZX [auth 1], ZXA [auth AR], ZY [auth 1], ZYA [auth AR], ZZ [auth 1], ZZA [auth AR]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.90 Å
• R-Value Free:  0.238 (DCC)
• R-Value Work:  0.214 (Depositor), 0.216 (DCC)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 303.81	α = 90
b = 287.52	β = 98.94
c = 435.86	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
XSCALE	data scaling
PHENIX	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2024-11-27
Deposition Author(s): Terrosu, S., Yusupov, M., Vanderwal, C.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	GM129264

Revision History

• Version 1.0: 2024-11-27
  Type: Initial release

• Version 2.0: 2025-04-30
  Changes: Atomic model, Data collection, Database references, Derived calculations, Structure summary
