8OEO | pdb_00008oeo

Aspergillus niger ferulic acid decarboxylase (Fdc) V186C-A296C (DB4) variant in complex with prenylated flavin

PDB DOI: https://doi.org/10.2210/pdb8OEO/pdb

Classification: LYASE
Organism(s): Aspergillus niger CBS 513.88
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2023-03-10 Released: 2023-09-06
Deposition Author(s): Roberts, G.W., Leys, D.
Funding Organization(s): Biotechnology and Biological Sciences Research Council (BBSRC)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.30 Å
R-Value Free:
0.183 (Depositor), 0.188 (DCC)
R-Value Work:
0.164 (Depositor)
R-Value Observed:
0.165 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.1 of the entry. See complete history.

Literature

Aspergillus niger ferulic acid decarboxylase (Fdc) V186C-A296C (DB4) variant in complex with prenylated flavin

Roberts, G.W., Leys, D.

To be published.

Macromolecule Content

Total Structure Weight: 57.26 kDa
Atom Count: 4,695
Modeled Residue Count: 501
Deposited Residue Count: 508
Unique protein chains: 1

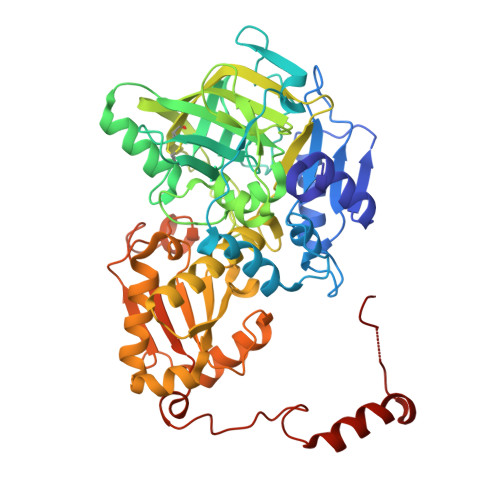

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Ferulic acid decarboxylase 1	A	508	Aspergillus niger CBS 513.88	Mutation(s): 2 Gene Names: fdc1, An03g06590 EC: 4.1.1.102
UniProt
Find proteins for A2QHE5 (Aspergillus niger (strain ATCC MYA-4892 / CBS 513.88 / FGSC A1513)) Explore A2QHE5 Go to UniProtKB: A2QHE5
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A2QHE5
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
4LU (Subject of Investigation/LOI) Query on 4LU Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	1-deoxy-5-O-phosphono-1-(3,3,4,5-tetramethyl-9,11-dioxo-2,3,8,9,10,11-hexahydro-7H-quinolino[1,8-fg]pteridin-12-ium-7-y l)-D-ribitol C₂₂ H₃₀ N₄ O₉ P KOUJZPGFPGLHCZ-IYOUNJFTSA-O		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
SCN Query on SCN Download:Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain I [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A]	F [auth A], G [auth A], H [auth A], I [auth A]	THIOCYANATE ION C N S ZMZDMBWJUHKJPS-UHFFFAOYSA-M		Interactions Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Interactions & Density Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A]
MN Query on MN Download:Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	MANGANESE (II) ION Mn WAEMQWOKJMHJLA-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]
K Query on K Download:Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain E [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A]	D [auth A], E [auth A]	POTASSIUM ION K NPYPAHLBTDXSSS-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain E [auth A] Interactions & Density Focus chain D [auth A] Focus chain E [auth A]
