8HJA | pdb_00008hja

The crystal structure of syn_CdgR-(c-di-GMP) from Synechocystis sp. PCC 6803


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.38 Å
  • R-Value Free:
    0.286 (Depositor), 0.280 (DCC)
  • R-Value Work:
    0.224 (Depositor), 0.240 (DCC)
  • R-Value Observed:
    0.231 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

A c-di-GMP binding effector controls cell size in a cyanobacterium.

Zeng, X.Huang, M.Sun, Q.X.Peng, Y.J.Xu, X.Tang, Y.B.Zhang, J.Y.Yang, Y.Zhang, C.C.

(2023) Proc Natl Acad Sci U S A 120: e2221874120-e2221874120

  • DOI: https://doi.org/10.1073/pnas.2221874120
  • Primary Citation of Related Structures:
    8HJA

  • PubMed Abstract:

    Cyclic-di-GMP (c-di-GMP) is a ubiquitous bacterial signaling molecule. It is also a critical player in the regulation of cell size and cell behaviors such as cell aggregation and phototaxis in cyanobacteria, which constitute an important group of prokaryotes for their roles in the ecology and evolution of the Earth. However, c-di-GMP receptors have never been revealed in cyanobacteria. Here, we report the identification of a c-di-GMP receptor, CdgR, from the filamentous cyanobacterium Anabaena PCC 7120. Crystal structural analysis and genetic studies demonstrate that CdgR binds c-di-GMP at the dimer interface and this binding is required for the control of cell size in a c-di-GMP-dependent manner. Different functions of CdgR, in ligand binding and signal transmission, could be separated genetically, allowing us to dissect its molecular signaling functions. The presence of the apo-form of CdgR triggers cell size reduction, consistent with the similar effects observed with a decrease of c-di-GMP levels in cells. Furthermore, we found that CdgR exerts its function by interacting with a global transcription factor DevH, and this interaction was inhibited by c-di-GMP. The lethal effect triggered by conditional depletion of DevH or by the production of several point-mutant proteins of CdgR in cells indicates that this signaling pathway plays critical functions in Anabaena . Our studies revealed a mechanism of c-di-GMP signaling in the control of cell size, an important and complex trait for bacteria. CdgR is highly conserved in cyanobacteria, which will greatly expand our understanding of the roles of c-di-GMP signaling in these organisms.


  • Organizational Affiliation
    • State Key Laboratory of Freshwater Ecology and Biotechnology, Institute of Hydrobiology, Chinese Academy of Sciences, Wuhan, Hubei 430072, People's Republic of China.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

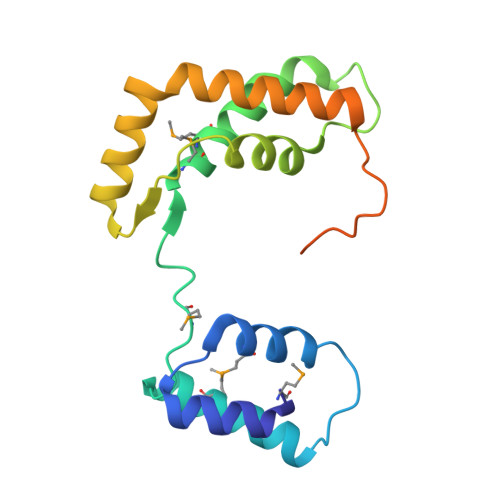

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
c-di-GMP receptor
A, B
179Synechocystis sp. PCC 6803Mutation(s): 0
Gene Names: slr1970
UniProt
Find proteins for P74113 (Synechocystis sp. (strain ATCC 27184 / PCC 6803 / Kazusa))
Explore P74113
Go to UniProtKB:  P74113
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP74113
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
C2E (Subject of Investigation/LOI)
Query on C2E

Download Ideal Coordinates CCD File
C [auth A],
D [auth B]
9,9'-[(2R,3R,3aS,5S,7aR,9R,10R,10aS,12S,14aR)-3,5,10,12-tetrahydroxy-5,12-dioxidooctahydro-2H,7H-difuro[3,2-d:3',2'-j][1,3,7,9,2,8]tetraoxadiphosphacyclododecine-2,9-diyl]bis(2-amino-1,9-dihydro-6H-purin-6-one)
C20 H24 N10 O14 P2
PKFDLKSEZWEFGL-MHARETSRSA-N
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
MSE
Query on MSE
A, B
L-PEPTIDE LINKINGC5 H11 N O2 SeMET
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.38 Å
  • R-Value Free:  0.286 (Depositor), 0.280 (DCC)
  • R-Value Work:  0.224 (Depositor), 0.240 (DCC)
  • R-Value Observed: 0.231 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 96.327α = 90
b = 55.978β = 111.97
c = 91.692γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
HKL-3000data scaling
PHENIXphasing
Cootmodel building

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other governmentChinaGrant No. 32270063

Revision History  (Full details and data files)

  • Version 1.0: 2023-03-29
    Type: Initial release
  • Version 1.1: 2024-10-16
    Changes: Data collection, Structure summary
